TM
STOVES

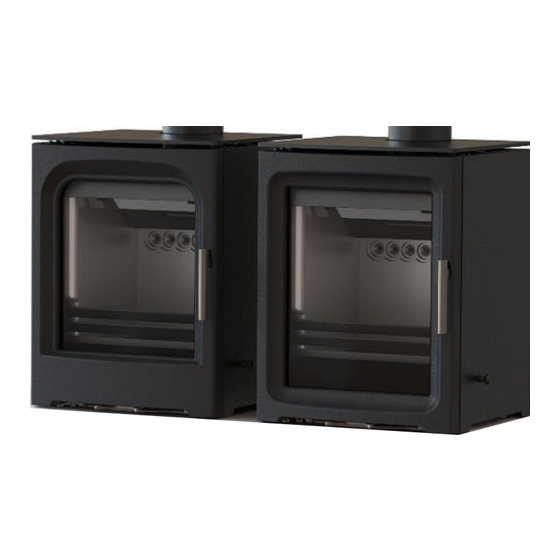

Freestanding Stove Range inc Countryman
PV5 5kW, PV5W 5kW Wide, PV5WS 5kW Slimline &
PV85 8.5kW Nominal Outputs.
Installation and Operating Instructions
Please hand these instructions to the stove user when the installation is complete. Leave the stove
ready for operation and instruct the user in the correct use of the appliance and operation of controls.
Important: – These products must be installed by a suitably qualified
installer.
Clean Air Act Exemption
The Purevision PV5 5Kw, Purevision PV5 Countryman 5kW, Purevision PV5W 5kw Wide, Purevision
PV5W Countryman 5kW Wide, Purevision PV5WS 5kW Wide Slimline, Purevision PV5WS Countryman
5kW Wide Slimline and Purevision PV85 8.5kW stoves only have been exempted under the Clean Air
Act 1993 to burn seasoned wood logs in designated smokeless zones in the UK. This is subject to the
correct fitting of the air control plate (the part and fitting instructions are packed separately)
maintaining the air wash control at a minimum opening at all times. Instructions for wood burning
MUST be followed in order to ensure compliance at all times.
Fireline
– A division of: Charlton & Jenrick Ltd
Unit D Stafford Park 2, Telford, Shropshire, TF3 3AR
T: 01952 200 444
F: 01952 200480
www.charltonandjenrick.co.uk
A Charlton and Jenrick Group Company
Advertisement
Table of Contents
Related Manuals for Fireline Purevision PV5 5Kw
Summary of Contents for Fireline Purevision PV5 5Kw
- Page 1 Clean Air Act Exemption The Purevision PV5 5Kw, Purevision PV5 Countryman 5kW, Purevision PV5W 5kw Wide, Purevision PV5W Countryman 5kW Wide, Purevision PV5WS 5kW Wide Slimline, Purevision PV5WS Countryman 5kW Wide Slimline and Purevision PV85 8.5kW stoves only have been exempted under the Clean Air Act 1993 to burn seasoned wood logs in designated smokeless zones in the UK.
-
Page 2: Table Of Contents
PLEASE READ ALL THESE INSTRUCTIONS CAREFULLY! For safety reasons it is essential that your stove is correctly installed and operated. Fireline cannot accept responsibility for any fault or consequential problems arising through incorrect installation or operation. TABLE OF CONTENTS Section Page No 1. - Page 3 7. Operating Instructions 7.1 Safety Notes for your guidance 7.1.1 Fireguards 7.1.2 Modifications 7.1.3 Overfiring 7.1.4 Fume Emission 7.1.5 Chimney Fire 7.1.6 CO Alarms 7.2 Warnings 7.3 Clean Air Act (Smoke Control Zones) 7.4 Air controls 7.4.1 Single Air Control 7.4.2 Air Wash 7.4.3 Tertiary Air 7.4.4 Multifuel Grate...
- Page 4 9.11 Adjusting Door Latches 9.12 Adjusting Latch Pins 10. Dimensions 10.1 Purevision 5 10.2 Purevision 5 Wide 10.3 Purevision 5 Wide Slimline 10.4 Purevision 8.5 11. Frequently Asked Questions Purevision Freestanding Issue 09 04/21...
-
Page 5: List Of Components
2.0 Component Identification and Controls Fig 1. Operating Tool List of Components Description of Parts Purevision Stove Assembly Operating Tool & Stand Ash Pan Flue Spigot Collar (installed) Casing Blanking Plate (installed) Stove Operating Gloves Purevision Toolkit Fig 2 – Purevision Stove Assembly and controls. -
Page 6: Preparation Of Stove For Installation
3.0 Preparation of Stove for Installation Your stove comes fully assembled, checked and packed in a protective plywood crate. Carefully remove the straps and lift off the top and upper crate. Remove any plastic packaging, open the door and remove all the contents. See List of Components section (above) and check contents carefully. -
Page 7: Important Safety Information
3.8. Make the connection to the flue, chimney or liner using appropriate rigid flue pipe or adaptor, making sure to seal all joints carefully. 3.9. Now proceed to complete the installation of the stove according to these instructions, Building Regulations and current installation standards or HETAS advice. 3.10. -
Page 8: Fuels
4.1.5. Fuels Only use recommended fuels which are seasoned (or kiln dried) wood logs or smokeless briquetted fuels. The appliance can be damaged by burning petroleum coke, liquid fuels or general rubbish and this will invalidate your warranty and risk your personal safety. The appliance must not be used as a rubbish incinerator. -
Page 9: Ventilation
Where the chimney is believed to have previously served an open fire installation, it is possible that the higher flue gas temperature from the stove may loosen deposits that were previously firmly adhered, with the consequent risk of flue blockage. It is therefore recommended that the chimney be swept a second time within a month of regular use after installation. -
Page 10: Material Clearance Dimensions
Whilst 150mm diameter flue or liner is recommended wherever possible, a suitable 5” flexible flue liner is permitted be used on Purevision stoves providing that they only burn smokeless fuel or seasoned wood logs with the air limiter fitted in in full accordance with the wood burning instructions. -
Page 11: Distances From Non Combustible Materials
COMBUSTIBLE SHELVES AND BEAMS Due to the fact that combustible shelves, timber fireplaces and beams have potentially thousands of possible configurations in conjunction with stoves outset or inserted partially or fully into chambers, it is not possible to give firm guidance on dimensions to these features. As a guideline, materials that are in ‘line of sight’... - Page 12 Upon completion of the installation, allow a suitable period of time for any fire cement and mortar to dry out. A small fire may then be lit and checked to ensure the smoke and fumes are taken from the stove up the chimney and emitted safely to atmosphere. Advise the customer not to run the stove at full output for at 3 –...
-
Page 13: Technical Data & Declaration Of Performance
6.0 Technical Data & Declaration of Performance (DoP) Manufacturer: Fireline UK Ltd, a Division of Charlton & Jenrick Ltd. Range Designation: Purevision freestanding stoves. Models: Purevision 5kW, 5kW Wide, 5kW Wide Slimline & 8.5kW inc Countryman versions. Nominal outputs of 5kW and 8.5kW. -
Page 14: Operating Instructions
7.0 Operating Instructions Safety Notes for your guidance 7.1. 7.1.1. FIRES CAN BE DANGEROUS – Always use a fireguard to BS 8423:2002 Fireguards for use with solid fuel appliances in the presence of children, the elderly or the infirm. 7.1.2. DO NOT perform modifications to the appliance as this could seriously compromise safety in operation. -
Page 15: Warnings
In Wales and Northern Ireland these are authorised by regulations made by Welsh Ministers and by the Department of the Environment respectively. The Fireline Purevision 5kW, 5kW Wide, 5kW Wide Slimline and 8.5kW range have been recommended as suitable for use in smoke control areas when burning wood logs. This is conditional upon fitting the supplied secondary air control limiters and following the wood burning instructions precisely. -
Page 16: Air Controls
7.4.2 Air Wash All Fireline stoves are provided with a sophisticated “air wash” system to assist in keeping the fire as visible as possible and reducing cleaning intervals. This secondary air supply to the stove is controlled through the main single air control. The Clean Air Act air restrictor bracket will deliberately prevent full closure of this control on the Wood side of operation. -
Page 17: Multifuel Grate
7.4.4 Multifuel Grate Your stove is fitted with a multifuel grate, which can be shaken from the right side of the stove by pulling and pushing the knob as required. The slot in the operating multi tool can be used to operate the knob or use the gloves supplied. -
Page 18: Important Notes For Wood Burning
Should any difficulties arise over fuel quality or suitability, consult your local approved fuel merchant. Important Information for Wood Burning With a full load of wood and burning near nominal output the stove will need to be refuelled approximately every 1-1.5 hours. One or two large logs will burn longer than a number of smaller ones. -
Page 19: Notes On Smokeless Fuel (Maxibrite) Burning
Information on Smokeless Fuel (Maxibrite) burning Maxibrite, briquetted smokeless and coal type fuels require very different burning conditions to log burning and the single air control has been designed to allow for this. Use the control on the right side of its travel marked ‘Coal’ for best efficiency on these types of fuel. Maxibrite and other smokeless briquetted fuels can burn with very little primary air and stay in for many hours to be revived after an overnight burn for example. -
Page 20: Re-Fuelling
Allow the fuel to reach a steady burn and usually the initial fuel can be left to burn down to charcoal without much further attention. Build the fire up carefully by adding a couple of small well split logs or an amount of Maxibrite briquettes at a time. -
Page 21: Shutting Down For Prolonged Periods
will eventually go out but it will also cause the glass to blacken. If you want to revive the fire it is recommended that the air control is opened fully initially. Warning! - The stove will remain very hot for a considerable time after the fire has died down or been extinguished. -
Page 22: Active Baffle System
8.0 Active Baffle System Description: The Purevision range, including the Classic versions may be fitted with an internal stainless steel active baffle assembly which fulfils a number of functions: a) IGN Position: Direct access of ignition heat into flue-way to start up cold, inactive flues in a quicker and more user-friendly way. -
Page 23: Adjustment
(regardless of the door position) thereby allowing products of combustion straight into the flue pipe during ignition. This heats up the flue quicker to generate draught sooner and enables lower emissions to be produced during a shorter ignition phase. B) Sliding the operating rod to the closed position and depressing it firmly inwards and downwards into the slot until it latches fully into the CLOSED position allows the baffle flap to remain in the closed position permanently... -
Page 24: Maintenance Guide
9.0 Maintenance Guide Removing Top Plate. Remove the stove top plate by lifting away. Note the machined sockets and adjustable top plate supports for levelling and adjustment as required. It is not necessary to remove the top plate or door to clean or remove items from inside the firebox. -
Page 25: Removing Baffle Plate
Removal of or Inspection Above Baffle Plate. 1. First lift upwards at the front and at the same time sliding the rear forwards off the back baffle support bracket. 2. Next lower the rear edge into the firebox and allow the front of the baffle to slide off the front baffle support brackets. -
Page 26: Removing Grate Components
Removing Firebox Liners and Fuel Retainer Assembly. 1. First slide the front edges of the left and right firebox liners inwards at the front until they disengage from the rear liner. Then tilt them slightly and remove from the firebox – NOTE: Ensure that the rear firebox liner does not fall forwards and break! 2. -
Page 27: Removing Flue Spigot Collar
Removing Flue Spigot Collar. Unscrew 4 x M6 securing screws from inside the firebox and remove spigot collar. When re-assembling either use a suitable fireproof gasket or fire cement. Removing Outer Casing. 1. Unscrew 2 x M6 screws securing lower casing to stove legs. -
Page 28: Door Hinge Adjustment
Door Hinge Adjustment. Door alignment may be adjusted by slackening the door hinge securing screws and re-positioning the hinge to suit. This will adjust the horizontal alignment. For front-back alignment carefully adjust the hinges mounted on the stove body. Check the door seals with a paper strip all around after any adjustment to prove they are still sealing correctly. -
Page 29: Smoke Control Air Limiter Bracket
Smoke Control Air Limiter. 1. If the stove is to be used to burn seasoned wood logs in a Smoke Control Zone in the UK, the Smoke Control air limiter bracket must be fitted. This bracket prevents the air control being completely closed when the stove is used to burn wood. - Page 30 9.11 Adjusting Door Latch. If the door latches click back into their closed position when opening the door then they need a simple adjustment to correct positioning in relation to the door latch pins mounted on the stove body. Loosen the fixing screws slightly and then slide the latch assembly towards the edge of the door (towards the latch pin mounted on the stove body).
- Page 31 8.1 Purevision 5kW Stove Principal Dimensions All Dimensions shown in mm. Purevision Freestanding Issue 09 04/21...
- Page 32 8.2 Purevision 5kW WIDE Stove Principal Dimensions All Dimensions shown in mm. Purevision Freestanding Issue 09 04/21...
- Page 33 8.3 Purevision 5kW WIDE Stove Principal Dimensions All Dimensions shown in mm. Purevision Freestanding Issue 09 04/21...
- Page 34 8.4 Purevision 8.5kW Stove Principal Dimensions All Dimensions shown in mm. Purevision Freestanding Issue 09 04/21...
- Page 35 Blank Page Purevision Freestanding Issue 09 04/21...
- Page 36 Output can also be varied by log size and quantity fired. 5 What warranty do I get? Fireline will replace, free of charge, any part that fails (under normal operating conditions) within 12 months of purchase. Consumables such as glass, firebox lining boards or stove rope and adhesives are not guaranteed.
