Summary of Contents for Dixon SpeedZTR 30

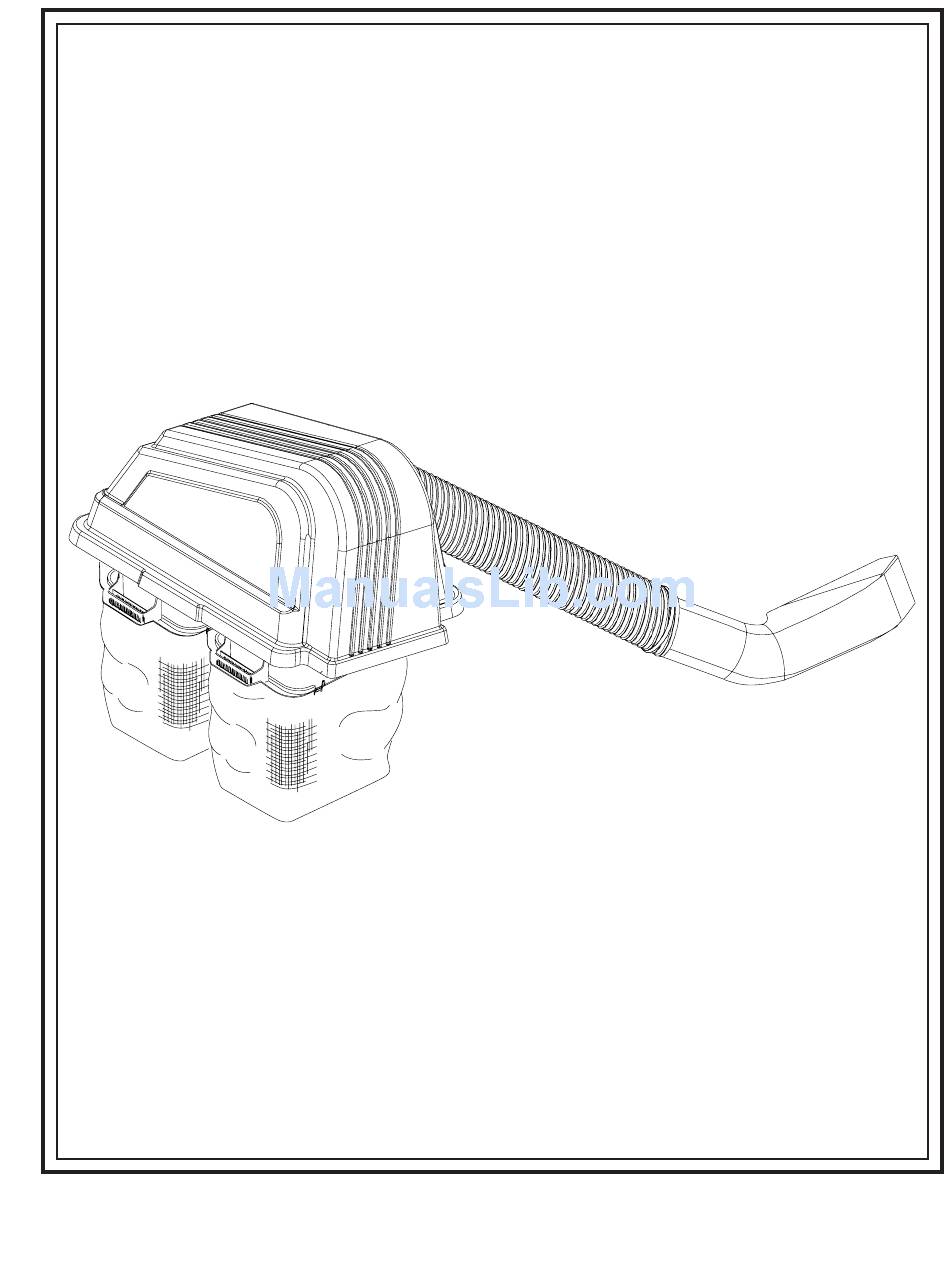

Page 1 Operator and Parts Manual Grass Catcher Dixon SpeedZTR 30 Kit 539 131188...
Page 2 CONGRATULATIONS on your purchase of a KNOW YOUR GRASS CATCHER new Grass Catcher. It has been designed, READ THIS OPERATION MANUAL AND engineered and manufactured to give you the SAFETY RULES BEFORE ASSEMBLING OR best possible dependability and performance. OPERATING YOUR GRASS CATCHER. Com- Should you experience any problem you cannot pare the illustrations with the carton contents to easily remedy, please contact your nearest...
Page 3: Table Of Contents
TABLE OF CONTENTS SAFETY RULES ........................4-6 CARTON CONTENTS ........................7 ASSEMBLY .......................... 8 - 12 OPERATION ..........................12 CUSTOMER RESPONSIBILITIES ....................13 PARTS ..........................14 - 17 TORQUE SPECIFICATIONS ...................... 18...
Page 4: Safety Rules
SAFETY RULES SAFE OPERATION PRACTICES FOR RIDE-ON MOWERS DANGER ! THIS CUTTING MACHINE IS CAPABLE OF AMPUTATING HANDS AND FEET AND THROWING OBJECTS. FAILURE TO OBSERVE THE FOLLOWING SAFETY INSTRUCTIONS COULD RESULT IN SERIOUS INJURY OR DEATH. I. GENERAL OPERATION •...
Page 5 SAFETY RULES SAFE OPERATION PRACTICES FOR RIDE-ON MOWERS • Use extra care in handling gasoline and other DO NOT fuels. They are flammable and vapors are • Do not turn on slopes unless necessary, and explosive. then, turn slowly and gradually downhill, if Use only an approved container.
Page 6 SAFETY RULES SAFE OPERATION PRACTICES FOR RIDE-ON MOWERS • NEVER allow children to operate the machine. CAUTION • Be sure the area is clear of other people In order to prevent accidental starting when before mowing. Stop machine if anyone setting up, transporting, adjusting or making enters the area.
Page 7: Carton Contents
UNPACKING INSTRUCTIONS CARTON 1 CONTENTS • Remove all parts and packing materials from 1 - Upper Chute 1 - Owner’s Manual both cartons. 1 - Flex Hose 1 - Hanger Bracket • Check carton contents against list. Be sure all 1 - Discharge Adapter 1 - Adapter Bracket parts are there.
Page 8: Assembly
ASSEMBLY BAGGER SUPPORT ASSEMBLY MOUNTING COVER ASSEMBLY TO SUPPORT ASSEMBLY 1. Remove the two upper side bolts on the NOTE: For ease of assembly, you may wish engine guard as illustrated. Set hardware assistance from another person for mounting the aside for reuse.
Page 9 ASSEMBLY CONTAINER MOUNTING BOOSTER RING 1. Install container, centering between support 1. Remove mower deck from machine. Refer to tubes. Operator’s Manual, if necessary. NOTE: One container should always 2. Install the high lift adapters to existing high lift overlap the other container at supports. mower blade.
Page 10 ASSEMBLY LOWER CHUTE FLEX HOSE 1. Turn mower engine off. 1. Slide flex hose onto open end of discharge adapter. 2. Remove grass deflector on mower by pulling hair pin cotter and deflector pin. Set aside to 2. Thread hose clamp around flex hose and reuse.
Page 11 ASSEMBLY UPPER CHUTE FRONT WEIGHTS 1. Center the weight box on the front face of foot 1. Slide opposite flex hose end into upper chute. plate, as illustrated. Use the holes in weight 2. Push upper chute through the gasketed box as a template to mark and drill four "...
Page 12: Operation
OPERATION TIPS FOR IMPROVED BAGGING • Avoid cutting wet grass or in the morning OPERATION while the dew is still heavy. Grass clippings collected under these conditions tend to be Follow the mower operation instructions in your sticky and adhere to the walls of the flow path mower operator’s manual.
Page 13: Customer Responsibilities
CUSTOMER RESPONSIBILITIES GENERAL RECOMMENDATIONS STORAGE Always observe safety rules when performing any When grass catcher is to be stored for a period of maintenance. time, clean it thoroughly, remove all dirt, grass, leaves, etc. Store in a clean, dry place. •...
Page 14: Parts
PARTS...
Page 15 PARTS ITEM QTY. DESCRIPTION ITEM QTY. DESCRIPTION 1 .. 532 124670 ..1 ... RETAINER SPRING 9 .. 539 991034 ..8 ... 10-24 x WASHER HD ZD 2 .. 532 127533 ..1 ... SCREEN, COVER 10 .. 532 155042 ..1 ... STRIP, REINFORCEMENT 3 ..
Page 16 PARTS...
Page 17 PARTS ITEM QTY. DESCRIPTION ITEM QTY. DESCRIPTION 1 .. 539 108397 ..6 ... HCS -24 x GR5 ZD 11 .. 539 121399 ..1 ... WEIGHT 2 .. 539 110943 ..6 ... NUT -24 NYLOC 12 .. 539 131153 ..1 ... BRACKET, HANGER 3 ..
Page 18: Torque Specifications
TORQUE SPECIFICATIONS HEX HEAD CAP SCREWS The torque values shown should be used as a general guideline when specific torque values are not given. U.S. Standard Hardware Flangelock Screw Grade SAE grade 5 SAE grade 8 w/ Flangelock Nut ft./lbs ft./lbs ft./lbs 5/16...
Page 20 539-131193 IR 05/07...
