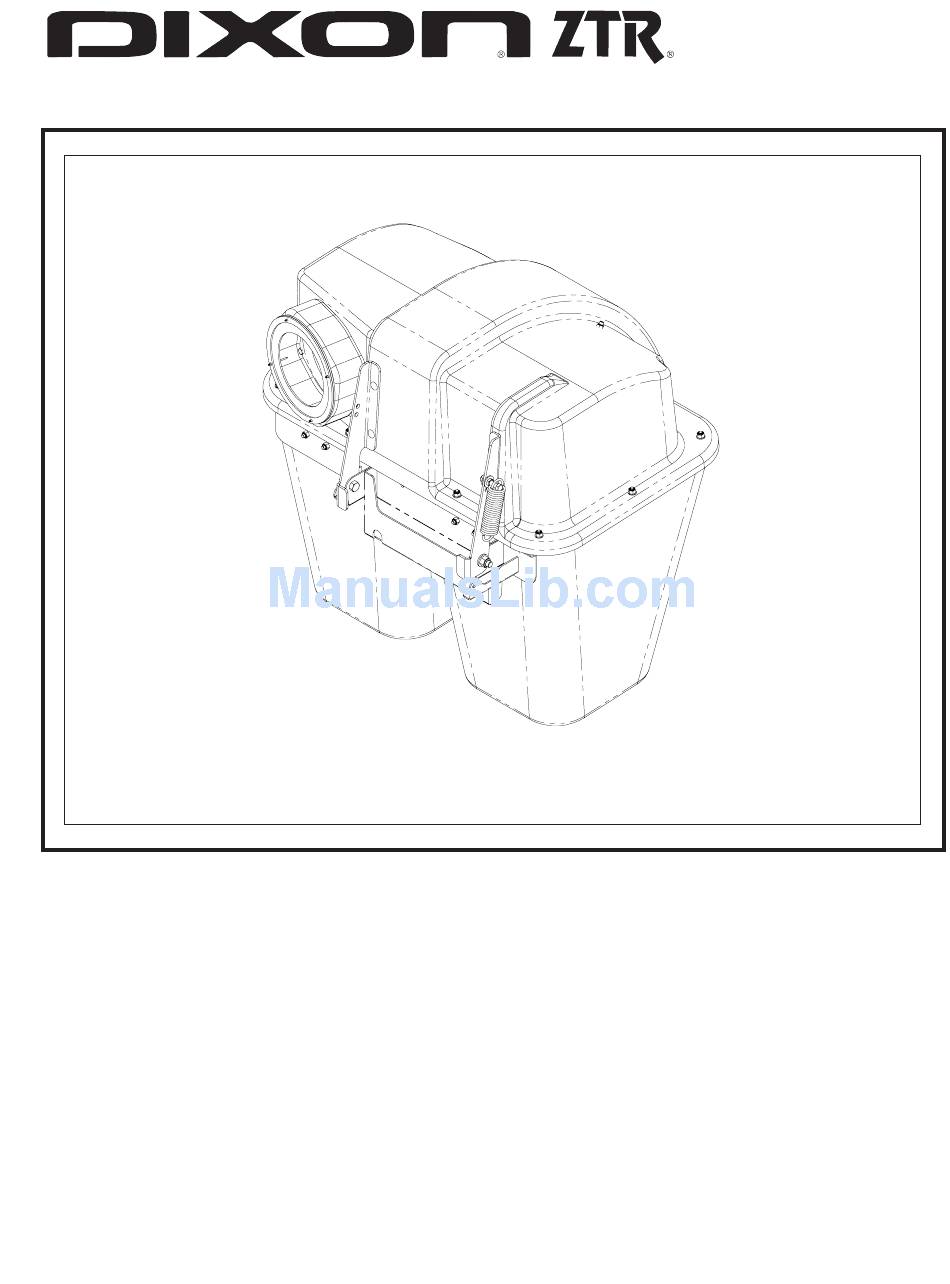

Page 1: Collection System
Operators Manual Parts Manual Please read these instructions carefully and make sure you understand them before using the machine. MANUAL NO. 539 130678 REV. IR (02/20/07) Collection System Models: 114892 - DCR2 114893 - DCK2... -
Page 2: Safety Rules
Do not make sudden changes in speed or direction. • Avoid starting or stopping on a slope. If tires lose traction, disengage the blades and proceed slowly straight down the slope. ©2007 Dixon. All Rights Reserved. Beatrice, NE. Printed in U.S.A. - Page 3 SAFE OPERATION PRACTICES FOR RIDE-ON MOWERS DO NOT: • Do not turn on slopes unless necessary, and then, turn slowly and gradually downhill, if possible. • Do not mow near drop-off, ditches, or embankments. The mower could suddenly turn over if a wheel is over the edge of a cliff or ditch, or if an edge caves in.
- Page 4 SAFE OPERATION PRACTICES FOR RIDE-ON MOWERS • NEVER allow children to operate the machine. • Be sure the area is clear of other people before mowing. Stop machine if anyone enters the area. • Never carry passengers or children even with the blades off.
-
Page 5: Table Of Contents
CONGRATULATIONS on your purchase of a new Grass Catcher. It has been designed, engi- neered and manufactured to give you the best possible dependability and performance. Should you experience any problem you cannot easily remedy, please contact your nearest au- thorized service center/ department. -
Page 6: Carton Contents
UNPACKING INSTRUCTIONS • Remove all parts and packing materials from carton. • Check carton contents against list. Be sure all parts are there. TOOLS REQUIRED FOR ASSEMBLY (1) 1/2" Wrenches (1) 5/8" Socket Ft/Lbs Torque Wrench PARTS IDENTIFICATION COVER ASSEMBLY NOTE: When right hand (R.H.) and left hand (L.H.) are mentioned in this manual, it means when you are seated on the mower in the operator’s position. -
Page 7: Assembly
COLLECTION MOUNT BRACKETS (See Figure 1.) 1. To prevent damage to grass bags, remove hitch from rear of chassis. Instead of removing the hitch, you may prefer to mount it backward (pointing to the front). If mower has just been uncrated, the hitch should already be mounted backward. - Page 8 MOUNTING COVER ASSEMBLY TO SUPPORT ASSEMBLY (See Figure 4) NOTE: For ease of assembly, you may wish to obtain the assistance of another person for mounting cover assembly to mower. 1. Install catcher top to left side of bagger support, as illustrated. Use a 1/2-13 x 1-1/4" bolt, one 1/2"...
- Page 9 FRONT WEIGHTS - RAM Bolt cast weight and two weight brackets together using four bolts (539 106492, 3/8 x 2 3/4") and four nuts (539 976979, 3/8” nyloc). Slide both weight brackets over the front tube on the frame. Be sure to position in the center of the frame.
-
Page 10: Assembly
FRONT WEIGHTS - KODIAK 1. Remove mower foot plate and floor pan. 2. Align weight bar to the front of the frame. See diagram. 3. Secure weight bar to mower frame with four 5/16-18 x 1 1/4" hex bolts from kit, reuse the four 5-16"... -
Page 11: Operation
TIPS FOR IMPROVED BAGGING OPERATION: Follow the mower operation instructions in your mower operator’s manual. When operating your grass catcher on a lawn where grass and leaf bagging equipment has not been used, you are picking up thatch and debris that has accumulated for long periods of time. -
Page 12: Customer Responsibilities
GENERAL RECOMMENDATIONS: Always observe safety rules when performing any maintenance. • Before each use check for loose fasteners. • Clean unit thoroughly after each use. BLADE CARE: For best results mower blades must be kept sharp. Replace bent or damaged blades. •... -
Page 13: Parts
PARTS ILLUSTRATIONS... -
Page 14: Hood Assembly
HOOD ASSEMBLY... - Page 15 ITEM PART NO. QTY. DESCRIPTION 1... 539 115408 ... 1... LATCH ROD GRIP 2... 539 115445 ... 1... G.C. CATCH HANDLE 3... 539 990580 ... 2... HCS, 1/4-20 X 3/4, GR5 4... 539 990188 . 21 ... WASHER, 5/16, SAE 5...
-
Page 16: Bagger Assembly
PART NO. QTY. DESCRIPTION 1... 539 117724 ... 2... BAG RETAINING CLIP 2... 539 117927 ... 1... DECAL, DIXON 3... 539 119012 ... 2... SPACER 4... 539 120197 ... 1... BAGGER MOUNT 5... 539 120239 ... 1... SPRING 6... 539 108369 ... 2... HCS, 1/2-13 X 1 1/4, GR5 7... -
Page 17: Grass Bag
GRASS BAG ASSEMBLY ITEM PART NO. QTY. DESCRIPTION 1... 539 115437 ... 1... TUBE PLUG 2... 539 115581 ... 2... SCREW, 6-20 X 1/2 PHIL PAN D/T 3... 539 117739 ... 1... BAG TUBE, SMALL 4... 539 118048 ... 1... GRASS BAG... -
Page 18: Mount Kit Ram
ITEM PART NO. QTY. DESCRIPTION 1... 539 114851 ... 1... PLATE, MOUNT 2... 539 114887 ... 2... STRAP 3... 539 990208 ... 2... RRSNB, 5/16-18 X 1, GR5 4... 539 990316 ... 4... RHSNB, 5/16-18 X 3/4, GR5 5... 539 111785 ... 2... RHSNB, 3/8-16 X 3/4, GR5 6... -
Page 19: Mount Kit Kodiak
ITEM 1... 539 114851 ... 1... PLATE, MOUNT 2... 539 111215 ... 2... SUPPORT BRACKET 3... 539 114849 ... 2... STRAP 4... 539 111785 ... 2... RHSNB, 3/8-16 X 3/4, GR5 5... 539 990645 ... 4... RHSNB, 3/8-16 X 1, GR5 6... -
Page 20: Weight Kit Ram
WEIGHT KIT - RAM ITEM PART NO. QTY. DESCRIPTION 1... 539 111587 ... 1 ... CAST WEIGHT 2... 539 114898 ... 2 ... BRACKET, WEIGHT 3... 539 106492 ... 4 ... HCS, 3/8-16 X 2 3/4, GR5 4... 539 991126 ... 4 ... HCS, 3/8-16 X 3 3/4, GR5 5... -
Page 21: Weight Kit Kodiak
WEIGHT KIT - KODIAK ITEM PART NO. QTY. DESCRIPTION 1... 539 111313 ... 1... HOLD DOWN, WEIGHT BAR 2... 539 102049 ... 2... CLEVIS PIN 3... 539 108096 ... 2... SPRING RETAINER 4... 539 114858 ... 1... WEIGHT BAR 5... 539 990627 ... 4... HCS, 5/16-18 X 1 1/4, GR5 6...
