Installing The Ink Tanks - Canon Pixma iP5200 Quick Start Manual

Print Head
Print Head Holder

Installing the Ink Tanks

• For safety reasons, store ink tanks out of the reach of small children.
• Do not drop or shake ink tanks as this may cause the ink to leak out and stain your clothes and hands.
• Be sure to remove the clear film from the ink tank in the exact order as shown in step 2.
5

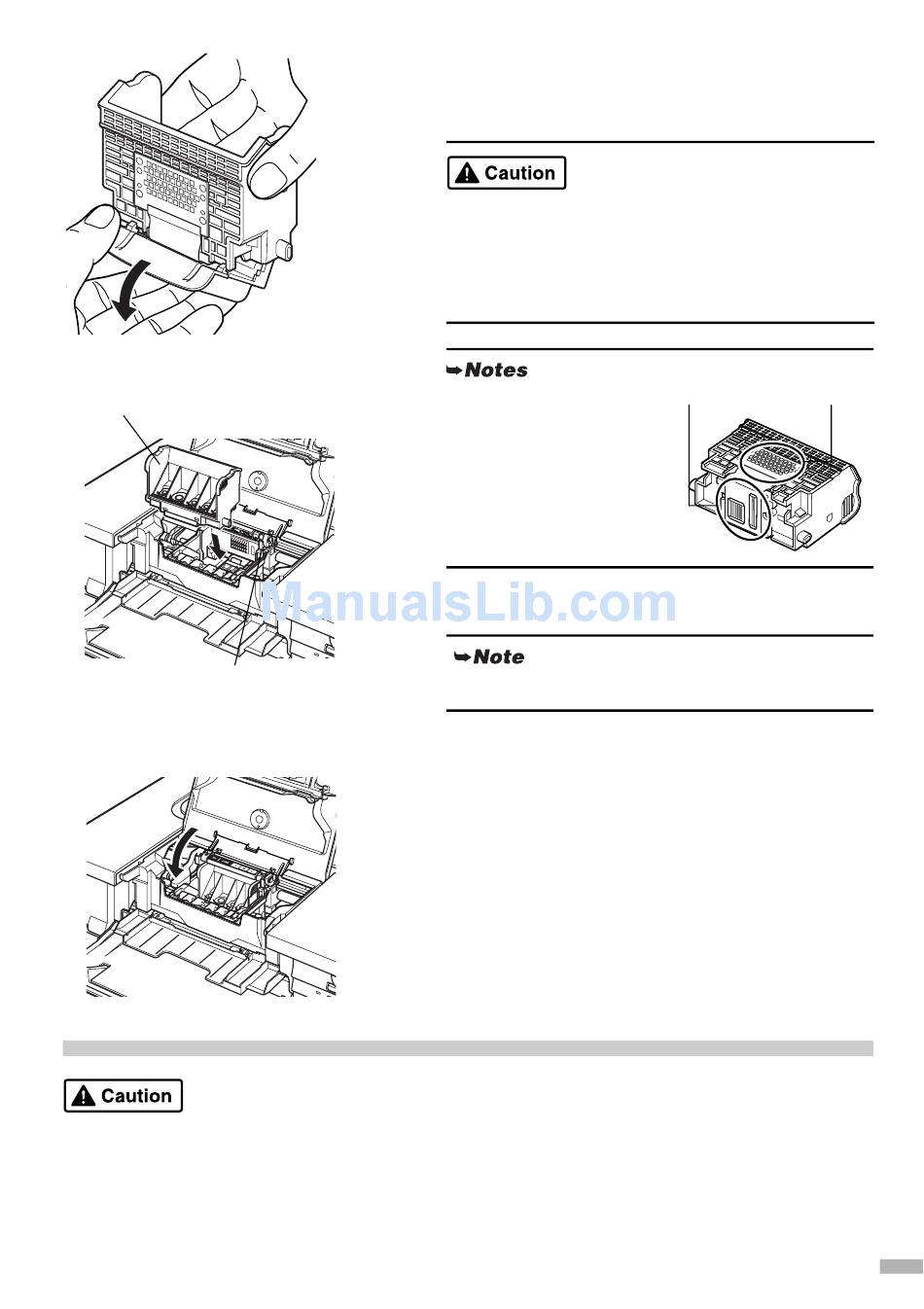

Remove the Print Head from its
package, then remove the orange
protective cap from the Print Head.
There might be some transparent or light blue ink on
the inside of the bag the print head comes in, or the
inside of the protective cap - this has no effect on
print quality. Be careful not to get ink on yourself
when handling these items.
• Do not touch the Print
Head Nozzles or
electrical contacts.
• Do not attempt to
reattach the protective
cap once it has been
removed.
6
Place the Print Head in the holder.
Be careful not to touch any parts inside the printer.
7
Lock the Print Head into place by
carefully lowering the lever.
Do not touch the lever once the Print Head has been
installed.
Print Head electrical
Nozzles contacts
3
