Microlab SOLO3 User Manual page 4

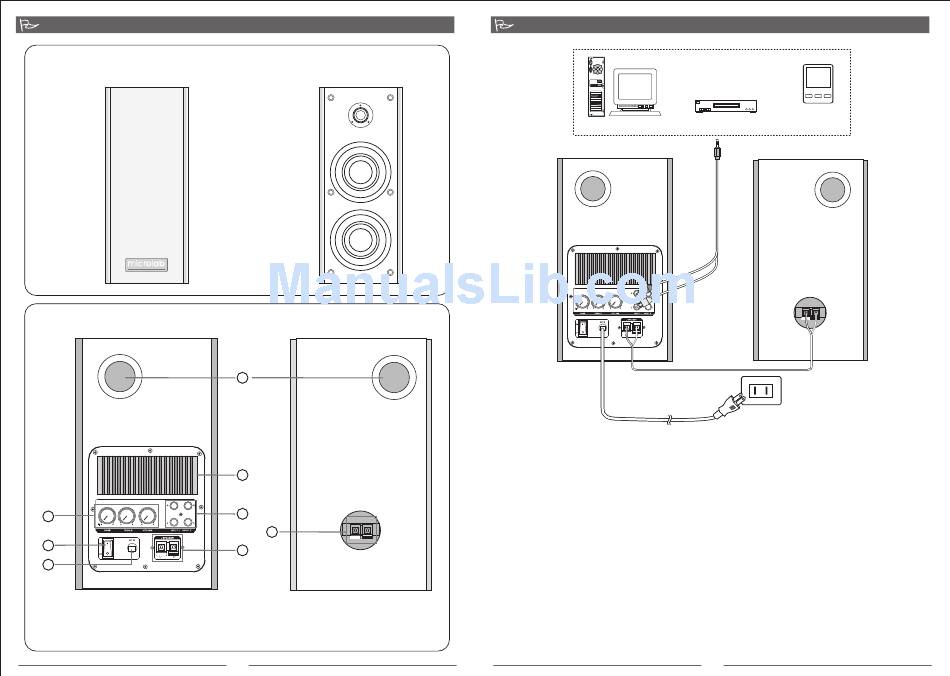

Illustrations
Front View:
Sub Speaker
Real View
Main Speaker
1
+ + +
2
3
1. Bass, Treble and Master Volume knobs
2. Power switch
3. AC power supply
4. Bass reflex tunnel
Main Speaker
Sub Speaker
4
5
6
8
7
5. Heat sink
6. INPUT 1, INPUT 2
7. Terminals Output
8. Terminals Input
3
Product connection and operation
PC
Main Speaker
+ + +
*please note the figure above for this product system correct placing and connection
1. Multimedia speaker connections
a. Connect the interconnect speaker cable to the Sub speaker and the other end to the
Main speaker's audio output jacks (terminals)
b. Ensure the terminal polarity connections are matched both ends.
c. Ensure the master volume on the rear panel is turned down low or minimum, connect the 2RCA
left and right connector to the Main speaker rear audio input jacks.
d. Connect the corresponding end to your playback device.
e. Plug the AC power cable to source and turn on the power.
2. Operation
a. Depress the POWER switch on the Main speaker to turn on the multimedia speaker system.
b. Ensure that your audio source is correctly configured and start the playback file.
c. Adjust the master volume on the rear panel of the Main speaker to your preferred level.
Mp3 \ Mp4
Media player
CD\ VCD \ DVD
Sub Speaker
AC power supply:
220V-240V~ 50Hz
4
