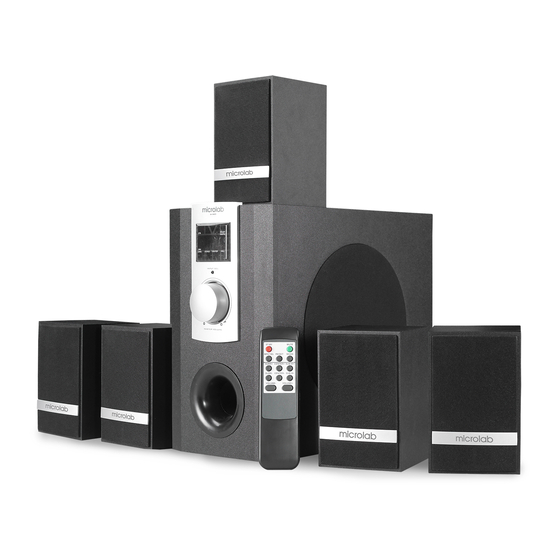

Microlab M-960 Instruction Manual

80-M960-97-0001-02 2006-09-09 出
POWER
Operation Instruction:
A. Operation by hand:
1. Turn on the power switch on the back of
the subwoofer, the system into ST-BY
5.1CH
mode, the ST-BY LED is lighted,turn the
master volume knob to turn on the system.
2. Press INPUT SEL button to select the audio input mode between
5.1CH and AUX.
3. Turn the master volume knob to adjust the volume level.
B. Operation by remote control(refer to the Drawing 3):
1.While ST-BY mode,ST-BY LED is lighted,other indicator off. Press
ST-BY key,the system turn on,the ST-BY LED off and the INPUT 5.1CH
LED on.
2.Press INPUT SEL key to select 5.1CH or AUX.
3.Press MODE key to select 5.1CH or 2.1CH output.
4.Press Volume +/- key adjusting Volume,adjusting range 0-80dB
(default 40dB).(1)press VOLUME+,VOLUME+ LED is fleshed,until
80dB the LED fleshed stop.(2)press VOLUME-,VOLUME-LED is fleshed,
unitl 0dB the LED fleshed stop.
5.Press SUB-WOOF +/- key adjusting subwoofer volume,adjusting range
+/-7 dB (default 0dB).while press SUB-WOOF +/- key,the SUB- W+\-
LED is fleshed as above.
6.Press CENTER +/- adjusting the CENTER VOLUME,adjusting range
+/- 7dB ,and the CENTER LED is fleshed.
7.Prss SURR +/- key adjusting the tone of bass,adjusting range +/- 7dB,
and the Bass LED is fleshed.
8.Press MUTE key,the sound will be muted,and the mute LED is feashed,
press again or press Volume key,the MUTE off.
9.Press RESET key,the adjusted SUB-W +/-,CENTER+/- and SURR +/-
Volume reset to normal(0dB).
Specification:
*Power Output: (Subwoofer) 22W (RMS)
(Satellite) 8W x 5 (RMS)
*Frequency Response: (Subwoofer) 30Hz-140Hz
(Satellite) 140Hz-20KHz
*Sensitivity Input: 350mV
*Distortion: 0.3% at 1W 1KHz
*S/N Ratio: > 80dB
*Separation: > 40dB
*Driver Unit: (Subwoofer Driver) 5"
(Satellite Driver) 2.5" magnetically shielded
Inside package:
SubWoofer Speaker---------------------------------------------------------------------1pc
Satellite Speaker-------------------------------------------------------------------------5pcs
Remote Control------------------------------------------------------------------------1pc
Battery------------------------------------------------------------------------------------2pcs
3.5mm-2RCA Signal cable ------------------------------------------------------------1pc
2RCA-2RCA Signal Cable-------------------------------------------------------------3pcs
User's manual-----------------------------------------------------------------------------1pc
Function and Feature:
* High quality and performance 5.1 acoustic aystem
* With remote control for easy operation
* LED display fanction
* Powerful Output, Strong Bass and Crystal Clear Treble.
System Connection(as the drawing 2):
Warning: Before Connecting the speakers, make sure that the power plug is
disconnected from the AC Outlet.
1. Connect the Front Left/Right, Center, Rear Left/Right Speaker Cables to the
appropriate Audio Output Sockets on the back of the subwoofer.
2.Connect one end of the 2RCA-2RCA Signal Cable to the appropriate 5.1 Input
Socket of the Front Left/Right,Center & Rear Left/Right Channel on the back of
the Subwoofer,the other end to the appropriate Audio OutputSockets on the
DVD.
3.If connect to any 2-channel source, just connect one end of the 2RCA-2RCA
signal cable to the R/L AUX Input Socket on the back of the Subwoofer.
4.If connect to PC soundcard or any source only with headset output,then please
use the 2RCA-3.5mm Signal Cable.
5.Make sure all the cables are connected correctly,connect the power plug to the
correct AC outlet.
Remarks the system positioning:
* The satellite speakers of this system are magnetically shielded which could
be positioned besides the PC monitor or near the TV.
* The woofer is recommended to be put on the floor to get a better acoustic
effect and at least 0.6m away from the monitor or TV to avoid magnetic
interference.
* the satellite speakers and the woofer should be positioned firmly to avoid
resonance.
*Audio Input Socket: (AUX Input) 2 RCA Jack
MUTE
*Audio Output Socket: 5 RCA Jack
AUX 5.1CH 2.1CH
INPUT SEL OUTPUT
Caution:
1. Do not exposed to dripping or splashing.
2. Do not placed any objects filled with water over the apparatus.
3. Do not block the ventilation holes.
4. For indoor use only.
5. When using high output signal, please don't turn the volume to maximum
to avoid distortion or demage.
6. For long time no using, please unplug the system from the AC outlet.
7. The socket-outlet shall be installed near the equipment and shall be
easily accessible.

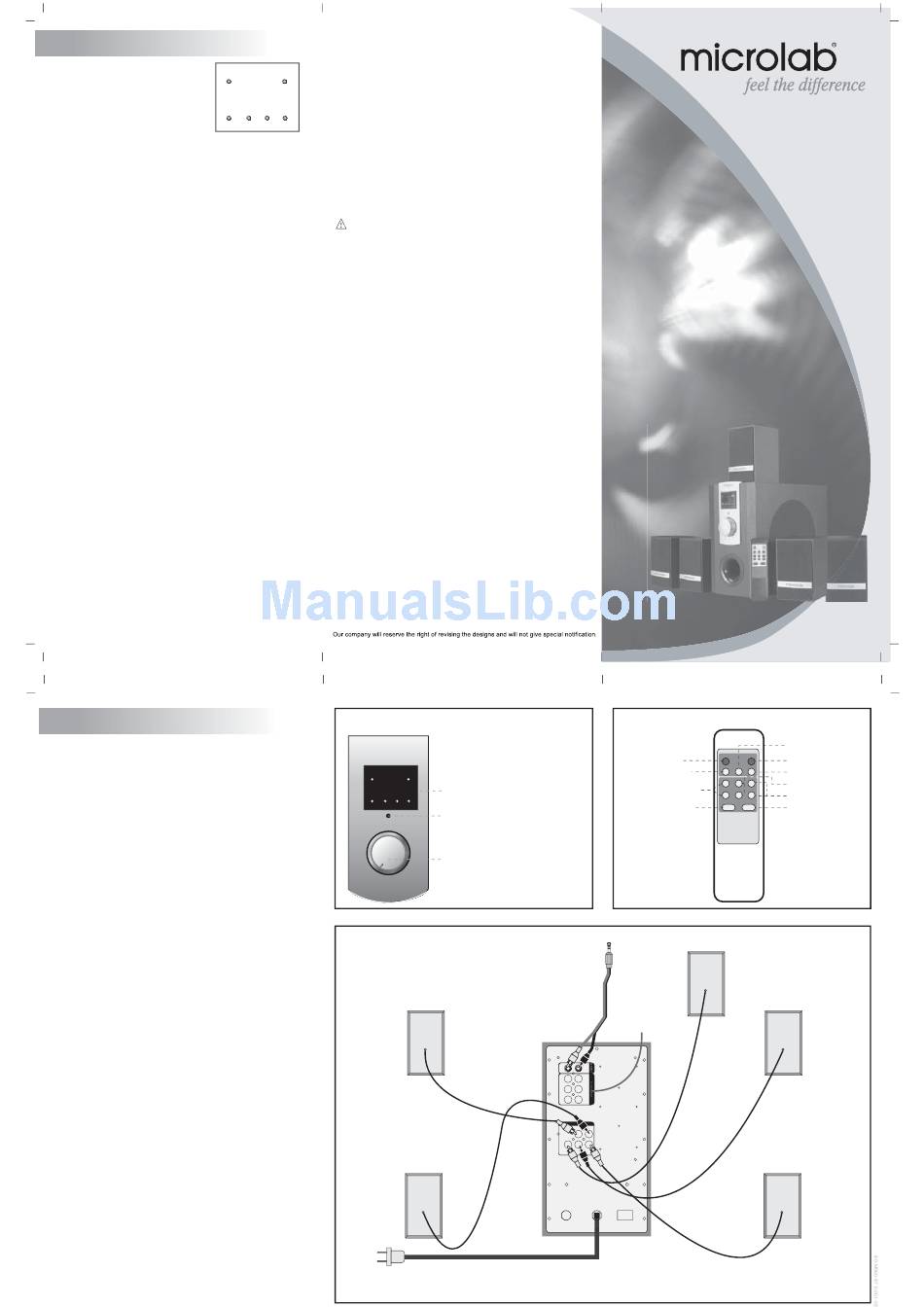

(Drawing 1) Front Panel
POWER
5.1CH AUX 5.1CH
INPUT SEL OUTPUT
INPUT SEL
MASTER VOLUME
(Drawing 2) Connection
(5.1CH Input) 6 RCA Jack
Controls on the front of Subwoofer
MUTE
1. Remote Control Signal Receiving
1
Window and LED display
2.1CH
2. Input selection button
2
3. Master Volume Knob:
The master volume could be
adjusted either by hand or remote
3
control
Computer 2.1 Channel Sound Card
FRONT R
Back Pannel
L
FL
CEN
SL
AUDIO OUTPUT
FR
CEN FL
REAR R
FUSE
(Drawing 3) Remote Control
ST-BY MUTE
Stand by
INPUT SEL RESET MODE
Input selection
SURR+ CENTER+ SUB-W+
Surr fine adjusting SURR- CENTER- SUB-W-
VOLUME - VOLUME +
Volume - control
CENTER
Computer 5.1 Channel Sound
Card or DVD PLAYER
R
FR
S.W.
SR
SR
SL
AC IN
ON OFF
M-960
INSTRUCTION MANUAL
Reset
Mute
Output Mode
Center fine adjusting
Subwoofer fine adjusting
Volume + Control
FRONT L
REAR L
