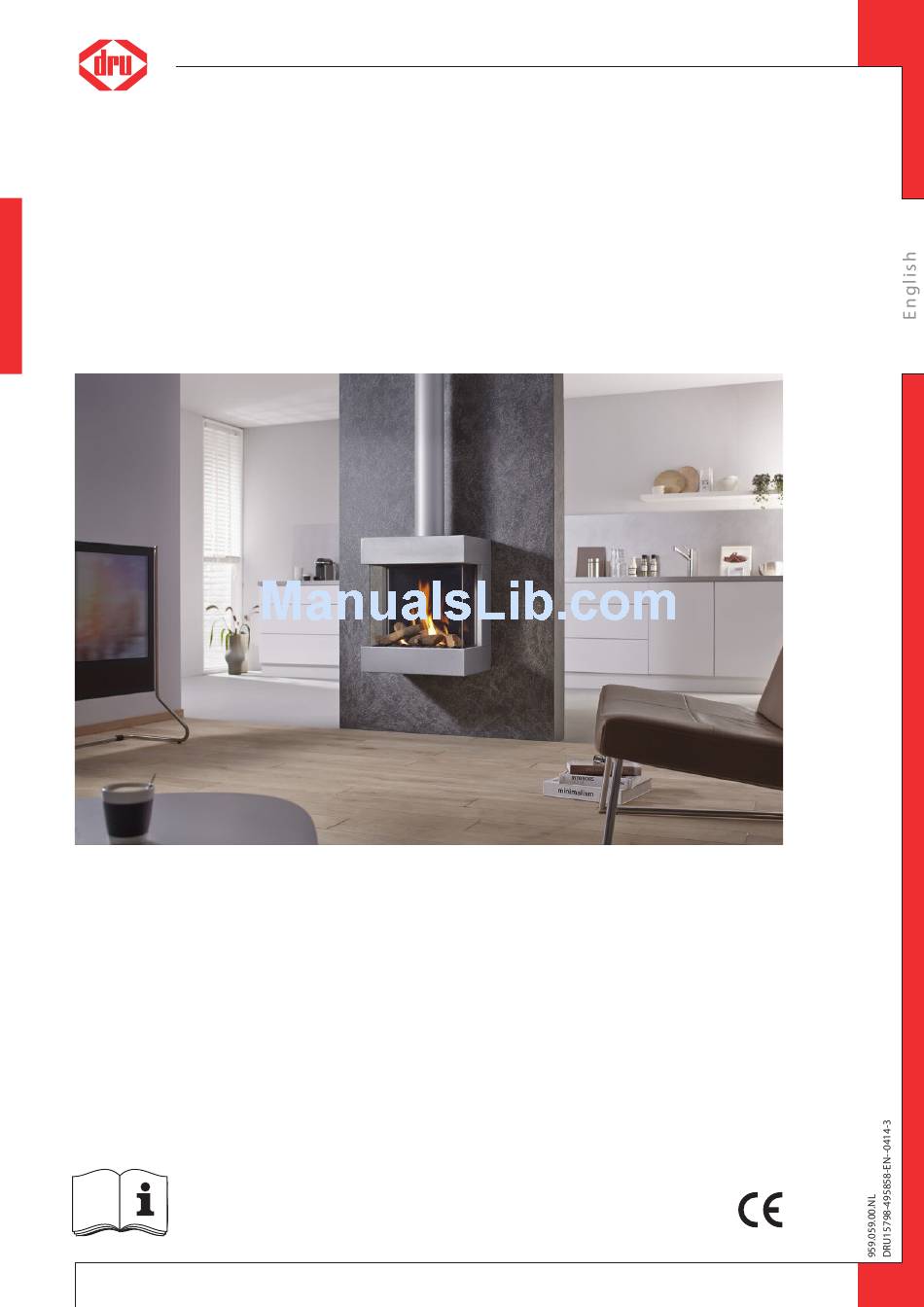

  • Page 1 Diablo G20/G25/G25.3 Natural gas 38P-0468 Installation manual (UK/IE) Store this document in a safe place...

  • Page 2: Table Of Contents

    I NS T AL L A TI O N MA N U A L Contents 1. Introduction 2. CE declaration 3. SAFETY 3.1 General 3.2 Regulations 3.3 Precautions/safety instructions during installation 3.4 Second thermocouple safety 3.5 Oxypilot safety 4. Removing the packaging 5.

  • Page 3: Introduction

    Please, read and use this installation manual carefully and completely, prior to installing this appliance. If you use the DRU Powervent system®, the DRU Smartvent system® or the DRU Maxvent system®, you must carefully and fully read and use the accompanying installation manual as well, prior to its installation.

  • Page 4: Safety

    CE label; Ø if you are installing an appliance with a closed combustion: only use the concentric systems supplied by DRU; Ø if you are installing a free-standing appliance: place the appliance away from the back wall by the minimum distance stated further down in the text;...

  • Page 5: Removing The Packaging

    I NS T AL L AT I ON M A N U A L Removing the packaging Note the following items when removing the packaging: Ø Check the appliance and accessories for damages (during transport). Ø If necessary, contact your supplier. Ø...

  • Page 6: Installation

    Check whether the appliance is suitable for the type of gas and the gas pressure used at the location. !Caution !Tip If you want to convert this appliance into a different type of gas, please contact DRU's service department and ask what is possible. 5.2 Connection 5.2.1 Gas connection...

  • Page 7: Placing A Built-In Appliance

    (if applicable) Not all built in appliances by DRU are supplied with a control hatch. If it is not included, this control hatch is available separately. We recommend using the Dru control hatch at all times. In this chapter, it is assumed that the appliance is used with a control hatch.

  • Page 8: Placing The Control Hatch

    Placing the control hatch section 5.6; the Dru control hatch is not supplied with all appliances. Nevertheless, we recommend only using a Dru control hatch, which can be supplied separately, if necessary. If you decide not to take this option, you will...

  • Page 9: Flue Gas Discharge System In Appliances With Open Combustion

    The passage to the outside can be made with both a wall terminal and roof terminal. If necessary, you can also use an existing chimney (see section 5.8.4). Only use the concentric system supplied by DRU This system has been tested in combination with the !Caution appliance.
  • Page 10 I NS T AL L A TI O N MA N U A L 5.8.2 Construction of the concentric system Depending on the construction of the concentric system, the appliance will have to be further adjusted with possibly a restrictor slide or air inlet guide. See Tables 4 and 6 for determining the correct adjustment and section 'Adjustment of the appliance' for the method of working.
  • Page 11 The surrounding space is used to supply combustion air. The following requirements apply when connecting to an existing chimney: only allowed when used in combination with the special DRU chimney kit. The installation regulation is also supplied;...

  • Page 12: Additional Instructions

    I NS T AL L A TI O N MA N U A L 5.9 Additional instructions !Tip It will be easier to reach the gas control, if you remove the mantelpiece. 5.9.1 Placing the appliance !Caution The temperature of the wall behind the appliance may rise up to 60°C. This should be taken into account when selecting the wall and wall covering.

  • Page 13: Setting The Appliance

    I NS T AL L AT I ON M A N U A L Make sure the front glass pane makes full contact with the side pane (there may be no opening between the side !Caution pane and front pane). If the front and side glass panes do not connect: Ø...

  • Page 14: Mantelpiece

    I NS T AL L A TI O N MA N U A L 5.12 Wood set The appliance is supplied with a wood set. Strictly observe the following instructions to prevent unsafe situations: !Caution only ever use the supplied wood set; place the wood set exactly as described;...

  • Page 15: Control

    Place the receiver in its intended holder under the appliance or in the control hatch according to Appendix 3, fig. 39. If you want to use an adapter, only an adapter supplied by DRU will guarantee a proper operation of the receiver.

  • Page 16: Alternative Operation

    (e.g. Domotics). For this purpose, there are 4 connection points at the side of the receiver (see Appendix 3, fig. 44). For connecting an external control unit, you will need a “Domotics connection cable for GV60”. Consult DRU's service website. The following contacts are possible: Ignition: connect both contacts 1 + 3, for one second (if there is a 2nd thermocouple, the appliance should burn at full power for at least 20 sec.

  • Page 17: Ignition Pilot And Main Burner

    I NS T AL L AT I ON M A N U A L 7.3 Ignition pilot and main burner For igniting the pilot and main burner, see the User Manual, chapter 4, section 4.2, Remote control. 7.3.1 First ignition of the appliance after installation or adjustments !Caution After installation, or after work has been performed, you should ignite the appliance for the first time without the glass window.

  • Page 18: Maintenance

    I NS T AL L A TI O N MA N U A L 8. Maintenance The appliance must be inspected once per year by a skilled installer in the field of gas-fired heating, and repaired if necessary. Check at least whether the appliance is working properly and safely. !Caution Always close the gas tap during maintenance work;...

  • Page 19: Delivery

    I NS T AL L AT I ON M A N U A L Delivery You must explain to the user how to operate the appliance. You must give him/her instructions on putting it in operation, the safety measures, the operation of the remote control and annual maintenance (see the User Manual).

  • Page 20: Appendix 1 Diagnosis Of Malfunctions

    I NS T AL L A TI O N MA N U A L Appendix 1 diagnosis of malfunctions Fires with electronic ignition, fault finding: Ignition and burning Start 2.10 Do(es) main burner(s) 2.06 Pilot can be lit. 2.08 Does main burner ignite ignite smoothly and across 2.01 Can pilot be lit? Does it stay alight?
  • Page 21 (no slots allowed). Voltage 0 mV proper flue terminal used, 2nd couple defective. make should be 'DRU'; Flames: too high Cross ligting main burner very terminal correctly sited on Line pressure. slow. Take actions "Cross roof or wall relative to Burner pressure.
  • Page 22 IN S TA L L A TI O N M A N U A L Malfunction search diagram atmospheric gas-fired heating appliance with electronic ignition: Starting up cycle. Start 1.05 1.01 Does receiver beep? 1.03 Short sound signals, 1 sec after One long 5 second beep, (possibly each other, followed by the preceded by 7 short beeps).

  • Page 23: Appendix 2 Various Tables

    I NS T AL L AT I ON M A N U A L Appendix 2 Tables Table 1: Parts included with the delivery Part Number Wood set Glow material Installation manual User manual Key bolts M6 x 60 x 40 mm Washer M6 Spare self-tapping screws for mounting the glass panes Socket spanner 8 mm...
  • Page 24 Flame protection version Pilot flame with thermocouple 2nd thermocouple safety Atmosphere safety Explosion hatch Ventilation hole chimney breast C11/C31/C91 Type Type of gas G25/G25.3 Burner pressure mbar 14.5 18.0 Nominal heat input (Hs) Nominal heat input (Hi) Nominal output Consumption...
  • Page 25 NL / DK / FI / NO / SE / HU / BA / GR FR / BE / IT / PT / ES / GB / IE Permissibility and conditions concentric system with wall terminal Table 4: Conditions for setting the appliance G20/G25/G25.3 Total number Total number of meters Air inlet guide...
  • Page 26 IN S TA L L A TI O N M A N U A L Table 5: Determining permissibility concentric systemwith roof terminal G20/G25/G25.3 Total number of meters Total no. of meters vertical and/or sloping pipe length horiz. pipe length...

  • Page 27: Appendix 3 Figures

    I NS T AL L AT I ON M A N U A L Appendix 3 Figures 38C-1994/0 38C-1992/0 Diablo Next 1x90° 38C-744zk 0 - 5m 568 min. 38C-1996/0 G 3/8" 38C-1995/0...
  • Page 28 I NS T AL L A TI O N MA N U A L 38C-1997/0 38C-1998/0 38C-2000/0 38C-1999/0 38C-2003/0...
  • Page 29 I NS T AL L AT I ON M A N U A L 38C-2002/0 38C-2005/0 38C-2004/0...
  • Page 30 IN S TA L L A TI O N M A N U A L 38P-0467 38P-0466 38p-0022 38p-0023 38P-0028 /1 38P-0461...
  • Page 31 I NS T AL L AT I ON M A N U A L 38P-0381 38P-0462...
  • Page 32 IN S TA L L A TI O N M A N U A L 38P-0463 38P-0464...
  • Page 33 I NS T AL L AT I ON M A N U A L 38P-0465 38P-0469...
  • Page 34 IN S TA L L A TI O N M A N U A L 38p-0181 38p-0179 38C-2006/0 38p-0182...
  • Page 35 I NS T AL L AT I ON M A N U A L 38C-1940...
  • Page 36 DRU Verwarming B.V. The Netherlands Postbus 1021, NL-6920 BA Duiven Ratio 8, NL-6921 RW Duiven...
