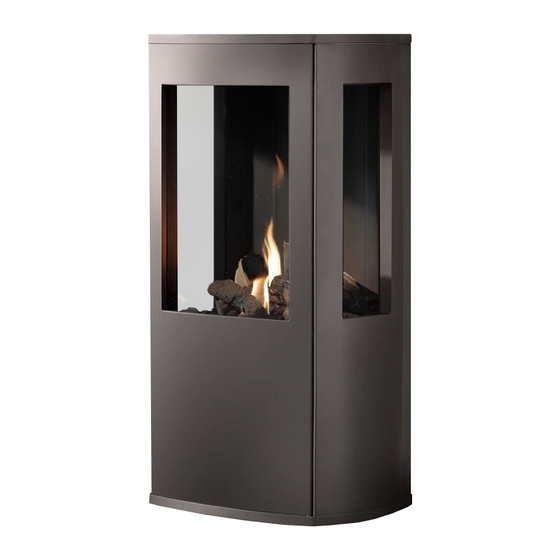

Freestanding atmospheric gas heating appliance
Hide thumbs Also See for Trio G20:
Table of Contents

Advertisement

Quick Links

Download this manual See also: User Manual and Installation Instructions, Installation Manual
Trio
G20/G25
Instructions for installation
(GB / IE)
Please retain this document carefully
1
U K

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Trio G20 and is the answer not in the manual?

Questions and answers

Related Manuals for Dru Trio G20

Summary of Contents for Dru Trio G20

  • Page 1 Trio G20/G25 Instructions for installation (GB / IE) Please retain this document carefully...

  • Page 2: Table Of Contents

    Appendix 3 Parts Preface DRU, a manufacturer of gas heating appliances, develops and produces products that comply with the highest qua- lity, performance and safety requirements. This guarantees that the user will be able to enjoy using his product for many years to come.

  • Page 3: Introduction

    The appliance is supplied with a wireless remote control that works on batteries. CE Declaration We hereby declare that the design and construction of DRU’s atmospheric gas heating appliance comply with the essential requirements of the Gas Appliance Directive. This declaration will lose its validity if adjustments are made to the appliance, without prior written permission by DRU.

  • Page 4: Instructions

    Remove both woodscrews from the bottom plate connecting the appliance to the platform. ➠ Contact DRU Service if you do not have all the parts after you fi nished removing the packaging; ➠ Dispose packaging in accordance with local regulations.

  • Page 5: Flue Gas Discharge / Combustion Air Supply System

    If necessary, you can also use an existing discharge channel (see section 6.5.4). Caution - Only use the concentric system supplied by DRU (Ø100 / Ø150 mm). This system was tested in combination with the appliance; DRU cannot guarantee a proper and safe operation of other systems and cannot accept liability for these systems;...
  • Page 6 T R I O I N S T R U C T I O N F O R I N S TA L L AT I O N ➠ Apply suffi cient clamps, so that the weight of the pipes does not only rest on the appliance; ➠...
  • Page 7 T R I O I N S T R U C T I O N F O R I N S TA L L AT I O N Table 1: Relation construction concentric system / setting appliance total number of total number of meters vertical and/or sloping pipe length meters horizontal pipe length...
  • Page 8 T R I O I N S T R U C T I O N F O R I N S TA L L AT I O N Table 3: Relation construction concentric system / setting appliance total number of total number of meters vertical and/or sloping pipe length meters horizontal pipe length...

  • Page 9: Connecting Gas

    The following requirements apply when connecting to an existing chimney fl ue: - only allowed when used in combination with the special DRU chimney installation set. The installation regulation is also supplied; - the dimensions should be at least 150 x 150 mm;...

  • Page 10: Placing The Wood Set

    T R I O I N S T R U C T I O N F O R I N S TA L L AT I O N 6.8 Placing the wood set The appliance is supplied with a wood set. Caution Strictly observe the following instructions to prevent unsafe situations: - only ever use the supplied wood set;...
  • Page 11 T R I O I N S T R U C T I O N F O R I N S TA L L AT I O N Photo 6 Photo 6a Photo 7 Photo 8...
  • Page 12 T R I O I N S T R U C T I O N F O R I N S TA L L AT I O N Photo 9 Photo 10 Photo 11 Photo 12 6.9.1.1 Removing the front pane When removing the front pane, you should observe the instructions below;...

  • Page 13: Operation

    T R I O I N S T R U C T I O N F O R I N S TA L L AT I O N 6.9.2 Side panes The side panes should be removed in case of torn or broken panes.

  • Page 14: Final Check

    T R I O I N S T R U C T I O N F O R I N S TA L L AT I O N !Caution - Avoid a short circuit between the batteries and metal objects/parts; - Observe the “+”...

  • Page 15: Maintenance

    T R I O I N S T R U C T I O N F O R I N S TA L L AT I O N ➠ Check the fl ame image. If the fl ame image is not acceptable, this can be due to: - the evaporation of volatile substances;...

  • Page 16: Malfunctions

    T R I O I N S T R U C T I O N F O R I N S TA L L AT I O N 11. Malfunctions In the following table you will fi nd an overview of malfunctions that might occur, the possible causes and the remedies Table 4 diagnosis of malfunctions Table 4: Troubleshooting Problem...

  • Page 17: Appendix 1 Parts Included With The Delivery

    T R I O I N S T R U C T I O N F O R I N S TA L L AT I O N Appendix 1 Parts included with the delivery In the following table you can fi nd the parts that are supplied with the appliance. Table 5: Parts included with the delivery Part Quantity...
  • Page 18 T R I O Notes ........................................... . .
  • Page 19 T R I O Notes ........................................... . .
  • Page 20 DRU Verwarming B.V. The Netherlands Postbus 1021, NL-6920 BA Duiven Ratio 8, NL-6921 RW Duiven...
