Dru Lugo 80 RCH Instruction Manual

Hide thumbs Also See for Lugo 80 RCH:
Table of Contents

Advertisement

Quick Links

Download this manual

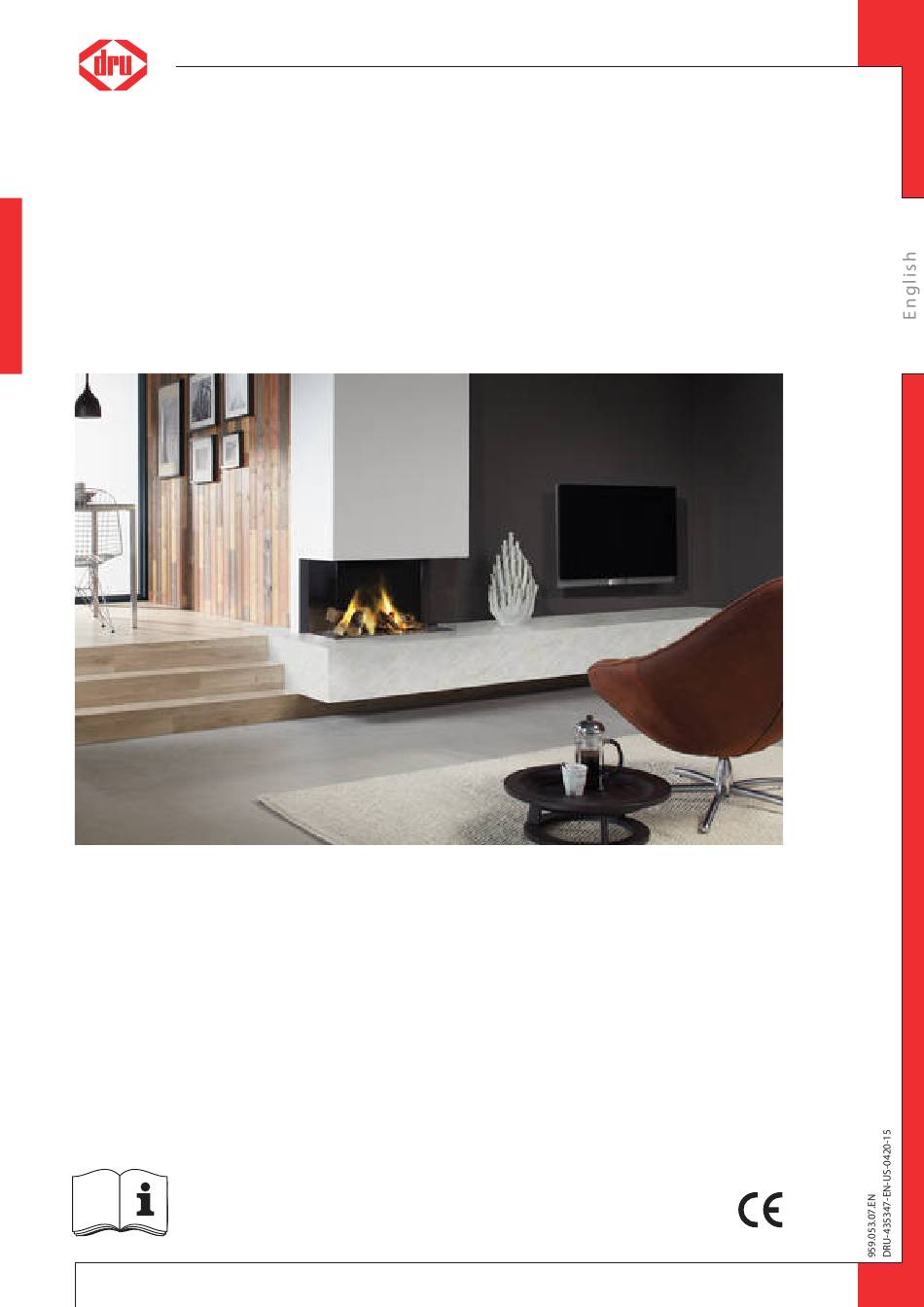

Lugo 70 (Module) RCH

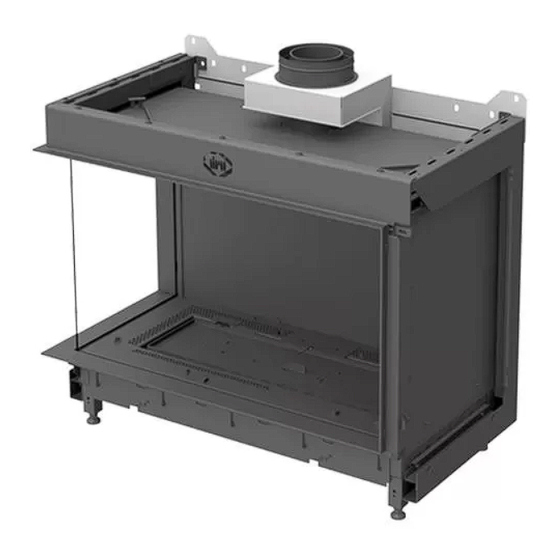

Lugo 80 RCH
G20/G25/G25.3 (Natural gas) G31 (Propane)
Installation manual
Store this document in a safe place
EN

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Lugo 80 RCH and is the answer not in the manual?

Questions and answers

Related Manuals for Dru Lugo 80 RCH

Summary of Contents for Dru Lugo 80 RCH

  • Page 1 Lugo 70 (Module) RCH Lugo 80 RCH G20/G25/G25.3 (Natural gas) G31 (Propane) Installation manual Store this document in a safe place...

  • Page 2: Table Of Contents

    I N S T A L LA T I O N M A N U A L Contents 1. Introduction 2. CE declaration 3. SAFETY 3.1 General 3.2 Regulations 3.3 Precautions / safety instructions at installation 3.4 Principle of ignition cycle 4.

  • Page 3: Introduction

    This declaration loses its validity if changes are made to the appliance without written permission from DRU. The instructions in the manuals must also be observed at all times.

  • Page 4: Safety

    This has to do with the temperature development in the chimney breast. Ø Only use the flue gas discharge / combustion air supply system supplied by DRU. Ø When installing a free-standing appliance: place the appliance away from the back wall by the minimum distance stated further down in the text.

  • Page 5: Principle Of Ignition Cycle

    IN S T A LLA TION M A NU A L 3.4 Principle of ignition cycle Below you will find a brief description of how this appliance is ignited. The receiver in the appliance will get a signal from the remote control to start the ignition process. The receiver will get the signal to start the ignition process.

  • Page 6: Installation

    Check whether the appliance is suitable for the type of gas and gas pressure used at the location. !Caution 5.1.1 Reconstruction to different type of gas In order to convert this appliance to a different type of gas, please contact DRU's service department and ask for the possibilities. 5.2 Gas connection Place a gas tap in the gas pipe in accordance with the applicable regulations.

  • Page 7: Placing The Appliance

    It is possible to operate one or more lamps (in case of several lamps, a maximum of 0.5A/250VAC/30VDC) via the remote control of the appliance. You could think of the lamps of Dru's lux elements. For this, you can use switch contact B on the receiver (see appendix 3, fig 36).

  • Page 8: Placing The Chimney Breast

    !Tip You should preferably apply the ventilation holes (outgoing) on both sides of the chimney breast. Use the DRU ventilation elements. Check the following issues, before the chimney breast is fully closed: •...
  • Page 9 5.8 Concentric system 5.8.1 General The appliance is connected to a flue gas discharge / combustion air supply system delivered by DRU, hereafter referred to as the concentric system. The diameter for this connection is indicated in appendix 2, table 2. The passage to the outside can be created with a wall terminal (C11) or a roof terminal (C31).
  • Page 10 I N S T A L LA T I O N M A N U A L The concentric system is constructed from (the flue spigot of) the appliance. If, due to constructional circumstances, the concentric system is placed first, it is possible to connect the appliance by means of a telescopic pipe piece.
  • Page 11 The following requirements apply when connecting to an existing chimney: • Only allowed when used in combination with the special DRU chimney set. The installation regulation is parat of the delivery. •...

  • Page 12: Additional Instructions

    I N S T A L LA T I O N M A N U A L 5.10 Additional instructions The construction frame above cannot be adjusted afterwards. If it concerns the free-standing Lugo 70/3 Module, please use the supplied manual for the construction of the Lugo 70/3 Module.

  • Page 13: Mantel Iron

    IN S T A LLA TION M A NU A L Ø Connect the gas pipe as described in chapter 5.7. Ø Place the data plate (C) in the bracket in the bottom of the protective hood (D). Ø Hook the protective hood into bracket (A) and fasten it with the self-tapping screw; Ø...

  • Page 14: Setting The Appliance

    I N S T A L LA T I O N M A N U A L 5.14.2 Removing the side glass pane The side glass panes should be removed in case of torn or broken panes: Ø Remove the front glass pane; see section 5.14.1; Ø...

  • Page 15: Wood Set

    IN S T A LLA TION M A NU A L 5.16 Wood set The appliance is supplied with a wood set. Strictly observe the following instructions to prevent unsafe situations: !Caution Ø Only ever use the supplied wood set; Ø...

  • Page 16: Control

    IN S TA LLA TION M A N U AL 6. Control The appliance is supplied with a wireless black remote control for the user (see appendix 3, fig. 35 (B)). As an option, an orange remote control can be supplied for the installer (see appendix 3, fig. 35 (O). Controlling the flame height, igniting and switching off take place through the black remote control controlling the receiver.
  • Page 17 6.2.2.2 Control via application Also when operating the appliance via a tablet provided with the DRU Control App (iOS or Android), you will need a communication module. This module can be ordered from DRU. In order to control the fire via an application, proceed as follows: Ø...

  • Page 18: Final Inspection

    I N S T A L LA T I O N M A N U A L 7. Final inspection In order to check whether the appliance is working properly and safely, you must perform the following inspections before the appliance is put into operation. 7.1 Gastightness All connections must be gastight.

  • Page 19: Flame Picture

    IN S T A LLA TION M A NU A L !Tip When checking whether the main burner continuous to burn, it is possible that it switches off after 15 seconds. In that case, this will be caused by the fact that there is no ionization detection and because the glass window has not been placed.

  • Page 20: Parts

    I N S T A L LA T I O N M A N U A L Ø Perform the inspection as described in chapter 7. 8.1 Parts Components that have to be replaced are available at the supplier. Delivery You must explain to the user how to operate the appliance.

  • Page 21: Appendix 1 Malfunctions

    IN S T A LLA TION M A NU A L Appendix 1 Malfunctions Error messages Error code Problem Possible cause Remedy Communication loss Communication cable does Make sure the connectors of between receiver and not make contact the communication cable burner device make proper contact Communication cable...
  • Page 22 I N S T A L LA T I ON M A N U A L Error messages Error code Problem Possible cause Remedy ESYS is not released ESYS is in hard-lock Wait half hour until ESYS resets itself F13/F14 ( no ionisation <0.8 µA) Flame loss Ionisation pin short-circuited Remove chips, vermiculite or...

  • Page 23: Appendix 2 Tables

    IN S T A LLA TION M A NU A L Appendix 2 Tables Table 1: Parts included with the delivery Part Number Lugo 70/80 (Lugo 70/3 module) Installation manual (1x) User manual (1x) Wood set (1x) Glow material (1x) Restrictor slide (1x) Remote control...
  • Page 24 * This appliance is suitable for G25.3 with the composition according NTA 8837. ** System efficiency. *** To be used by means of home automation. **** Adjusting screw. *****Categories C12 and C32 only in combination with DRU PV-1 100/60 (PowerVent®).
  • Page 25 IN S T A LLA TION M A NU A L Table 3: Line-pressure when using G31 Country mbar NL / DK / FI / NO / SE / HU / BA / GR FR / BE / IT / PT / ES / GB / IE Permissibility and conditions concentric system with wall terminal Table 4: Conditions for setting the appliance G20/G25/G25.3/G31...
  • Page 26 I N S T A L LA T I ON M A N U A L Table 5: Determining permissibility concentric system with roof terminal G20/G25/ Total number of meters Total no. of meters vertical and/or sloping pipe length G25.3/G31 horiz.
  • Page 27 IN S T A LLA TION M A NU A L Appendix 3 Figures 38C-1918/0 Lugo 70/3 38C-1919/0 Lugo 80/3...
  • Page 28 I N S T A L LA T I O N M A N U A L 38C-1920/0 Lugo 70/2 38C-1921/0 Lugo 80/2...
  • Page 29 IN S T A LLA TION M A NU A L Lugo 70/3 Lugo 80/3 Lugo 70/2 Lugo 80/2...
  • Page 30 I N S T A L LA T I ON M A N U A L A: 760 B: 865 A: 695 B: 800 A: 770 B: 875 Lugo 70 Lugo 80...
  • Page 31 IN S T A LLA TION M A NU A L 70 -100...
  • Page 32 I N S T A L LA T I ON M A N U A L 38C-1868 d /0...
  • Page 33 IN S T A LLA TION M A NU A L 1x90° 1x90° 38c-744zh 38c-744zg >0 - 3m...
  • Page 34 I N S T A L LA T I ON M A N U A L...
  • Page 35 IN S T A LLA TION M A NU A L 38C-1958 38P-0421 38P-0422...
  • Page 36 I N S T A L LA T I ON M A N U A L 38p-0022 38p-0023 38P-0028 /1 38P-0423/1 Lugo 70 Lugo 70 Lugo 70 Lugo 80 Lugo 70 Lugo 80 Lugo 80 Lugo 80 Lugo 80...
  • Page 37 IN S T A LLA TION M A NU A L 38P-0424 38P-0425 38P-0426...
  • Page 38 I N S T A L LA T I ON M A N U A L 38P-0427 Lugo 70 38P-0428...
  • Page 39 IN S T A LLA TION M A NU A L 38P-0429 Lugo 80 38P-0430/1...
  • Page 40 I N S T A L LA T I ON M A N U A L 0 – 3 V Modbus WiFi 38C-1871 /0 Router PowerVent ® max. 80W 230VAC max. 0,5A / 250VAC / 30VDC 0 - 3V 38P-0790 /0...
  • Page 41 IN S T A LLA TION M A NU A L     І     І І І             І     І...
  • Page 42 I N S T A L LA T I ON M A N U A L Min. 0 mm Min. 0 mm 38C-2311/0 38C-2321/0 Min. 12,5 mm Min. 12,5 mm Min. 60 mm Min. 60 mm Min. 100 mm Min. 100 mm...
  • Page 43 IN S T A LLA TION M A NU A L...
  • Page 44 DRU Verwarming B.V. The Netherlands Postbus 1021, NL-6920 BA Duiven Ratio 8, NL-6921 RW Duiven...
