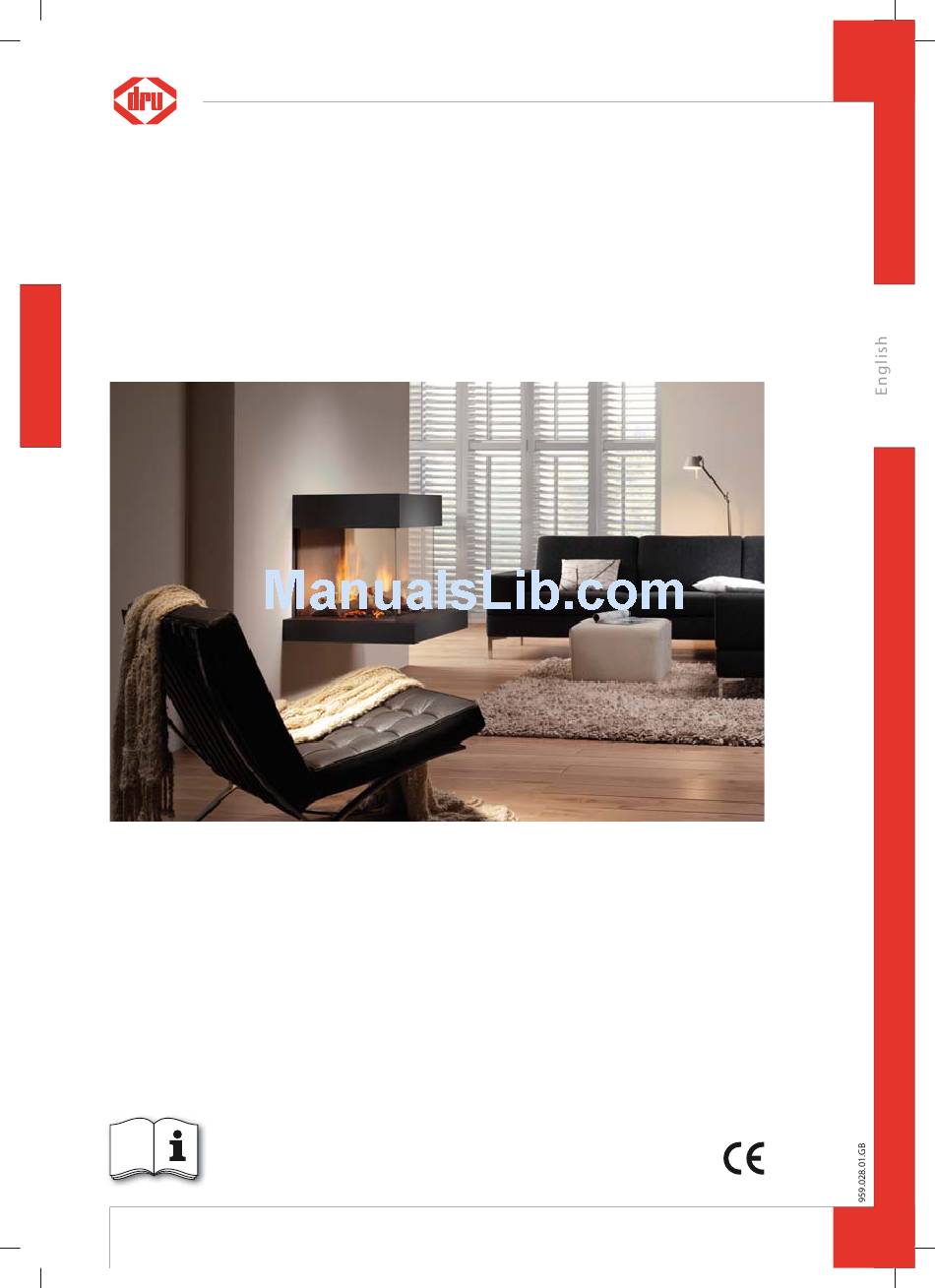

  • Page 1 Milo G20/G25/G31 Installation manual (GB / IE) Store this document in a safe place 95902801_GB Install.indd 1 95902801_GB Install.indd 1 12-7-10 11:2 12-7-10 11:2...

  • Page 2: Table Of Contents

    M I LO - I N S TA L L AT I O N M A N UA L Contents page Preface 1. Introduction 2. CE declaration 3. SAFETY 3.1 General 3.2 Regulations 3.3 Precautions / safety instructions during installation 4.

  • Page 3: Preface

    DRU is able to supply a mantel iron. Also make sure that the gas control and receiver, which are below the appliance, can still be reached after placing the construction chimney breast.

  • Page 4: Ce Declaration

    M I LO - I N S TA L L AT I O N M A N UA L CE declaration We hereby declare that the design and construction of DRU’s atmospheric gas-fi red heating appliance comply with the essential requirements of the Gas Appliance Directive.

  • Page 5: Instructions

    In appendix 1 / table 5 you can see which parts you should have after removing the packaging. ➠ Contact DRU Service if you do not have all the parts after you fi nished removing the packaging. ➠ Dispose packaging in accordance with local regulations.

  • Page 6: Installation

    M I LO - I N S TA L L AT I O N M A N UA L Installation Read this manual carefully to ensure a proper and safe operation of the appliance. !Caution Install the appliance in the order described in this chapter. 6.1 Regulations ➠...

  • Page 7: Flue Gas Discharge / Combustion Air Supply System

    If necessary, you can also use an existing chimney (see section 6.5.4). Caution - Only use the rectangular and/or round concentric system supplied by DRU. This system has been tested together with the appliance. DRU cannot guarantee a proper and safe operation of other systems and does not accept any liability for this (see appendix 4);...
  • Page 8 M I LO - I N S TA L L AT I O N M A N UA L Table 1: Conditions for the adjustmen t of the appliance with a wall terminal G20/G25/G31 Injector Total number of Total number of...
  • Page 9 M I LO - I N S TA L L AT I O N M A N UA L !Caution - Make sure that the right insertion length is maintained; - Place the wall terminal with the groove/folded seam at the top; - Make sure the horizontal concentric pipe pieces are sloping towards the wall terminal, in order to prevent rain water from entering.
  • Page 10 M I LO - I N S TA L L AT I O N M A N UA L Table 2: Determination of th e permissibility of a concentric system with a roof terminal G20/G25/G31 Total number of Total number of meters vertical and/or sloping pipe length meters horizontal ↓8...
  • Page 11 - On this connection, apply a clip binding with silicon sealing ring. - only allowed when used in combination with the special DRU chimney kit. The installation manual is also supplied; - the dimensions should be at least 150 x 150 mm;...

  • Page 12: Placing The Chimney Breast

    / combustion air supply system and the adjustable legs; see section 6.6.1. Construction in a construction chimney breast is allowed. In this case, a mantel iron must be placed; DRU is able to supply this;...

  • Page 13: Connecting Gas

    M I LO - I N S TA L L AT I O N M A N UA L ➠ Maintain suffi cient space around the appliance in the chimney breast, so the heat can escape: - minimum internal height: ± 1000 mm. ➠...

  • Page 14: Placing The Wood Set

    Caution Strictly observe the following instructions to prevent unsafe situations: - only use the inner frame supplied by DRU; - only use the wood set supplied by DRU; - place the wood set exactly as described;...

  • Page 15: Glass Panes

    !Caution - Do not allow the springed glass strips to slip out, in order to avoid damaging/breaking the glass pane; - The DRU logo should be at the bottom right corner; - The self-tapping screws must not be over-tightened, since otherwise they could break or strip the thread: tight=tight;...

  • Page 16: Finishing The Appliance

    During purchase of the appliance, a lacquered steel or natural stone base was selected. The construction of the appliance was based on the weight of the DRU base. !Caution When using a heavier or larger base, an additional bearing construction must be placed, so that the appliance is not burdened through the extension of the DRU base.

  • Page 17: Final Check

    M I LO - I N S TA L L AT I O N M A N UA L Connect power: a) When using batteries, see section 7.1.1 below; b) When using an adapter: - connect it to the receiver; (see fi g. 15, arrow C); - insert the plug into the wall socket.

  • Page 18: Flame Image

    M I LO - I N S TA L L AT I O N M A N UA L 8.3.1 Pilot burner ➠ Check the ign ition of the pilot burner: - the pilot burner should start at the fi rst attempt. If the pilot burner does not ignite: ➠...

  • Page 19: Parts

    M I LO - I N S TA L L AT I O N M A N UA L Caution - Close the gas tap when performing maintenance work; - Check the gastightness after repair; - After replacing thermocouple 1 you should fi rst tighten the swivel by hand and then give it another quarter turn with a suitable spanner;...
  • Page 20 M I LO - I N S TA L L AT I O N M A N UA L Table 4: Diagnosis of malfunctions Problem Possible cause Remedy A. No transmission 1. The (new) communication 1. Hold down the reset button of the receiver, (motor will not run) code between receiver and until you hear 2 sound signals;...
  • Page 21 M I LO - I N S TA L L AT I O N M A N UA L Table 4: Diagnosis of malfunctions Problem Possible cause Remedy E. No pilot burner fl ame 1. Air in the pilot burner pipe. 1.

  • Page 22: Appendix 1 Parts Included With The Delivery

    M I LO - I N S TA L L AT I O N M A N UA L Table 4: Diagnosis of malfunctions Problem Possible cause Remedy J. Main burner ignites, 1. Wiring of thermocouple 2 is 1. Connect the wiring properly. but goes out again af- loose.

  • Page 23: Appendix 2 Technical Data

    M I LO - I N S TA L L AT I O N M A N UA L Appendix 2 Technical data In the following tables you can fi nd the technical data of the Milo. Table 6: Technical data Type C11/C31 Type of gas...

  • Page 24: Appendix 3 Figures

    M I LO - I N S TA L L AT I O N M A N UA L Appendix 3 Figures 95902801_GB Install.indd 24 95902801_GB Install.indd 24 12-7-10 11:25 12-7-10 11:25...
  • Page 25 M I LO - I N S TA L L AT I O N M A N UA L 38c-1424 38c-1425 95902801_GB Install.indd 25 95902801_GB Install.indd 25 12-7-10 11:25 12-7-10 11:25...
  • Page 26 M I LO - I N S TA L L AT I O N M A N UA L 38c-1428 180mm Min. 850mm 230 mm Min. 200 cm² 702mm 621mm 75mm Min. 220 45mm 550mm 38c-1420 770mm 95902801_GB Install.indd 26 95902801_GB Install.indd 26 12-7-10 11:25 12-7-10 11:25...
  • Page 27 M I LO - I N S TA L L AT I O N M A N UA L 38c-1432 38c-1421 95902801_GB Install.indd 27 95902801_GB Install.indd 27 12-7-10 11:25 12-7-10 11:25...
  • Page 28 M I LO - I N S TA L L AT I O N M A N UA L 38c-1422 38c-1426 38c-1423 38c-1427 38c-1429 95902801_GB Install.indd 28 95902801_GB Install.indd 28 12-7-10 11:25 12-7-10 11:25...
  • Page 29 M I LO - I N S TA L L AT I O N M A N UA L 38c-1430 38c-1430 38p-0023 38p-0028 38p-0001 95902801_GB Install.indd 29 95902801_GB Install.indd 29 12-7-10 11:25 12-7-10 11:25...
  • Page 30 M I LO - I N S TA L L AT I O N M A N UA L 38p-0007 38p-0002 95902801_GB Install.indd 30 95902801_GB Install.indd 30 12-7-10 11:26 12-7-10 11:26...
  • Page 31 M I LO - I N S TA L L AT I O N M A N UA L 38p-0003 38P-0004 38p-ooo5 95902801_GB Install.indd 31 95902801_GB Install.indd 31 12-7-10 11:26 12-7-10 11:26...
  • Page 32 M I LO - I N S TA L L AT I O N M A N UA L 38p-0006 38P-0014 38p-0021 38p-0015 95902801_GB Install.indd 32 95902801_GB Install.indd 32 12-7-10 11:26 12-7-10 11:26...
  • Page 33 M I LO - I N S TA L L AT I O N M A N UA L 38p-0017 38p-0018 38p-0020 38p-0019 95902801_GB Install.indd 33 95902801_GB Install.indd 33 12-7-10 11:26 12-7-10 11:26...
  • Page 34 M I LO - I N S TA L L AT I O N M A N UA L 38p-0025 38p-0010 38p-0011 95902801_GB Install.indd 34 95902801_GB Install.indd 34 12-7-10 11:26 12-7-10 11:26...
  • Page 35 M I LO - I N S TA L L AT I O N M A N UA L 38p-0012 38p-0024 17 mm 38c-1433 38p-0026 38p-0027 95902801_GB Install.indd 35 95902801_GB Install.indd 35 12-7-10 11:27 12-7-10 11:27...

  • Page 36: Appendix 4 Figures

    M I LO - I N S TA L L AT I O N M A N UA L Appendix 4 Figures D 430 GRP24 95902801_GB Install.indd 36 95902801_GB Install.indd 36 12-7-10 11:27 12-7-10 11:27...
  • Page 37 M I LO - I N S TA L L AT I O N M A N UA L 38C-1444 Verwarming 95902801_GB Install.indd 37 95902801_GB Install.indd 37 12-7-10 11:27 12-7-10 11:27...
  • Page 38 M I LO - I N S TA L L AT I O N M A N UA L 38C-1445 95902801_GB Install.indd 38 95902801_GB Install.indd 38 12-7-10 11:27 12-7-10 11:27...
  • Page 39 M I LO - I N S TA L L AT I O N M A N UA L Notes ....................................................
  • Page 40 M I LO - I N S TA L L AT I O N M A N UA L DRU Verwarming B.V. The Netherlands Postbus 1021, NL-6920 BA Duiven Ratio 8, NL-6921 RW Duiven 95902801_GB Install.indd 40 95902801_GB Install.indd 40...
