Figure 5 - Np-10 Front And Side Panel Illustration - Synaccess netBooter Series User Manual

User's Manual
1. Power Outlet status LEDs:
Visual indication of user power outlet On/Off status.
2. NP system power On/Off status LED:
Indication of system power On/Off status.
3. Ethernet Link status LED:
When the LED is illuminated, Ethernet port and a LAN connection are established.
4. Ethernet Active data status LED:
When there is data traffic on the LAN, the LED is illuminated.
5. Factory Default Reset switch:
Allow a user to reset the system to factory default settings. The switch is located behind the
small front panel opening.
6. Power Outlet sockets:
Synaccess Networks, Inc.

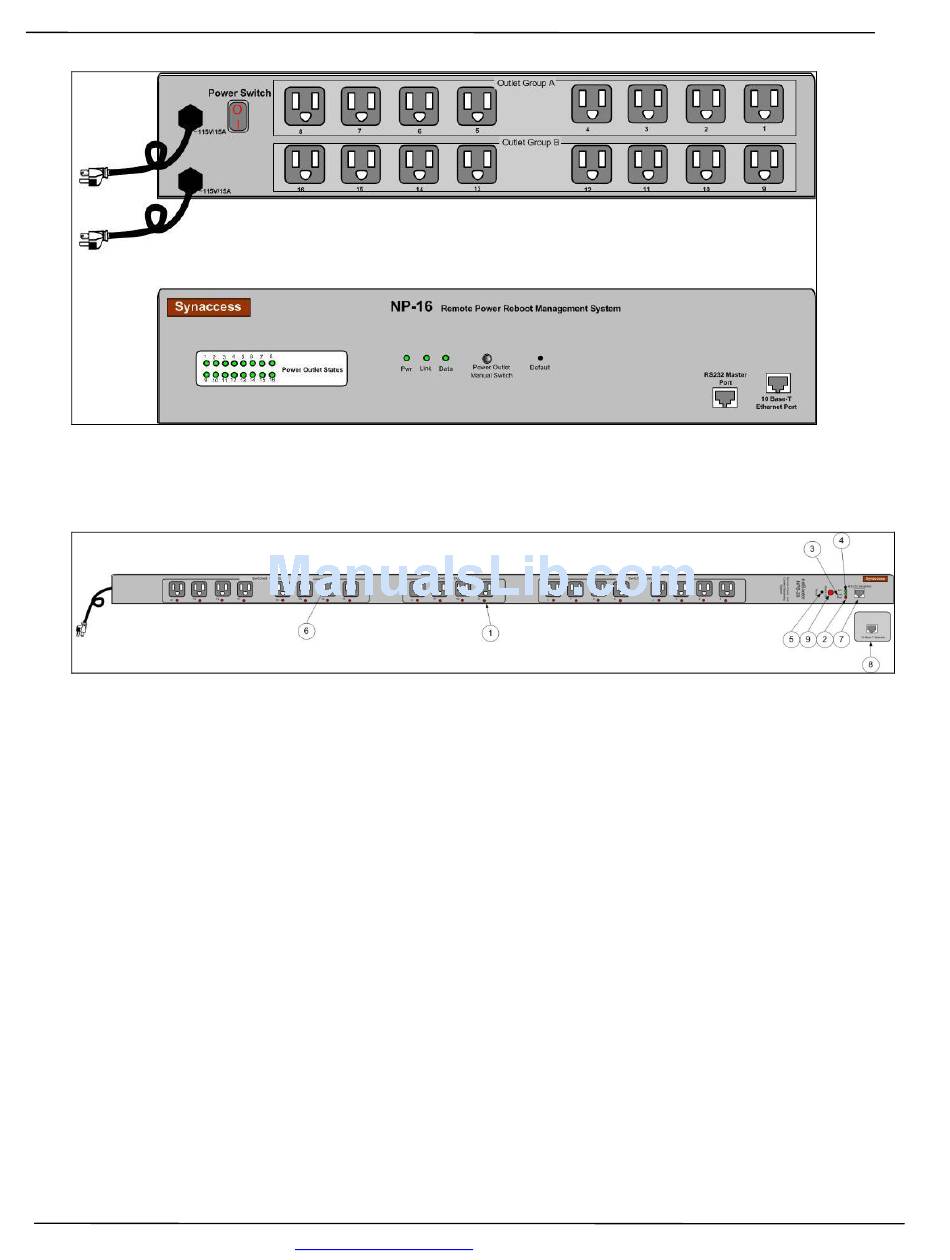

Figure 5 - NP-16 Front and Back Panel Illustration
Figure 5A – NPB-20 Front and Back Panel Illustration
www.synaccess-net.com
(760) 930 – 0473
Page 9 of 46
