User's Manual
you can send user data to the NP control commands such as rebooting user power source.
Reply emails are sent after the system intercepts incoming emails so that you are informed
with the operation status.
AutoPing and reboot user equipment. Connect your system to a power outlet and assign the
system network IP address or URL. The NP system will ping the user equipment
periodically (in every 15 seconds). If the user equipment stops responding the ping request,
the equipment will be power rebooted.
Scheduling AC outlet power cycling periodically or per weekly planner. Each outlet can be programmed
with it's own timer.
Synaccess Networks, Inc.

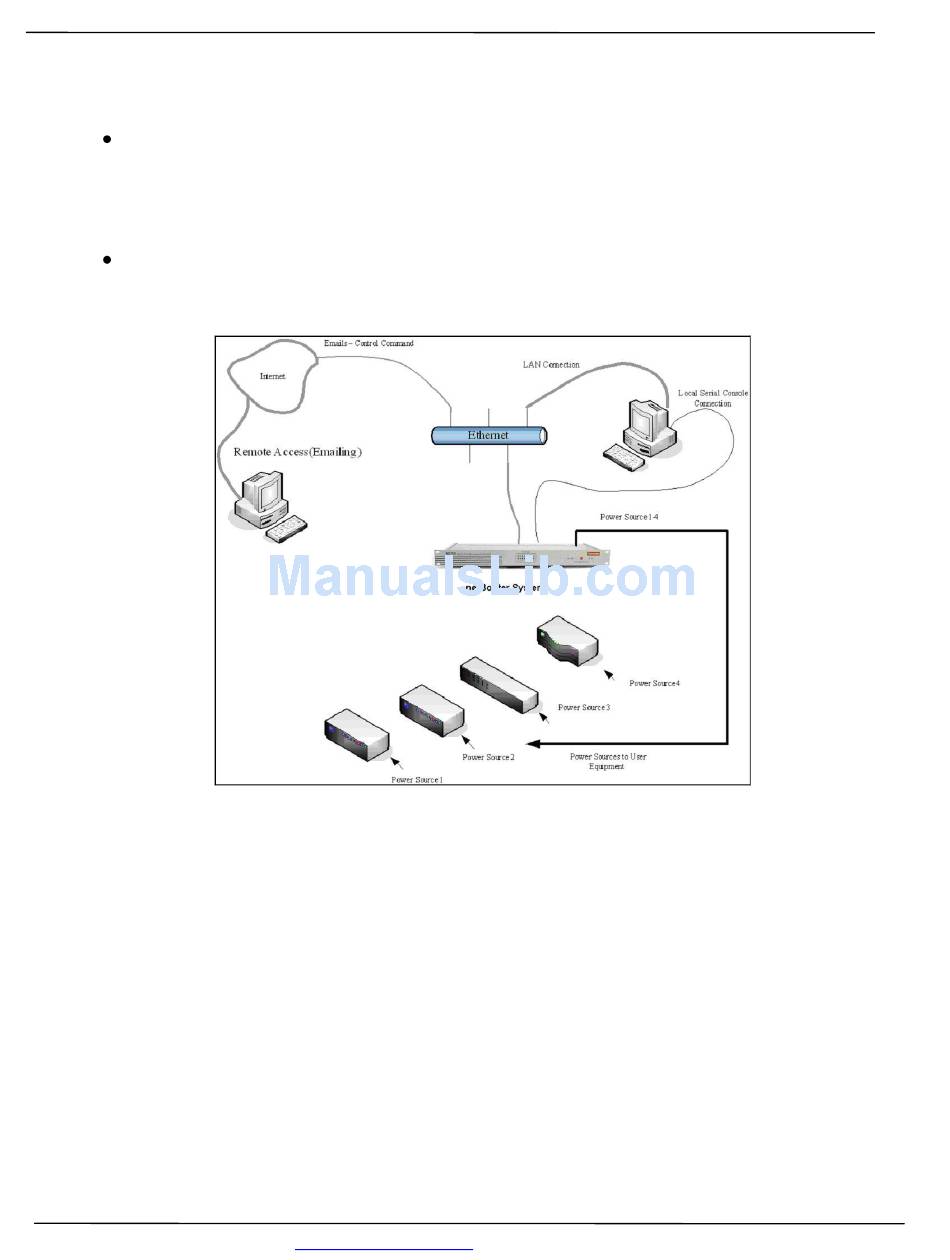

Figure 2 - Illustration of Typical Application

www.synaccess-net.com
(760) 930 – 0473
Page 7 of 46
