HornetTek X2-Rack User Manual

HornetTek X2-Rack User Manual

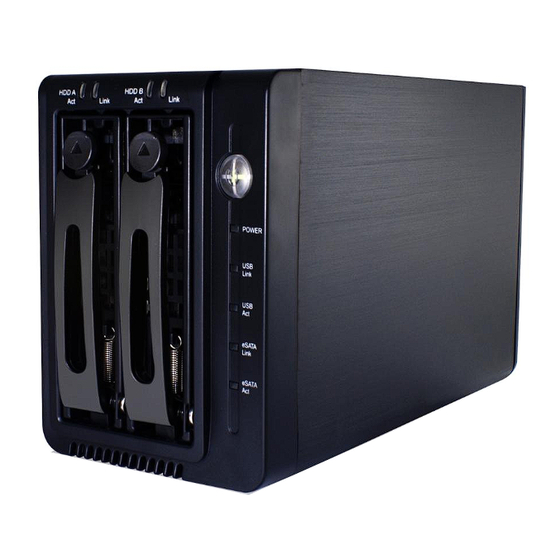

3.5" dual sata mobile rack external raid storage

Advertisement

3.5" Dual SATA Mobile Rack External Raid Storage
Include
Hardware Installation Guide
RAID MODE Selection
HDD Formatting Guide
Software Installation Guide
USER MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the X2-Rack and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for HornetTek X2-Rack

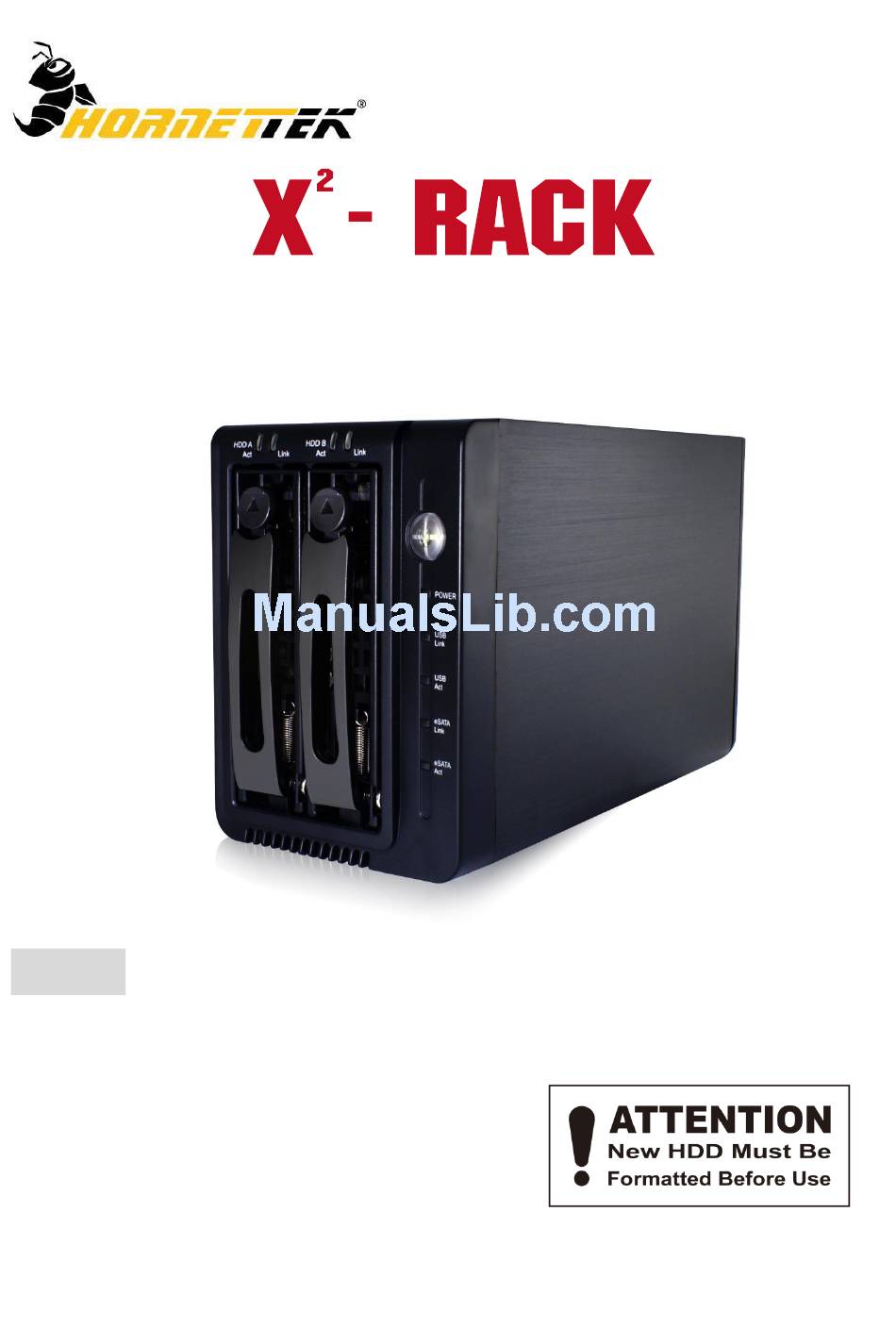

  • Page 1 3.5" Dual SATA Mobile Rack External Raid Storage USER MANUAL Include Hardware Installation Guide ☆ RAID MODE Selection ☆ HDD Formatting Guide ☆ Software Installation Guide ☆...
  • Page 2: Front View

    3 . 5 ” D U A L S A T A R A I D S T O R A G E I n s t a l l a t i o n G u i d e About the 3.5”...
  • Page 3 3 . 5 ” D U A L S A T A R A I D S T O R A G E I n s t a l l a t i o n G u i d e Hardware Operation Guide Hard Drives Installation Guide STEP1:...
  • Page 4 3 . 5 ” D U A L S A T A R A I D S T O R A G E I n s t a l l a t i o n G u i d e STEP3: Push the tray to the end until the HDD is connected with SATA connector.
  • Page 5 3 . 5 ” D U A L S A T A R A I D S T O R A G E I n s t a l l a t i o n G u i d e Mode Selection &...
  • Page 6: Raid Mode Selection

    3 . 5 ” D U A L S A T A R A I D S T O R A G E I n s t a l l a t i o n G u i d e RAID Mode Selection Jumper Selection &...
  • Page 7 3 . 5 ” D U A L S A T A R A I D S T O R A G E I n s t a l l a t i o n G u i d e JBOD MODE:It concatenates a series of physical hard drives as a single large volume;...
  • Page 8 3 . 5 ” D U A L S A T A R A I D S T O R A G E I n s t a l l a t i o n G u i d e RAID 0 (Fast):It’s a combination of two physical partitions, where the data is striped between them.
  • Page 9 3 . 5 ” D U A L S A T A R A I D S T O R A G E I n s t a l l a t i o n G u i d e RAID 1 (Safe):It allows the device automatically to copy data to both hard drives.
  • Page 10: Hard Drive Formatting Guide

    3 . 5 ” D U A L S A T A R A I D S T O R A G E I n s t a l l a t i o n G u i d e Hard Drive Formatting Guide STEP1: Right-click on “My Computer”...
  • Page 11: Big Mode

    3 . 5 ” D U A L S A T A R A I D S T O R A G E I n s t a l l a t i o n G u i d e BIG MODE RAID 0 (FAST) MODE...
  • Page 12 3 . 5 ” D U A L S A T A R A I D S T O R A G E I n s t a l l a t i o n G u i d e RAID 1 (SAFE) MODE...
  • Page 13 3 . 5 ” D U A L S A T A R A I D S T O R A G E I n s t a l l a t i o n G u i d e STEP4: Press “OK”...
  • Page 14 3 . 5 ” D U A L S A T A R A I D S T O R A G E I n s t a l l a t i o n G u i d e STEP6: The “New Partition Wizard”...
  • Page 15 3 . 5 ” D U A L S A T A R A I D S T O R A G E I n s t a l l a t i o n G u i d e STEP7: When new partition is completed, the hard drive will be recognized as a “New Volume”.
  • Page 16 © 2010-2011 Hornettek LLC. All Rights Reserved. Hornettek, the Hornettek logo, the original product images taken by Hornettek, and all Hornettek-based trademarks are registered in the United States and other countries. Unauthorized use of Hornettek's Name, Images, Logos, Trademarks or unauthorized copy of product without permission from Hornettek is in violation of U.S.
