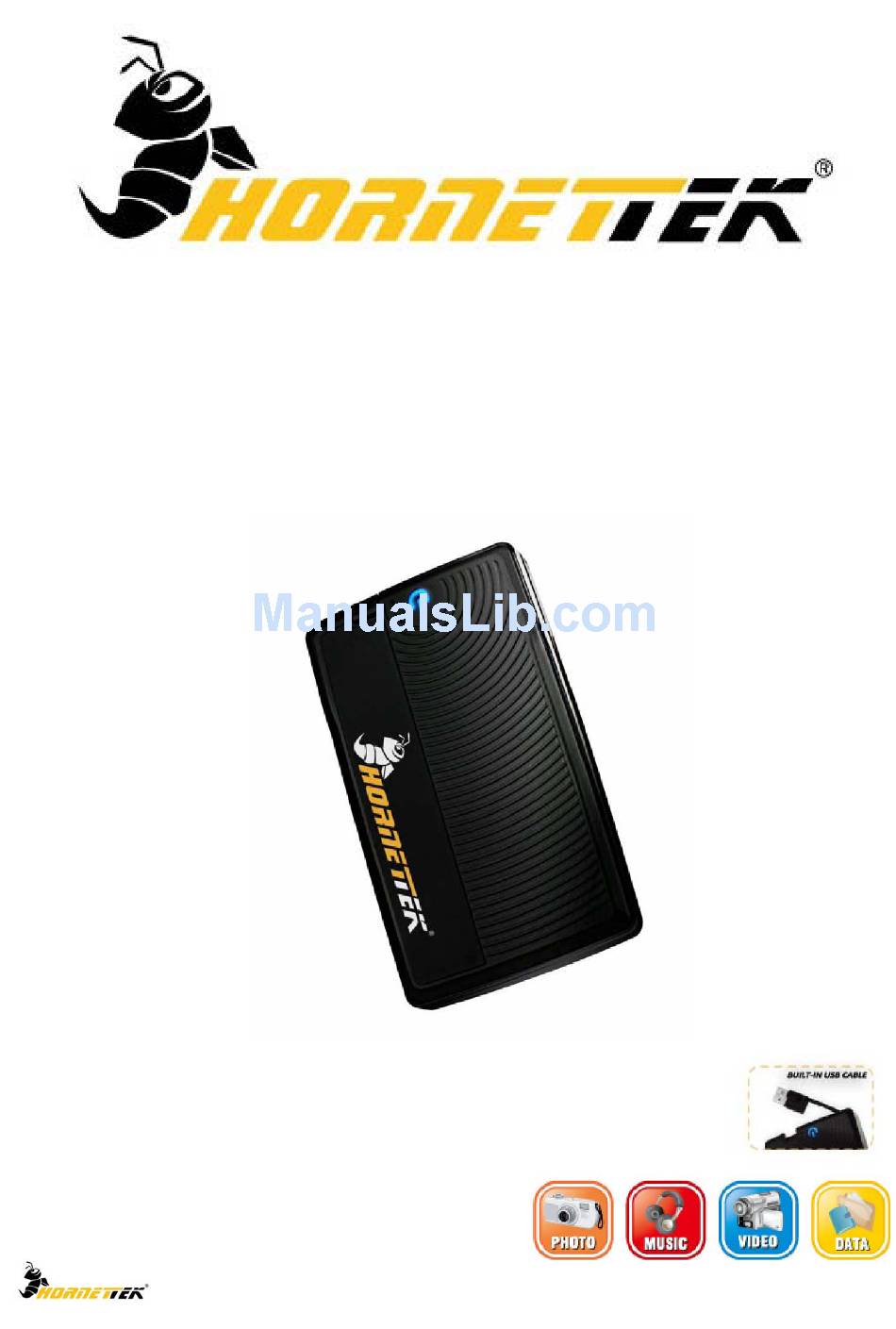

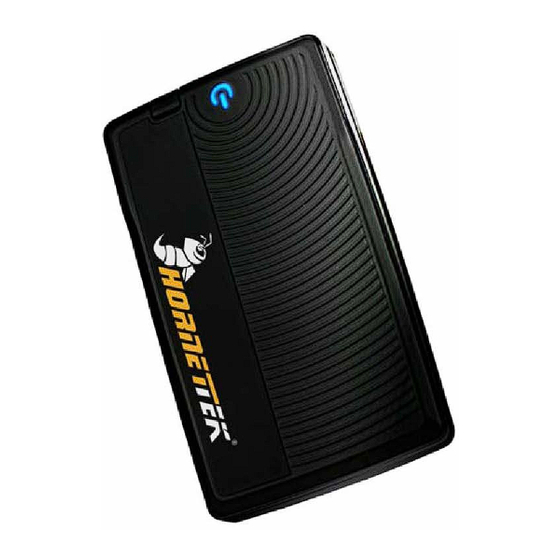

- Page 1 Travel Lite ( 旅) USER MANUAL 2.5” SATA to USB EXTERNAL ENCLOSURE ...
- Page 2 Hardware Installation Guide HDD Formatting Guide to Please NOTE: In order to enable HOT-SWAP function, please check the make sure the motherboard supports HOT-SWAP function. Otherwise, well. hot swappable function won't be work as (Please refer back to motherboard user guide) ...
- Page 3 STEP1 : Pull out the USB Cable and open the case. STEP2 : Place the HDD into the tray. Push the HDD to connect the SATA connector. ...
- Page 4 Note: Make sure all connectors are connected well. STEP3: Screw the case together. You can start to use this enclosure. ☆ You may format your external HDD through USB connection. ☆ Please make sure your external HDD is turned on and well connected to the PC before formatting the HDD.
- Page 5 STEP2 : Select “Disk Management” and you will see your External HDD showed “Unallocated”. STEP3 :...
- Page 6 STEP5: When new partition is completed, the external HDD will be recognized as a “New Volume”. STEP6 : Double-click “My Computer”. You will see the new volume appears on your PC.
- Page 7 Software Installation Guide System requirement Inte l® Pentium® 4, Intel Centrino®, Intel Xeon®, or Intel Core™ Duo (or compatib le) processor or 100% compatible H/W system. rosoft® Windows® 2000, XP or Windows Vista™ Home Premium, Business Ultimate, or Enterprise (compatible with both 32/64-bit editions) B RAM is recommended ge r solution 800 x 600 pixel or above to PATA bridge controller (GL811E, GL811S) and USB to SATA bridge...
-
Page 8: Steps Of Installation
2. User Guide Introduction Backup Manager is a user friendly application for backing up files onto your external USB hard drives. You may set up the options and press the button on the device to run archives. It will copy all the selected files from the hard disks on your computer to the external USB disk drive. - Page 9 (3) Initiate Wizard Installation shield start running the setup wizard Click “Next” to continue (4) Prepare for Installation Verify system requirement and get ready for installation. Click “Install” to continue...
- Page 10 (5) Start installation This step may take a few seconds. Press “Cancel” to exit. (6) Complete Installation completed. Press “Finish” to exit...
- Page 11 File backup Functions (1) Setup source path Click left-side box s to select the folders or files you would like to back up to your external drive. The applicati on will copy all the selected files from the hard disks on your computer to the external USB di sk drive.
- Page 12 (2) Create the designated folder Genesys Backup provides basic file system management function similar with Microsoft windows file organizer so users do not need to open any separate window to create new folder before the file backup or delete undesired folders after one. Simply navigate your mouse indicator on to the desired disk partition then right click, a selection button will emerge from the background for adding new folder or removing existing folder.
- Page 13 (3) Select the desig nate folder Simply click the folder in your external hard drive that you would like to store the backup files. A tree view folder is displayed for selection but there is no check box for multiple selections. You can decide one destination path for the archives.
- Page 14 (4) Start the file backup After source file and designation folder are selected properly. The backup job is ready to go! Click “Start Backup” button to proceed. (5) File backup started File backup started. File copy status and schedule are shown on a separated window. Under this stage, you can not start another file backup job until current 100% completed.
- Page 15 (6) Back up completed A summary window will pop up after each backup job completes. It contains total size and number of files that has been successfully copied and verified. You can press “Report” button to check for more details.
- Page 16 (7) Change layout User can change the layout of the backup page between vertical and horizontal by clicking the “Change View” button (8) Two-way backup The file backup, including two mode, one is backup your data to external hard disk drive, the other is backup data from external hard disk drive to local disk(please refer to the below picture)。The backup direction button will be unable to click if you disabled the two-way backup function.
- Page 17 backup function)。...
- Page 18 Setting (1) Select basic configuration: Activate / disable OTB function: To prevent accidental operation cause by OTB button, you can disable the hardware one-button-copy (OTB) function as desired. However, once disable OTB; you cannot use the hardware button for the file backup. Post-verify backup operation: You can request the application to compare the source files with the designation folder after each file backup.
- Page 19 Various backup options that defines the copy rules Separate Mode: Each backup job is separately conducted and recorded according the date and time of each backup job. The application can only manage backup job once at a time. New backup job will not start until previous one completed. The chosen source files will be organized into separated folders according to the date and specific time of each backup job.
- Page 20 Create Identical file systems and overwrite files automatically Incremental mode: The application will automatically overlook files with identical file names for each backup job. This setting can dramatically reduce file saving time for each backup. This mode is recommended for users save massive read-only data in the external hard drive such as banking records or email histories.
- Page 21 History Report page summarize the records of each backup job’s setting, start time and selected files for user to backward tracking backup history. Each listing represents one backup record. Simply double click the listing to open the detail reports on the separated window.
- Page 22 Security Drive ® Introduction: Security drive is smart file encryption software that provides a secured way to protect your confidential data. Through the easy-to-use interface, you can prevent your sensitive data to be reproduced or modified by the unrelated third party. To begin, you simply format the external hard disk into two partitions: “Public Zone”...
- Page 23 (1) Security format: Start: Press “Security Format” button to create security drive partition. A warning window will pop up to remind user that all files in the disk will be lost after the hard drive formatted. Press “Yes” button to proceed Configuration: The partition setup window will emerge for user to select preferred file system type such as NTFS &...
- Page 24 Format Complete: After security format completes, a separate window will emerge for user to set the password. The password can be set as alphabetical or numerical characters. The password length is limited to 4 ~ 20 characters.
- Page 25 (2) Lock / Unlock Lock: Press “Lock” button to lock up the security partition. Lockup mode: The color of security icon turns to red under lock-up mode. When lockup activated, security zone shift to hidden mode, under which all access to security zone is blocked, only the public zone can be accessed.
- Page 26 Unlock: Press “Unlock” button to exit lockup mode. Enter the correct password in the pop-up checking box then press “ok” button.
- Page 27 Normal mode: When resume from lockup mode, security partition would act as normal partition. The icon of security drive will dynamically appear in Windows file archive, and read / write operation is allowed accordingly.
- Page 28 (3) Set Password: User can set the new password by pressing “Set Password” button. (Only under unlock mode) Input original password in the “Old Password” box, and input the new password in the “New Password” and “Confirm New Password” box. Press “ok” button then the new password is effective automatically.
- Page 29 Others (1) Turn-on the application Option 1: Double click the icon on the right side of your windows tool bar. The application window will automatically pop-up in few seconds. Option 2: Click “All Program” button on the start window. Choose “Backup Manager” to start application.
- Page 30 ...
