3. Installation

3.1. Cable Specification

The Eclipse system is supplied with two cables, both of which are terminated at one
end with a Teledyne Impulse MHDG 3#16 5#20 connector. The 5m cable has bare
ends for termination/splicing into the vehicle wiring. The 10m cable is terminated
with a Souriau connector which mates to the bench PSU and can be used for testing
the Eclipse independent of the vehicle wiring and power supply.

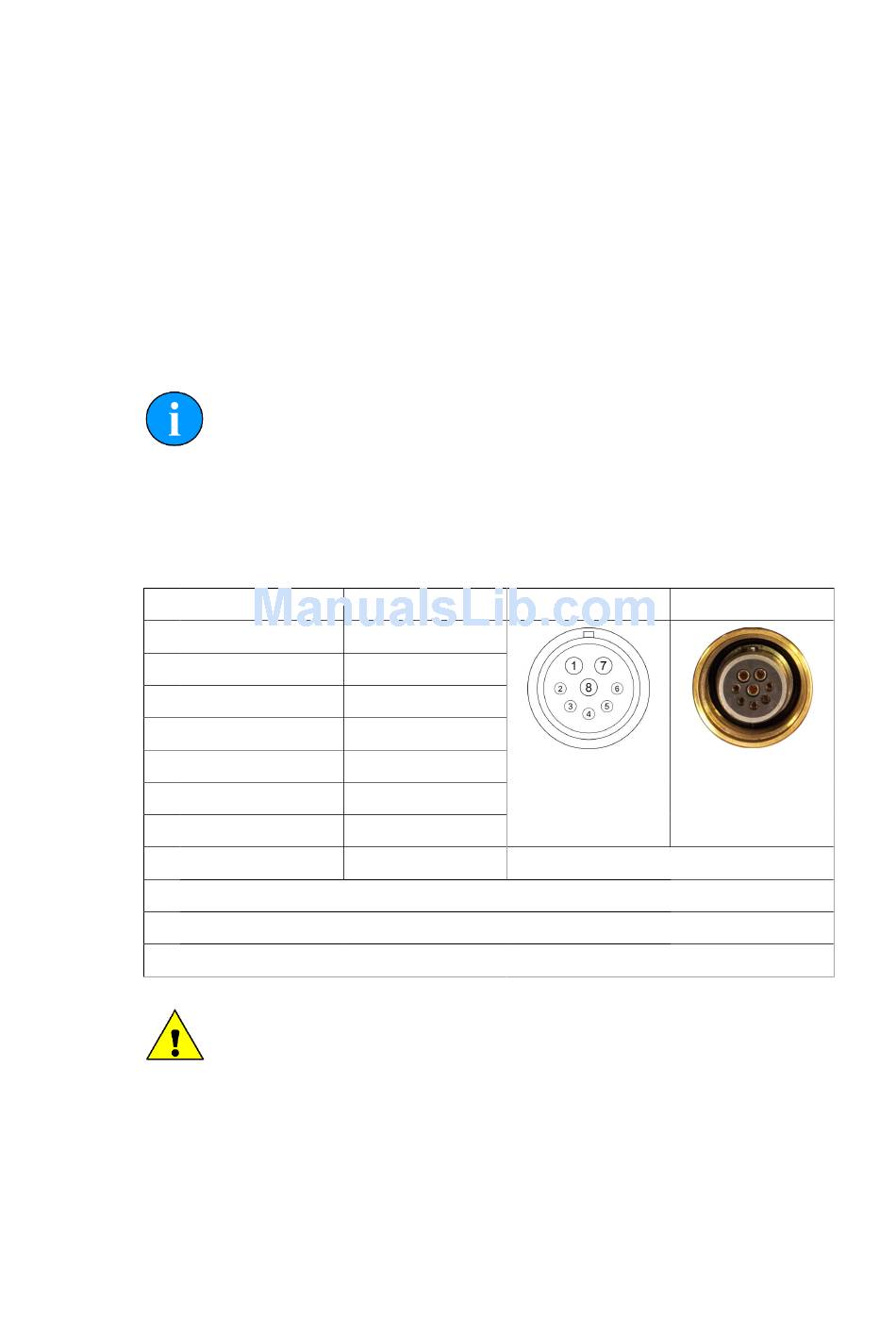

Pin
1 Blue (4mm²)
2 White (STP #1)
3 Red (STP #1)
4 Screen (STP #1)
5 Blue (STP #2)
6 Red (STP #2)
7 Brown (4mm²)
8 Screen (STP #2)
Document: 0690-SOM-00001, Issue: 01
Note
The network signal cables inside the supplied cable are Shielded Twisted
Pairs (STP). If splicing to a connector whip that is not provided with
twisted pairs, it is important to keep the untwisted length to a minimum
(no more than 20cm). Long lengths might result in network losses or
communication failure.
Colour Function
DC Ground
Screen
Screen
Minimum static bend radius: 90mm
Minimum dynamic bend radius: 125mm
Note: STP = Shielded Twisted Pair
Caution
Never try to make the Eclipse work down a long cable by increasing the
PSU output voltage above 28V DC.
Diagram
TX +
TX -
RX +
RX -
DC +
Teledyne Impulse MHDG 3#16 5#20
10
Eclipse 3D Imaging Sonar
Photograph
