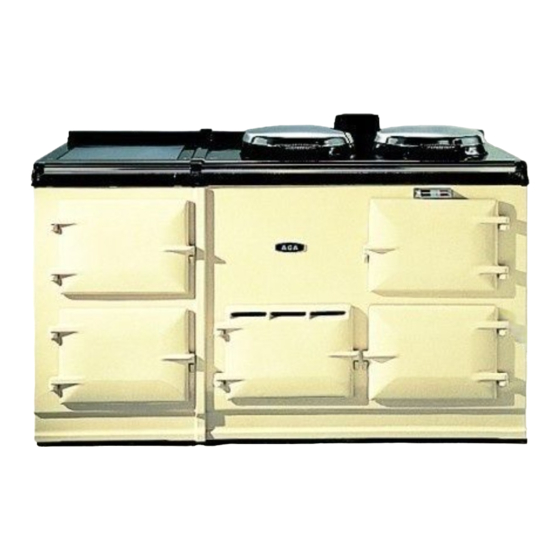

AGA GC Installation Instructions Manual

Gas Fired Cookers
PLEASE READ THESE INSTRUCTIONS BEFORE INSTALLING YOUR AGA
Consumer Protection
As responsible manufacturers we take care to make sure that our
products are designed and constructed to meet the required safety
standard when properly installed and used.
IMPORTANT NOTICE: PLEASE READ THE ACCOMPANYING
WARRANTY. Any alteration that is not approved by Aga could
invalidate the approval of the appliance, operation of the warranty
and could affect your statutory rights.
Important
This appliance may contain some of the materials that are indicated.
It is the Users/Installers responsibility to ensure that the necessary
personal protective clothing is worn when handling, where
applicable, the pertinent parts that contain any of the listed materials
that could be interpreted as being injurious to health and safety, see
INSTALLATION
With specific exceptions, the installing of any type of Aga
Cooker is subject to the respective directions contained in
current issue of The Building Regulations. In addition,
Planning Permission may need to be obtained, which
should be applied for separately.
The complete range of Aga cookers are suitable for
Natural or Propane gases only and cannot be used on
any other gas.
The complete cooker is floor-mounted and the space in
which the appliance is to be fitted must have the following
maximum distances:-
A minimum clearance of 60mm is required above the
raised insulating cover handle.
Side clearances are zero unless 2 or 4 oven cookers are
fitted against a wall, where 116mm clearance is required
at the right hand side for oven doors access (a further
116mm is required).
In addition, a minimum clearance of 1000mm must be
available at the front of the cooker to enable the cooker to
be serviced.
NOTE: AGA GAS FIRED COOKERS ARE DELIVERED
EX-WORKS UNASSEMBLED,
UNDERTAKEN ON SITE BY THE AUTHORISED AGA
DISTRIBUTOR.
Cooker Base or Hearth
It is essential that the base or hearth on which the cooker
stands should be level and be capable of supporting the
total weight of the respective cooker,
Models GC and GCB 406Kg, GE - 584Kg.
The top of the hearth must be of non-combustible material
thickness of 12mm.
The wall behind the cooker must be of non-combustible
material for a minimum thickness of 25mm.
Installation Instructions for
Aga PF Gas Fired Cooker Models
GC, GCB and GE
ASSEMBLY IS
1
below for information.
Firebricks, Fuel beds, Artificial Fuels - when handling use
disposable gloves.
Fire Cement - when handling use disposable gloves.
Glues and Sealants - exercise caution - if these are still in liquid form
use face mask and disposable gloves.
Glass Yarn, Mineral Wool, Insulation Pads, Ceramic Fibre,
Kerosene Oil - may be harmful if inhaled, may be irritating to skin,
eyes, nose and throat. When handling avoid inhaling and contact
with skin or eyes. Use disposable gloves, face-masks and eye
protection. After handling wash hands and other exposed parts.
When disposing of the product, reduce dust with water spray ensure
that parts are securely wrapped.
Tiling
When the cooker is to stand in a recess, or against a wall
which is to be tiled, in no circumstances should the tiles
overlap the cooker top plate.
Installation Requirements
The installation of the cooker must be in accordance with
the relevant requirements of the Gas Regulations and
Building Regulations in force and the bylaws of the local
Water Authority.
It should be in accordance also with any relevant
requirements of the Gas Region and Local Authority.
In your own interest, and that of safety to comply with the
law, all gas appliances should be installed by a competent
person, in accordance with the relative regulations.
Failure to install appliances correctly could lead to
prosecution.
On completion, test the gas installation for soundness.
REMEMBER, when replacing a part on this appliance,
use only spare parts that you can be assured conform to
the safety and performance specification that we require..
Do not use reconditioned or copy parts that have not been
clearly authorised by AGA.
FOR USE IN GB & IE
10/05 EINS 511112
