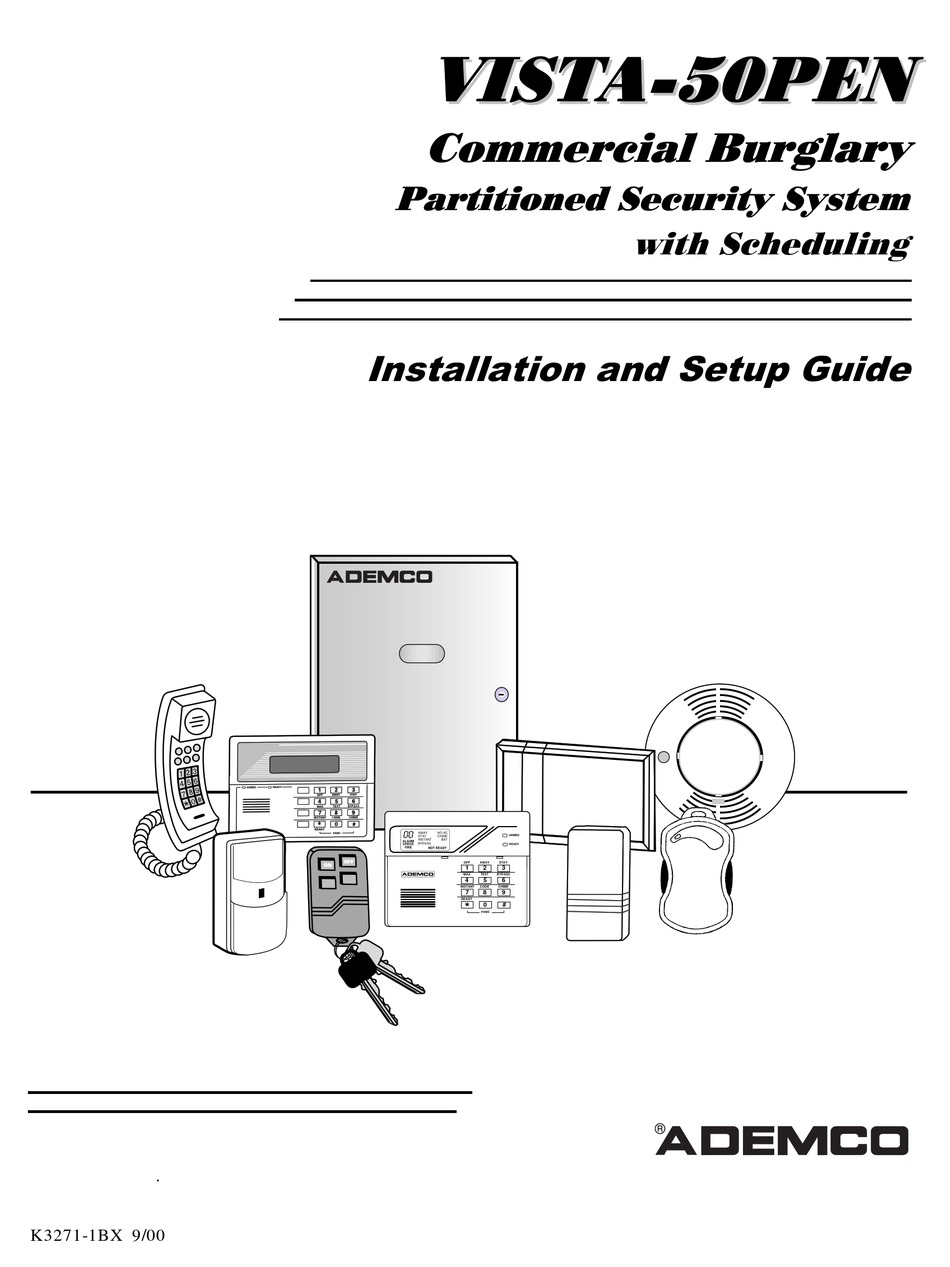

Page 1 &RPPHUFLDO%XUJODU\ 3DUWLWLRQHG6HFXULW\6\VWHP ZLWK6FKHGXOLQJ ,QVWDOODWLRQDQG6HWXS*XLGH AWAY NO AC STAY CHIME ARMED INSTANT ALARM BYPASS CHECK READY FIRE NOT READY AWAY STAY TEST BYPASS INSTANT CODE CHIME READY PANIC ® K3271-1BX 9/00...
Page 3: Table Of Contents
Table of Contents • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • List of Figures ........................
Page 4 SECTION 14 Access Control ..............14-1 General Information............................14-1 Access Control Using VistaKey ........................14-1 Access Control Using the PassPoint Access Control System ...............14-5 Access Control of an Entry/Exit Point Using VistaKey or PassPoint ............14-6 Using the VISTA-50PEN for Stand-alone Access Control ................14-8...
Page 5 Table of Contents SECTION 15 External Sounders .............. 15-1 General Information............................15-1 Alarm Output Supervision..........................15-2 Installing Alarm Indicating Devices to the Alarm Output .................15-3 SECTION 16 Event Log Options ............... 16-1 General Information............................16-1 Event Log Printer Connections ........................16-1 Programming Event Log Options .........................16-2 Event Logging Procedures..........................16-3 SECTION 17 4100APG Pager Interface...........
Page 6 Table of Contents SECTION 24 Scheduling Options ............24-1 Introduction to Scheduling ...........................24-1 Time Window Definitions..........................24-3 Open/Close Definitions ..........................24-4 Scheduling Menu Mode..........................24-6 Scheduling Menu Structure ..........................24-7 Time Windows ...............................24-8 Daily Open/Close Schedules ........................24-9 Holiday Schedules ............................24-10 Time-Driven Events.............................24-10 Limitation of Access Schedules ........................24-16 Temporary Schedules ..........................24-17 User Scheduling Menu Mode ........................24-19 SECTION 25...
Page 7 California State Fire Marshal (CSFM) and UL Residential Fire Battery Backup Requirements..... A-2 APPENDIX B DIP Switch Tables ............... B-1 APPENDIX C Summary of System Commands ......... C-1 APPENDIX D Specifications ............... D-1 Index......................... Index-1 THE LIMITATIONS OF THIS ALARM SYSTEM ADEMCO LIMITED WARRANTY...
Page 8: List Of Figures
4-Wire Smoke Detector Connections (Zones 1-8) ....................6-4 Figure 6-4. Wiring Latching Glassbreak Detectors to Zone 8 ...................6-5 Figure 7-1: Polling Loop Connections to the VISTA-50PEN ....................7-5 Figure 7-2: Polling Loop Connections Using One 4297 Extender Module ...............7-5 Figure 7-3. Polling Loop Connections Using Multiple Extender Modules ...............7-6 Figure 8-1.
Page 9: Conventions Used In This Manual
These prompts are shown in a single-line box. 00 = Quit When programming the system, data fields are indicated by a “star” ( ) followed by the data field number. PRODUCT MODEL NUMBERS: Unless noted otherwise, references to specific model numbers represent ADEMCO products.
Page 10 VISTA-50PEN Installation and Setup Guide...
Page 11: General Description
• • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • General The VISTA-50PEN is an 8-partition, UL commercial burglary control panel that supports up to 128 zones using basic hardwired, polling loop, and wireless zones. It also includes zones for supervision of bells, phone lines, keypads, RF Receivers, and relays.
Page 12: Zone Index
VISTA-50PEN Installation and Setup Guide Wireless Expansion Supports up to 128 wireless zones using 5881 type RF receiver (fewer if using hardwire and/or polling loop zones). Wireless zones have the following characteristics: • Supervised by control panel for check-in signals (except certain nonsupervised transmitters) •...
Page 13 Each macro can be 32 characters (keystrokes) in length Optional Output Devices Accommodates the use of 96 outputs using ADEMCO's 4204 and 4204CF Relay Modules, Fire System Annunciators (FSA-8, FSA-24), V-Plex Relay Modules and Powerline Carrier Devices (X-10). Each 4204 module provides four Form C relays for general purpose use. Each 4204CF provides two style-Y supervised bell outputs.
Page 14 Arm and disarm security system • Control relays The 4285/4286 VIP Module is not Listed for use with the VISTA-50PEN Control Panel in a UL commercial installation. Access Control If programmed, provides users with a command that activates relays to open access doors (e.g., lobby door).
Page 15 Access schedules (for limiting system access to users by time) • End User Output Programming Mode (provides 20 timers for relay control) Communication Formats Supports the following formats for the primary and secondary central station receivers: • ADEMCO Low Speed (Standard or Expanded) • Sescoa/Radionics • ADEMCO Express •...
Page 16 VISTA-50PEN Installation and Setup Guide Built-in User's Manual and Descriptor Review For end-user convenience, the VISTA-50PEN contains a built-in User’s Manual. By depressing any of the function keys on the keypad for 5 seconds, a brief explanation of that function scrolls across the alpha numeric display. In addition, all programmed zone descriptors can be displayed (one at a time) by pressing the READY key for 5 seconds.
Page 17: Planning A Partitioned System
S E C T I O N Planning a Partitioned System • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • In This Section Theory of Partitioning Common Lobby Logic...
Page 18: Setting Up A Partitioned System
VISTA-50PEN Installation and Setup Guide Setting Up a Partitioned System The basic steps to setting up a partitioned system are described below. If you need more information on how to program the prescribed options, see The Mechanics of Programming, section as well as each corresponding section's programming procedure.
Page 19 Section 2 – Planning a Partitioned System You cannot select a partition to "arm" the lobby unless it has first been selected to "affect" the lobby. Enable field 1*18 before enabling field 1*19. The following chart sums up how the common lobby partition will operate, if different options are set for another partition in fields 1*18 and 1*19.
Page 20 VISTA-50PEN Installation and Setup Guide In the tables below, the notations in parentheses ( ) indicate the current status of the other partition when the user takes action. Sequence #1: Office 1 Office 2 Lobby Action User #1: Disarms (Armed)
Page 21: Master Keypad Setup And Operation
Section 2 – Planning a Partitioned System Arming/Disarming Remotely If arming or disarming remotely (through Compass downloading software), the lobby will not automatically follow another partition that is programmed to arm or disarm the lobby. The lobby must be armed separately, after arming all affecting partitions first. Auto-Arming/Disarming If scheduling is used to automatically arm and/or disarm partitions, the common lobby partition will not automatically follow another partition that is programmed to arm or...
Page 22 VISTA-50PEN Installation and Setup Guide Additional zone faults will be displayed one at a time. To display a new partition's status, press + [Partition No.]. The Armed LED on a master keypad will be lit only if all partitions have been armed successfully.
Page 23: False Alarm Reduction Features
• Exit Error by User (not sent if using ADEMCO High Speed format) • Exit Error by Zone (Sent as regular alarm if using ADEMCO High Speed format) • Bypass reports Recent Close Report Another report, designed to notify the central station that an alarm has occurred within 5 minutes of arming, is called the Recent Close report.
Page 24: Exit Delay Reset
VISTA-50PEN Installation and Setup Guide Exit Delay Reset This feature is not suitable for use on a UL commercial burglary installation. This feature is designed to allow an operator to re-enter the premises to retrieve a forgotten item without triggering an alarm. This feature is enabled in program field 1*21, and works in the following way: When the panel is armed, the normal exit delay begins.
Page 25: Call Waiting Defeat Logic
Section 3 – False Alarm Reduction Features Call Waiting Defeat Logic Although this option does not directly prevent false alarms, it may prevent the central station from taking action on a potential false alarm. After the panel's initial call to report the alarm, the panel may attempt to make an additional call, perhaps for a cancel or a zone restoral.
Page 26 VISTA-50PEN Installation and Setup Guide...
Page 27: Installing The Control
DO NOT ATTEMPT TO REMOVE THE KNOCKOUTS AFTER THE CIRCUIT BOARD HAS BEEN INSTALLED. Installing the Cabinet Lock Use an ADEMCO No. N6277 Cam Lock and No. P3422-2 Clip for universal commercial cabinet. To install the cabinet lock, perform the...
Page 28: Grade A Mercantile Premises Listing
(supplied) to the cabinet's right side wall as shown in figure 4-2. Wire it to one of the hardwire zones. Use a bell with a tamper-protected housing such as the ADEMCO AB12. The bell housing's tamper switch and inner tamper linings must also be wired to the hardwire zone.
Page 29: Grade A Mercantile Safe And Vault Listing
Section 4 - Installing The Control Grade A Mercantile Safe and Vault Listing For a Grade A Mercantile Safe and Vault listing, perform the following steps: Step Action Follow the instructions given above for Mercantile Premises listing. Mount a shock sensor such as Sentrol No. 5402 to the control's backbox. Follow the manufacturer's instructions for proper sensor mounting.
Page 30: Ac Transformer And Battery
VISTA-50PEN Installation and Setup Guide AC Transformer and Battery This product uses the 1361 transformer (1361CN in Canada). We recommend wiring all zones and expansion modules according to each section's instructions before powering up the system for programming and testing. Refer to the Final Power-Up Procedure section for specific instructions on how to connect the transformer and backup battery.
Page 31: Installing The Keypads
• • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • Keypads That May Be Used • ADEMCO 2-line alpha display keypads • The Symphony (AUI) •...
Page 32: Using A Supplementary Power Supply To Power Additional Keypads
VISTA-50PEN Installation and Setup Guide BLACK KEYPADS GREEN YELLOW CONTROL TERMINALS Figure 5-1: Keypad Connections to Control Panel. Using a Supplementary Power Supply to Power Additional Keypads The control provides 750mA auxiliary standby power for powering keypads and other devices from the auxiliary power output.
Page 33: Addressing The Keypads
Section 5 - Installing The Keypads Addressing the Keypads • The keypads will not operate until they are physically addressed and enabled in the system's Device Programming in the #93 Menu Mode . • Each keypad must be assigned a different address. To address the keypads, perform the following steps: Step Action...
Page 34: Figure 5-3: Mounting Symphony
VISTA-50PEN Installation and Setup Guide Prior to attaching the case front to the case back, be sure to wire the Symphony as described in the "Wiring Symphony" paragraph in this section . MOUNTING SCREWS (4) (TYP) CASE FRONT WALL OR...
Page 35: Figure 5-4: Header Connector
Section 5 - Installing The Keypads AUI-016-V0 Figure 5-4: Header Connector Unshielded 4-conductor cable is recommended for Symphony power/data wires. A separate twisted pair cable is recommended for audio bus wires. Refer to the instructions provided with the TeleSmart module for information about permissible wire run configurations and wire run lengths. To wire Symphony, perform the following steps: Step Action...
Page 36 Programming for Symphony Symphony The Symphony (AUI) is defaulted to address 01. The VISTA-50PEN has address 01 defaulted for an AUI. If you want to change that address, or to add additional AUIs, set the Device Address in the VISTA-50PEN programming for Device Type 01, Alpha Console.
Page 37: Basic Hardwired Zones 001-009
S E C T I O N Basic Hardwired Zones 001-009 • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • In This Section Common Characteristics of Hardwired Zones 1-9 Installing 4-Wire Smoke Detectors to Zones 1-8...
Page 38 System Sensor 2100T direct wire Photoelectric duct detect. System Sensor 2451 Photoelectric w/B110LP base System Sensor 2151 w/DH400 base These smoke detectors are UL Listed for use with the VISTA-50PEN and are the only 2-wire smoke detectors that may be used.
Page 39 Section 6 – Basic Hardwired Zones Wiring 2-wire Smoke Detectors To wire 2-wire smoke detectors, perform the following steps: Step Action Select from the list compatible 2-wire smoke detectors (up to 16). Connect 2-wire smoke detectors across zone 1 terminals (10 through 11) as shown in Figure 6-2.
Page 40: Figure 6-3: 4-Wire Smoke Detector Connections (Zones 1-8)
VISTA-50PEN Installation and Setup Guide Wiring 4-wire Smoke Detectors To wire 4-wire smoke detectors, perform the following steps: Step Action Select from the list compatible 4-wire smoke detectors. Connect detectors (including heat detectors, if used) across terminals of the zone selected.
Page 41 Section 6 – Basic Hardwired Zones • The alarm current provided by zone 8 will support only one glassbreak detector in the alarmed state. • Do not use other N.O. or N.C. contacts when using glassbreak detectors on zone 8. Other contacts may prevent proper glassbreak detector operation.
Page 42 VISTA-50PEN Installation and Setup Guide...
Page 43: 2-Wire Polling Loop Expansion
DIP switches. Other devices have a built-in unique serial number which must be "learned" into the control as the zone number desired. • The 4208 must be mounted either inside the VISTA-50PEN cabinet or in a separate enclosure which has a tamper-supervised cover. •...
Page 44 VISTA-50PEN Installation and Setup Guide Compatible Polling Loop Devices • 4208 8-Zone Expander Accommodates up to 8 zones via the polling loop. • DIP switch-programmable. • The first two zones can be either normal or fast response (DIP switch selectable).
Page 45 Section 7 - 2-Wire Polling Loop Expansion Compatible Polling Loop Devices • 4101SN Serial Number Single Form C relay rated at 2A, 28VAC/VDC with Output Relay Module contact supervision. • One class B/style B EOLR-supervised aux input zone. • Serial Number ID learned by control panel. •...
Page 46 Certain polling loop devices have a DIP switch which can be used either to select the device's zone number or to select the enrolling of a unique, embedded serial number by the control panel. When used with VISTA-50PEN, these devices MUST be set for the serial number mode of operation.
Page 47: Figure 7-1: Polling Loop Connections To The Vista-50Pen
Refer to Figures 7-2 and 7-3, to follow. DO NOT use the 4197 Polling Loop Extender module with the VISTA-50PEN . Notes: - Do not use the 4197 module.
Page 48: Polling Loop Supervision
VISTA-50PEN Installation and Setup Guide Notes: - Do not use 4197 module. - Refer to 4297 instructions for more detailed installation information. The Limits shown below supercede the limits described in the 4297 instructions. - Do not connect 4297 modules in series.
Page 49: Wireless Zone Expansion
S E C T I O N Wireless Zone Expansion • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • In This Section Common Characteristics of Wireless Zones Installing the 5800TM Module...
Page 50: Rf System Installation Advisories
VISTA-50PEN Installation and Setup Guide • Zones 988 and 990 are used to supervise the RF reception of receivers 2 and 1, respectively. The reception is supervised for two conditions. 1. If, within a programmed interval of time (defined by program field 1*30), the receiver does not hear from any of its transmitters.
Page 51: Installation And Setup Of The 5881 Rf Receivers
Section 8 – Wireless Zone Expansion Installation and Setup of the 5881 RF Receivers To install and setup the 5881 RF Receiver, see to figure 8-1 and perform the following steps: Step Action Mount the receiver. It must be mounted externally to the control and can detect signals from transmitters within a nominal range of 200 feet.
Page 52: Installing The 5800Tm Module
VISTA-50PEN Installation and Setup Guide Installing the 5800TM Module Installation of this module is necessary only if you are using one or more 5827BD Wireless Bi-directional keypads. The 5800TM must be located next to the 5881 Receiver (between one and two feet from the receiver’s antennas).
Page 53: 5800 Series Transmitter Setup
Section 8 – Wireless Zone Expansion 5800 Series Transmitter Setup 5800 Series transmitters have built-in serial numbers that must be “learned” by the system using the #93 Menu Mode Programming, or input to the control via the downloader. 5800 Series transmitters (except 5827, described separately) do not have DIP switches. Some transmitters, such as the 5816 and 5817, can support more than one “zone”...
Page 54: Compatible 5800 Series Transmitters
VISTA-50PEN Installation and Setup Guide Compatible 5800 Series Transmitters Model Product Input Type Description • 5801 Wireless Panic UR or RF Has four pushbuttons, each with a Transmitter unique input (loop) code. • Programmable responses (e.g., Panic, Arm–STAY, Arm–AWAY, Disarm, etc.
Page 55 Section 8 – Wireless Zone Expansion Compatible 5800 Series Transmitters (cont’d) Model Product Input Type Description • 5816 Door/Window Has two unique input (loop) codes: Transmitter one for a wired closed circuit contact loop; the other for a built- in reed switch (used in conjunction with a magnet).
Page 56 VISTA-50PEN Installation and Setup Guide...
Page 57: Output Devices
• • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • General Information The VISTA-50PEN supports up to 96 outputs to activate and de-activate as desired. Each device must be programmed as to how to act (ACTION), when to activate (START), and when to deactivate (STOP).
Page 58: Installing The 4204 And 4204Cf Relay Modules
VISTA-50PEN Installation and Setup Guide • One class B/style B EOLR-supervised auxiliary input zone. • Operating power and communication with control panels via the V-Plex polling loop. • Electronics mounted in a small plastic case with tamper-protected cover. Powerline Carrier Devices Powerline Carrier devices are controlled by signals sent through the electrical wiring at the premises via a 4300 transformer.
Page 59: Figure 9-1: 4204 Relay Module
Section 9 – Output Devices SWITCH 4 2 0 4 A D D R E S S S E T T I N G S POSITION ("—" means "OFF") — — — — — — — — — — — —...
Page 60: Installing The Fsa Modules
VISTA-50PEN Installation and Setup Guide Installing the FSA Modules The module will not operate until the device address you have set the DIP switches for is enabled in the control’s Device Programming in the #93 Menu Mode . To install the FSA module, perform the following steps:...
Page 61: Programming Output Devices
Section 9 – Output Devices 4300 TRANSFORMER/INTERFACE 1 2 3 4 5 6 7 8 9 J8 CONNECTOR Earth Ground AC Sync Data Com 4142TR CABLE Figure 9-4: 4300 Wiring Connections To connect the 4300 transformer, perform the following steps: Step Action Run a 6-conductor cable between the 4300 interface and the panel.
Page 62 VISTA-50PEN Installation and Setup Guide ZONE LIST (ZL) is a group of zones to which the “EVENT” applies in order to activate a particular device. Note that there are a total of 15 zone lists that can be programmed; when the selected EVENT (alarm, fault or trouble) occurs in any zone in the selected “Start”...
Page 63: Phone Modules
S E C T I O N Phone Modules • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • In This Section General Information Installing TeleSmart...
Page 64: Installing The Vip Module
VISTA-50PEN Installation and Setup Guide TeleSmart The TeleSmart system provides a voice interface for an ADEMCO security system and the TeleSmart phone system. It has the following features: • 4 unique mailboxes for storing messages • 6 user access codes •...
Page 65: Figure 10-1: 4285/4286 Vip Module Connections
Section 10 – 4285/4286 VIP Module To wire the VIP module, perform the following steps: Step Action Make 12V (+) and (–) and data-in and data-out connections from the VIP Module to the control, using the connector cable supplied with the VIP Module see figure 10-1.
Page 66: Installing Telesmart
VISTA-50PEN Installation and Setup Guide If Touch-tones are not present following phone access to the security system via an on- premises phone, try reversing the pair of wires connected to terminals 3 and 4 on the 4285/4286. If the phone plug is disconnected from the control, the premise’s phones will not operate.
Page 67: Figure 10-2: Telesmart Phone Connections
Section 10 – 4285/4286 VIP Module Step Action Connect keypad wiring as shown (see the chart below for the maximum wire run length for wire gauge you are using). NOTE: Run audio cable in separate 2-conductor twisted-pair cable (22AWG recommended). This cable should be kept at least 6 inches from other types of cables carrying potentially interfering signals, such as AC power, telephone, and polling loop cables.
Page 68: Figure 10-3: Telesmart Speaker Connection
VISTA-50PEN Installation and Setup Guide KEYPAD SPEAKER AUDIO 8 ohm Speaker KEYPADS USE OUTER WIRES OF AUDIO IN AUDIO CABLE GRN (DATA IN) RED (+12VDC) ARMED AWAY STAY READY TEST BYPASS BLACK (–) MESSAGE INSTANT CODE CHIME YEL (DATA OUT) READY ®...
Page 69: Audio Alarm Verification (Aav) Unit
S E C T I O N Audio Alarm Verification (AAV) Unit • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • In This Section General Information Audio Alarm Verification Module Program...
Page 70: Audio Alarm Verification Module Connections
VISTA-50PEN Installation and Setup Guide One way to trigger the AAV Module is by selecting option 3 in field 1*46 and make connections as shown in Figure 11-1. Field 1*46 can be used to set ground start, remote console sounding, long range radio, or open/close trigger. If any one of these functions are absolutely necessary in a given installation, the alternative AAV trigger method is via the use of a 4204 Relay Module as shown in Figure 11-2.
Page 71: Audio Alarm Verification Module Program Options
Section 11 – Audio Alarm Verification (AAV) Unit CONTROL ZONE 5 EARTH EAGLE 16 17 28 29 30 GROUND SUPPLIED CABLE (–) RED (R) GREEN (T) RJ31X GREY (R) BROWN (T) CONTROL/ DIALER HEADER 4204 RELAY 1 BROWN SHOWN TO PREMISES HANDSET INCOMING DIP Switch...
Page 72 VISTA-50PEN Installation and Setup Guide • Zone 5 must be programmed for response type 10 and the EOLR must be removed, regardless of whether or not EOLRs have been enabled in field *41. Zone 5 is no longer available as a protection zone.
Page 73: J7 Trigger Outputs
UL Listed keyswitch • Audio alarm verification device (two-way voice) • Auxiliary alarm signaling equipment such as an ADEMCO Long Range Subscriber Radio • Event logging serial printer (via the 4100SM Interface Module) • PC computer used to direct-wire download the panel's programming information (via the 4100SM Interface Module) The trigger output ratings are listed below.
Page 74: Ground Start Operation
VISTA-50PEN Installation and Setup Guide Ground Start Operation Not intended for use in UL Listed applications. . You cannot use Output 1 for an Ground Start if using it for a Remote Keypad Sounder, Open/Close trigger, or an AAV module.
Page 75: Remote Keypad Sounder
Figure 12-3: Remote Keypad Sounder Wiring Remote Keyswitch An optional UL-Listed remote keyswitch, such as the ADEMCO 4146, can be used for remote arming/disarming of the burglary portion of the system and for remotely silencing alarms. The keyswitch can operate in only one particular partition.
Page 76: Figure 12-4: Remote Keyswitch Wiring
VISTA-50PEN Installation and Setup Guide TO AUX POWER (TERMINAL 6) YELLOW WHITE GREEN (ARMED) (READY) ohms ohms BLACK TO J7 / OUT 2 TO J7 / OUT 4 2K ELOR ZONE TAMPER SWITCH (CONTACTS CLOSE WHEN SWITCH DEPRESSED. ZONE LOCK SWITCH...
Page 77: Audio Alarm Verification (Aav) Equipment
Silent panic/duress alarm • Opening/closing (arming/disarming) These triggers may be used to trip auxiliary alarm signaling equipment such as ADEMCO's 7720, 7720ULF, and 7920SE Long Range Radios. The open/close, fire alarm, burglary/audible panic alarm, and silent panic/duress alarm triggers are common to all partitions and must be enabled for each partition (data field 2*20).
Page 78: Event Log Printer
Event Log Printer The VISTA-50PEN's event log can be printed on a local serial printer. Connect a UL EDP Listed serial printer to the J8 connector using an ADEMCO 4100SM Interface Module. Refer to Event Log Options section for wiring connections, printer configuration, and a description of the keypad commands for event log printing.
Page 79: Long Range Radio (Ecp)
“Listen To Follow” (606), will not be sent at all. Operation The VISTA-50PEN features Dynamic Signaling Delay and Dynamic Signaling Priority message reporting when Long Range Radio is used. These message outputs are accessed through data fields 56 and 57, respectively.
Page 80: Wiring The Long Range Radio
Then this event will be transmitted to the secondary radio central station. If split reporting is selected for the VISTA-50PEN, then the LRR will follow that option. The radio will send the appropriate reports to the primary and secondary central stations.
Page 81: Trouble Messages
Section 13 – 7820 Long Range Radio Trouble Messages The following messages will be displayed on the 6139 (alpha keypad) when a problem exists the Long Range Radio: 1. “LRR Battery”: The battery connected to the radio is low. 2. “PLL out of Lock”: The radio has an internal fault and cannot transmit any messages. 3.
Page 82 VISTA-50PEN Installation and Setup Guide 13-4...
Page 83: Access Control
Interfacing the VISTA-50PEN with the PassPoint Access Control System via the Vista Gateway Module is not permissible for UL commercial burglary installations. General Information The VISTA-50PEN is capable of utilizing access control operation via one of two methods: • Interfacing with a VistaKey module •...
Page 84 Local +12v or +24v supply lead to the N/C relay terminal 11 (if a Mag Lock is being used), OR to the N/O relay terminal 10 (if a door strike is being used). Connect the – polling loop and + polling loop leads (from the VISTA-50PEN) to terminals 4 and 3 respectively.
Page 85: Figure 14-1: Wiring The Vistakey
Section 14 – Access Control 14V MAX (12V @ 85-160mA Nominal) POLLING LOOP + TO ALARM SYSTEM CONTROL PANEL POLLING LOOP - POLLING LOOP TERMINALS. THIS DEVICE COMPLIES WITH PART 15 CLASS A ZONE A (DSM) LIMITS OF FCC RULES. OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITIONS: ZONE B (RTE) (1) IT MAY NOT CAUSE HARMFUL INTERFERENCE.
Page 86 13 = VistaKey General Purpose (GP) − This input type operates in the same manner as other VISTA-50PEN alarm panel zones and is provided so that a zone in the proximity of the VistaKey can be wired without having to run additional wiring from the VISTA–...
Page 87: Access Control Using The Passpoint Access Control System
(the zone response type is ACS). The PassPoint ACS can also utilize the VISTA-50PEN’s dialer for reports to the central station. Using ACS Zone Inputs If the PassPoint ACS has uncommitted zones, these may be used by the VISTA-50PEN as hardwired zones. Programming the ACS Zone Inputs...
Page 88: Access Control Of An Entry/Exit Point Using Vistakey Or Passpoint
VISTA-50PEN Installation and Setup Guide ECHELON NETWORK PROM C (PASSPOINT ACS) 4-PIN KEYPAD PLUG TRANSFORMER GREEN BLACK CONTROL’S KEYPAD TERMINALS YELLOW Figure 14-2: Wiring the Vista Gateway Module Programming the Vista Gateway Module See the PassPoint ACS instructions to program the Vista Gateway Module.
Page 89 To control these devices, the VISTA-50PEN relays or the ACS relays or triggers are used with keypads and/or RF transmitters whose response type is Access Point (27).
Page 90: Using The Vista-50Pen For Stand-Alone Access Control
VISTA-50PEN Installation and Setup Guide Using the VISTA-50PEN for Stand-alone Access Control The VISTA-50PEN can be used for access control without interfacing to PassPoint ACS. A user can trigger an access point (i.e., door strike) for 2 seconds by entering [User Code] + [0].
Page 91: External Sounders
• • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • General Information The VISTA-50PEN provides a bell circuit output for operating fire and burglary alarm notification appliances. The alarm output is rated as follows: 10VDC - 14VDC, 1.7A max., power limited.
Page 92: Alarm Output Supervision
When supervision is enabled, the panel monitors the alarm output wiring for open and short circuit faults while the output is inactive. The VISTA-50PEN will provide a trouble indication (Zone 970) when there is an open circuit in the alarm output wiring that...
Page 93: Installing Alarm Indicating Devices To The Alarm Output
Section 15 – External Sounders Installing Alarm Indicating Devices to the Alarm Output Be sure to follow the proper guidelines below, depending on whether the system is installed in a UL or Non-UL application. Compatible Alarm Indicating Devices Use only UL Listed sounding devices for UL installations Model Number Device Type Requires Polarizing Diode...
Page 94: Figure 15-2: Wiring Nonpolarized Burglary Indicating Devices
VISTA-50PEN Installation and Setup Guide UL1023 Household Burglary Installations For household burglary installations the total current drawn from the alarm output must not exceed 1.7A. A battery must be installed since the combined auxiliary power, polling loop, and alarm output, in excess of 750mA must be supplied by the battery.
Page 95: Event Log Options
The 4100SM Module is supplied with a 10-foot RS232 cable. A longer cable or an extension cable can be used if the VISTA-50PEN is separated from the serial printer by more than 10 feet, but the total cable length should be less than 50 feet.
Page 96: Programming Event Log Options
This signal will be low (0- 1.5VDC) when the printer is not powered, not properly connected, off-line or out of paper. The VISTA-50PEN will not send printing data to the printer unless the DTR signal is high. Programming Event Log Options Program the following data fields: 1*70 EVENT LOG TYPES (1=enable;...
Page 97: Event Logging Procedures
Section 16 – Event Log Options Event Logging Procedures In order for proper time and date stamping to occur, the system's real-time clock must be set. Refer to the Setting the Real Time Clock section. If you have selected the printer to be "on-line" (field 1*72), events will print automatically, as they occur.
Page 98 VISTA-50PEN Installation and Setup Guide Displays all categories of events in chronological order, from ALL EVENT LOG most recent to the oldest. TYPE CCC UUU Displays all test events. TEST EVENT LOG TYPE CCC UUU To display the events in a particular category, press [8] at the desired category screen.
Page 99: 4100Apg Pager Interface
If the 4100APG cannot make contact with the paging service, it will retry up to 10 times. If the interface loses contact with the VISTA-50PEN, it will send a message to the paging service to notify the user.
Page 100: Wiring The 4100Apg
Wiring the 4100APG The 4100APG may be used either with or without a serial printer. The 4100APG connects to the VISTA-50PEN via the 4100SM. The 4100SM connects to the J8 connector on the control via the 4142TR Cable. Without the Event Log Printer...
Page 101: Figure 17-2: Wiring The 4100Apg With The Serial Printer
Section 17 – 4100APG Pager Interface With the Event Log Printer The serial printer must be configured for 1200 baud rate, seven data bits, even parity, and one stop bit. (7/E/1). To connect the 4100APG with a serial printer, perform the following steps: Step Action Perform the steps outlined for connecting 4100APG Without a Serial Printer.
Page 102: Programming The Control For The Pager
VISTA-50PEN Installation and Setup Guide Programming the Control for the Pager • In field *64 enter 1 to enable the 4100APG pager interface. • In field *65 enter the phone number of the paging service for Alarm reports. Up to 17 digits may be entered.
Page 103: Final Power-Up Procedure
S E C T I O N Final Power-Up Procedure • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • In This Section General Information Determining the Control Panel Power Supply...
Page 104: Earth Ground Considerations
VISTA-50PEN Installation and Setup Guide Earth Ground Considerations In order for the lightning transient protective devices in this product to be effective, the designated earth ground terminal (terminal 30), must be terminated in a good earth ground. We recommend using #16 AWG copper wire run at a maximum length of 25 ft. The following are examples of good earth grounds available at most installations: •...
Page 105: Programming Power And Ac Options
24hr. source against blowing the of AC mains fuse inside the transformer (non- replaceable). TRANSFORMER 16.5VAC, 40VA ADEMCO No.1361 NOTE: or 4300, XM10E, or WHEN POWERING UP XF10 if X-10 DEVICES THE PANEL, PLUG THE WILL BE USED. TRANSFORMER IN BEFORE CONNECTING THE BATTERY.
Page 106: Determining The Control Panel Power Supply Load
VISTA-50PEN Installation and Setup Guide Determining the Control Panel Power Supply Load Use the following tables to calculate the total current for the Auxiliary Power, Alarm Output and Polling Loop. In each table, multiply each device's standby and/or alarm current by the number of units used.
Page 107 Section 18 – Final Power-Up Procedure 2. In table 2, enter devices used on Auxiliary Power. Calculate standby and alarm currents, then add to get Auxiliary Power current subtotal. Table 2: Auxiliary Power Current Load Total Current Device Model # Device Current X # of Units = Standby Alarm Auxiliary Power Subtotal...
Page 108: Determining The Size Of The Standby Battery
Total Current Load Determining the Size of the Standby Battery The cabinet supplied with the VISTA-50PEN panel can house up to 12V, 14AH batteries (two 12V, 7AH batteries wired in parallel). The VISTA-ULKT kit provides a cabinet that can house up to 12V, 17.2AH batteries and that may be used with this panel. The total standby current drawn from the auxiliary power and polling loop outputs combined must be limited to 270mA when 14AH batteries are used;...
Page 109 The standby battery is automatically tested for 10 minutes every 4 hours, beginning 4 hours after exiting programming mode. In addition, entry into the Test Mode will cause a battery test to be initiated. The VISTA-50PEN will also run a 5-second battery test every 60 seconds to check if the battery is connected...
Page 110 VISTA-50PEN Installation and Setup Guide 18-8...
Page 111: The Mechanics Of Programming
S E C T I O N The Mechanics of Programming • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • In This Section Using Data Field Program Mode Entry Errors...
Page 112: Moving From One Page Of Programming To Another
VISTA-50PEN Installation and Setup Guide Moving from One Page of Programming to Another The data fields are grouped into four levels (referred to as "pages"). The first page is accessed as soon as Programming Mode is entered. The second, and third pages of data fields are indicated at the keypad by a 1, and 2, respectively, in front of the 2-digit field address.
Page 113: Programming Partition-Specific Data Fields
Section 19 - The Mechanics of Programming To program system-wide data fields, do the following: Step Action Enter Program Mode: [Installer Code] + 8 0 0 0. After entry into the Program Mode, the following will be displayed: Program Mode *Fill # View -00 If the control has not been programmed before, enter *97 to load factory defaults.
Page 114: #93 Menu Mode Programming
VISTA-50PEN Installation and Setup Guide PROGRAMMING PARTITION-SPECIFIC FIELDS Press *91 to select a partition. ↓ Enter the partition to be programmed. ↓ Enter a partition-specific field # and make entry. ↓ After partition-specific fields are programmed, press *91 to select next partition.
Page 115: Zone Type Definitions
• • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • Zone Number Designations The VISTA-50PEN supports up to 128 zones of hardwire, polling loop and/or wireless protection, distributed among up to 8 partitions. The following table lists the zone numbers...
Page 116 VISTA-50PEN Installation and Setup Guide Type 02: Entry/Exit #2 Burglary Provides a secondary entry delay whenever the zone is faulted and the system is armed in the AWAY and STAY mode. When the panel is armed in the INSTANT or MAXIMUM mode, no entry delay is provided.
Page 117 (e.g., a door). The access point entry relay can be assigned to an access control relay (controlled by the VISTA-50PEN), ECP relay (4204), or to the access control system independent of the VISTA-50PEN.
Page 118 VISTA-50PEN Installation and Setup Guide 20-4...
Page 119: Zone Index/Zone Type Defaults
• • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • Zone Index The VISTA-50PEN has 128 protection zones, as well as supervisory zones for relays, ECP devices (devices which communicate through the keypad terminals), and system troubles.
Page 120: Zone Type Defaults
VISTA-50PEN Installation and Setup Guide Zone Type Defaults Following are the zone type defaults for zones on the VISTA-50PEN: Zone # Zone Type Zone # Zone Type 010–128 601-632 800-830 21-2...
Page 121: Data Field Descriptions
S E C T I O N Data Field Descriptions • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • The following is a description of all data fields provided by this control.
Page 122 VISTA-50PEN Installation and Setup Guide ZONE 9 RESPONSE TIME Enter 1 to set fast response mode (10 msec) for appropriate devices wired to zone 9. Enter 0 for normal response (350 msec). Must be 0 for UL. KEYSWITCH ASSIGNMENT Enter the partition number 1-8 in which the keyswitch is being used. Otherwise, enter Requires the use of zone 7 wired loop (zone 7 is no longer available as protection zone when used for keyswitch operation).
Page 123 Section 22 – Data Field Descriptions MULTIPLE ALARMS (partition-specific) Determines whether or not more than one alarm can be sounded in a given zone during an armed period. Note that multiple alarm soundings will not occur more frequently than allowed by the programmed alarm sounder duration. This selection applies to local sounding and has no impact on the number of communication messages transmitted.
Page 124 If selecting TouchTone, make sure the subscriber has requested and is paying for TouchTone service. Note that whether or not TouchTone dialing for call placement is permitted, communication by the use of DTMF signaling (ADEMCO High Speed) will still take place. See field 1*33 for TouchTone w/Rotary backup.
Page 125 Section 22 – Data Field Descriptions DOWNLOAD COMMAND ENABLES Dialer System Remote Remote Remote Upload Download Shutdown Shutdown Used Bypass Disarm Program Program Each of the various remote functions can either be enabled or disabled through Compass downloading software. Disabling a function means that you will not be able to perform that function from Compass.
Page 126 Enter the appropriate number for the primary format as follows: 0=Low Speed; 1=Contact ID; 2=ADEMCO High Speed; 3=ADEMCO Express LOW SPEED FORMAT (PRIMARY) Enter the appropriate value: 0=ADEMCO Low Speed; 1=Sescoa/Radionics SECONDARY FORMAT This field selects the reporting format for the secondary telephone number.
Page 127 Section 22 – Data Field Descriptions STANDARD/EXPANDED REPORT PRIMARY Trbl Opn/Cls Low Batt Enter 0 for standard or 1 for expanded reporting for the primary phone number; default is 0. Note: Expanded overrides 4+2 format. STANDARD/EXPANDED REPORT SECONDARY Trbl Opn/Cls Low Batt Enter 0 for standard or 1 for expanded reporting for the secondary phone number;...
Page 128 VISTA-50PEN Installation and Setup Guide PAGER PHONE NUMBER FOR SUPERVISION | | | | | | | | | | | | | | | | This field is used to enter the alpha numeric paging service phone number for Trouble reports.
Page 129 Section 22 – Data Field Descriptions PAGER ID NUMBER FOR TEST This field is used to enter the Pager ID number for Test reports. Enter up to 10 digits. If fewer than 10 digits are required, enter * after the last digit, (i.e., pager pin number). ZONE TYPE RESTORES FOR ZONE TYPES 1-8 Enter 1 to enable Restore reporting for individual zone types.
Page 130 VISTA-50PEN Installation and Setup Guide SECONDARY SUBSCRIBER ACCT # (partition-specific) Enter 00-09; B-F (11-15) Enter the 3-or 4-digit number (depending on report format) for the secondary subscriber account: 00-09; B-F (11-15). Each number requires a 2-digit entry to allow entry of hexadecimal digits (B-F).
Page 131 Section 22 – Data Field Descriptions 1*23 CROSS ZONING PAIR TWO Enter the second pair of zones, which must both be faulted within a five-minute period to cause an alarm. Enter 00,00 to disable. Must be 00,00 for UL burglary installations. 1*24 CROSS ZONING PAIR THREE Enter the third pair of zones, which must both be faulted within a five-minute period to cause an alarm.
Page 132 VISTA-50PEN Installation and Setup Guide [06] 1*30 RF RCVR SUPERVISION CHECK-IN INTERVAL Enter the check-in monitoring interval in 2-hour increments. Enter 02-15 times 2 hours (4-30 hours). Failure of a receiver to receive any RF signal within the time entered will result in activation of the response type programmed for zone 990 for the first receiver and zone 988 for the second receiver and their related communication reports.
Page 133 Section 22 – Data Field Descriptions 1*44 WIRELESS KEYPAD TAMPER DETECT Enter 1 to enable tamper detection on wireless keypad. Enter 0 if tamper detection is not desired. If this feature is enabled, any attempt to tamper by means of many trial entries at a wireless keypad will be blocked by the control panel.
Page 134 VISTA-50PEN Installation and Setup Guide 1*57 ENABLE 5800 RF BUTTON GLOBAL ARM Enter 1 to have the system arm/disarm in accordance with the button's user's global arming settings. Enter 0 if the button is not to be used to global arm the system (however, home partition arming will still occur).
Page 135 Enter the relay number (00-96) for the relay that will be used for access control. Enter 00 if not used in this partition. This function has not been UL Listed for use with the VISTA-50PEN control. Must be 00 for UL installations. *Note: See the Access Control section for enhanced access control capability.
Page 136 VISTA-50PEN Installation and Setup Guide 2*09 OPEN/CLOSE REPORTS BY EXCEPTION (partition-specific) Enter 1 if Open/Close reports are to be sent only if the openings/closings occur outside the arm and disarm windows. Open reports will also be suppressed during the closing window in order to prevent false alarms if the user arms the system, then reenters the premises to retrieve a forgotten item.
Page 137 Section 22 – Data Field Descriptions 2*23 DISPLAY BURG & PANIC ALARMS OF OTHER PARTITIONS Enter 1 to allow burglary and panic alarms that occur on other partitions to be displayed at this partition's keypad(s). Otherwise, enter 0. 2*24 DISPLAY TROUBLES OF OTHER PARTITIONS Enter 1 to allow troubles that occur on other partitions to be displayed at this partition's keypad(s).
Page 138 VISTA-50PEN Installation and Setup Guide 22-18...
Page 139: #93 Menu Mode Programming
S E C T I O N #93 Menu Mode Programming • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • In This Section General Information •...
Page 140 VISTA-50PEN Installation and Setup Guide For defining the following device characteristics for addressable DEVICE PROG? devices, including keypads, RF receivers (5881), output relay 1 = YES 0 = NO modules (4204/4204CF), 4285/4286 VIP Module, ECP long range radio (7820), and vista gateway module: •...
Page 141: Scheduling Options
S E C T I O N Scheduling Options • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • In This Section Introduction to Scheduling Daily Open/Close Schedules...
Page 142 VISTA-50PEN Installation and Setup Guide Auto-Arm Delay • Auto-arm delay provides a delay (grace period) before auto arming. • It starts at the end of the closing time window. • The delay is set in 4-minute increments, up to 56 minutes in partition-specific program field 2*05.
Page 143: Time Window Definitions
Section 24 – Scheduling Options Exception Reports • This option allows the reporting of openings and closings to the central station only if the arming and disarming occurs outside of the predetermined opening and closing time windows. • This option is set in partition-specific field 2*09. •...
Page 144: Open/Close Definitions
VISTA-50PEN Installation and Setup Guide Scheduling Example To understand scheduling, take, for example, a store that has the following hours: Monday to Thursday: 9am to 6pm Friday 9am to 9pm Saturday 10am to 4pm Sunday Closed Holidays Closed Assume the owner desires the times to allow employees to arm or disarm the system:...
Page 145 Section 24 – Scheduling Options Temporary Schedule • The temporary schedule provides a method for the end user to override the daily and holiday schedules. • It consists of one opening window and one closing window for each day of the week. •...
Page 146: Scheduling Menu Mode
VISTA-50PEN Installation and Setup Guide Scheduling Menu Mode The #80 Scheduling Menu Mode is used to program most of the scheduling and timed-event options. To enter this mode, the system must first be in the normal operating mode (all partitions disarmed). Enter [User Code] + [#] + 8 + 0. NOTE: Only users with an Installer or Master level user code may enter the #80 mode.
Page 147: Scheduling Menu Structure
Section 24 – Scheduling Options Scheduling Menu Structure To program schedules, enter Scheduling Program Mode: [User Code] + [#] + 80. (Installer or Master level user code.) This mode can only be entered when all partitions are disarmed. There are 5 sections of scheduling menus, as shown below. Entering 1 at a displayed main menu prompt will select that menu section.
Page 148: Time Windows
VISTA-50PEN Installation and Setup Guide Time Windows The system provides 20 time windows that are defined with start and stop times. These windows are used for various open/close and access schedules, as well as for output controls, and are the basis of the scheduling system. These windows are shared among all 8 partitions.
Page 149: Daily Open/Close Schedules
Section 24 – Scheduling Options Daily Open/Close Schedules Open/Close Schedule Worksheet Write in the previously defined time window numbers for open & close for each partition. Part Tues Thur 3…8 Open/Close Schedule Programming Each partition can be assigned one daily open/close schedule, plus a holiday open/close schedule.
Page 150: Holiday Schedules
VISTA-50PEN Installation and Setup Guide Holiday Schedules A holiday schedule will override the regular daily open/close schedule on the programmed holidays throughout the year. Holiday Schedule Worksheet The system provides up to 16 holidays that can be assigned for the system. Each holiday can be assigned to any combination of partitions.
Page 151 Section 24 – Scheduling Options Time-Driven Events Worksheet Fill out the worksheet using the steps outlined below. Sched Time Days Action Action Activation Num. Window M T W T F S S H Desired Specifier Time 3…20 1) First enter the schedule number (01-20) and time window number (01-20), and note the day of the week the action is desired.
Page 152 VISTA-50PEN Installation and Setup Guide Bypass Commands Activation times 1 (Beginning), 2 (End), 3 (During) are the only valid choices for bypass commands. If 3 (During) is selected for auto-bypassing, the system will bypass the zone(s) specified on a particular zone list at the beginning of the window and unbypass the zone(s) at the end of the window.
Page 153 Section 24 – Scheduling Options Additional Commands Action Code Action Specifier 75 Run Macro Macro # 76 Run Script Script # 77 Access Point Group Enable Group # 78 Access Point Group Disable Group # 3) Enter the desired activation time, which refers to when the action is to take place relative to the time window.
Page 154 VISTA-50PEN Installation and Setup Guide After entering Scheduling Menu Mode, press 0 until the “Timed Events ?” prompt appears. Enter 1 to program timed events. Timed Events ? 1 Yes 0 = No Enter the timed event number to be programmed (01-20).
Page 155 Section 24 – Scheduling Options Action Codes: Action Specifier: 30=Auto bypass - Zone list Actions 30-31 01 ZONE LIST ? 31=Auto unbypass - Zone list If actions 30-31 were selected, the ENTER 01-15 prompt at the right will be displayed. Enter the zone list number that contains the zones to be bypassed or unbypassed.
Page 156: Limitation Of Access Schedules
VISTA-50PEN Installation and Setup Guide Limitation of Access Schedules Limitation of Access is a means by which a user's access code is limited to working during a certain period of time. The system provides 8 Access Schedules, each of which consists of two time windows for each day of the week and two time windows for holidays (typically one for an opening time window and the second for a closing time window).
Page 157: Temporary Schedules
Section 24 – Scheduling Options Enter the second time window number for holidays for this Hol A1 Window 2 ? access schedule. As the number is keyed in, the actual time 00:00 00:00 00 that has been stored for the window will be displayed. Press [∗] to continue.
Page 158 VISTA-50PEN Installation and Setup Guide This prompt is for entering the start and end times of the Mon DISARM WIND. disarm (opening) window for Monday. 00:00AM 00:00AM Upon entry of this mode, the cursor will be positioned on the tens of hours digit of the start time of the disarm window.
Page 159: User Scheduling Menu Mode
Section 24 – Scheduling Options User Scheduling Menu Mode The system provides up to 20 "timers" which will be available to the end user for the purpose of controlling output devices (4204 relay). These timers are comparable to the individual appliance timers that might be purchased at a department store.
Page 160 VISTA-50PEN Installation and Setup Guide To select the days which are to be activated, enter 1-7 06 DAYS? MTWTFSS (Monday = 1). An "x" will appear under that day, indicating the HIT 0-7 output for that day is active. Entering a day's number again will deactivate that day.
Page 161: System Communication
• • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • General Information The VISTA-50PEN provides one main built-in dialer for communication to the central station. The communicator will make up to 8 attempts to transmit a report to one or both telephone numbers, depending upon the report routing option programmed.
Page 162: Reporting Formats
128 users, to central stations equipped with the ADEMCO 685 receiver using software level 4.4 or higher. Must be level 4.7 or higher to fully support all new VISTA-50PEN report codes. 685 software levels below 4.4 cannot support Contact ID reporting. If you need to update your 685 receiver, contact your distributor.
Page 163 Section 25 – System Communication Report 3+1/4+1 3+1/4+1 Standard Expanded Low Spd or Express Alarm SSS(S) A SSS(S) A SSSS AZ AAA(A) Z Trouble SSS(S) T SSS(S) T SSSS Tt TTT(T) t Bypass SSS(S) B SSS(S) B SSSS Bb BBB(B) b AC Loss SSS(S) E SSS(S) E...
Page 164 1234 5555 1555 1 (Acct #1234 with alarm on channel 12) LIMITATIONS 1. When using ADEMCO High Speed, remember there are only 15 channels available, plus a duress channel. If more than 15 zones are being used, they will have to share channels.
Page 165: Table Of Contact Id Event Codes
Section 25 – System Communication ADEMCO Contact ID Reporting takes the following format: CCCC QEEE GG ZZZ CCCC = Customer (subscriber) ID Event qualifier, where: E = new event, and R = restore EEE = Event code (3 hexadecimal digits) GG = Partition number (system messages show “00”)
Page 166 VISTA-50PEN Installation and Setup Guide 25-6...
Page 167: Downloading Primer
3. COMPASS DOWNLOADING software may be purchased from ADEMCO. This software is available on 3-1/2" diskettes or CD ROM, and includes a complete User's Manual. It may also be downloaded from the ADEMCO web page. The web address is http://www.ademco.com.
Page 168: Getting On-Line With A Control Panel
VISTA-50PEN Installation and Setup Guide Getting On-Line with a Control Panel At the protected premises, the Control panel must be connected to the existing telephone line (refer to the System Communication section). No programming of the panel is required before downloading to an initial installation.
Page 169: Access Security
Connecting a 4100SM Module for Direct Wire Downloading The VISTA-50PEN can be downloaded without using a modem or telephone line, but by using a 4100SM Serial Module and Compass Downloading Software. The direct-wire downloading connection is to be temporary, and is not part of the permanent installation.
Page 170: Figure 26-1. Direct Wire Downloading Connections
VISTA-50PEN Installation and Setup Guide Remove the alpha numeric pager interface if it is installed while performing the direct-wire download. It may be reconnected once the direct-wire download is completed J8 CONNECTOR 4142TR CABLE (SUPPLIED WITH 4100SM) 4100SM SERIAL MODULE To TB6 Aux.
Page 171: Setting The Real-Time Clock
S E C T I O N Setting The Real-Time Clock • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • In This Section General Information Setting the Time and Date...
Page 172 VISTA-50PEN Installation and Setup Guide 27-2...
Page 173: User Access Codes
S E C T I O N User Access Codes • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • In This Section General Information Adding an RF Key to an Existing User...
Page 174 VISTA-50PEN Installation and Setup Guide Level 0: Installer (User 1) Code • Programmed in field *00 (default = 4-1-4-0). Installer Open/Close reporting is selected in field *39. • Can perform all system functions (arm, disarm, bypass, etc.), but cannot disarm if armed by another code (or by Quick Arm).
Page 175 Authority level 5 cannot disarm the system unless armed by that user. ADEMCO Contact ID format is capable of reporting Users 001-150 uniquely. If any other report format is used, only user numbers 001 - 015 can uniquely report to the central station. Users 016 - 150 will report as User 015.
Page 176: Adding A Master, Manager, Or Operator Code
VISTA-50PEN Installation and Setup Guide Multiple Partition Access Examples Each user is programmed for a primary (home) partition. A user can also be given access to operate one or more additional partitions. Within each partition, each user may be programmed to have different levels of authority. For example, User #3, the VP of Engineering, could be assigned to work within the Engineering Department (Partition 1) of ABC Manufacturing.
Page 177 Section 28 - User Access Codes Press 0 (NO) or 1 (YES), depending on whether or not Open/Close Rep.? arming/disarming by this user will trigger Opening and Closing 0 = NO , 1 = YES reports. This prompt appears only if the Installer Code is used to add a user.
Page 178: Changing A Master, Manager, Or Operator Code
VISTA-50PEN Installation and Setup Guide Changing a Master, Manager, or Operator Code Enter [Installer code]* + 8 + [User number (002-150)] + [new user's code] * Or Master or Manager code, but must be code with higher level of authority than the code being changed (i.
Page 179: Keypad Functions
S E C T I O N Keypad Functions • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • In This Section General Information Viewing Downloaded Messages...
Page 180 VISTA-50PEN Installation and Setup Guide A user code other than the Installer Code must be programmed into the system in order for the Quick Arm feature to work. SUMMARY OF ARMING MODES Mode Features for Each Arming Mode Exit Delay...
Page 181: Access Control
(see also Zone Programming and Output Programming in the #93 Menu Mode section of the Programming Guide). 3. If a Vista Gateway Module along with the ADEMCO PassPoint Access Control System or a VistaKey module is installed, then these same inputs will automatically control the appropriate access points.
Page 182: Viewing Capabilities Of A User
VISTA-50PEN Installation and Setup Guide You must program data field 2*18 to enable the GOTO function. This is a partition-specific field that must be set for each partition the user wants to access from another partition's keypad Viewing Capabilities of a User The keypad will display the partitions that a user is authorized for, the user number, and the authority level for all partitions authorized.
Page 183: Speed Key [D] (Macros)
Section 29 - Keypad Functions For the panic functions to be of practical value, the system must be connected to a central station. Speed Key [D] (Macros) The system supports up to 32 Speed Key (macro) commands. A Speed Key command is a series of keystrokes stored in the system memory and activated when a programmed lettered key is pressed.
Page 184: Manual Relay Activation Mode (#70 Mode)
VISTA-50PEN Installation and Setup Guide ENTER USER CODE Enter your user code. The programmed Speed Key sequence will begin automatically. To activate a Speed Key not assigned to the A-B-C keys, press and hold down the [D] key for 2 seconds until the following prompt appears:...
Page 185: Instant Activation Mode (#77 Mode)
Section 29 - Keypad Functions Voice: "’VOICE DESCRIPTOR’ DEVICE ‘NN’ ON/OFF. TO EXIT, nn DEVICE IS OFF ENTER 00 NOW" HIT THE "*" KEY From a keypad, press [∗] to continue. The ENTER DEVICE NO. prompt will appear. From a telephone keypad, enter 00 to exit, or enter the next relay number to be programmed.
Page 186 VISTA-50PEN Installation and Setup Guide 29-8...
Page 187: Testing The System
• • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • Battery Test When AC power is present, the VISTA-50PEN runs a brief battery test every 60 seconds to determine if the battery connected, and runs an extended battery test every 4 hours to check the battery’s condition.
Page 188: Armed Burglary System Test
VISTA-50PEN Installation and Setup Guide Armed Burglary System Test • Alarm messages will be sent to the central station during the following tests. Notify the central station that a test will be in progress. • A display of "COMM. FAILURE" indicates a failure to communicate (no kissoff by the receiver at the central station after the maximum number of transmission attempts is tried).
Page 189: Trouble Conditions
Section 30 – Testing The System All partitions containing wireless transmitters must be placed in the test mode for sensitivity reduction of the RF receiver (50% sensitivity). Otherwise, the RF receiver remains at full strength. • For multi-partition systems, make sure all partitions are disarmed before entering this mode. •...
Page 190 VISTA-50PEN Installation and Setup Guide • "CHECK" accompanied by a numeric display of "8XX," where XX = 00-31, indicates a trouble on a peripheral device (connected to the panel's keypad terminals) of the corresponding device address (00-31). • "CHECK" accompanied by a numeric display of "9XX," where XX = 00-99, indicates that a system trouble exists (dialers, bell outputs, ground fault, etc.).
Page 191: Turning The System Over To The User
• Note your ADEMCO customer number and/or company name. Having this information handy will make it easier for us to serve you quickly and effectively. You may contact Technical Support via Toll-Free Fax. Please include your return fax number.
Page 192 VISTA-50PEN Installation and Setup Guide 30-6...
Page 193: Appendix A Regulatory Agency Statements
(Also see Mounting the Cabinet in the Installing the Control section) • Wire an ADEMCO AB12 Grade A Bell/Box to the bell output. Bell wires must be run in conduit. Program the bell output for 16 or longer timeout and for confirmation of arming ding.
Page 194: Ul611/Ul1610 Central Station Burglary Alarm
• Also connect the 7720's radio fault output to one of the VISTA-50PEN's EOLR-supervised zones (i.e., 1-8). Program this zone for a trouble by day/alarm by night (type 05) or a 24- hour alarm (type 07, 08) response to radio faults.
Page 195 Appendix A – Regulatory Agency Statements "FEDERAL COMMUNICATIONS COMMISSION (FCC) STATEMENT" This equipment has been tested to FCC requirements and has been found acceptable for use. The FCC requires the following statement for your information: This equipment generates and uses radio frequency energy and if not installed and used properly, that is, in strict accordance with the manufacturer's instructions, may cause interference to radio and television reception.
Page 196 VISTA-50PEN Installation and Setup Guide CANADIAN DEPARTMENT OF COMMUNICATIONS (DOC) STATEMENT NOTICE The Canadian Department of Communications label identifies certified equipment. This certification means that the equipment meets certain telecommunications network protective, operational and safety requirements. The Department does not guarantee the equipment will operate to the user's satisfaction.
Page 197: Dip Switch Tables
A P P E N D I X DIP Switch Tables • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • •...
Page 198: Zone Expander
VISTA-50PEN Installation and Setup Guide DIP SWITCH TABLES FOR ADDRESSABLE POLLING LOOP DEVICES 4192D/4192SDT/4192CP 4190WH ZONE EXPANDER 4208 ZONE EXPANDER SMOKE DETECTORS SIDE VIEW SHOWN SET FOR (UP) ID 10 (A) SIDE VIEW APPLIES TO TABLE A ONLY APPLIES TO TABLE A & B ONLY...
Page 199: Appendix Bdip Switch Tables
Appendix B - DIP Switch Tables DIP SWITCH TABLES FOR POLLING LOOP DEVICES 4278 PIR 4194 REED CONTACT 4275 PIR (SURFACE MOUNT) MIRROR MIRROR SHOWN SET FOR SHOWN SET FOR SIDE VIEW SHOWN SET FOR ID 10 ID 10 (A) ID 10 (DN) SIDE VIEW...
Page 200 VISTA-50PEN Installation and Setup Guide...
Page 201: Appendix C Summary Of System Commands
A P P E N D I X Summary of System Commands • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • Event Logging Event Log Display = Code + [#] + 60 (Installer or Master Only) Commands...
Page 202 VISTA-50PEN Installation and Setup Guide Programming Site Initiated Download = User Code + [#] + 1. Commands Direct-Wire Download Enable = User Code + [#] + 5. Enter Program Mode = Installer Code + 8000. Exit Program Mode = *99 Or *98.
Page 203: Appendix D Specifications
14-1/2"W X 18"H X 4.3"D Electrical: Voltage Input: From ADEMCO No. 1361 Plug-In Transformer (use 1361CN in Canada) or 4300 transformer (for X-10 installations) rated 16.5VAC, 40 VA. Alarm Sounder Output: 10VDC-13.8VDC, 1.7 amps max., (UL1023, UL609 installations); 750mA less aux.
Page 204 VISTA-50PEN Installation and Setup Guide 8112; 8122; 8132; 8142 Symphony (AUI) Physical: Width: 7.75 inches Height: 8.25 inches Depth: 1.25 inches Electrical: Voltage Input: 12VDC Current Drain: Standby (LCD off, sounder off) 150mA Active (LCD on, sounder off) 350mA Alarm (LCD off, sounder on)
Page 205: Index
Ademco AB12............... 4-2 4204CF Relay Module ..........9-3 Ademco Contact ID ............ 25-5 4297 loop Extender Module........18-4 Ademco Contact ID Reporting Format ..... 25-2 4297 Polling Loop Extender ........7-5 Ademco High Speed .......... 25-2, 25-4 4300 transformer ..........4-4, D-1 Ademco Low Speed ............
Page 206 VISTA-50PEN Installation and Setup Guide Audio Alarm Verification Module Connections..11-2 Compatible 2-Wire Smoke Detectors......6-2 Audio Alarm Verification Programming....11-3 Compatible 4-Wire Smoke Detectors......6-3 Authority Levels and Modification Rules ....28-3 Compatible 5800 Series Transmitters......8-6 Auto Arming............... 24-1 Compatible Alarm Indicating Devices......
Page 207 Index Early Power Detect ............ 13-3 Gates batteries............18-6 Earth Ground Connections.......... 4-4 General Description............. 1-1 Earth Ground Considerations ........18-2 General Purpose ............14-4 ENABLE 5800 RF BUTTON FORCE ARM ... 22-14 Getting On-Line with a Control Panel ..... 26-2 ENABLE 5800 RF BUTTON GLOBAL ARM..
Page 208 VISTA-50PEN Installation and Setup Guide Off-Normal Report ............. 30-4 On-Line Control Functions ........26-2 OPEN/CLOSE REPORTING FOR KEYSWITCH... 22-5 Level 0 Installer (User 1) Code ......... 28-2 Open/Close Reporting..........28-3 Level 1 Master Codes ..........28-2 Open/Close Reports by Exception ......24-5 Level 2 Manager Codes ..........
Page 209 Index POWER UP IN PREVIOUS STATE ....18-3, 22-3 Powerline Carrier Devices........... 9-2 Power-Up Procedure ..........18-1 Scheduling............1-5, 24-1 PREVENT FIRE TIMEOUT ........22-2 Scheduling Commands ..........C-2 PREVENT ZONE XXX BYPASS....... 22-5 Scheduling Menu Mode ..........24-6 PRIMARY FORMAT..........22-6 Scheduling Menu Structure ........
Page 210 VISTA-50PEN Installation and Setup Guide Timed Events ............. 24-7 VISTA Interactive Phone Module....... 1-4 Time-Driven Event Programming ......24-13 VISTA-128B CONTROL..........D-1 Time-Driven Event Worksheet ....... 24-10 VISTA-128B Current Load........18-6 To Delete a Master, Manager, or Operator Code ..28-6 VISTA-128B for Stand-alone Access Control ...
Page 211: The Limitations Of This Alarm System
WARNING! THE LIMITATIONS OF THIS ALARM SYSTEM While this System is an advanced wireless security system, it does not offer guaranteed protection against burglary, fire or other emergency. Any alarm system, whether commercial or residential, is subject to compromise or failure to warn for a variety of reasons.
Page 212: Ademco Limited Warranty
24 months from the date stamp control on the product or, for products not having an ADEMCO date stamp, for 12 months from date of original purchase unless the installation instructions or catalog sets forth a shorter period, in which case the shorter period shall apply. Seller's obligation shall be...
Page 213: Summary Of Connections
Instructions for Connect to good earth 60 Hz Outlet required ground to maintain im- Telephone connections capacity munity to transients. REMOTE KEYPAD using Ademco No. 620 See Instructions for Use 4137/6137/6128 RJ31X direct connect Replace N.O. N.O. N.O. N.O. proper grounding.

ADEMCO VISTA-50PEN Installation And Setup Manual

List of Figures

Conventions Used in this Manual

Section 1

General Description

Section 2

Planning a Partitioned System

Section 3

False Alarm Reduction Features

Section 4

Installing the Control

Section 5

Installing the Keypads

Section 6

Basic Hardwired Zones 001-009

Section 7

2-Wire Polling Loop Expansion

Section 8

Wireless Zone Expansion

Section 9

Output Devices

Section 10

Phone Modules

Section 11

Audio Alarm Verification (AAV) Unit

Section 12

J7 Trigger Outputs

Section 13

Long Range Radio (ECP)

Section 14

Access Control

Section 15

External Sounders

Section 16

Event Log Options

Section 17

4100APG Pager Interface

Section 18

Final Power-Up Procedure

Section 19

The Mechanics of Programming

Section 20

Zone Type Definitions

Section 21

Zone Index/Zone Type Defaults

Data Field Descriptions

Section 23

Section 22

#93 Menu Mode Programming

Section 24

Scheduling Options

Section 25

System Communication

Section 26

Downloading Primer

Section 27

Setting the Real-Time Clock

Section 28

User Access Codes

Section 29

Keypad Functions

Section 30

Testing the System

APPENDIX A Regulatory Agency Statements

APPENDIX Bdip Switch Tables

APPENDIX C Summary of System Commands

APPENDIX D Specifications

Index

The Limitations of this Alarm System

Ademco Limited Warranty

Quick Links

Need help?

Questions and answers

Related Manuals for ADEMCO VISTA-50PEN

Summary of Contents for ADEMCO VISTA-50PEN
