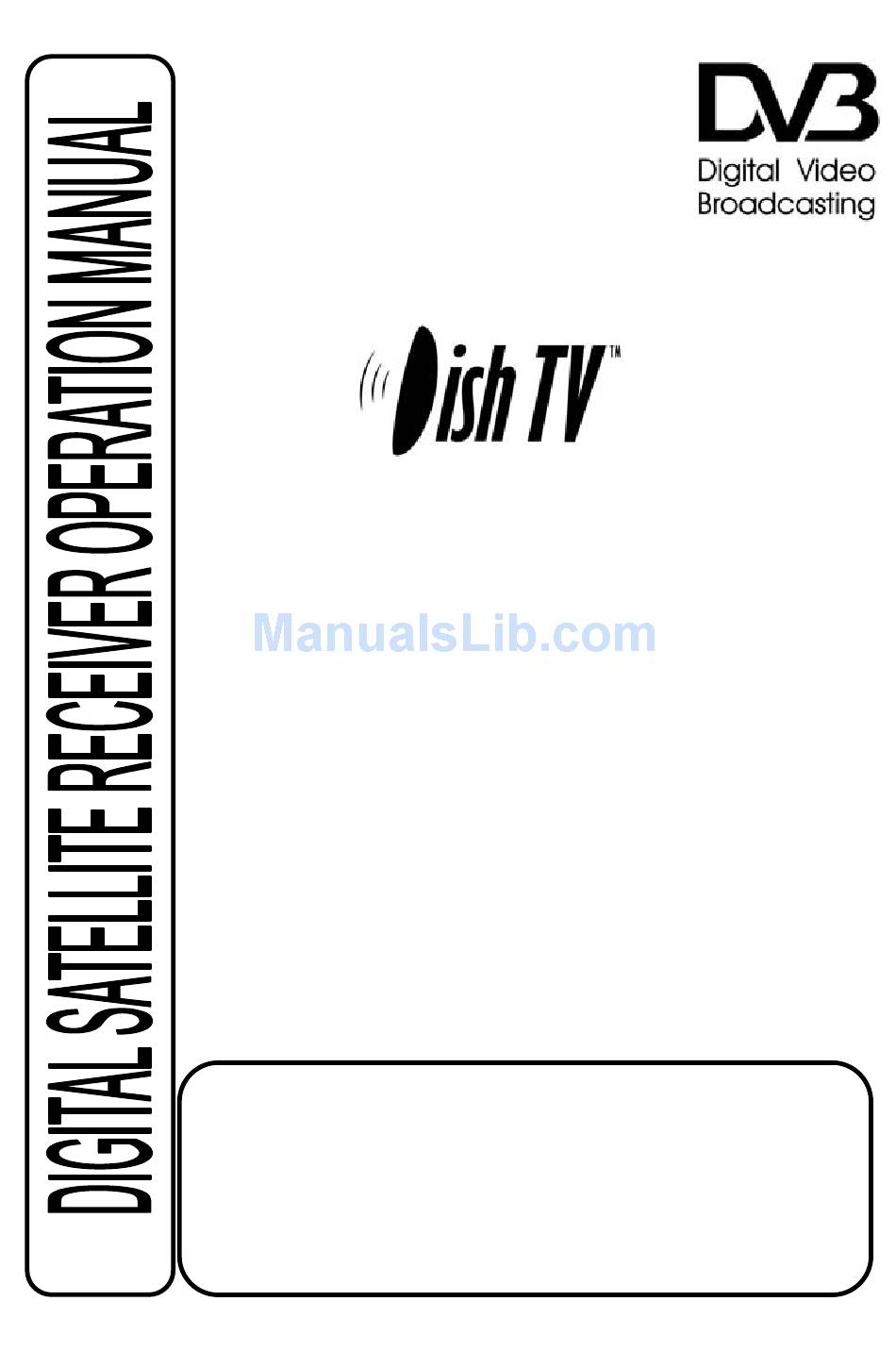

- Page 1 S9000 DEAR CONSUMER GREAT APPRECIATION FOR PURCHASING OUR PRODUCT; TO SECURE THE BEST PERFORMANCE AND THE HIGHEST SAFETY, PLEASE READ THE FOLLOWING EXPLANATION CAREFULLY PLEASE READ THIS MANUAL WITH SUFFICIENT CAREFULNESS AND PATIENCE PRECEDE THE CONNECTION AND INSTALLATION...
-
Page 2: Table Of Contents
CONTENT Safety Instruction ............................1 Front Panel..............................2 Rear Panel ..............................2 Remote controller............................3 Useful prompt..............................5 System Connection ............................6 Power On ...............................6 Menu Tree..............................7 Installation..............................8 Edit channel..............................13 Parental lock ..............................14 System information ............................15 Something else ............................15 Specification..............................16 Terms ..............................17... -
Page 3: Safety Instruction
SAFETY INSTRUCTION Please read the following instructions carefully! Do not overload the following wall outlets, extension cords or integral convenience receptacles as this can result in a risk of fire or an electrical shock Never allow liquids, sprays or other material to be exposed with the inside of the STB Unplug the STB from the wall outlet before cleaning and use the soft cloth to clean the exterior of the STB The LNB cable must be earthed to the system that earthing for the satellite antenna... -
Page 4: Front Panel
FRO N T PA N EL 1. key standby. To instruct the receiver to the standby state or the normal state when the power is being inserted 2. LED-displaying board/ status indicator/ remote sensor 3. 4. channel turning/ cursor movement 5. - Page 5 REMOTE CONTROL KEYS It's recommended to operate each function of the STB by using the key on the remote control. Please read this section to lend itself to advance your understanding of the function of the STB SAT/VCR Non-menu: to mute the audio output To instruct the unit to enter the standby mode Non-menu: to display the menu of FAVORITE CHANNEL Fav n (if existing)
- Page 6 Non-menu: to select the audio channel Non-menu: to display the caption (subtitle) of the present channel (if existing) Non-menu: to show the stored channel list, menu mode: to confirm the operation Non-menu: to instruct the scene between the active and the inactive (only on the TV status is effective) (still) Non-menu: to display the information of graphics context (teletext) Non-menu: to adjust volume...
-
Page 7: Remote Controller
PREPARATION OF REMOTE CONTROLLER Load the batteries to the groove of the remote controller and then enable you to operate the native 1. Open the lid 2. Load the batteries (AAA type) and attend whether the anode and cathode of battery are corresponding to the polarity indicated on the remote controller 3. -
Page 8: System Connection
SYSTEM CONNECTION Connect the TV Scart interface or the video terminal of this machine with the corresponding interface or terminal of TV set Adjust the direction of the dish according to the antenna signal level of infor bar displaying on the screen Connect F terminal to both ends of the cable, one end to LNB of satellite antenna and the other end to “ANT IN”... -
Page 9: Menu Tree
MENU TREE... -
Page 10: Installation
INSTALLATION Press the MENU key on non-menu mode and the image shows as Press the [red key] repeatedly to alternate the type of language Move the cursor to the Installation menu tape and press the OK key, the image shows as Antenna Setting H ighlight the instrcution [LNB Index(1..8)], press the </>... - Page 11 Channel Scan: light the second tape [Channel Scan], press the key [OK] to enter Light the first instruction [Satellite], press the </> key to choose one the satellite or press the OK key to display the satellite bar to pick. If the type of the DiSEqC in the ANTENNA SETTING is set on motor, then the instruction [Motor Position] owns the selectivity.
- Page 12 [green Edit: press the key], the dialog box with “Edit Satellite” appears. Light the Satellite instruction, press the OK key to display the soft-keyboard (usage) Press the , </> key to move the cursor and the OK key to confirm the input Use pressing the CAPS instruction to switch the letter state between capital and lowercase Use pressing the NUM and CAPS instructions to...
- Page 13 UPGRADE SOFTWARE BY OTA On [ADVANCED INSTALLATION] menu, highlight the instruction [Upgrade Software by OTA], press the [OK] key to enter its submenu shows as right side the data that most user would use have set already. What do most user need to do is just highlighting the instruction [Start Upgrade] directly and then press the key [OK] to commence the process of updating Note, after starting upgrade, the machine would reboot to...
- Page 14 USER SETTING Return to the INSTALLATION interface, light the second tape and enter its sub-menu Light the Language Setting and press the OK key to enter its sub-menu, the picture shows Besides, Audio & Subtitle Language can be set Light the Local Time Setting and enters its sub-menu: GMT: the Greenwich Meantime-central Europe time Selected Time Zone: to choose the appropriate location Summer Time: daylight saving time...
-
Page 15: Edit Channel
Delay Time: use the </> key to select 2-7second, always etc.; the magnitude of value decide the length of time of channel info tape to stay on the screen when switching the channel. Always: the instruction means the info strip will stay on the screen until press the EXIT key when switching Transparency: use the </>... -
Page 16: Parental Lock
3. Move: when the Move character is highlighted, press the key to light one channel, press the OK key to dim it, press the key to move the channel to the suitable location and press the OK key once more to release 4. -
Page 17: System Information
Lock Menu: same as above-described. When the menu has been locked, shifting from program-watching to menu status needs code input SYSTEM INFORMATION To show the information of unit model, software version. And so on. SOMETHING ELSE On the program-enjoying status, press the key [EPG] to display the menu of [EPG INFO] press the key [UP/DOWN/LEFT/ RIGHT] to select one channel... -
Page 18: Specification
SPECIFICATION Tuner Input Frequency 950-2,150 MHz Signal Level -25dBm to -65dBm (75 ) LNB Control DiSEqC1.0/1.2 22KHz LNB Power & Polarization 13V/18V (Max. 400mA) Channel Decode Demodulation QPSK (SCPC, MCPC) Input Symbol Rate 2-40MSPS Video Profile Level MPEG-II MP@ ML Output System NTSC / PAL Output Terminal... -
Page 19: Terms
TERMS (reference) DiSEqC (Digital Satellite Equipment Control) A standard through which it is possible to let a DiSEqC compatible receiver send a signal via the RF cable to a switching device to switch between different LNBs or dishes. The DiSEqC uses the 22KHz signal to control the switching device. -
Page 20: Packing List
PACKING LIST ITEMS Qty. REMARK DIGITAL SATELLITE RECEIVER INSTRUCTION MANUAL REMOTE CONTROL SCART CABLE CELL ADAPTOR NOTE: Any modification will not be noticed in advance. Our company reserves the rights for the explanation to the discrepancy...
