User Manual DVD+DVB-S Combo Receiver S9020DVD Please read this User Manual carefully to ensure proper use of this product and keep this manual for future reference.
Important Safety Instructions Important Safety Instructions 1) Read these instructions. 2) Keep these instructions. 3) Heed all warnings. 4) Follow all instructions. 5) Do not use this apparatus near water. 6) Clean only with dry cloth. 7) Do not block any ventilation openings, install in accordance with the instructions. The symbol indicates that dangerous voltages constituting a risk of electric 8) Do not install near any heat sources such as radiations, heat registers, stoves, shock are present within this unit.

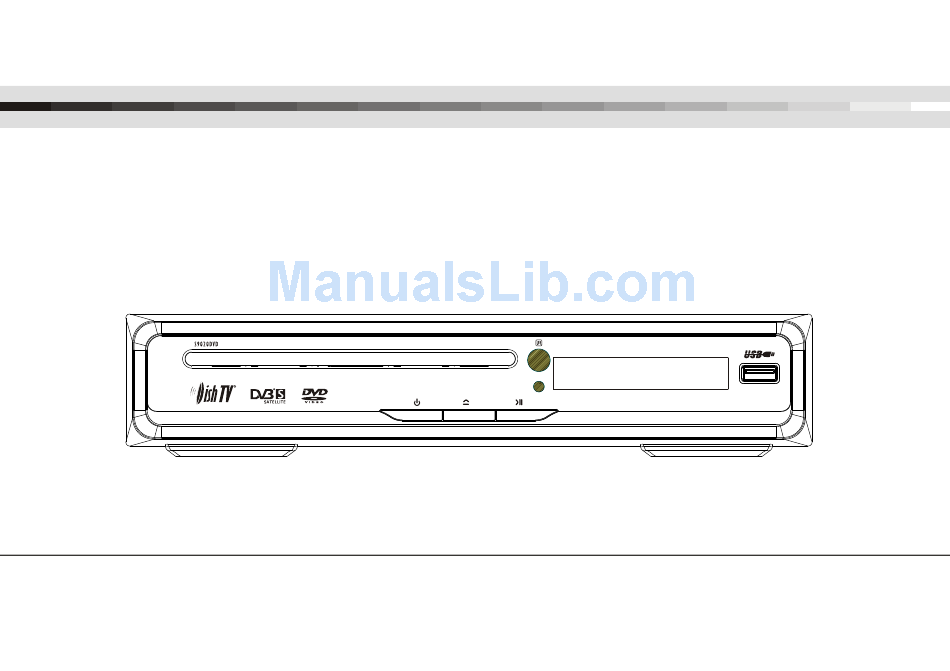

Front and Rear Panel Ill ustration Remote Controller Remote Key Function: 1. Front panel 1. OPEN/CLOSE: In DVD mode, press <OPEN/CLOSE> to immediately eject or close the disc tray. NOTE: The <OPEN/CLOSE> button has no effect in DVB mode. 2. PLAY/PAUSE: Used to pause or playback the program being viewed .
Page 4
Connections Remote Controller 17. RECORD: Used to record the program manually, and select the record duration if Caution: Make sure to check the voltage specification of the wall outlet is the same pressed it again. rating with the receiver. To prevent the risk of electric shock, do not open the cover or 18.
User Interface User Interface Switch Type: select DiSEqC1.0/1.2 switcher or DiSEqC1.2 motor, or select none if you 1.Quick Installation don't have any DiSEqC device. 1.1 Setting Language Toneburst: enable or disable toneburst switcher. User can select preferred language at Setup Installation General Setting page. Move down to the satellite selection area, and press OK key to add the proper satellite, (1) Press <Menu>...
Page 6
User Interface User Interface 2.Menu Operations 4:3PS(PanScan): Typically for wide screen content displays on conventional 4:3 TV Once the channel scan is finished and all the channels are stored into the database, you can start to watch the digital TV channel or listen to the radio broadcast, some with left and right edges cropped.
Page 7
2.2.5 Set Default 2.3.1.6 Skip Skip will skip the program when changing program by CH+/-. Press <OK> button to set or Restore STB to factory default. All settings did by user will be restored to factory default clear skip status when Skip option selected. values and the database will be erased together.
Page 8
2.4.1.1 Thumbnail/Folder 2.4.3 My Movie My Movie can play most of MPEG2/4 files. It displays the played file name at the top left The info (Width X Height and Date) of selected photo will be displayed at the left bottom in Thumbnail mode and right up in Folder mode.
Page 9
3.3 Volume FORMAT operation will delete all the files in the disk or the current partition, so please backup the files before FORMAT operation. Press <Vol-/Vol+> button to adjust the volume. Press <Mute> button to mute. If adjust the volume while mute, mute will be canceled. My Record 18/07/08 15:13 My Record- Recorded List...
Page 10
3.9 Subtitle User Interface of DVD Playback Display the subtitle on screen, the style of subtitle may be different by content provider. See Figure 19. Press <Subtitle> button to display subtitle setting page. 1. THE SETUP MENU SYSTEM Press <Up/Down> button to select subtitle language, if the program has subtitle. Main Setup Press <OK/Exit>...
Page 11
User Interface of DVD Playback User Interface of DVD Playback 1.3 SCREEN SETUP MENU (3) PASSWORD The system setup options are illustrated below: To change the password, you will be prompted for the old password, then be prompted (1) TV TYPE Screen Setup for new one.
Troubleshooting Specifications If you experience problems with this receiver or its installation, in the first instance please read carefully the relevant sections of this User Manual and this Item Specification Troubleshooting section. Tuner Frequency Range 950MHz to 2150MHz Input Impedance 75 Ohms unbalanced Signal Input Level -65 ~ -25DBM...
