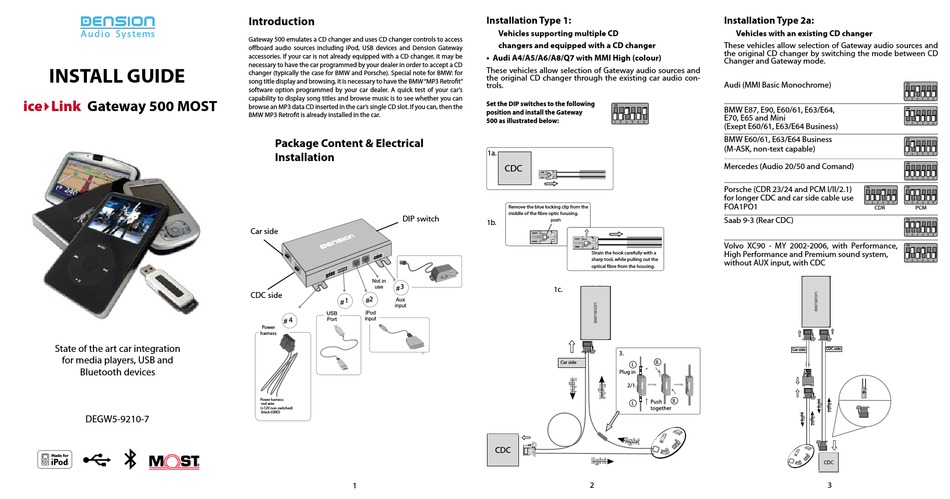

INSTALL GUIDE
ice 4 Link Gateway 500 MOST
State of the art car integration
for media players, USB and
Bluetooth devices
DEGW5-9210-7
Introduction
Gateway 500 emulates a CD changer and uses CD changer controls to access
offboard audio sources including iPod, USB devices and Dension Gateway
accessories. If your car is not already equipped with a CD changer, it may be
necessary to have the car programmed by your dealer in order to accept a CD
changer (typically the case for BMW and Porsche). Special note for BMW: for
song title display and browsing, it is necessary to have the BMW "MP3 Retrofit"
software option programmed by your car dealer. A quick test of your car's
capability to display song titles and browse music is to see whether you can
browse an MP3 data CD inserted in the car's single CD slot. If you can, then the
BMW MP3 Retrofit is already installed in the car.
Package Content & Electrical
Installation
DIP switch
Car side
3
CDC side
2
1
4
Power
harness
Power harness:
-red wire
(+12V non switched)
-black (GND)
1
Installation Type 1:
Vehicles supporting multiple CD
changers and equipped with a CD changer
• Audi A4/A5/A6/A8/Q7 with MMI High (colour)
These vehicles allow selection of Gateway audio sources and
the original CD changer through the existing car audio con-
trols.
Set the DIP switches to the following
position and install the Gateway
500 as illustrated below:
1a.
CDC
Remove the blue locking clip from the
middle of the fibre optic housing.
1b.
Strain the hook carefully with a
sharp tool, while pulling out the
optical fibre from the housing.
1c.
3.
Car side
2
Installation Type 2a:
Vehicles with an existing CD changer
These vehicles allow selection of Gateway audio sources and
the original CD changer by switching the mode between CD
Changer and Gateway mode.
Audi (MMI Basic Monochrome)
BMW E87, E90, E60/61, E63/E64,
E70, E65 and Mini
(Exept E60/61, E63/E64 Business)
BMW E60/61, E63/E64 Business
(M-ASK, non-text capable)
Mercedes (Audio 20/50 and Comand)
Porsche (CDR 23/24 and PCM I/II/2.1)
for longer CDC and car side cable use
FOA1PO1
CDR
Saab 9-3 (Rear CDC)
Volvo XC90 - MY 2002-2006, with Performance,
High Performance and Premium sound system,
without AUX input, with CDC
CDC side
Car side
3
PCM
