2. Technical Specs
2.1 Main Board
Main board mainly includes FX3 USB 3.0 Controller, Power Management, USB
3.0 connector interface, Dual 26-PIN 1.27mm socket for Sensor board interface.
2.2 Sensor Boards
Leopard Imaging USB 3.0 Camera supports different sensor boards from different
manufacturers.
USB 3.0 Camera User's Guide

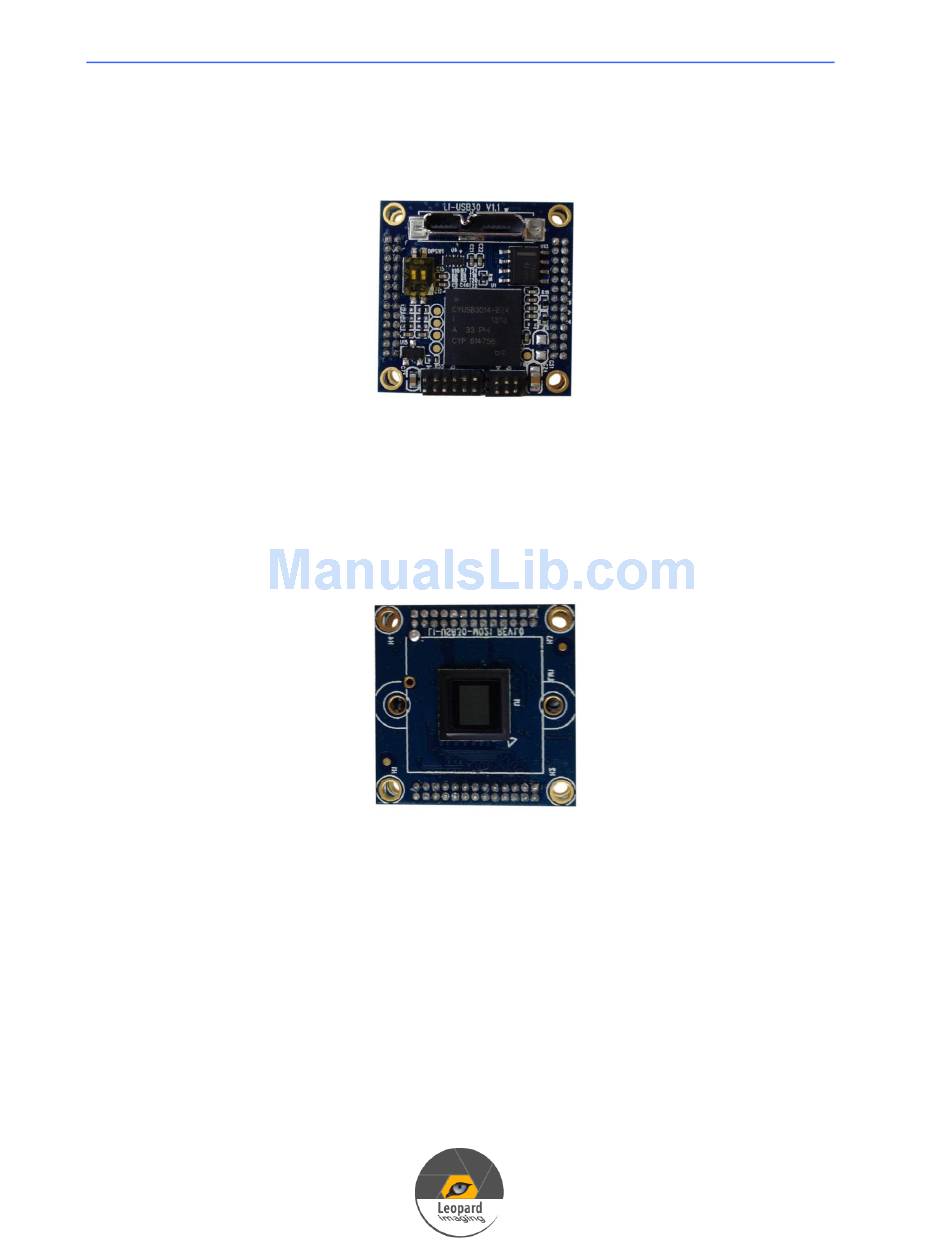

Figure 1: Main Board
Figure 2: Sensor Board
7
