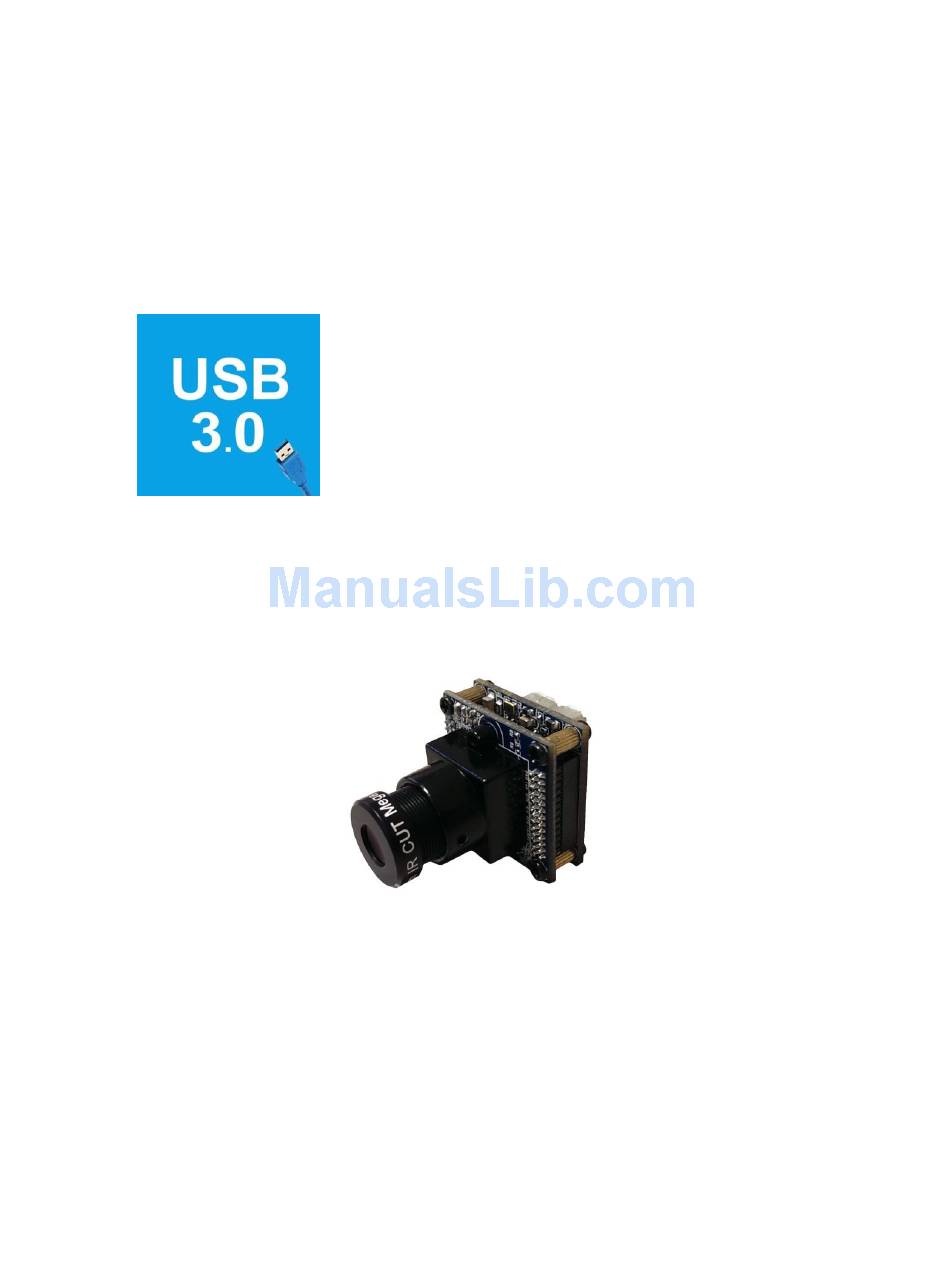

- Page 1 USB 3.0 Camera User’s Guide Rev 1.2 Leopard Imaging Inc. Mar, 2014...
-
Page 2: About This Manual
USB 3.0 Camera User’s Guide Preface Congratulations on your purchase of this product. Read this manual carefully and keep it in a safe place for any future reference. About this manual This user manual has been designed to help you make the most of your IP camera and its many features and functions. -
Page 3: Table Of Contents
2.2 Sensor Boards ........................7 2.3 Product Dimensions ......................13 3. Driver Installation ........................ 14 Run Camera ........................15 4.1 USB 3.0 Camera Tool ...................... 15 4.2 AMcap ..........................15 4.3 GraphEdit ........................16 4.4 Other Video Software ..................... 17 Update Firmware ........................ -
Page 4: Introduction
USB 3.0 Camera User’s Guide Introduction This section covers unpacking your new USB 3.0 camera, its key features, Applications and basic technical information about the Sensor boards. Refer to later chapters for information on setting up and configuring the product in more detail. -
Page 5: Product Introduction
USB 3.0 Camera User’s Guide 1. Product Introduction 1.1 Product outline Leopard Imaging USB 3.0 camera is new generation super speed USB Video camera which supports more than 3G video bandwidth to stream 1080p 30fps video without compression, it provides sharper and high quality... -
Page 6: Applications
Scientific Camera 3-D Gesture camera 1.4 Device Requirements Computer With USB 3.0 Port. The port can be realized via a mainboard-based host adapter or via a separately installed host adapter card USB cable for USB 3.0 Micro-B Port... -
Page 7: Technical Specs
USB 3.0 Camera User’s Guide 2. Technical Specs 2.1 Main Board Figure 1: Main Board Main board mainly includes FX3 USB 3.0 Controller, Power Management, USB 3.0 connector interface, Dual 26-PIN 1.27mm socket for Sensor board interface. 2.2 Sensor Boards Figure 2: Sensor Board Leopard Imaging USB 3.0 Camera supports different sensor boards from different... - Page 8 Support VGA 60fps video streaming Global Shutter For high speed application Color Monochrome Data type RAW data USB 3.0 real time streaming Lens CS / M12 lens mount support (Default: M12 lens) Interface USB 3.0 interface Power USB 3.0 +5VDC power source...
- Page 9 Support 720p 55fps video streaming Support 960P, VGA 30 fps streaming Support WDR (Wide Dynamic Range) Data type Tuned YUV data USB 3.0 real time streaming Lens CS / M12 lens mount support (Default: M12 lens) Interface USB 3.0 interface Power USB 3.0 +5VDC power source...
- Page 10 2592 x 1944, 1080P, VGA (640 x 480) Streaming Support 1080p, VGA 30fps video streaming Support 2592 x 1944 9fps video streaming Data type RAW data USB 3.0 real time streaming Lens CS / M12 lens mount support (Default: M12 lens) Interface USB 3.0 interface Power USB 3.0 +5VDC power source...
- Page 11 1600 x 1200 Streaming Support 1600 x 1200 38fps video streaming Global Shutter For high speed application Data type RAW data USB 3.0 real time streaming Lens CS / M12 lens mount support (Default: M12 lens) Interface USB 3.0 interface Power USB 3.0 +5VDC power source...
- Page 12 Streaming Support 4912 x 3684 4 fps video streaming Support 1920 x 1080 30 fps video streaming Data type RAW data USB 3.0 real time streaming Lens CS / M12 lens mount support (Default: M12 lens) Interface USB 3.0 interface Power USB 3.0 +5VDC power source...
-
Page 13: Product Dimensions
USB 3.0 Camera User’s Guide 2.3 Product Dimensions (mm) -
Page 14: Driver Installation
3. Driver Installation 1) Connect the USB 3.0 cable to camera. 2) Plug the USB into USB 3.0 port on PC. 3) PC will search and install driver automatically. 4) After install the driver, you can find it in Device Manager. -
Page 15: Run Camera
USB 3.0 Camera User’s Guide 4. Run Camera 4.1 USB 3.0 Camera Tool 1) Download CameraUSB30.zip from link: https://www.dropbox.com/sh/ypy5zjdxhowb7bq/gwlh4ANxdr 2) Uncompress the package. 3) Connect the camera to PC. 4) Open “CameraTool.exe”. Note: We also have the SDK for the camera tool software. Please download it from the link below if needed. -
Page 16: Graphedit
USB 3.0 Camera User’s Guide 3) Run AMcap after connecting the camera to PC. 4.3 GraphEdit 1) Download GraphEdit from link below. http://www.videohelp.com/tools/GraphEdit 2) Uncompress the package. 3) Open GraphEdit after connecting the camera to PC. And click“Insert a filter”. -
Page 17: Other Video Software
7) Click “Play the graph”. Video window will pop up. 4.4 Other video software Our USB 3.0 cameras are UVC compliant devices and would be compatible with most of the video capture software (Windows or Linux) which can be downloaded online. -
Page 18: Update Firmware
USB 3.0 Camera User’s Guide 5. Firmware Update 1) Re-connect the USB camera. 2) Open “LP_USB3_FirmwareUpdateTool.exe” which is in the CameraUSB30_x_x.zip package. 3) Click “FW Update” and select the .lif file. 4) Normally the update will complete in around 20 seconds. While the application is updating firmware, you can see the update status in the application window. -
Page 19: Trigger Pin
USB 3.0 Camera User’s Guide 6. Trigger Pin...
