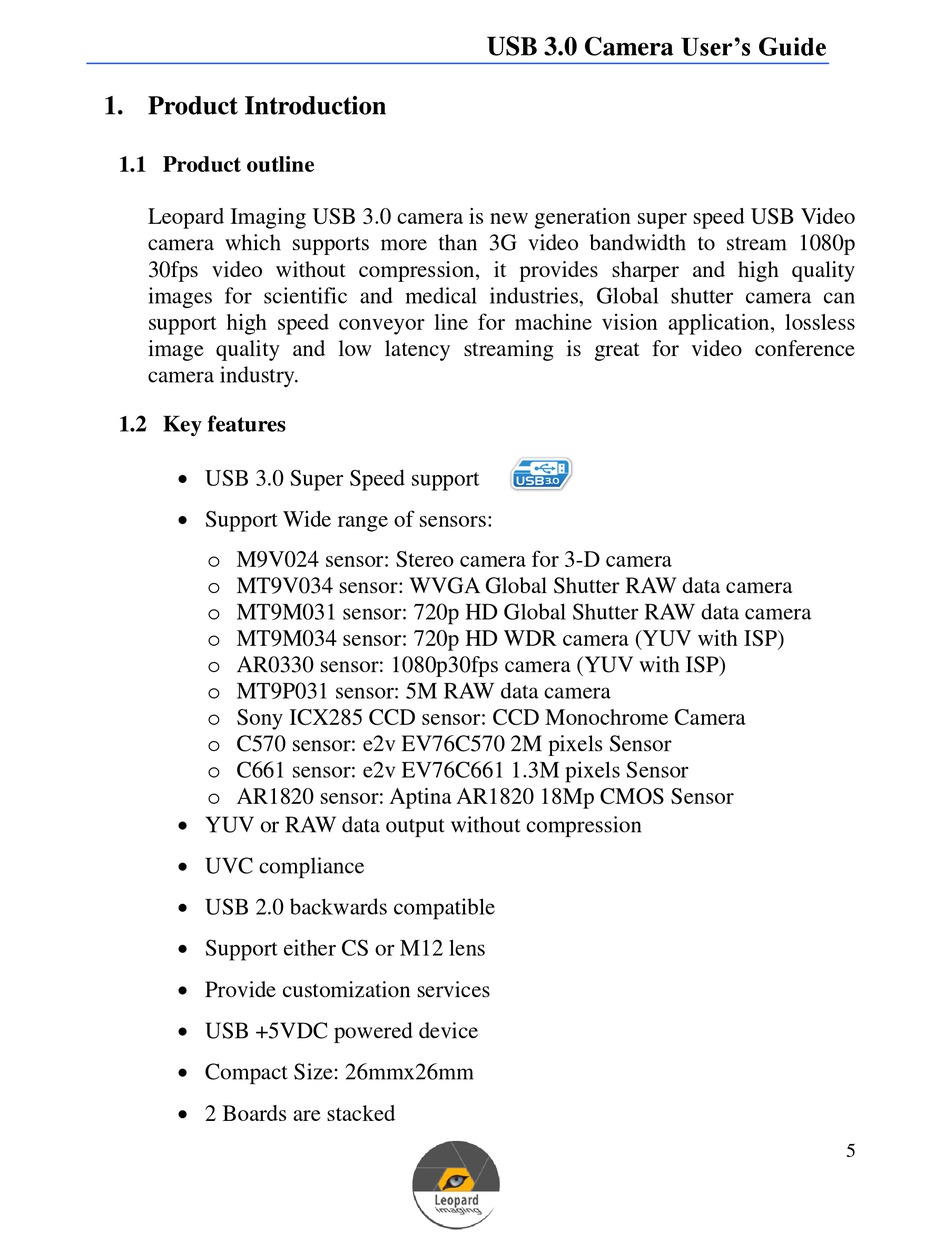

1. Product Introduction

1.1 Product outline

Leopard Imaging USB 3.0 camera is new generation super speed USB Video
camera which supports more than 3G video bandwidth to stream 1080p
30fps video without compression, it provides sharper and high quality
images for scientific and medical industries, Global shutter camera can
support high speed conveyor line for machine vision application, lossless
image quality and low latency streaming is great for video conference
camera industry.

1.2 Key features

 USB 3.0 Super Speed support
 Support Wide range of sensors:
o M9V024 sensor: Stereo camera for 3-D camera
o MT9V034 sensor: WVGA Global Shutter RAW data camera
o MT9M031 sensor: 720p HD Global Shutter RAW data camera
o MT9M034 sensor: 720p HD WDR camera (YUV with ISP)
o AR0330 sensor: 1080p30fps camera (YUV with ISP)
o MT9P031 sensor: 5M RAW data camera
o Sony ICX285 CCD sensor: CCD Monochrome Camera
o C570 sensor: e2v EV76C570 2M pixels Sensor
o C661 sensor: e2v EV76C661 1.3M pixels Sensor
o AR1820 sensor: Aptina AR1820 18Mp CMOS Sensor
 YUV or RAW data output without compression
 UVC compliance
 USB 2.0 backwards compatible
 Support either CS or M12 lens
 Provide customization services
 USB +5VDC powered device
 Compact Size: 26mmx26mm
 2 Boards are stacked
