Installation instructions

IZONA CookSpace multifunction pyrolytic oven
OB90 models
Important!
SAVE THESE INSTRUCTIONS
The models shown in this document may not be available in all markets and are subject to change at any time. For current details about model and specification availability in your country, please visit our local
website listed at the end of this document or contact your local Fisher & Paykel dealer.
1

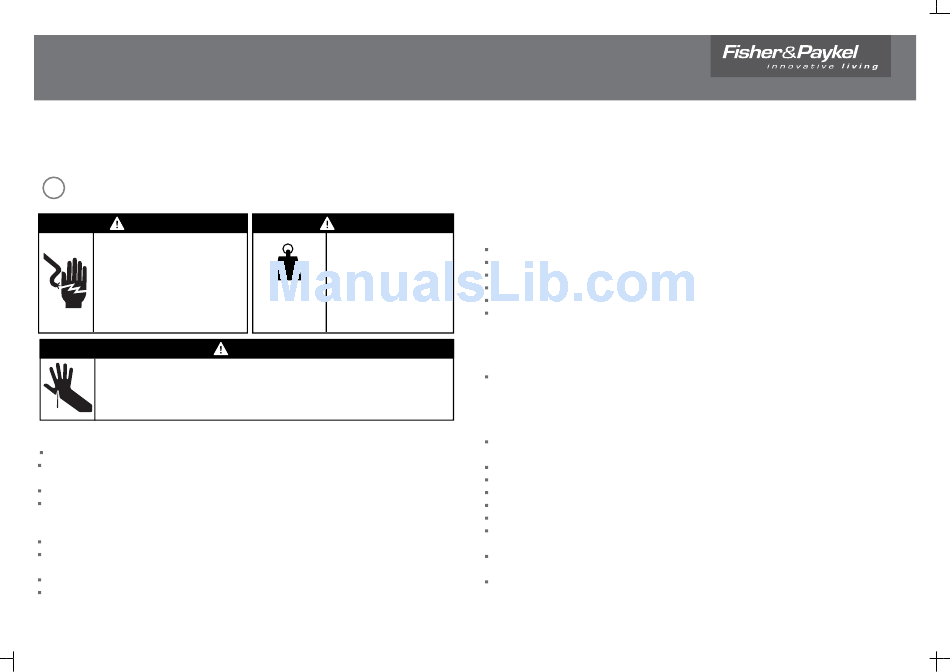

SAFETY AND WARNINGS

WARNING!
Electrical hazard
Always disconnect the oven from
the mains electricity supply
before carrying out any
maintenance operations or
repairs.
Failure to do so may result in
electrical shock or death.
Cut hazard
Take care - panel edges are sharp.
Failure to use caution could result in injury or cuts.

Important safety instructions!

To avoid hazard, follow these instructions carefully before installing or using this product.
Please make this information available to the person installing the product as it could reduce your
installation costs.
This oven is to be installed and connected to the electricity supply only by an authorised person.
If the installation requires alterations to the domestic electrical system, call a qualified electrician. The
electrician should also check that the power supply cable section is suitable for the electricity drawn by the
oven.
The oven must be earthed.
Do not use adapters, reducers or branching devices to connect the oven to the mains electricity supply,
as they can cause overheating and burning.
Installation must comply with your local building and electricity regulations.
Failure to install the oven correctly could invalidate any warranty or liability claims.
WARNING!
Very Heavy
Do not attempt to lift this
product unassisted.
124 lb
Lifting unassisted may
cause serious injury.
56 kg
WARNING!
Before you install the oven, please make sure that
it will be lifted by two people.
the oven will rest on a flat surface that can support its weight.
the benchtop and oven cavity are square and level, and are the required dimensions.
the height from the floor suits the customer.
the oven door can open fully without obstruction.
a suitable isolating switch providing full disconnection from the mains power supply (under overvoltage
category III conditions) is incorporated in the permanent wiring, mounted and positioned to comply with
the local wiring rules and regulations. The isolating switch must be of an approved type and provide a 3
mm air gap contact separation in all poles (or in all active [phase] conductors if the local wiring rules allow
for this variation of the requirements).
the electrician provides sufficient free length of power supply cable to reach from the bottom rear of the
cavity to at least 1.5 metres in front of the bottom edge of the opening. The cable may enter the cavity
from the side, top or bottom, but top entry must be at the rear of the cavity.
When you install the oven
Do not seal the oven into the cabinetry with silicone or glue. This makes future servicing difficult. Fisher &
Paykel will not cover the costs of removing the oven, or of damage caused by this removal.
Use the supplied screws to secure the oven to the cabinetry. Do not over-tighten the screws.
Make sure that the power supply cable will not touch any hot metal parts.
Make sure that the isolating switch will be easily accessible by the customer.
Do not stand on the door, or place heavy objects on it.
Do not lift the oven by the door handle.
Take extra care not to damage the lower trim of the oven. We suggest you place the unpacked oven onto
wooden blocks or similiar supports.
When handling the oven, take care not to damage the door sensor lever
(near the top right corner of the oven seal).
Use easy-to-clean finishes for the wall surfaces surrounding the oven, so that cooking fume staining
resulting from using the oven is easy to remove.
NZ AU GB IE
