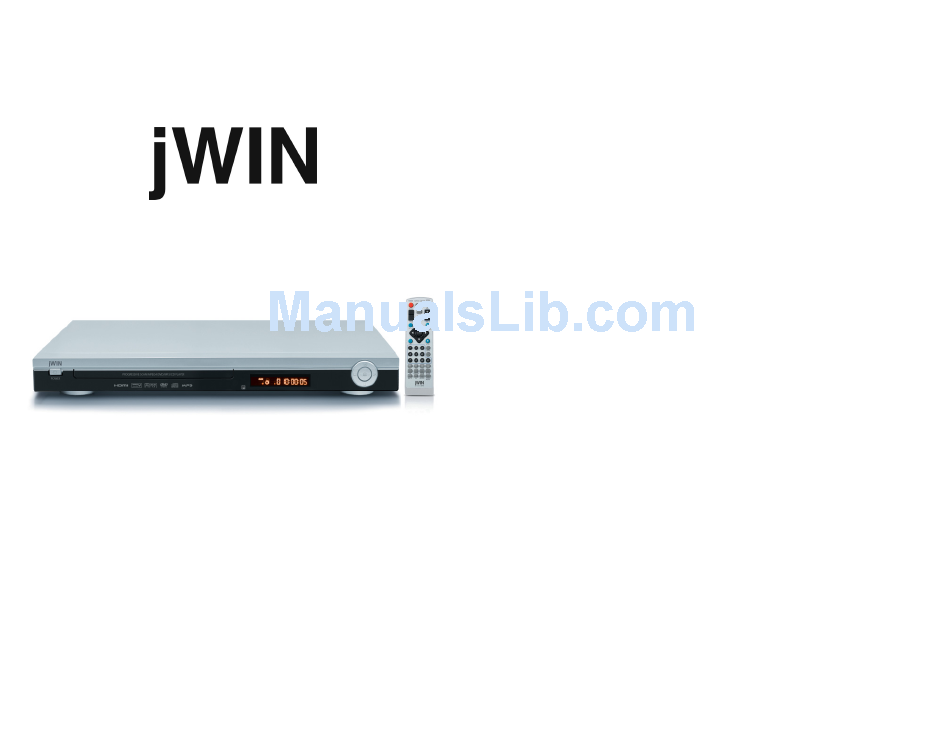

- Page 1 HOME DVD PLAYER V10M10_IM_EN_12212007 2-Channel Progressive-Scan DVD Player with HDMI Output & MPEG4 Playback JD-VD518 INSTRUCTION MANUAL Please read this manual carefully before operating and save it for future reference. Have a question? Please visit www.jWIN.com www.jWIN.com...
-
Page 2: User Safety Guide
HOME DVD PLAYER USER SAFETY GUIDE IMPORTANT SAFETY PRECAUTIONS The lightning flash with an arrowhead symbol within an equilateral triangle is intended to alert the user of the presence of un-insulated “dangerous voltage” within the unit’s cabinet that may be of sufficient magnitude to constitute a risk of electric shock. -
Page 3: Important Safety Instructions
HOME DVD PLAYER USER SAFETY GUIDE IMPORTANT SAFETY INSTRUCTIONS READ INSTRUCTIONS – All the safety and operating instructions should be read before the appliance is operated. RETAIN INSTRUCTIONS – The safety and operating instructions should be retained in a secure place for future reference. -
Page 4: Table Of Contents
Notes on using the remote control ………………………………………………………… 12 Brief instructions on installing the DVD player …………………………………………… 13 Connecting the DVD Player to a TV Set using an AV Cable …………………………… 14 Connecting the DVD Player to a TV Set using S-Video………………………………… 14 Connecting the DVD Player to a TV Set using the Y/Pb/Pr Jacks ………………………15... -
Page 5: Compatibility
HOME DVD PLAYER GETTING STARTED Thank you for purchasing JD-VD518. Unpack the unit and make sure all the accessories are put aside so they will not be lost. We recommend that you retain the original carton and packaging materials for future use, should you transport or ship the unit in the future. -
Page 6: Location Of Controls On The Remote Control
HOME DVD PLAYER GETTING STARTED Location of Controls on the Main Unit [Front Panel] Power button Disc loader Remote control sensor LED screen PREV button [Rear Panel] CH Audio output Component Video output (Y, Pb, Pr) Composite video output Coaxial Digital Audio output... -
Page 7: Brief Instructions On Installing The Dvd Player
Do not leave the remote control in an extremely hot or humid place. Do not spill water or put any liquid on the remote control. Do not expose the remote control sensor of the DVD player to a strong light source, such as direct sunlight. -
Page 8: Connecting The Dvd Player To A Tv Set Using An Av Cable
V10M10_IM_EN_12212007 HOME DVD PLAYER GETTING STARTED Connecting the DVD Player to a TV using the Y / Pb / Pr Jacks Use a COMPONENT cable (not included) to connect the DVD player to your TV. Set the VIDEO OUT to COMPONENT. For Progressive Scan, set to P-SCAN. -
Page 9: Navigating The Setup Menu
Video Setup ASPECT RATIO: Choose 4:3LB, 4:3PS, 16:9 4:3PS / 4:3LB: Choose this setting when your DVD player is connected to a normal ratio TV. If this aspect ratio is chosen and the entire TV screen is used, parts of the picture on the laft and right will be cut off. -
Page 10: Audio Setup
TV and the recorded material on the disc. TV SYSTEM: This DVD player supports various TV systems, including Multi, NTSC, and PAL. When a TV set has only NTSC or PAL systems, the screen may blink and become colorless when the wrong system is selected. -
Page 11: Misc Setup
HOME DVD PLAYER GETTING STARTED Navigating the Setup Menu Audio Setup-continued DOWN SAMPLING: Choose ON or OFF. ON: The system will decrease a sampling rate for high sampling rate audio (more than 96K). OFF: Default. High sampling rate audio can be played SMART SOUND: Select different music effects while listening to music. -
Page 12: Play] Button
HOME DVD PLAYER OPERATIONAL INSTRUCTIONS ] PREV Button While playing back a DVD, CD or VCD, press the [| ] button to skip to the previous chapter or track. |] NEXT Button While playing back a DVD, CD or VCD, press the [ |] button to skip to the next chapter or track. -
Page 13: Advanced Features
HOME DVD PLAYER OPERATIONAL INSTRUCTIONS [V-MODE] Button In the STOP/OPEN TRAY/NO DISC state, press the [V-MODE] button to change the video output format. This unit supports 3 different video output formats: Interlaced Video Output, Progressive-scan Video Output, and S-VIDEO output. If you select a wrong video output by a mistake, press the [V-MODE] button repeatedly until the TV screen shows correctly. -
Page 14: Stop] Button
HOME DVD PLAYER ADVANCED FEATURES Playing MP3 / WMA CDs-continued Shuffle: Shuffle mode enabled. When playback reaches the end of the current chapter/track, playback jumps to a random chapter/track. As the end of each chapter/track is reached, another random chapter/track will be played until all tracks/chapters have been played or the... -
Page 15: Troubleshooting Guide
HOME DVD PLAYER TROUBLESHOOTING GUIDE No picture or no sound • Ensure whether the [POWER] button on the front panel is on. • Ensure whether the power cord is connected properly. • Ensure the power outlet is working. Picture but no sound •... - Page 16 HOME DVD PLAYER V10M10_IM_EN_12212007 HOME DVD PLAYER V10M10_IM_EN_12212007 TEL: 516-626-7188 FAX: 516-626-7105 website: www.jWIN.com © 2008 jWIN Electronics Corp. All rights reserved. No portion of this printed material or product enclosed herewith including design, shape or graphics, may be reproduced or transmitted in any form without the expressed written consent of jWIN Electronics Corp.
