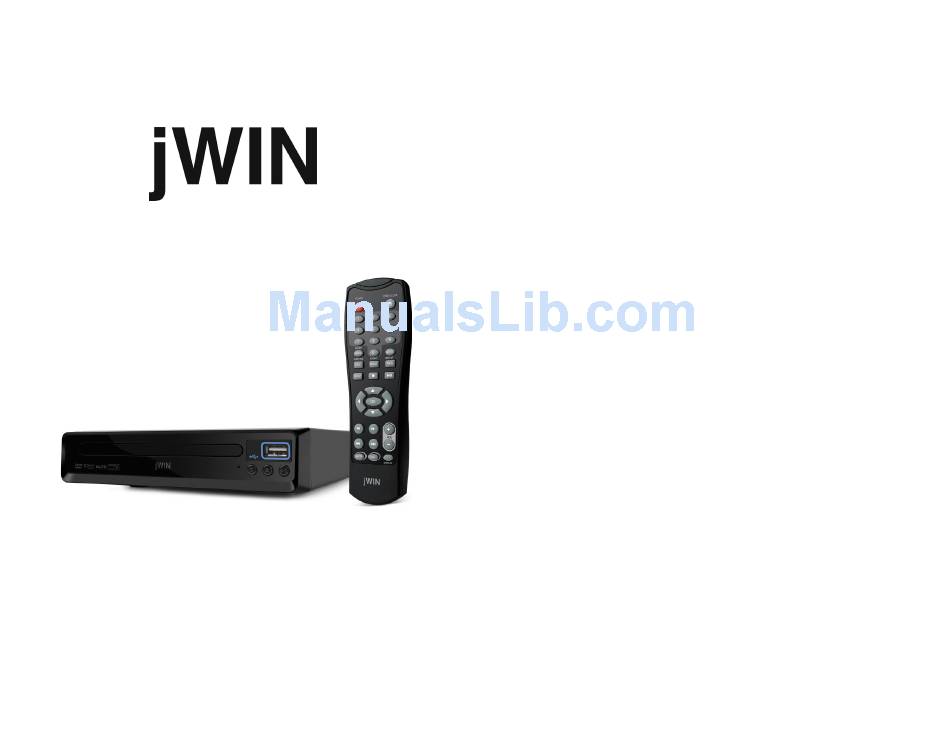

- Page 1 HOME DVD PLAYER V10M10_IM_EN_09142009 DVD Player with USB and Progressive Scan Feature JD-VD143 INSTRUCTION MANUAL Please read this manual carefully before operating and save it for future reference. Have a question? Please visit www.jWIN.com www.jWIN.com...
-
Page 2: Table Of Contents
HOME DVD PLAYER INTRODUCTION Thank you for purchasing JD-VD143. Unpack the unit and make sure all the accessories are put aside so they will not be lost. We recommend that you retain the original carton and packaging materials for future use, should you transport or ship the unit in the future. -
Page 3: Compatibility
The “Kodak Picture CD Compatible” logo is a trademark of Eastman Kodak Company and is used with the permission. Manufactured under license from Dolby Laboratories. Dolby and the double-D symbol are trademarks of Dolby Laboratories. Confidential unpublished works. Copyright 1992–1997 Dolby Laboratories. All rights reserved. www.jWIN.com V10M10_IM_EN_09142009 DVD VIDEO Multi-angle AUDIO CD... -
Page 4: Location Of Controls On The Main Unit
10. REVERSE 11. FORWARD 12. PREVIOUS 13. NEXT Note: ·Long press buttons (MENU, TITLE, ANGLE, PROG). ·Short press buttons (ZOOM, SUBTITLE, AUDIO, REPEAT). www.jWIN.com V10M10_IM_EN_09142009 14. MUTE 15. USB 16. GOTO 17. AUDIO/ANGLE 18. REPEAT/PROGRAM 19. PLAY/PAUSE 20. STOP 21. RIGHT 22. -
Page 5: Installing The Remote Control Batteries
This unit must be operated with the correct power supply corresponding to the marking label on the back of the unit. This unit may not be compatible with some specially encrypted discs. www.jWIN.com V10M10_IM_EN_09142009 If you do not use the remote control for a long period of time, remove the installed batteries from the remote control to avoid possible damage from the battery corrosion. -
Page 6: About The Audio Outputs
The component VIDEO output is labeled as Y, Pr (or Cr), and Pb (or Cb), and these three component video output jacks must be all and properly connected to properly display the picture in the component video mode of your TV set. www.jWIN.com V10M10_IM_EN_09142009 See the notes below for the video connection. -
Page 7: Connecting To An Audio Amplifier With Digital Audio Input
DVD, this unit will use the default audio language of the DVD. DVD MENU: Used to choose the film’s menu language options. Follow the operating instructions in DVD MENU Setup in combination with the desired option www.jWIN.com V10M10_IM_EN_09142009 www.jWIN.com... -
Page 8: Video Setup
This option should only be chosen when Dolby Digital AC3 signals are running through coaxial audio output. 2. DOWN SAMPLING: Choose ON or OFF. ON: The system will decrease a sampling rate for high sampling rate audio (more than 96K). OFF: Default. High sampling rate audio can be played www.jWIN.com V10M10_IM_EN_09142009 www.jWIN.com... -
Page 9: Misc Setup
DVD disc doesn’t support the title menu. This function depends on the disc type. [AUDIO] Button During DVD/SVCD playback, press the [AUDIO] button to select different audio languages. During VCD/CD/MP3 playback, the [AUDIO] button acts as L/R key to switch LEFT/RIGHT/MIX/STEREO. www.jWIN.com V10M10_IM_EN_09142009 www.jWIN.com... -
Page 10: [Angle] Button
·Short press [ MENU, TITLE, ANGLE, PROG ] will activate the functions marked above these buttons (ZOOM, SUBTITLE, AUDIO, REPEAT). www.jWIN.com V10M10_IM_EN_09142009 ] button to play back the video or audio ] button, the disc will play at different speed. -
Page 11: Advanced Features
Use the [ [PLAY/PAUSE] buttons to view the picture. To ROTATE the images use the [ www.jWIN.com V10M10_IM_EN_09142009 / ] buttons to choose the root directory, pressing the [OK] button to enter / ] buttons to choose the desired picture and press / ] buttons when in Picture Display mode. -
Page 12: Usb Interface
Ensure you have loaded a disc. • Ensure the disc is not upside down. • Ensure the disc isn’t distorted, stained or scratched. The main unit is not working. • Power off the main unit and turn it on again. www.jWIN.com V10M10_IM_EN_09142009 www.jWIN.com... -
Page 13: User Safety Guide
17. The MAINS plug or an appliance coupler is used as the disconnect device, the disconnect device shall remain readily operable. www.jWIN.com V10M10_IM_EN_09142009 www.jWIN.com... - Page 14 DO NOT INCREASE THE VOLUME LEVEL FURTHER. In the use of headphones, please take more attention. Hearing experts say that listening to a loud music can damage your hearing, especially when listening to music with headphones. www.jWIN.com V10M10_IM_EN_09142009 www.jWIN.com...
-
Page 15: Specifications
Composite Video Output o Component Video Output (Y, Pb, Pr) • Audio o 2-Channel Audio Output o Coaxial Digital Audio Output * Specifications and features are subject to change without the prior notice. The weight and dimensions are approximate. www.jWIN.com V10M10_IM_EN_09142009 www.jWIN.com... - Page 16 FAX: 516-626-7105 website: www.jWIN.com © 2009 jWIN Electronics Corp. All rights reserved. No portion of this printed material or product enclosed herewith including design, shape or graphics, may be reproduced or transmitted in any form without the expressed written consent of jWIN Electronics Corp. by any means, electronic or mechanical, including photocopying, recording or use of an information storage and retrieval system.
