The product is manufactured in accordance with
the international standard for DVD players.

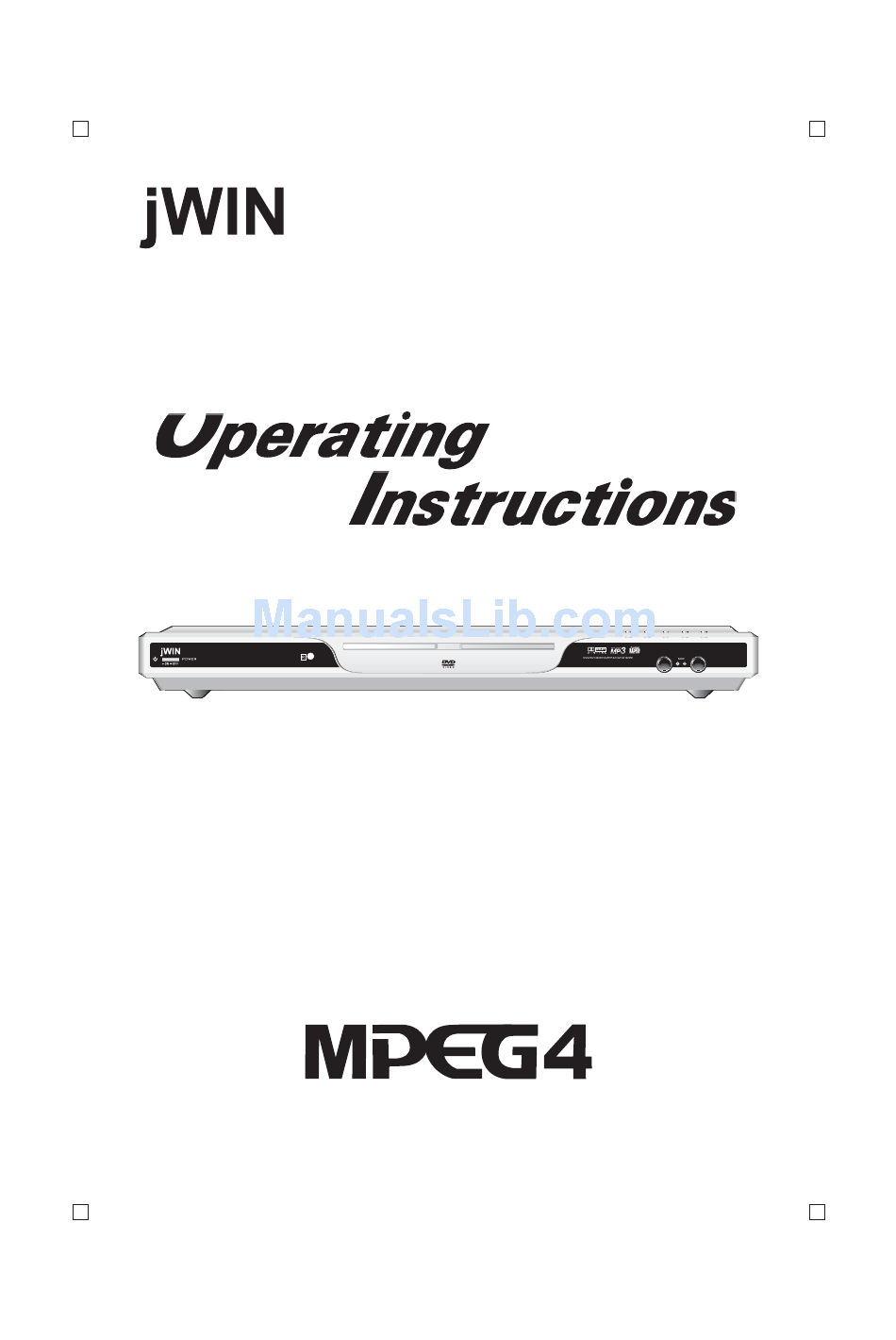

JD-VD504 DVD PLAYER
Before attempting to connect, operate or adjust this player, please read this instructions completely and save for future reference.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the JD-VD504 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for jWIN JD-VD504

Summary of Contents for jWIN JD-VD504

  • Page 1 The product is manufactured in accordance with the international standard for DVD players. JD-VD504 DVD PLAYER Before attempting to connect, operate or adjust this player, please read this instructions completely and save for future reference.
  • Page 3 Attention for parents: In order to avoid the situation that you forget the parental lock code and can not enter into the operation of parental lock setting, here we offer you the super secret code: 1369 . You may use this code to enter into the operation of parental setting.

  • Page 4: Safety Precaution

    Thank you for purchasing this DVD player . Before operating this unit, please read the manual carefully and retain it for future reference. SAFETY PRECAUTION The lighting flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated dangerous voltage within the product s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.
  • Page 5 This DVD player employs a laser system. CAUTION: Use of controls, adjustments or the performance of procedures other than those specified herein may result in hazardous radiation exposure. To prevent direct exposure to laser beam, do not open the enclosure. DO NOT STARE INTO BEAM.

  • Page 6: Important Safety Instructions

    IMPORTANT SAFETY INSTRUCTIONS CAUTION: PLEASE READ THESE INSTRUCTIONS AND KEEP THESE INSTRUCTIONS FOR FUTURE REFERENCE. PLEASE NEED ALL WARNINGS AND FOLLOW ALL INSTRUCTIONS. This set has been designed and manufactured to assure personal safety. Improper use can result in electric shock or fire hazard. The safeguards incorporated in the unit will protect you if you observe the following procedures for installation , use and servicing.This unit is fully transistorized and does not contain any parts that can be repaired by the user.
  • Page 7 8.Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat. 9. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other.

  • Page 8: Notes On Handling

    Notes on Handling * When shipping the DVD player, the original shipping carton and packing materials come in handy. For maximum protection, repack the unit as it was originally packed at the factory. * Do not use volatile liquids, such as insect spray, near the DVD player.

  • Page 9: To Obtain A Clear Picture

    * For stubborn dirt, soak the cloth in a mild detergent solution, wring well and wipe. Use a dry cloth to wipe it dry. * Do not use any type of solvent, such as thinner or benzine, as they may damage the surface of the DVD player.
  • Page 10 *When you bring the DVD player directly from a cold place to a warm place. *When you use the DVD player in a room where you just turned on the heater, or a place where the cold wind from the air conditioner directly hits the unit.
  • Page 11 Attention Warning: Do not expose the equipment to the rain or put it at the humid place in order to avoid any fire or electric shock. Do not open the enclosure since there is high-pressure fittings and laser inside. If the equipment requires maintaining, turn to some professionals for help.
  • Page 12 Precautions for Use of Power Supply: * Choose an appropriate power supply with the voltage specified in the operation instruction manual. * When pulling out or inserting the plug, do not pull the power cable, but grasp the plug to pull out or insert. * Make it sure that all connections and power cords are appropriately connected before the equipment is powered on.

  • Page 13: Table Of Contents

    TABLE OF CONTENTS 1.User Interface----------------------------------------------------------------------------------1 2.Playable discs for the Player---------------------------------------------------------------4 3.Preparation Before Playing-----------------------------------------------------------------5 3.1 Accessories--------------------------------------------------------------------------------5 3.2 Battery installation for remote control-----------------------------------------------5 3.3 System connection ----------------------------------------------------------------------5 3.4 Setup of Output System ---------------------------------------------------------------8 4.Function Buttons ------------------------------------------------------------------------------9 4.1 Function Buttons on the DVD Player----------------------------------------------- 9 4.2 Function Buttons on the Remote Control------------------------------------------9 4.3 Navigation -------------------------------------------------------------------------------13 4.4 Window Display ------------------------------------------------------------------------13...

  • Page 14: User Interface

    1. User Interface Front Panel: 1. Disc Tray 2. Open/Close Button 3. Play Button 4.Stop Button 5.PREV Button Back Panel Ports: 6. Next Button 7. Power Button 8. VFD Display 9.Remote Control Sensor 10.MIC Jack 1 11.MIC Jack 2 ENGLISH-1...
  • Page 15 Remote Control 1.Open/Close Button 2.Mute Button 3.OSD Button 4.Bookmark Button 5.Recall Button 6.Setup Button 7.Left Button 8.Enter Button 9.Subtitle Button 10.Down Button 11.Play Button 12.Pause Button 13.Previous Button 14.Next Button 15.Angle Button 16.Zoom Button 17.Title Button 18.Repeat Button 19.Menu Button 20.D-Play Button(direct playing) 21.Navigation Button 22.PS Button...

  • Page 16: Vacuum Fluorescent Display

    Vacuum Fluorescent Display 1.Disc Format display 2.Title display 3.Chapter / Track display 4.Playing display 7.Hour display 5.Repeat display 8.Minute display 6.Pause display 9.Second display ENGLISH-3...

  • Page 17: Playable Discs For The Player

    2. Playable discs for the Player Disc Type SVCD DVCD Video-CD (VCD) CD-DA Picture-CD MPEG4 The user is advised to safeguard the intellectual property and use original discs. For those faults resulting from the use of pirated or poor quality discs, we'll not offer replacement or warranty repair.

  • Page 18: Preparation Before Playing

    3. Preparation before Playing 3.1 Accessories (Please check that all the following accessories was included.) Remote control A Pair of Batteries 3.2 Battery Installation for Remote Control Open the battery compartment lid and insert a pair of AAA batteries with correct polarity as indicated. Please point at the remote sensor on the player while using the remote control.

  • Page 19: Normal Connection

    Connect with TV Normal Connection Connect the player and the appropriate port of TV set with video/audio wire, as indicated in the right picture: Connect with S-video Terminal Connect one end of the S-video wire with S-video output socket on DVD back-panel and another with the S-video input socket of the TV, and then connect audio wire with the TV.

  • Page 20: Setup Of Output System

    Connect with AV Power Amplifier Connect with the dual-channel power amplifier. The specific connection is indicated as follows. Connect AV power amplifier with 5.1 channels and surrounding audio input. Connect with digital audio optical fiber or coaxial terminal. Directly connect the optical fiber cord or the coaxial cord of the AV amplifier with the optical fiber or coaxial terminal of this equipment.

  • Page 21: Function Buttons

    4. Function Buttons 4.1 Function Buttons on the DVD Player (the same as the function of the corresponding buttons on the remote control) POWER ess the button to switch the unit ON/OFF. OPEN/CLOSE Press this button and the disc tray will open. After the disc is put into the tray, press this button again to close the tray.
  • Page 22 ENTER Press this button to confirm entry. SUBTITLE Press this button to display different caption (DVD has 32 kinds of captions and Super VCD has 4 kinds of captions. This function requires the support from disc.) PAUSE In playing state, press this button once, the player will be in pause state; press it twice, the player will play disc information frame by frame;...
  • Page 23 POWER(STANDBY) Press the button for the first time and the player will be in standby state and reduce the power consumption. Press the button again and the player will recover operation. NUMERIC KEYS (0-9, +10) In sequential play state, press CLEAR When you input the numbers, you can press numbers inputted.
  • Page 24 A-B REPEAT Press this key twice to repeat the segment from VOLUME control (+) / (-) Press "+" button to increase volume and press "-" to decrease volume. GRADE (refer to 4.6) Press this button to grade your karaoke level. This function is void if the KARAOKE SCORE set to OFF.

  • Page 25: Navigation

    4.3 Navigation Press NAVIGATION button on the remote control and the screen will display a figure similar to that of the remote control. Press the arrow keys and button on the remote control to perform functions such as fast forward, fast reverse, previous track, next track, step, slow motion, slow rewind, pause, play, audio, caption, angle, etc.

  • Page 26: How To Use Karaoke Function

    4.5 How To Use Karaoke Function Connect with Microphone Connect microphones to the Karaoke function. Start KARAOKE * Press SETUP button enter KARAOKE SETUP PAGE. Select MIC SWITCH * Select MIC VOL to adjust the volume of microphone. * Select ECHO LEVEL to adjust the volume of echo.

  • Page 27: How To Use Grade Function

    4.6 How To Use KARAOKE Grade Function * In the complete stop state or the no disc state, press different KARAOKE SCORE LEVEL. * Now, you may begin your karaoke. * Press GRADE button and select start to score for current track. The karaoke score level will display top right on the screen, select SAVE TO SINGER information of current track score will display on the screen.

  • Page 28: How To Enjoy Mp3/Wma/Mpeg4 Discs

    4.7 HOW TO ENJOY MP3/WMA/MPEG4 DISCS The MP3/WMA/MPEG4 disc has such a directory structure as shown in the below picture. In the FOLDER play mode, press arrow keys to choose the root directory and then press ENTER button to enter into the sub directory. Press arrow keys to choose the desired track and then press music or movie.

  • Page 29: How To Enjoy The Digital Album Of Picture Cd

    4.8 How to Enjoy the Digital Album of Picture CD The Picture CD disc has such a directory structure as shown in the below picture. In the directory play mode, press arrow keys to choose the root directory and then enter the sub directory. Choose the desired picture and a small picture will appear as shown in the picture for your choice.

  • Page 30: System Setup

    5. System setup With powerful functions, the player can bring you perfect video-audio enjoyment after following the setup. Enter the menu Press SETUP key on the remote control to enter the menu of General Setup Page Press the direction keys on the remote control to select or adjust, and press ENTER By selecting...

  • Page 31: Video Setup Page

    * Capture: when you play Picture-CD disc, press button to enter GENERAL SETUP PAGE this item and select CAPTURE , the player begin to capture the picture after you press ENTER wait!capture logo will display top left corner on the screen. When the prompt disappear on the screen.The picture capture is over.

  • Page 32: Audio Setup Page

    If TV screen has no video output after selecting SETUP P-SCAN, you can press RECALL press to recover; or you can switch off the power supply, reset the player, and then RECALL press key. Quality Adjust the brightness, contrast, hue, and saturation of the picture through the direction keys so as to achieve your expected effect.
  • Page 33 Dialog It is used to enhance definition of dialogue. This function is unavailable if the track mode is 5.1 CH set to SPDIF SETUP SPDIF Output If the power amplifier connected with the player has AC-3 decoder or DTS decoder, select SPDIF /RAW If the power amplifier has coaxial or optical fiber input instead of digital audio decoder, you can select...

  • Page 34: Password Setup Page

    ECHO Level select this item to adjust level of the Microphone echo. KARAOKE Score select different level of KARAOKE Score or turn off the function of KARAOKE score. the player must be in complete stop state, in open disc tray state, in no disc Karaoke Score state, the 5.4 Password Setup Page...

  • Page 35: Intelligent Screensaver And Standby Function

    6. Intelligent Screensaver and Standby Function With the same function of screen protection and stand-by function as computer, it will automatically enter into screen protection after three minutes in stop or no disc state, so as to protect your TV screen. After the screen protection state lasts for 20 minutes, it will automatically enter the stand-by state, then the DVD display doesn't light, no video output, and the power consumption is greatly lowered, thus service life of the player can be prolonged.

  • Page 36: Technical Specifications

    8. Technical Specifications Video system AUTO/NTSC/PAL Audio response 20Hz~20kHz 1dB Audio S/N 90dB Audio output Output level:1~2V (analog audio) Audio output Output level:0.5Vp-p (digital audio) Video output Output level:1Vp-p Output Output level: brightness (Y) 0.7Vp-p, chrominance(C):0.88Vp-p S-Video output load impedance: 75 YUV(Y, Cb, Output level: 700 140mVp-p Cr) output...
  • Page 37 DOLBY: * Producing under the authorization of Dolby laboratory. The symbol of "Dolby" " , Dolby and double D are registered trademarks of Dolby " laboratory. It is a secret product and cannot be issued. C Dolby laboratory: 1992-1997. All rights reserved. Macrovision: This product incorporates copyright protection technology that is protected by method claims of certain U.S.
