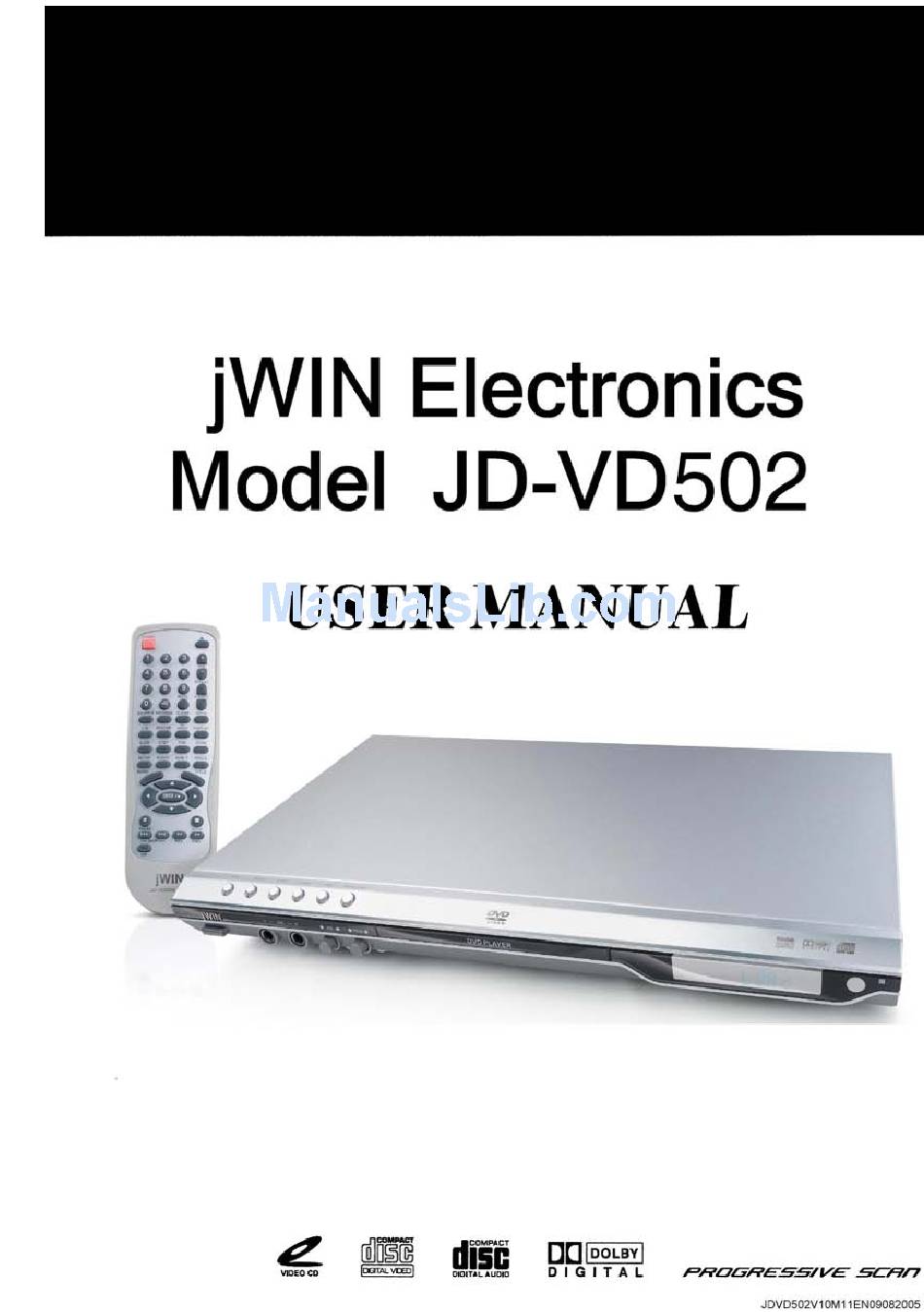

Summary of Contents for jWIN JD-VD502
-
Page 2: Table Of Contents
CONTENTS FEATURES...........A1-A2 IMPORTANT POINTS ........B1-B3 OPERATION INTERFACE......C1-C2 BASIC PLAYBACK........D1-D6 SYSTEM SETUP...........E1-E4 TROUBLESHOOTING........F1 SPECIFICATIONS..........G1 ADDITIONAL INFORMATION......H1... -
Page 3: Features
FEATURES Please read this Safety & Operation Manual before you install and use this unit, and please follow the instructions. Please pay attention to any Warnings or Notices in the text. Route the power cord so that it is not likely to be walked on or pinched by items placed upon or against them, paying particular attention to the plugs, receptacles, and the point where the cord exists from the appliance. - Page 4 30° away from the center of the TV --Do not expose the infrared receiver on the JD-VD502 (see page B1, item 13) to a strong light source, such as sunshine or bright lights, or the remote control may not operate consistently The specifications and manual are subject to change without notice.
-
Page 5: Operation Interface
Operation Interface FRONT PANEL: 1. POWER 5. FWD 9. MIC2 2. PLAY 6. REV 10. MIC VOL1 3. PAUSE 7. OPEN/CLOSE 11. MIC VOL2 4. STOP 8. MIC1 12. VFD DISPLAY UNIT 13. RECEIVER REAR PANEL: 1. Left Front Channel Output 6. - Page 6 Composite V ideo Connecting Wire S-Video Connecting Wire...
- Page 7 Operation Interface REMOTE CONTROL:...
-
Page 8: Basic Playback
If your VCD or SVCD disc has been recorded with a PBC (Playback NOTICE: Control) track, your JD-VD502 will display that information as a menu system on the TV screen, which provides convenience when choosing which part of the disc's contents will be played. Bear in mind that the PBC information must be on the disc for the menu to be displayed. -
Page 9: Playing An Mp3 Disc
Basic playback Playing an MP3 disc: 1.Place the MP3 in the disc compartment. 2.After the unit reads the contents of the MP3 disc, the TV screen will display the menu in the manner shown below: 00:00 00:00 001/008 folder 01 folder 01 folder 01 folder 01... - Page 10 Basic Playback 1 [POWER] Press this key to turn the JD-VD502's power on and off. 2 [OPEN/CLOSE] Press OPEN/CLOSE to open the tray, and then place the disc on it. Press this button again to close the tray. When the disc has loaded, the TV screen will display the disc type, and its content will be automatically played or displayed.
- Page 11 Basic Playback 1 [PREV/NEXT] When playing DVCDs (Dual VCDs--an extended length VCD format), SVCDs, VCDs, CDs, and MP3s, press <Skip Backward> to go to the previous chapter. When playing DVDs, press <Skip Backward> to go to the previous chapter or title. Press <Skip Forward> to advance to the next chapter. 2 [REW/FF] When playing DVDs, SVCDs, VCDs, CDs, and MP3s, press this key to play forward or backward, according to the figure below:...
- Page 12 Basic Playback 1 [PROGRAM] If the disk has more than two chapters or titles, you can press this button to set up the playback order that you prefer. PRGOTT- -/CH- - [TT- -(TITLE)CH- -(CHAPTER)] 01 TT:__ CH:__ 06TT:__ CH:__ 02 TT:__ CH:__ 07TT:__ CH:__ 03 TT:__ CH:__ 08TT:__ CH:__...
- Page 13 Basic Playback 1 [DISPLAY] Press DISPLAY to display the information referring to the disc on the TV screen. DVD playback VCD (and VCD Ver. 2.0) playback after closing the PBC (Playback Control). play super VCD,VCD2.0 after opening the PBC (Playback Control)
- Page 15 Basic Playback Play MP3 disc: After the unit reads the contents of the MP3 disc, the TV screen will show the following: Play time Track time Volume Working Dynamic modulation state frequency 03*18 05*28 Playing track 058/158 Tracks of disc - - - - - - - - - - - - - - - - - - - - -...
- Page 16 Basic Playback Viewing a Kodak Picture CD: After the unit reading the content of a Kodak picture CD, the TV screen displays: Working state 00*00 00*00 Playing track Tracks of disc 058/158 JPEG - - - - - - - JPEG - - - - - - - JPEG...
-
Page 17: System Setup
SYSTEM SETUP When the unit is working, press the setup key to enter setup menu. General Audio Dolby Video Preference Press the direction key " " to move cursor to the desired setup page, and press the Enter key to confirm. Press the direction key "... - Page 18 SPDIF OFF optical cable, SPDIF should be turned on (see below). Doing SPDIF RAW so enables the digital signals that leave the JD-VD502 to be SPDIF/PCM processed by Dolby and DTS Home Theater systems, among many other devices that have internal decoders capable of RAW decoding.
- Page 19 SYSTEM SETUP Dual Mono Dolby Digital Steup This option allows you to set the output methods for the left and right audio signals. There are 4 modes: Dual Mono Stereo stereo,left sound channel, right sound channel, and L-Mono mixed sound channel, to be selected according to the R-Mono AC-3 KARAOKE mode.
- Page 20 SYSTEM SETUP TV TYPE: Preference Page: The JD-VD502 can operate with every type of TV throughout the world. Select your TV type below: TV Type AUTO : Automatically selects the "TV Type" according Multi Multi to the color system of any disc that is currently playing.
-
Page 21: Troubleshooting
Trouble Shooting SYMPTOM AND SOLUTION: Symptom Reason(s Solution(s) No power Power cord not connected to the wall outlet Connect them well TV not set up with correct settings Set up TV in the correct mode No picture Video cables improperly secured or connected Connect them properly Audio cables improperly secured or connected Connect them properly... -
Page 22: Specifications
Specifications DVD PLAYER/OUTPUT DVD Player 90~240V AC 50/60Hz Power Supply Power Consumption 3.1Kg (6 lbs. 13 oz.) Weight 430x43x260mm [16.9x1.7x10.25in] (W/H/D) Dimensions NTSC/PAL/Multi V ideo System Semiconductor AIGaAs Weam, wave length: 650nm,780nm Optical read-out system DVD audio: Fs 48KHz PCM 4 Hz~22Hz Audio Frequency Response Fs 96KHz PCM 4Hz~44KHz Audio CD... -
Page 23: Additional Information
Additional Information Care of disc: Do not touch the disc's recorded surface. Do not add labels or adhesive tape to the discs. Cleaning of discs: Finger prints or stains on the surface of the disc will directly affect signal recording and result in a poorer picture quality. Therefore, please use a soft cloth and wipe in a radiating manner from the center to the outer rims when cleaning the disc.
