Summary of Contents for jWIN JT P531

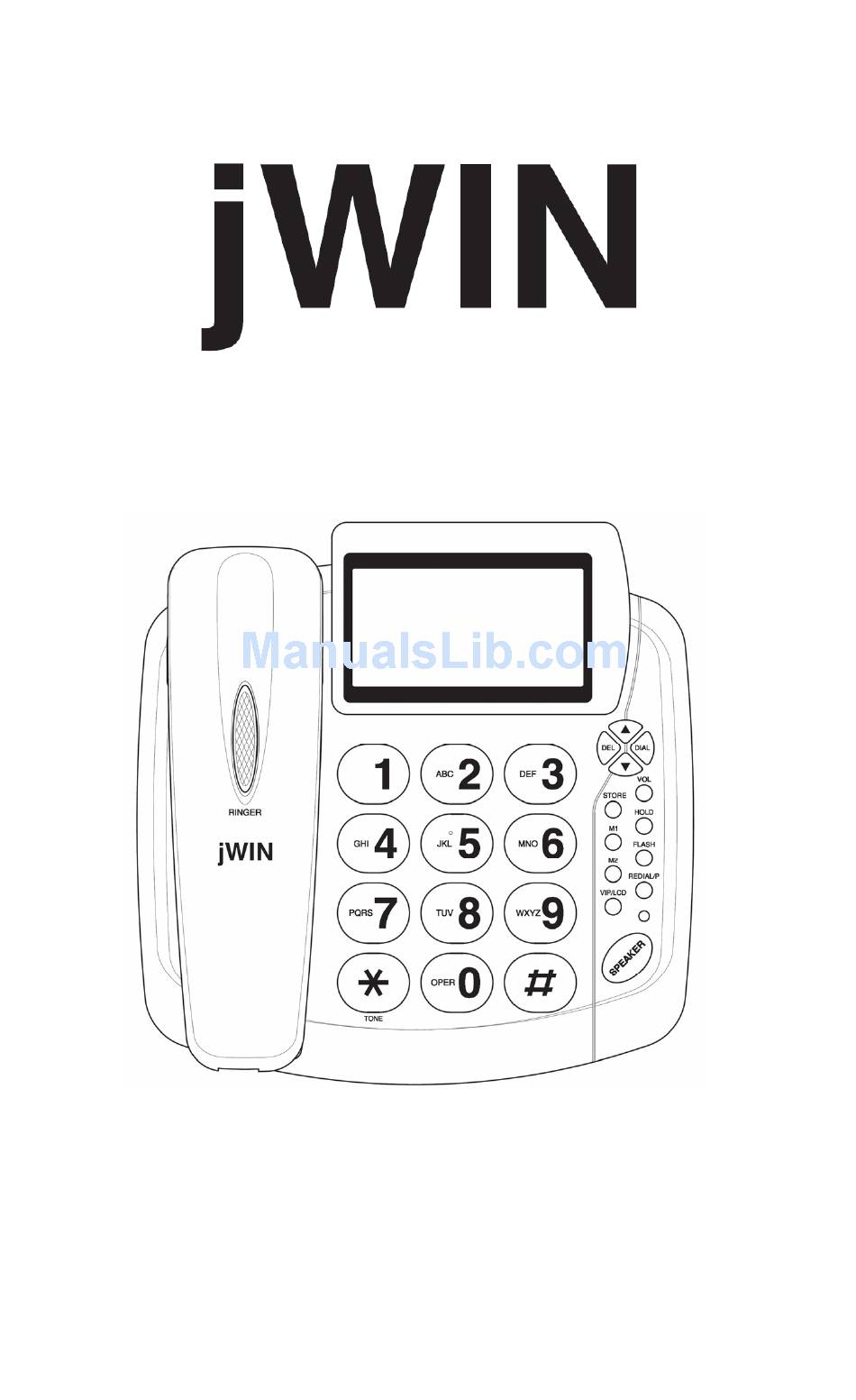

- Page 1 Caller ID Speaker Phone Instruction Manual JT-P531 Please read this manual carefully before operating and save it for future reference. Have a question? Please visit http://www.jWIN.com...
- Page 2 Caller ID Speaker Phone V10M10_IM_EN_03232007 - 1 - www.jWIN.com...
-
Page 3: Important Safety Instructions
Caller ID Speaker Phone USER SAFETY GUIDE INSTRUCTIONS ON ENVIRONMENT PROTECTION Do not dispose of this product in the usual household garbage at the end of its life cycle; bring it to a collection point for the recycling of electrical and electronic appliances. This symbol on the product means the instructions for use or the packaging will inform about the methods of disposal. - Page 4 Caller ID Speaker Phone USER SAFETY GUIDE Compliance (USA and Canada) This product complies with the standards in Part 68 of the FCC Rules in the USA and CS-03 in Canada. 1. This product must be connected to the public switched telephone network through a modular telephone outlet or jack.
-
Page 5: Table Of Contents
Caller ID Speaker Phone TABLE OF CONTENTS Getting Started General Features ……………………………………………………………………... In the Package ………………………………………………………………………... Location of Controls ………………………………………………………………..… Getting the Telephone Ready for Use ……………………………………………... Mounting the Phone on the Wall ……………………………………………………. Connecting the Stand for Flat Surface Placement ………………………………... Installing the Batteries ……………………………………………………………….. -
Page 6: Getting Started
Caller ID Speaker Phone V10M10_IM_EN_03232007 GETTING STARTED Thank you for purchasing the JT-P531 Caller ID Speaker Phone. Please read and follow the instructions in this manual carefully to ensure that your product operates correctly. General Features • FSK/DTMF Dual System Caller ID Speaker Phone •... -
Page 7: Location Of Controls
Caller ID Speaker Phone GETTING STARTED Location of Controls 1. LCD Screen 2. Ringer Light 3. Handset 4. Handset Jack 5. Numeric keypad 6. DEL. Button 7. ▲ Button 8. DIAL Button 9. ▼ Button 10. VOL Button V10M10_IM_EN_03232007 11. STORE Button 12. -
Page 8: Getting The Telephone Ready For Use
Caller ID Speaker Phone GETTING STARTED Getting the Telephone Ready for Use 1. Choose a desired location for the unit (mounted or on a flat, level surface). 2. Adjust the removable tab located above the speaker on the base of the phone. •... -
Page 9: Mounting The Phone On The Wall
Caller ID Speaker Phone GETTING STARTED Getting the Telephone Ready for Use- continued 4. Plug one end of the flat telephone cord into the jack in the rear of the unit’s base (marked TEL-LINE), and the other end into the wall jack which supplies telephone service. - Page 10 Caller ID Speaker Phone GETTING STARTED Connecting the Stand for Flat Surface Placement-continued There are four (4) slots. The top two (2) slots are situated closer together and are on the bottom surface of the unit. The bottom two (2) slots are situated further apart and are located in indented rectangular sections which are cut into the...
-
Page 11: Installing The Batteries
Caller ID Speaker Phone GETTING STARTED Installing the Batteries The JT-P531 requires three (3) AAA batteries, which are used to operate the speakerphone, the LCD display, and to retain Caller ID data and any settings programmed into the phone. Using an optional AC adapter (see Notes below) will increase the battery’s life span, requiring less frequent battery replacement. - Page 12 Caller ID Speaker Phone GETTING STARTED Notes: • If neither the batteries nor an AC adapter are connected, the JT-P531 will still be able to place and receive calls, but the speakerphone, the ability to store Caller ID data, and the LCD display functions will not operate. •...
-
Page 13: Operational Instructions
Caller ID Speaker Phone OPERATIONAL INSTRUCTIONS Description of the Display The JT-P531 features a three-line LCD. The top line displays basic information; the middle line shows the telephone number of the incoming call; and the bottom line displays the name of the caller. Also included on the display is helpful information such as: •... - Page 14 Caller ID Speaker Phone OPERATIONAL INSTRUCTIONS Basic Setup-continued SET AREA CODE • When the LCD displays “LOCAL AREA CODE”, press [DIAL] to enter this function. • Use [▼] to select the each digit of area code. • Use [▲] to confirm each digit and move to next digit •...
-
Page 15: Basic Instructions For Making A Phone Call
Caller ID Speaker Phone OPERATIONAL INSTRUCTIONS Basic Setup-continued LCD ADJUSTMENT • Press [VIP/LCD] to adjust the brightness of the LCD screen. • There are six (6) levels of brightness (Level 3 is the default setting) SAVING NUMBERS IN THE PHONEBOOK •... -
Page 16: Using The Last Number Redial Function
Caller ID Speaker Phone OPERATIONAL INSTRUCTIONS Using the Last Number Redial Function Remove the handset from base and listen for dial tone. Use the [REDIAL/P] button redial the last number dialed (typically most helpful when the line is busy). Receiving Caller ID Information Your telephone service provider must offer caller ID service in order to activate the caller ID function on this unit. -
Page 17: Calling A Number From The Caller Id List
Caller ID Speaker Phone OPERATIONAL INSTRUCTIONS Calling a Number from the Caller ID List With the handset is on the hook, press [▲] or [▼] to find the number you wish to call. Press [DIAL] once; the LCD will display “PICK UP OR ADJ,”... -
Page 18: Dialing From Two-Touch Memory
Caller ID Speaker Phone OPERATIONAL INSTRUCTIONS Dialing from Two-Touch Memory Pick up the handset or press [SPEAKER]. Press [DIAL] and number automatically. Using the Flash Function When the JT-P531 is used in an office equipped with centralized phone system PABX, this telephone can transfer and hold calls. Ask the calling party to hold. -
Page 19: Troubleshooting And Specifications
Caller ID Speaker Phone TROUBLESHOOTING & SPECIFICATIONS Troubleshooting • No Display on LCD Screen Brightness on display may be turned down. Increase brightness level. No batteries or batteries are improperly installed. If no batteries, install 3 AAA batteries as directed or Install optional AC Adapter (not included). - Page 20 TEL: 516-626-7188 FAX: 516-626-7105 website: www.jWIN.com © 2007 jWIN Electronics Corp. All rights reserved. No portion of this printed material or product enclosed herewith including design, shape and graphics, may be reproduced or transmitted in any form without the expressed written consent of jWIN Electronics Corp. by any means, electronic or mechanical, including photocopying, recording, or by use of an information storage and retrieval system.
