Summary of Contents for jWIN JT-P570

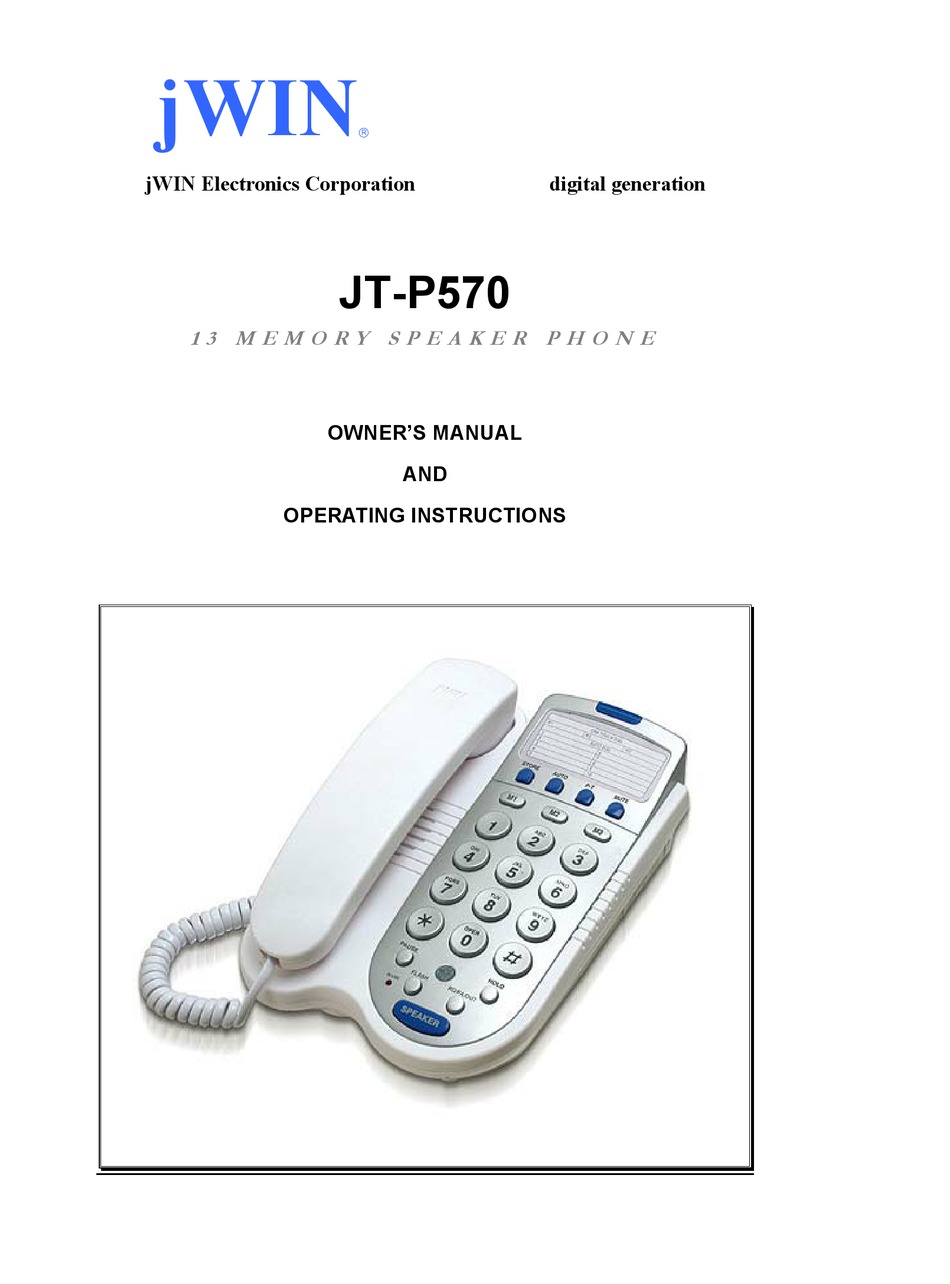

- Page 1 jWIN Electronics Corporation digital generation JT-P570 1 3 M E M O R Y S P E A K E R P H O N E OWNER’S MANUAL OPERATING INSTRUCTIONS...
-
Page 2: Table Of Contents
Table of Contents Table of Contents... 2 FEATURES... 3 DIAGRAM ... 4 INSTALLATION... 5 EASY SET UP ... 5 TONE/PULSE SELECTOR ... 5 RINGER HI/LOW/OFF... 5 OPERATION... 6 MAKING CALLS ... 6 RECEIVING CALLS ... 6 USING THE SPEAKERPHONE ... 6 HANDS FREE ANSWERING ... -
Page 3: Features
FEATURES 13 Memory Autodial (3-One Touch Priority Speed Dial, 10-Two Touch Speed Dial) Tone/Pulse Dialing Desk Use or Wall Mountable Hearing Aid Compatible Flash/Redial/Music On Hold Buttons Ringer Hi/Low/Off Control Receiver Volume Control Speakerphone Volume Control Mute Function In-Use LED Indicator 12/30/20039:53 AM Page3... -
Page 4: Diagram
DIAGRAM TORE ECEIVER OLUME ECEIVER Pause Button NDICATOR IGHT LASH UTTON PEAKER UTTON OUCH DIALING UTTON UTTON ICROPHONE 12/30/20039:53 AM Page4 NDEX FOR LISTING NUMBERS IN MEMORY P-T B UTTON ULSE UTTON OUCH EMORY (M1, M2, M3) UTTONS & S INGER PEAKER OLUME... -
Page 5: Installation
INSTALLATION EASY SET UP • Use the coiled cord to connect the receiver to the base or console. • Use the flat cord to connect the phone base to the wall jack. • Open the battery cover (on the bottom of the phone base) and install 4 “AA” batteries (not included). -
Page 6: Operation
OPERATION MAKING CALLS 1. Select the desired dialing mode with the Tone/Pulse selector. (Do this only once.) 2. Pick up the handset and listen for a dial tone. 3. Dial your call. RECEIVING CALLS When the phone rings: 1. Lift the receiver and speak into the mouthpiece. 2. -
Page 7: Music On-Hold Button
number. MUSIC ON-HOLD BUTTON To put your party on hold position, press the H selection will play automatically for the party on hold. RELEASING HOLD Lift the receiver or press the SPEAKER PAUSE BUTTON In some cases, such as PABX (Private Automatic Branch Exchange) or for some long distance services, a pause should be part of the dialing sequence. -
Page 8: Storing Phone Numbers In One-Touch Dial Memory (M1/M2/M3)
STORING PHONE NUMBERS IN ONE-TOUCH DIAL MEMORY (M1/M2/M3) You can store up to 3 phone numbers in one-touch memory. These numbers are assigned to the M1, M2, and M3 buttons. Reserve these buttons for your most frequently used phone numbers. 1. -
Page 9: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS When using this unit, basic safety precautions should always be followed to reduce the risk of fire, electric shock, or personal injury. Please read all instructions thoroughly. Follow all warnings and instructions included with this unit. 1. Unplug this unit from AC outlets before cleaning. 2. - Page 10 • If the unit has been dropped or physically damaged • If the unit exhibits a distinct change in performance 17. Adjust only controls covered by the operating instructions. Improper adjustments may require extensive work by jWIN Customer Service Department. 18.
-
Page 11: For Product Service
FOR PRODUCT SERVICE Get in touch with jWIN if you require additional products or servicing for your jWIN equipment. We invite you to call us or contact us via the internet: • Call 1-866-807-jWIN • Send e-mail to custservice@jwin.com When you ship the product: •...
