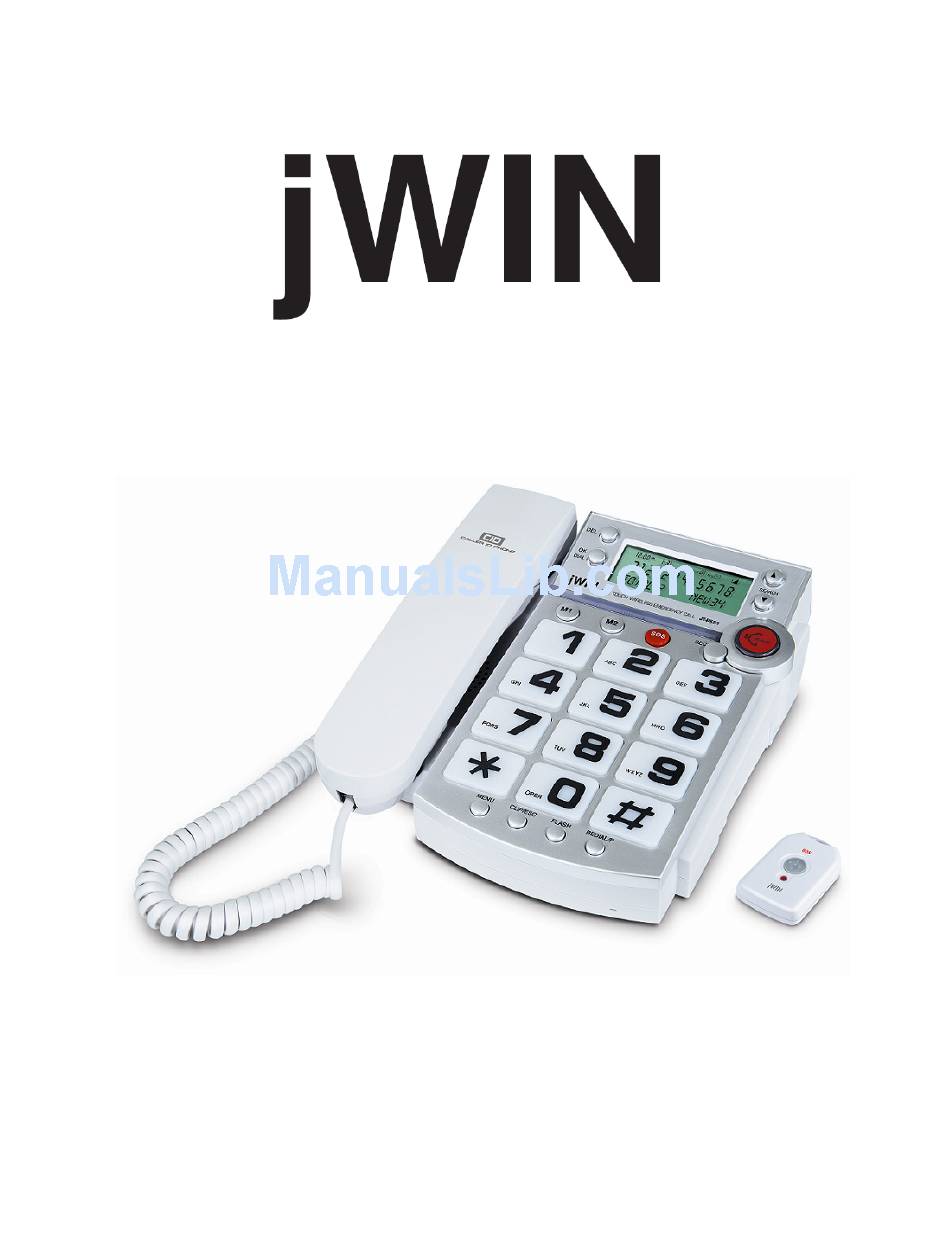

Page 1: Remote Control
Caller ID Speaker Phone with Emergency Remote Control Instruction Manual JT-P551 Please read this manual carefully before operating and save it for future reference. Have a question? Please visit http://www.jWIN.com... -
Page 2: Important Safety Instructions
• Do not use liquid or aerosol cleansers to clean this product. • Do not use this telephone in or near water (e.g. a bath tub, a sink, or a pool). • To reduce the risk of electric shock, do not push objects through any slots of the phone or disassemble the telephone. - Page 3 1. This product must be connected to the public switched telephone network through a modular telephone outlet or jack. 2. Upon the request of the local telephone service provider, the user of this product must provide the following information: • The “line” to which this telephone equipment will be connected (telephone number) •...
-
Page 4: Table Of Contents
Getting Started General Features ……………………………………………………………………... What’s Included …..…………………………………………………………………... Location of Controls ………………………………………………………………..… Getting the Telephone Ready for Use ……………………………………………... Mounting the Phone on the Wall ……………………………………………………. Connecting the Stand for Wall Mounting ………………………………... Installing the Batteries ……………………………………………………………….. Using an AC Adapter (Optional) …………………………………………………….. -
Page 5: Getting Started
Caller ID Speaker Phone w/SOS Remote Control V12M12_IM_EN_07132009 GETTING STARTED Thank you for purchasing the JT-P551 Caller ID Speaker Phone with emergency pendant remote control. Please read and follow the instructions in this manual carefully to ensure that your product operates correctly. -
Page 6: Location Of Controls
7. M1 (Memory 1) 8. MENU Button Getting the Telephone Ready for Use 1. Choose a desired location for the unit (mounted or on a flat, level surface). 2. Adjust the removable tab located above the speaker on the base of the phone. -
Page 7: Getting The Telephone Ready For Use
4. Plug one end of the flat telephone cord into the jack in the rear of the unit’s base (marked TEL-LINE), and the other end into the wall jack which supplies telephone service. -
Page 8: Mounting The Phone On The Wall
Hang phone on nails or picture hangers making certain that the phone is flush with the wall. Connecting the Stand for Flat Surfaces When using the JT-P551 on a flat surface, it is recommended that you use the included stand. Remove the stand from the plastic wrapper. - Page 9 Using your thumbs, gently press the stand just above the bottom three (3) lips until the stand clicks into position. Return the phone to the upright position. The phone is now ready to be mounted on the wall. Click! - 8 - www.jWIN.com...
-
Page 10: Installing The Batteries
GETTING STARTED Installing the Batteries The JT-P551 requires four (4) AA batteries, which are used to operate the speakerphone, the LCD display, and to retain Caller ID data and any settings programmed into the phone. Using an optional AC adapter (see Notes below) will increase the battery’s life span, requiring less frequent battery replacement. - Page 11 Notes: • If neither the batteries nor an AC adapter are connected, the JT-P551 will still be able to place and receive calls, but the speakerphone, the ability to store Caller ID data, and the LCD display functions will not operate.
-
Page 12: Operational Instructions
LCD will only display the time and date, amount of received calls and amount of incoming calls. • The JT-P551 can store up to 60 incoming calls. Once 60 calls have been received, the oldest call will automatically erase when a new call is received. Basic Setup In order to navigate the following menu items, press the [MENU] button (opens the menu). - Page 13 Press [OK/DIAL] again to confirm. SET DIAL MODE • When the LCD displays “SET DIAL MODE,” press [OK/DIAL] to enter this menu. • Press [▲] or [▼] to choose TONE (T) or PULSE (P). • Press [OK/DIAL] to confirm. - 12 - www.jWIN.com...
- Page 14 “STORE,” and the words “STORE NUMBER” will be shown on the display. • Press the [DEL] button to exit this setting. Note: The JT-P551 can store up to 30 records. The words “MEMORY FULL” will appear on the LCD screen when the records are full. - 13 -...
- Page 15 Select the required Caller ID memory location by scrolling [▲] or [▼] buttons. • Press and hold [MENU] button for two (2) seconds, the LCD will display the words, “COPY TO MEMORY?” • Press [OK/DIAL] button, the LCD will display the word “SAVE.” - 14 - www.jWIN.com...
-
Page 16: Receiving Caller Id Information
Slide the [SPEAKER] switch from the right side of the base unit to adjust the speakerphone volume from minimum (Min.) to maximum (Max.). Receiving Caller ID Information Your telephone service provider must offer caller ID service in order to activate the caller ID function on this unit. Incoming Call Display. -
Page 17: Emergency Call Function
Press and hold the [OK/DIAL]. Start your message directly after you hear the “BEEP” tone and “VOICE” icon is flashing. While recording, keep at a distance of 15cm from the telephone so that you speak easily into the microphone on the upper side. - Page 18 ACTIVATING THE EMERGENCY HELP SYSTEM Press and hold the [SOS] button on the telephone for 3 seconds, then the telephone local alarm will sound for 15 seconds. The telephone will then dial out the entered emergency help system numbers automatically in speakerphone mode.
-
Page 19: Receiving A Call Using The Pendant Remote
After finishing the conversation, press and hold the button of the pendant remote again for a few seconds to terminate the call and the telephone will be returned to on-hook state. Reviewing the Caller ID List Press [▲] or [▼] to review incoming calls (up to 60 calls). -
Page 20: Name Recording
(Hold [OK] while recording). Recorded voice name will automatically play one time. To re-record, press and hold [OK] and record again. Press [▲] or [▼] to find the next party for voice recording and repeat from step 1. - 19 - www.jWIN.com... -
Page 21: Phonebook Search, Delete And Dial Back
To dial from one-touch memory keys, lift handset or press the speaker and press the key (M1/M2) and the number in the memory will be dialed out automatically. Pre-Dialing Feature Under on-hook state, enter the wanted telephone number. Lift the handset or press [SPEAKER] and the number will be dialed out automatically. -
Page 22: Last Number Redial
[REDIAL/P] key under off-hook state. This is useful especially if the line is busy. Flash Function When in an office equipped with PABX, this telephone makes it easy to transfer calls. Ask caller to wait and press [FLASH] key once. -
Page 23: Troubleshooting And Specifications
Make sure the base jack (TEL-LINE) jack is connected to the wall telephone jack using the flat wire. Telephone service may be interrupted by the telephone company Contact your telephone company to check the status of your service. • Static or interruptions during phone conversation Bad connection between phones Hang up and dial number again. - Page 24 FAX: 516-626-7105 website: www.jWIN.com © 2009 jWIN Electronics Corp. All rights reserved. No portion of this printed material or product enclosed herewith including design, shape and graphics, may be reproduced or transmitted in any form without the expressed written consent of jWIN Electronics Corp. by any means, electronic or mechanical, including photocopying, recording, or by use of an information storage and retrieval system.
