Setup Manual

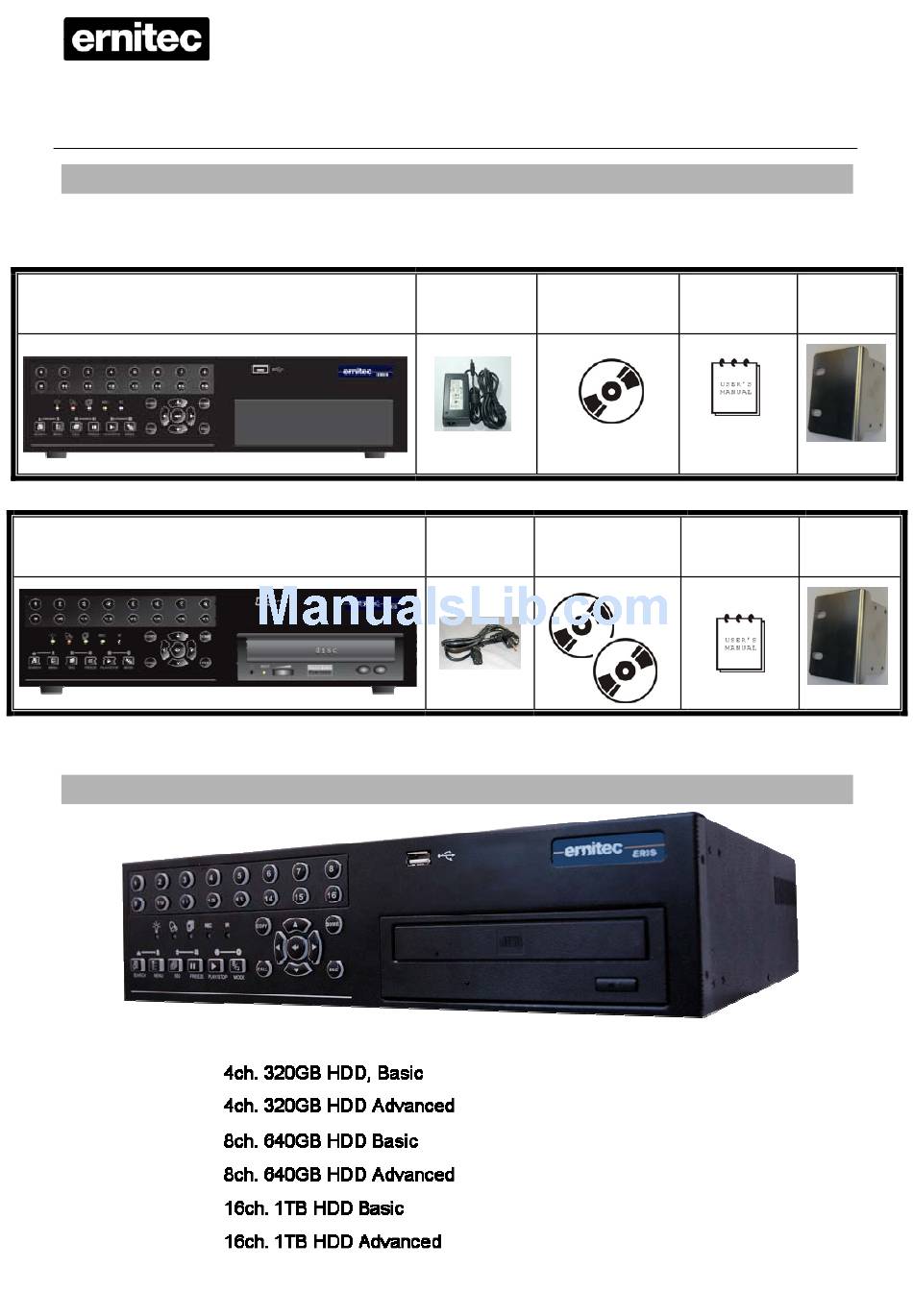

Package Content
Inspect the packaging carton. Make sure your ERIS 3000 Series DVR is properly delivered.
Remove all items from the box and make sure the box contains the following items.
ERIS 3000 BASIC
ERIS 3000 ADVANCED
Different models
ERIS3000 Series DVR
Setup Guide
Power Adapter
Power Cord
1
Software CD-CMS
User's manual
User Guides PDF
Software CD-CMS
User Guides PDF
User's manual
Blank CD-RW
00P5DG090DSEB1
Rack mount
ears
Rack mount
ears
Advertisement
Table of Contents
Related Manuals for ERNITEC ERIS 3000 Series
Summary of Contents for ERNITEC ERIS 3000 Series
- Page 1 ERIS3000 Series DVR Setup Guide Package Content Inspect the packaging carton. Make sure your ERIS 3000 Series DVR is properly delivered. Remove all items from the box and make sure the box contains the following items. Power Adapter Software CD-CMS User’s manual...
- Page 2 Function Keys on the Front Panel 16 Chanel Numeric buttons Back-up Dome Control Escape Direction keys and Search Play/Stop zoom/Enter Pause/Freeze Call Monitor setup. Menu/Setup Split screen mode on main monitor Sequence setup Select UTP (on) or Video(off) Default 110/230 VAC MAINS Call Mon Alarm In...
- Page 3 Connector Description LAN 10/100M The DVR is capable of networking and it allows the videos to be viewed over the (RJ-45) LAN network or the Internet by using the Internet Explorer. Audio In RCA connectors connect an audio source device to the unit. Audio In / Out Audio Out RCA connectors connect an audio output device to the unit.
- Page 4 I/O connector Alarm, Rs485 4ch-Model 8 ch- model 16 ch- Model 4 Ch model 8 Ch model Pin Definition Definition Definition Definition Alarm In 8 Alarm In 16 Alarm In 1 RS485 D+ Alarm In 7 Alarm In 15 Alarm In 2 RS485 D- Alarm In 6 Alarm In 14...
-
Page 5: Basic Setup
Basic Setup Follow the description to set up the configuration of date/time, recording, and viewing mode of the DVR. All configurations can be set via either the DVR or via web browser interface. Enter OSD Setup menu: • Press MENU to enter the OSD main menu. •... - Page 6 Protocol Setup> will not be accessible. ERIS3000...
-
Page 7: Network Setup
To Define Recording Settings: • Select <Record Setup> from the OSD main menu. • Select <ezRecord> as Preset Configuration option, and select wanted number of recording day; other setting will be automatic arranged by the unit. • Consider your own needs and select a Preset Configuration setting from <Best Quality>, <Standard>, and <Extended Record>. - Page 8 Dome Camera Connection Dome Camera Connection & Settings: • See section Connecting Your DVR for RS-485 port pin definition. • Refer to the following figure. Connect the R+, R- terminals on the dome camera to the D+, D- terminals on the RS-485 port by RS-485 cable respectively. •...
-
Page 9: Basic Playback Operation
Basic Playback Operation Searching Recorded Video by Time: • Press SEARCH button to enter the Search menu; the From Time and End Time of the available video is listed on top of the screen. The value is unchangeable. • Use Direction buttons to move the cursor for setting the Start Time; adjusting the date and time values by UP/DOWN keys. -
Page 10: Software Upgrade
Software upgrade You can get the latest Software on our web support page. http://support.ernitec.dk/customers Login: ErnitecGuest Password: 3333 Select DVR Select ERIS Select Software Download ZIP file In the Zip file there is a file Readme.TXT. Read this and follow the instructions given in it. -
Page 11: Using Remote Software
• Make sure the PC is connected to the Internet. • Obtain IP address of your ERIS 3000 series DVR. To check the DVR’s IP address, press MENU key on the unit and select <System Setup> <Network Setup> <LAN Setup>... -
Page 12: Web Interface
Web interface Open your Browser, type in the IP address of your ERIS. The Login window opens. Default User name is <admin> Default Password is <1234> Make sure you change it, and make sure you store the new password in a safe place! The WEB interface of ERIS starts ERIS3000... - Page 13 On your left hand, you can Down load choose Camera. player by There are different symbols selecting this symbol 1. Camera. 2. Speed dome, 4, 9 and 16 video windows Select a Dome camera, then the Dome control appears on the left Hand To enter the menu in a Speed Dome PELCO protocol Call preset 95.
- Page 14 To Playback Remote Video: • Click <Play> on the main window toolbar, and then <Remote Playback> tab. • The <From> and <To> on top of the screen display the date and time from which recorded video is available for playback. •...
- Page 15 In the menu you can Remote Configure ERIS Snapshot will be Check the size of saved on the desktop the hard drive. Select 4:3 on the video window To Playback Event Video • Click SEARCH on the main window toolbar. The Event List appears. •...
-
Page 16: Remote Controller
Remote Controller A remote control is provided for the DVR unit. The function keys on the remote control are listed as below figure: ERIS3000... - Page 17 Specifications 4ch Model 8ch Model 16ch Model Video ERIS BASIC / ERIS ADVANCED BNCx4 / UTPx4, BNCx8 / UTPx8, BNCx16 / UTPx8, Input 1.0Vp-p, 75 ohm 1.0Vp-p, 75 ohm 1.0Vp-p, 75 ohm Video Standard NTSC/PAL switch selectable Triplex (Live / Playback, Record, and Network) Video Operation BNCx1, 1.0Vp-p, 75 ohm Main Monitor...
- Page 18 Storage Up to 2 built-in SATA HDDs Built-in HDD Export USB 2.0 CD / RW (Optional) Support USB Thumb Drive Alarm Alarm Input X4, Terminal X8, Terminal X16, Terminal N.C./N.O., Programmable Alarm Detection N.C/N.O, programmable 3.0 A / 30 VDC or 3.0 A / 125 VAC Alarm output Auditory Alert Built-in Buzzer...
- Page 19 Brand Model Name Model Number Size Seagate SV35 Series™ 7200.1 ST3500641AV 500G SV35 Series™ 7200.1 ST3250824AV 250G SV35 Series™ 7200.1 ST3160812AV 160G SV35 Series™ 7200.2 ST3320620AV 320G DB35 Series™ 7200.3 ST3320820ACE 320G ® Barracuda 7200.8 ST3400832A 400G ® Barracuda 7200.8 ST3250823A 250G ®...
