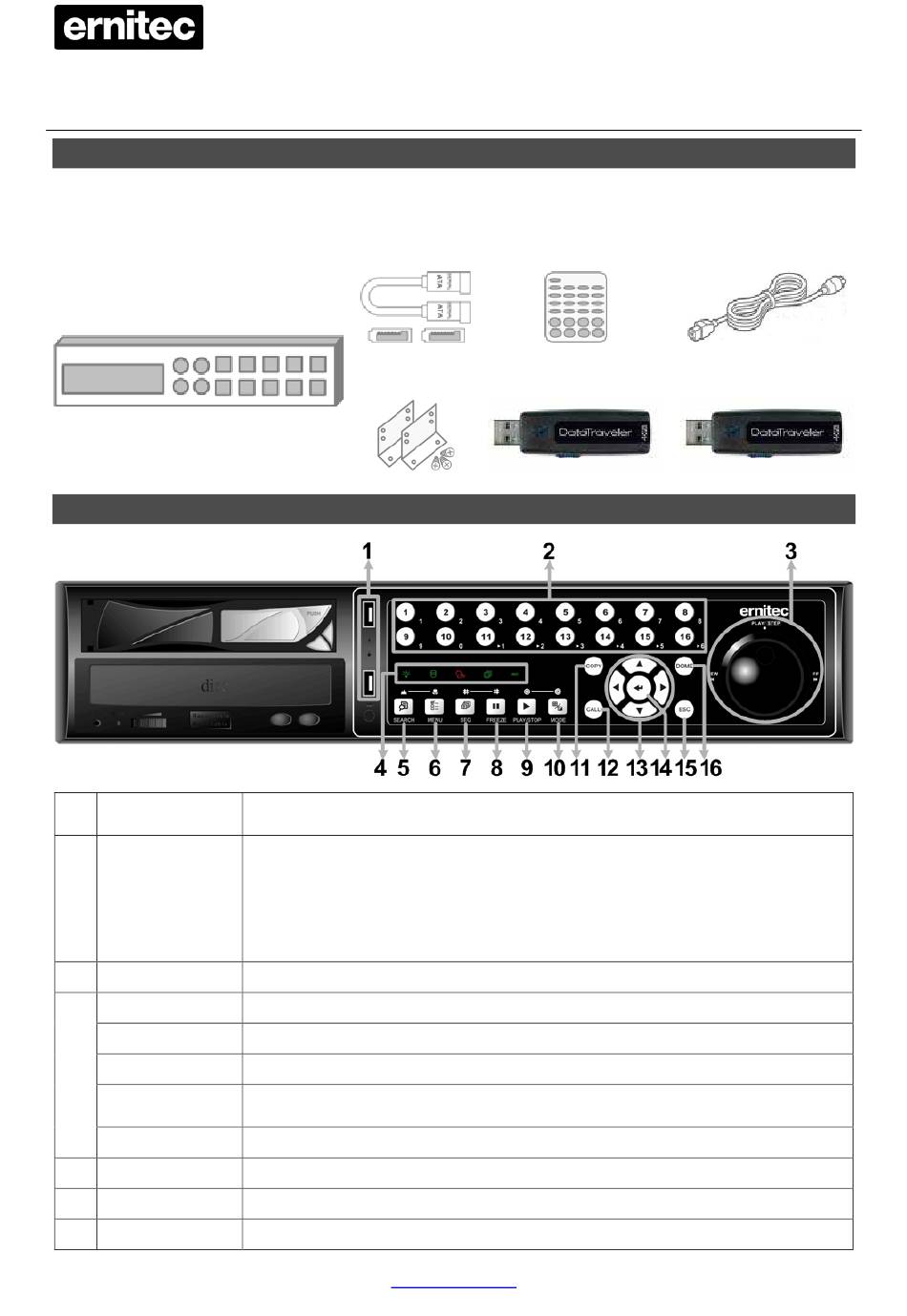

Package Content
Inspect the packaging carton. Make sure the Premium H.264 DVR is properly delivered. Remove
all items from the box and make sure the box contains the following items.
Premium H.264 DVR
Front Panel
1
USB 2.0 Port
2
Channels
3
Shuttle/ Jog
Power LED
HDD LED
Alarm LED
4
Network LED
Record LED
5
SEARCH
6
MENU
7
SEQ
Premium H.264 DVR
Setup Guide
SATA Cable
Mounting Kit
The USB 2.0 port allows users to connect an external USB device to the
unit, such as a USB ThumbDrive© or a USB mouse.
1. In Live and Playback modes, press any key to view the corresponding
video in full-screen.
2. In input interface, 1~10 can be used for direct input of numbers 0~9.
3. In Dome Camera Control mode, 1 is for entering the Set/ Go preset
menu; 2 is for hiding or displaying the dome setting parameters; 11~16
is for quick access of preset points 1~6.
This is used to control playback operations.
It lights up when power source is connected.
It lights up when data is processed to or from the connected HDD(s).
It lights up when an alarm is triggered.
It lights up when network is connected. In addition, it blinks when data is
being transmitted via the network.
It blinks when videos are being recorded.
Press this key to search recorded video by date/time or event.
Press this key to enter the OSD setup menu.
Press this key to start automatic sequence display of cameras.
www.ernitec.com
Remote Controller
Software on USB
Stick
1
Power Cord
User's Manual on usb

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DynaGuard Premium H.264 DVR and is the answer not in the manual?

Questions and answers

Summary of Contents for ERNITEC DynaGuard Premium H.264 DVR

  • Page 1 It blinks when videos are being recorded. Record LED Press this key to search recorded video by date/time or event. SEARCH Press this key to enter the OSD setup menu. MENU Press this key to start automatic sequence display of cameras. www.ernitec.com...
  • Page 2: Rear Panel

    Press this key to freeze the current viewing screen. FREEZE Press once to start the playback of recorded video. Press again to exit. PLAY/STOP Press this key to view in full-screen or multiple window modes. MODE This key is used for marking time in quick video export function. COPY Press this key to control call monitor or 2nd main monitor.
  • Page 3 Two USB 2.0 ports are located on the rear panel for users to connect external USB devices to the unit, such as ThumbDrive® or a USB USB 2.0 Ports (×2) mouse. The DVR is capable of networking and it allows the videos to be LAN 10/100/1000M viewed over the LAN network or the Internet by using the Internet (RJ-45)
  • Page 4: Power On The Dvr

    Pin Definition of Audio In / Audio Out For terminal blocks of Audio In and Audio Out, shown as below pictures, pins on the upper row are Audio In / Audio Out connectors for all channels, in sequential order from left to right. All other pins on the bottom row are for ground connection.
  • Page 5: Basic Setup

    Basic Setup Enter the OSD main menu and setup some basic configuration of the DVR. The basic configuration can be set via either the DVR or DVRRemote, the remote software. Enter OSD Main Menu: • Press MENU to enter the OSD main menu. •...
  • Page 6: Record Schedule / Quality Setting

    Record Schedule / Quality setting The Record Setup menu allows users to set recording quality, recording schedules, and other recording parameters. Login with a proper account to access Record Setup menu. In the Main menu, move the cursor to <Record Setup> and press ENTER;...
  • Page 7 Preset Record Configuration The <Preset Config> is used to select the preset recording quality and frame rate. In normal circumstances, it is strongly recommended to set the preset configuration as <Best Quality>. Below table shows the PPS and picture size under <Best Quality> in Half-D1 mode.
  • Page 8 Record Event Video Only If the DVR shall start recording only when alarms are triggered, follow the steps below: • Enter the OSD setup menu with correct password. • In the OSD setup menu, select <Record Setup> menu. Move the cursor to the item <Preset Config>, and select <Event only>.
  • Page 9: Event Setup

    • Select <Average Normal PPS> and press ENTER, then press UP/DOWN to make a choice. The <How Many Days To Record> will be computed automatically. • Select <Average Normal Quality> and press ENTER, then press UP/DOWN to make a choice. The <How Many Days To Record> will be computed automatically.
  • Page 10 < Email Notice > The item enables (ON) / disables (OFF) the Email notification of an event. When an alarm event is triggered and <Email Notice> is enabled, an e-mail concerning the alarm event will be sent. NOTE: In order to send an event notification e-mail successfully, ensure that the unit connects to the internet.
  • Page 11 PIN Authentication If you have set PIN code to protect your mobile phone, then you have to select <ON> for this item and enter the corresponding PIN code in the next item. PIN Code Setup You can enter the PIN code which has been set for protecting your mobile phone. Receiver Number You can enter the number of the assigned mobile phone, which the short message will be sent to.
  • Page 12 Alert Notification 4 options are included in this item; <OFF>, <Event>, <Alive>, and <Both>. <OFF>: The Alert Notification is turned off. <Event>: When the alarm is triggered, the DVR will send an alert message to the CMS. <Alive>: The DVR will send an alive message to the CMS every N second just to show you that the connection between the DVR and CMS is in effect.
  • Page 13 < Per Channel Config > This menu is used to configure the <Video Loss Detect>, <Motion Detect>, <Alarm In> and <Alarm Out> settings for each channel. The menu is displayed as below. Per Channel Config 1. Channel Select 2. Video Loss Detect 3.
  • Page 14: Detected Area Setup

    - Detected Area Setup The Detect Area is displayed as follows after selecting this item. The detection area consists of 165 (15×11) detection grids. ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■...
  • Page 15: Alarm Setup

    Alarm Setup Alarm In This item allows users to enable / disable alarm input detection. According to your application, select <N/O> (Normal Open) or <N/C> (Normal Close) to enable the alarm input detection or select <OFF> to disable the detection. If you set this item to <N/C>...
  • Page 16: Dome Camera Control

    Dome Camera Control Dome Camera Connection & Settings: • See section Pin Definition of Alarm I/O & RS-485 for RS-485 port pin definition. • Refer to the following figure. Connect the R+, R− terminals on the dome camera to the D+, D− terminals on the RS-485 port by RS-485 cable respectively.
  • Page 17: Basic Playback Operation

    Basic Playback Operation Searching Recorded Video by Time: • Press SEARCH button to enter the Search menu. • Move the cursor to “From Time” and press ENTER will start playing recorded video from the specified “From Time”. • Move the cursor to “End Time” and press ENTER will start playing recorded video from the specified “End Time”.
  • Page 18 Connect the DVR via the Remote Software Setup Requirements: • Make sure the PC is connected to the Internet. • Obtain IP address of the Eris 4000 H.264 DVR. To check the DVR’s IP address, press MENU key on the unit and select <System Setup> <Network Setup>...
  • Page 19 The following picture shows the display window of the CMS: Refer to the table below for brief description of functional items: Item Description Item Description Instant Recording Setup Menu Smoothen the Image Search Event List Deflicker On/Off at Playback Capture Snapshot Audio On/Off 4:3 Viewing Aspect Select Camera...
  • Page 20 DVRRemote Playback Playback Remote Video: • Click <Play> on the main window toolbar, and then <Remote Playback> tab. • The <From> and <To> on top of the screen display the date and time from which recorded video is available for playback. •...
  • Page 21 Mobile View Software Mobile View software allows users to timely monitor via a mobile device with internet connection. Refer to the following for brief descriptions of installation and basic operation. Download and Installation: • Access the java installation menu on a mobile device and connect the website that provides Mobile View software to directly download the software to the mobile device.
