Argox PT-90 Series User Manual

Argox PT-90 Series User Manual

Pt-90 series mobile computer
Hide thumbs Also See for PT-90 Series:
Table of Contents

Advertisement

Quick Links

Download this manual

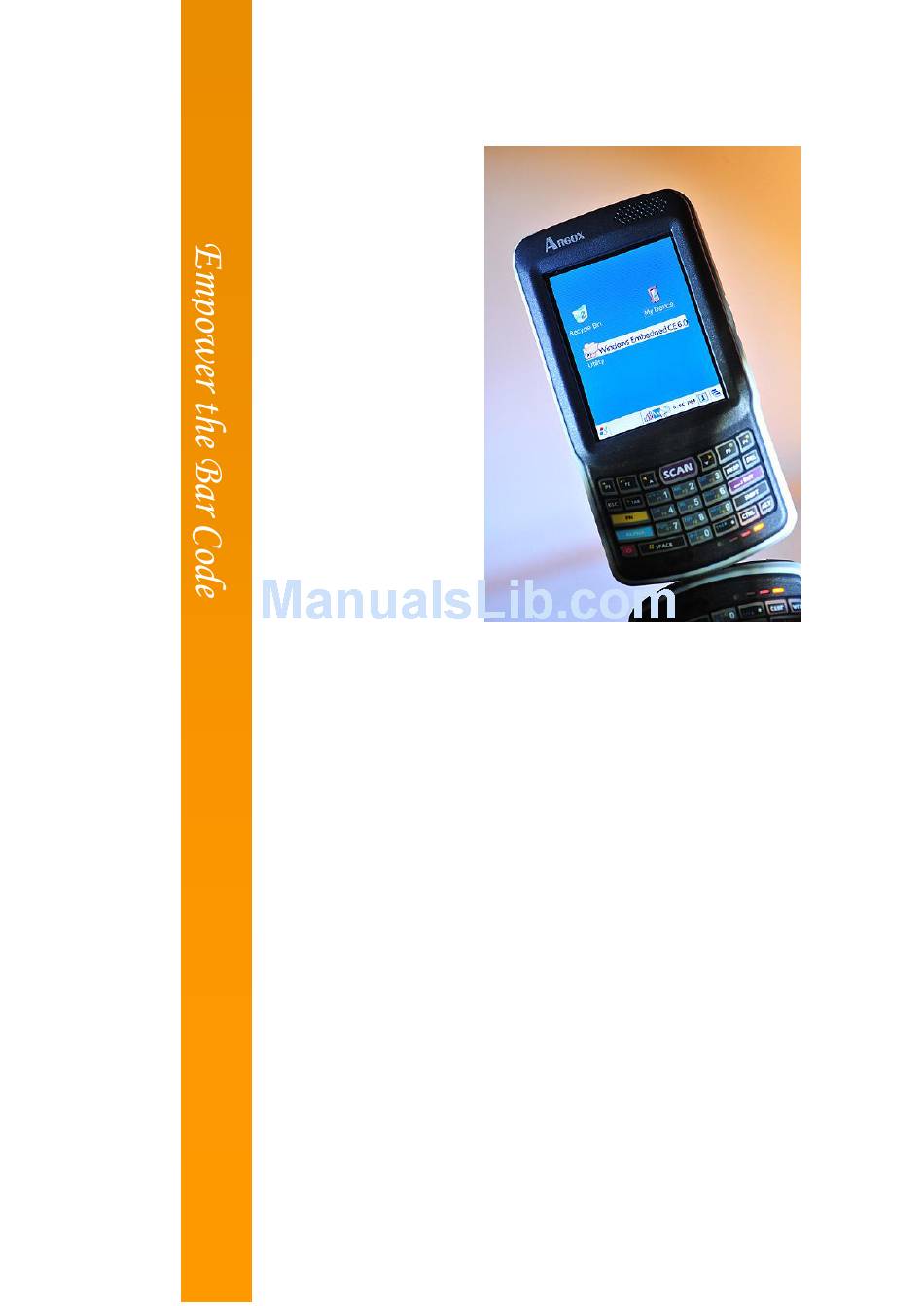

User's Manual
PT-90 Series Mobile Computer
(WinCE 6.0 version)
DOC NO. UM-P9005-01
Aug. 2014
Version 2.1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PT-90 Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Argox PT-90 Series

Summary of Contents for Argox PT-90 Series

  • Page 1 User’s Manual PT-90 Series Mobile Computer (WinCE 6.0 version) DOC NO. UM-P9005-01 Aug. 2014 Version 2.1...
  • Page 2 Argox will not be liable in case modifications are made by the customer. In such case the standard repair charge will be applicable. The standard charge for repair will also be applicable in case no defect is found at all.
  • Page 3 FEDERAL COMMUNICATIONS COMMISSION INTERFERENCE STATEMENT This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.

  • Page 4: Table Of Contents

    Table of Contents INTRODUCTION ......................1 1.1 A ....................1 BOUT THIS ANUAL 1.2 U ..................2 SER AND RODUCT AFETY 1.3 S ......................4 PECIFICATIONS GETTING STARTED ...................... 6 2.1 C ....................6 HECK THE PACKAGE 2.1.1 Compact Package.................... 6 2.1.2 Cadle &...
  • Page 5 3.11 GPRS U ......................38 TILITY 3.11.1 GPRS Connection...................38 3.11.2 GPRS SMS ......................39 3.12 GPS C ....................41 ONNECTION 3.13 RFID ..........................42 3.14 C ........................44 AMERA 3.15 E ....................46 THERNET RADLE SCANNING ........................47 4.1 S .....................47 ONFIGURATION 4.2 S ......................49 CAN DRIVER 4.3 S .........................50 CAN TEST...
  • Page 6 8.3.21 System Information ..................79 8.3.22 Timeout and Brightness ..................79 8.3.23 Volume and Sounds ..................79 TROUBLE SHOOTING ....................81 9.1 G ....................81 ENERAL HECKS 9.2 R ..................81 PERATION ROBLEMS 9.3 M ................81 OBILE OMPUTER ROBLEMS 10. APPENDIX: UPDATING THE OS VIA MICRO SD CARD ........83 User’s Manual...

  • Page 7: Introduction

    1. Introduction Congratulations on purchasing the PT-9X30, a Microsoft Windows CE Mobile Computer. Its ® special combination of features makes it perfect for use in a wide range of applications. These features as:  Microsoft Windows CE. Net operating system ...

  • Page 8: User And Product Safety

    1.2 User and Product Safety  Never use strong pressure on the screen or subject it to severe impact, as the LCD panel can crack and possibly cause personal injury. If the LCD panel is broken, never touch the liquid inside, for such contact can irritate the skin. ...
  • Page 9 To avoid malfunctions and to ensure years of trouble-free operation, pay attention to the following: General Use Do not expose the mobile computer to areas subject to extreme heat such as direct sunlight, near a heater, or in a car – or in areas that are very cold, humid, moist, or dusty.

  • Page 10: Specifications

    1.3 Specifications Performance Windows Embedded CE 6.0 MARVELL PXA310 (806 MHz) 256MB RAM 256MB Display 3.5” Color TFT LCD with touch panel Resolution 240 x 320 Scanner Scanner system Laser scan engine / 2D scan engine Readable barcode Laser scan engine Code 11, Code 39, Code 93, Code 128, Codabar, EAN-8, EAN- 13, Industrial 2/5, Interleaved 2/5, MSI plessey, UK plessey, Telepen, UPC-A, UPC-E, Matrix 2/5, UPC/EAN General, IATA...
  • Page 11 Sealed standard IP65 Agency Listing CE, FCC, BSMI, NCC, CCC, SRRC Win-CE AP MS Web Browser(Internet Explorer), Media Player, Microsoft WordPad, Remote Desktop Connection, Transcriber, Windows Explorer Developing Tools Argox SDK Microsoft Visual Studio for smart device programming User’s Manual...

  • Page 12: Getting Started

    2. Getting Started This chapter describes the PT-9X30 physical characteristics, how to install and charge the batteries, how to remove and replace the strap assembly and how to start the PT-9X30 for the first time. 2.1 Check the package Carefully remove all protective material from around the PT-9X30 and save the shipping container for later storage and shipping.

  • Page 13: Cadle & Pistol Grip Package (Optional)

    Ethernet Cradle Package   Power supply Ethernet Cradle EthernetCradle USB cable Figure 2-4 Ethernet Cradle Package Inspect the package contents for damage. If any item is missing or damaged, please contact the Argox Technical Support Center immediately. User’s Manual...

  • Page 14: Detailed View

    2.2 Detailed View The pictures below provide information on the PT-9X30’s various buttons, ports and other functions. 2.2.1 PT-9X30 Mobile Computer Dimensions of the PT-9X30 159 mm (L) * 80.8mm (W) * 36mm (H) Key pad Touch Screen Speaker Scan Button Scan Window Stylus Figure 2-5 The Front of the PT-9X30...

  • Page 15: Cradle

    2.2.2 Cradle Dimensions of the CRD-90 Cradle 147mm (L) x 112mm (W) x 83mm (H) Charging Power Figure 2-7 The Front of the CRD-90 1. Mobile Computer Slot Put the mobile computer in the cradle slot for data transmission or charging 2.

  • Page 16: Ethernet Cradle

    2.2.3 Ethernet Cradle Dimensions of the CRD-90E Cradle 147mm (L) x 112mm (W) x 83mm (H) Charging Power Figure 2-9 The Front of the CRD-90E Mobile Computer Slot Put the mobile computer in the Ethernet cradle slot for data transmission or charging Power LED Indicator LED status Description...

  • Page 17: Installing, Replacing And Charging Batteries

    Use the right charger for batteries. The rechargeable Li-polymer battery pack from Argox can be charged in the cradle when either it is in the mobile computer or alone in the charging slot in the back of the cradle.
  • Page 18 When the mobile computer is placed in the cradle, the rechargeable battery pack charges automatically. If you have a spare Argox battery pack, you can replace the empty battery pack with a full battery pack for continuous mobile computer operation. Put the empty battery pack in the charging slot of the cradle.

  • Page 19: Installing / Replacing The Battery Pack

    2.3.1 Installing / Replacing the Battery Pack To remove and install the battery 1. Press and release the POWER button to suspend the mobile computer 2. If the Mobile Computer has a hand-strap, detach and loosen the hand-strap 3. Rotate the latches to the open position and remove the battery cover Figure 2-11 Installing / Replacing the Main Battery 4.

  • Page 20: Charging The Battery Pack With Cradle

    2.3.3 Charging the Battery Pack with Cradle a) Leaving the battery pack inside the Mobile computer Connect the power adaptor to a power source Plug in the connector of the power adapter to the Cradle Insert the Mobile computer into the Cradle Figure 2-13 Charging with Cradle ...

  • Page 21: Installing In A System

    2.4 Installing in a System  Notes: Exercise caution at all times when working with AC-powered equipment.  Turn off your devices before installation.  Because of the special pin-out of the connectors, use the cables supplied by the manufacturer. ...

  • Page 22: Operation Of The Mobile Computer

    3. Operation of the Mobile Computer 3.1 Keypad Description PT-9X30 keypad consists of 29 /44 rubber keys including one SCAN key. Please refer to the picture below. 29-key 29-key plus 44-key Figure 3-1 Keypad Layout Key Define Function ALPHA Switches between the number input mode or the character input mode. Number input mode (default input mode) English lowercase letter (a~z) English capitalization (A~Z)

  • Page 23: Function Key Description

    3.2 Function Key Description  The function key is specially designed for quick access (Hot-key) to some functions. The function key combines with other keys.  Press function key once (function single mode). After press function key combination, function single mode switches to normal mode. ...

  • Page 24: Install Micro Sd Card Into Pt-9X30

    3.3 Install micro SD card into PT-9X30 1. Open the Micro SD slot cover with a screw driver. 2. Insert a correctly oriented Micro SD card. 3. Close the slot cover and fix two screws. Insert Micro SD card face side down Figure 3-2 Inserting a micro SD Card Note: If the micro SD card is inserted incorrectly, the micro SD card unit and its internal data...

  • Page 25: Configuring Pt-9X30 Settings

    3.4 Configuring PT-9X30 Settings 3.4.1 Calibrating Touch Screen Alignment Pressing the Power key The PT-9X30 welcome screen appears. The Windows CE® screen appears shortly after. Figure 3-3 Logo Calibrating the PT-9X30 This screen can be accessed at any time by pressing the hot key FN and ESC key.

  • Page 26: Adjusting Brightness

    3.4.2 Adjusting Brightness You can use the following procedures to adjust display brightness to make it easier to read under different lighting conditions.  Press the key and then press the key to adjust brightness for a lighter display. Press the key and then press the key to adjust brightness for a darker display.

  • Page 27: Entering Information

    3.5 Entering Information To enter information:  Use the keypad  Use the keyboard input panel (soft keyboard) to enter text.  Scan bar code data into data fields.  Use left /right side key  Use Microsoft ActiveSync to synchronize or copy information from the host computer to the PT-9X30.

  • Page 28: Power Management

    3.6 Power Management 3.6.1 Power Status Indication Checking main and Backup Battery Status Enter “Power Properties” If the above mentioned Plug or Battery icon is displayed, double tap this icon to bring up the Power Properties screen. Or, select Settings → Control Panel from the Start menu and then double tap the Power icon to display Power Properties.
  • Page 29 Indicates the battery is very low. Stop operation and charge “Battery Very low” the PT-9X30 immediately. You must charge the battery when the Battery Very Low icon is displayed. If the Battery Very Low icons still show after charging, please contact Argox Technical Support. User’s Manual...

  • Page 30: Saving Battery Power

    3.6.2 Saving Battery Power Automatic shut-down of the PT-9X30 The PT-9X30 enters idle mode when there is no task or if all tasks are waiting for input. In default setting, the PT-9X30 automatically turns itself off if idle for 9 (1+3+5) minutes and when there is no external charging power.

  • Page 31: Suspend Mode

    Timeout setting: Tap the check box off to always turn on backlight. Tap the check box on to toggle automatically turning backlight. Available timeout for battery power are 15 seconds, 30 seconds, 1 minute, 2 minutes and 5 minutes. Available timeout for AC power are 15 seconds, 30 seconds, 1 minute, 2 minutes, 5 minutes, 10 minutes, 15 minutes and 30 minutes.

  • Page 32: Resume

    Entering Suspend Mode: The following puts the PT-9X30 in suspend mode:  Press key while the unit is on.  The duration timer for Switch state to Suspend expires, which indicates that there has been no use for a specified of time. ...

  • Page 33: Performing A Warm Boot

    3.7.1 Performing a Warm Boot To perform a warm boot to correct the computer when an application stop responding to the system. Caution: The RAM will be reinitialized. To perform a warm boot: Press Reset button. Do not hold down any other keys or buttons. PT-9X30 initializes the logo screen appears for about a minute.

  • Page 34: Flash Storage

    3.8 Flash Storage Flash memory is a re-writable location in which to store up to 256MB of programs and data files. The benefit of this feature is that files and programs saved in Flash Memory are unaffected by the PT-9X30’s power status. Note: The Flash storage memory persists for warm/cold reset conditions.

  • Page 35: Bluetooth Setting

    3.9 Bluetooth Setting Run program from Desktop→ Utility→ Bluetooth to enable Bluetooth like Figure 3-17 Figure 3-17 Enable Bluetooth After enable Bluetooth, please select Show BT like figure 3-18 Figure 3-18 Show BT On Bluetooth manager screen, select File  New Connection like Figure 3-19 Figure 3-19 Bluetooth Connection User’s Manual...
  • Page 36 Bluetooth has four functions to choose like Figure 3-20 Figure 3-20 Bluetooth Explorer First function is Pair with remote device, after press next button. It will start to search devices. Select a device and press Pair button; it needs to enter Bluetooth PIN code like Figure 3-21.
  • Page 37 Second function is Serial Port which communication with device via com port like Figure 3-23 Figure 3-23 Bluetooth Explorer After press Next button, it will start to search device like Figure3-24. Figure 3-24 Bluetooth Serial Port After press Connect button, it will appear a connection with SPP mode like Figure 3-25 Figure 3-25 Bluetooth Serial Port User’s Manual...
  • Page 38 10. Third function is File Transfer like Figure 3-26 Figure 3-26 Bluetooth Explorer 11. After press Next button, it will start to search device and it needs to enter PIN code like Figure 3-27 Figure 3-27 Bluetooth File Transfer-1 12. After checking pin code with the connect device. PT-9X30 will enter FTP mode like Figure 3-28 Figure 3-28 Bluetooth File Transfer-2 User’s Manual...
  • Page 39 13. On Bluetooth manager screen, it will add a FTP connection like Figure 3-29 Figure 3-29 Bluetooth File Transfer-3 14. The latest function is ActiveSync connection. The function can connect with computer via ActiveSync like Figure 3-30 Figure 3-30 Bluetooth Explorer 15.
  • Page 40 16. PT-9X30 will add a ActiveSync connection on Bluetooth manager screen. It will synchronize with computer like Figure 3-32 Figure 3-32 Bluetooth ActiveSync User’s Manual...

  • Page 41: Wlan Setting

    3.10 WLAN Setting SDIO86861 only available in PT-9X30-0-0. SDCSD40N1 only available in PT-9X30-1-1 and PT-9X32-0-0. 3.10.1 SDIO86861 After enable WLAN setting, a POP window appears as below. Figure 3-33 Figure 3-33 WLAN setting If the above window doesn’t show, try to double click the Wireless icon on the screen bottom.

  • Page 42: Sdcsd40N1

    3.10.2 SDCSD40N1 Double click on Wireless icon or tap Start→ Program→ Summitscu to open Summit Client Utility like Figure 3-35 3-35 IGURE OPEN Click Admin Login and input password “SUMMIT” to login like Figure 3-36 3-36 A IGURE DMIN OGIN In Profile Tab, press Scan to find access point.
  • Page 43 Create a new profile and input key if necessary. 3-38 C IGURE REATE A NEW PROFILE Press Commit to save the profile setting. 3-39 C IGURE OMMIT In Main tab, set Active Profile to RD02test. WiFi will start connection with RD02test. 3-40 A IGURE CTIVE...

  • Page 44: Gprs Utility

    3.11 GPRS Utility GPRS utility only available in PT-9X30-1-1. Before using GPRS, insert the SIM card in PT- 9X30 first. Utility will ask PIN code if SIM card is lock. 3.11.1 GPRS Connection Tap Desktop→ Utility→ GPRS_RAS to enable GPRS_RAS like Figure 3-41 3-41 E GPRS_RAS...

  • Page 45: Gprs Sms

    The signal strength will display in Status and the GPRS icon on the taskbar. 3-44 GPRS IGURE SIGNAL STRENGTH 3.11.2 GPRS SMS Tap Desktop→ Utility→ GPRS_Demo. The GPRS_Demo screen appears. In the GPRS_Demo screen, you can send or receive SMS, setting phonebook, security, and SMS center.
  • Page 46 In Phonebook tab, you can add, modify, and delete phonebook. 3-47 P IGURE HONEBOOK In Security tab, you can lock or unlock SIM card and change PIN code. 3-48 S IGURE ECURITY In Center tab, you should setting SMS center before sending SMS. 3-49 C IGURE ENTER...

  • Page 47: Gps Connection

    3.12 GPS Connection GPS utility only available in PT-9X30-1-1. Tap Desktop→ Utility→ GPS SYSTEM to enable GPS like Figure 3-50 3-50 E IGURE NABLE Tap SetupConnect to start GPS positioning. PT-9X30 will get position in a few minutes. 3-51 GPS IGURE POSITIONING Tap SetupGPS Info or GPS Data to switch different information.

  • Page 48: Rfid

    3.13 RFID RFID utility only available in PT-9X32-0-0. Tap Desktop→ Utility→ RFID_Demo to enable RFID like Figure 3-53 3-53 E RFID IGURE NABLE In Inventory tab, tap 15693, 14443A or 14443B to select tag type. Press trigger key to read tag ID. 3-54 I IGURE NVENTORY...
  • Page 49 In 14443A tab, you can get UID from ISO14443A tags. You can also read and write block from Mifare S50/S70 and Mifare Ultralight. Figure 3-56 14443A In 14443B tab, you can get chip ID from ISO14443B tags. You can also read and write block from SRIX4K.

  • Page 50: Camera

    3.14 Camera Camera utility only available in PT-9X30-1-1. Tap Desktop→ Utility→ CameraDemo to enable Camera like Figure 3-58 3-58 E IGURE NABLE AMERA Tap PreviewStart to start preview. 3-59 IGURE START AMERA Tap CaptureJPEG Image to take picture. The capture pictures place in default folder \My Documents.
  • Page 51 Tap PreviewStop to stop preview. You can tap DisplayShow image to display picture. Figure 3-61 Display picture User’s Manual...

  • Page 52: Ethernet Cradle

    3.15 Ethernet Cradle Ethernet Cradle only support in PT-9X30-1-1 and PT-9X32-0-0. Switch to LAN , connect the AC adapter and connect the RJ45 connector Put the mobile computer in the cradle slot for LAN connection like Figure 3-62 3-62 LAN CONNECTIO IGURE If AC adapter isn’t available, there exists a message for AC Power Required.

  • Page 53: Scanning

    4. Scanning The PT-9X30 has an integrated laser/2D scanner that reads all major bar code labels with excellent performance. The trigger key is located in the middle of the unit. There are also two side-keys to trigger scanner. Press trigger key to activate the laser/2D scanner. The PT-9X30 has laser/2D scanner engine.
  • Page 54 Figure 4-3 Laser Scan Configuration-3 2D Scanner Engine: Figure 4-4 2D Scan Configuration -1 Figure 4-5 2D Scan Configuration -2 User’s Manual...

  • Page 55: Scan Driver

    Figure 4-6 2D Scan Configuration -3 After you change settings, press the OK button to configure, or press Restore Default to return to the scan default settings. 4.2 Scan driver Scan driver lets you put data into Microsoft WordPad. Open scan driver and the scan module powers on the scanner.

  • Page 56: Scan Test

    4.3 Scan test The PT-9X30 has a ScanTest.exe program that allows you to test the barcode scan function. Scan Test.exe is located in directory Desktop→ Utility→ ScanTest. This program shows barcode type and barcode data when pressing the Scan key. Figure 4-8 Scan Test 4.4 Reading barcode ...

  • Page 57: Barcode Reading Problems

    The scanning sequence is defined by the user’s application. A typical sequence is:  Point the mobile computer at the barcode and press the Trigger key  Point the LED lightbeam at barcode as shown in the scan position illustration above. ...

  • Page 58: Utilities

    5. Utilities 5.1 Function Key Setting To assign your favorite application program or virtual key from F1 ~ F10 and P1~P4 hot keys. Function Key.exe is located in directory Desktop→ Utility→ Function_Key. Choose F1~F10 or P1~P4 from list. Tap Define to define application or virtual key. Tap Apply or OK to set function key setting.

  • Page 59: Timeout & Brightness

    5.2 Timeout & Brightness Timeout & Brightness setting is a tool for changing the LCD backlight and keypad LED. If you wish to save power use this program to change LCD backlight and keypad LED settings. This application supports battery power and external power settings. Figure 5-3 Timeout &...

  • Page 60: Software Applications

    6. Software Applications The PT-9X30 includes software applications such as Internet Explorer, Media player, Microsoft WordPad, Remote Desktop Connection, Transcriber, Windows Explorer. Figure 6-1 Software Applications 6.1 Internet Explorer With Internet Explorer, you can view Web or intranet Web pages on your device. You will need to use WLAN to connect to an Internet server provider (ISP) or network.

  • Page 61: Microsoft Wordpad

    6.3 Microsoft WordPad You can create and edit documents and templates in WordPad, using buttons and menu commands that are similar to those used in the desktop version of Microsoft Word. You can work with files Normal or Outline view. WordPad documents are usually saved as .pwd files, but you can also save documents in other file formats, such as .rtf...

  • Page 62: Windows Explorer

    6.6 Windows Explorer Windows Explorer works almost the same on your PDA as it does on your PC. See the topics below for information about the difference in Windows Explorer on your device. Figure 6-7 Windows Explorer User’s Manual...

  • Page 63: Communication

    7. Communication The Argox PT-9X30 lets you link to a host computer via RS-232 or USB port for data communication with cable or cradle. This chapter gives an overview of the PT-9X30’s communication capabilities. 7.1 Microsoft ActiveSync Download and install Microsoft ActiveSync if you run Windows XP or Windows 2000 on your computer and you want to sync content between PT-9X30 and your computer.

  • Page 64: Overview Of Microsoft Windows Ce 6.0

    8. Overview of Microsoft Windows CE 6.0 This chapter describes Microsoft Windows CE 6.0, the operating system for the PT-9X30 This introduction to Microsoft Windows CE 6.0 includes:  How to use the main Windows  How to use a taskbar ...
  • Page 65 Recycle bin: Completely delete or restore files and data. This folder saves deleted files from Windows Explorer or the background screen. You can completely empty or restore files in the recycle bin. Once you have emptied the recycle bin, you cannot restore the files and data Caution: previously in the recycle bin.

  • Page 66: Taskbar

    8.2 Taskbar Taskbar shows a variety of information including keying in characters, battery, network connection, status of running programs, etc. Open Taskbar and Start Menu setting by selecting Start → Settings → Taskbar and Start Menu from the desktop. There are Always on top, Auto hide and Show Clock setting in General tab.
  • Page 67 Figure 8-6 Transcriber Keyboard: When Keyboard input panel is running, you will see the icon located in the taskbar. Figure 8-7 Keyboard Input Panel Upper / lower case Selection: Press this icon to select upper and lower case letters. If you select upper case, capital letters and characters appear on the number key pad.

  • Page 68: Setting Up The Pt-9X30

    8.3 Setting up the PT-9X30 You can set up various configurations of the PT-9X30 such as Date/Time, Network, Display, Volume and Sounds, Power, System, etc. at the control panel. Figure 8-9 Setting up To Tap Start → Settings → Control Panel, the control panel window appears. In the View option in the menu, you can change the view mode into large icons, small icons, details or to arrange icons.

  • Page 69: Certificates

    8.3.1 Certificates Application programs use certificates to ensure reliability and safe communication. Figure 8-11 Certificates Authorized certificate providers issue certificates that are valid for a specified period. Windows CE manages several certificate storages. Select Go to Start → Settings → Control Panel. Double click a Certificates to run.

  • Page 70: Date/Time

    8.3.2 Date/Time This screen sets date, time, standard time zone. Figure 8-12 Date/Time Date/Time You can set standard time zone, year, day and time. Set as follows: Press the down arrow in the standard time zone until it reaches your location. If the previously set value is appropriate, move on to the following.

  • Page 71: Dialing

    8.3.3 Dialing Dialing Properties 1. In the When dialing from list, select the Location where you want to change settings. 2. To create a new location, select New. Enter the name of the location, and then select OK Enter or Edit the area code and local country code as needed. Figure 8-13 Dialing Properties -1 Figure 8-14 Dialing Properties -2 4.

  • Page 72: Display

    8.3.4 Display This screen lets you set the wallpaper image of the PT-9X30, or change the color of the background screen. Call up the right button menu from desktop and select Properties and you can check the Display Properties window. Figure 8-15 Display Properties Display Change the desktop image of the background screen as follows:...

  • Page 73: Hot Function Key

    8.3.5 Hot Function Key Please refer to Function Key Setting above. 8.3.6 Input Panel You can set up the Input method and Options. Figure 8-16 Input Panel Properties Select keyboard and press Options. The Soft Keyboard Options window appears. Select the Size of the keys. To Use gestures for Space, Backspace, Shift and Enter, click the gestures check box.

  • Page 74: Internet Options

    8.3.7 Internet Options To use the Internet Options, make the following settings. General Click the General tab. Define your own start page and search page on the tab. It also can set the cache size. Click Delete Browsing History button, it can clear temporary internet files, cookies or history.

  • Page 75: Keyboard

    Security Under Security page, specify the security option for your browser. Figure 8-19 Internet Options-3 Privacy Under Privacy page, specify the cookies setting include of privacy level. Figure 8-20 Internet Options-4 8.3.8 Keyboard Repeat Tab To change the amount of time between taps before repetition starts, adjust the Repeat delay slider To change the repeat rate, adjust the Repeat rate slider.

  • Page 76: Mouse

    8.3.9 Mouse Double-click the checkerboard grid at a comfortable speed. Double-click the Test icon to test your setting. Tap OK to exit the Mouse properties. Figure 8-22 Mouse Properties 8.3.10 Network and Dial-up Connection You can directly link to the network via network (Ethernet, LAN) or phone (modern) connection.

  • Page 77: Owner

    8.3.11 Owner This function lets you set the PT-9X30 to display user information at start up, add information on the user, and set up a Network ID. Figure 8-24 Owner Properties Identification Enter information such as Name, Company, Address, company phone number, home phone number in the user information tab.

  • Page 78: Password

    8.3.12 Password You can set a password to keep unauthorized users from using the PT-9X30. Figure 8-25 Password Properties To set up a password: Select the Password Setting tab. Enter the password in the password box. Re-enter the password in the password confirmation box. To enable the password protection when the power on, click on the Enable password protection at power-on.

  • Page 79: Pc Connection

    8.3.13 PC Connection You can set up a PC Connection to synchronize the device with a desktop PC. You can set desktop USB and serial port connections. The following is the procedure required for changes in PC Connection. Begin with Windows CE 6.0. The PT-9X30 basically supports the Internet functions via USB. If you set up a partnership with PC during ActiveSync, it provides `USB CONNECT link items that enable an Internet connection through the USB connection: Figure 8-26 PC Connection...

  • Page 80: Power

    8.3.14 Power Please refer to the previous section on Power Management. ( Page 21 8.3.15 Regional Settings Figure 8-27 Regional Setting Properties You can set up region, numbers, currency, time, and date. Select Go to Start → Settings → Control Panel. Open Regional Settings icon.

  • Page 81: Remove Programs

    8.3.16 Remove Programs Figure 8-28 Remove Programs To remove installed programs: Select Go to Start → Settings → Control Panel. Open the Remove Programs icon. Select the program and click Remove to uninstall program. Click Remove. User’s Manual...

  • Page 82: Scan Configuration

    8.3.17 Scan Configuration Please refer to the previous section on Scan Configuration. 8.3.18 Storage Manager The storage manager lets you manage storage device. DSK1: NAND FLASH only allows the users to check the store information. DSK2 shall be SD memory card. The storage manager allow SD memory card to format, dismount or make new partition.

  • Page 83: Stylus

    8.3.19 Stylus This screen sets Double-Tap sensitivity and calibration. Figure 8-30 Stylus Properties Double Tap To set and test Double-Tap sensitivity: Select Go to Start → Settings → Control Panel. Activate the Stylus and select Double-Tap. Tap the grid and the color of the grid changes. It automatically records the speed of the Double-Tap.

  • Page 84: System

    8.3.20 System The System Properties window displays device information such as General, Memory, Device Name and Copyrights. General information contained in the window includes operating system data such as software version, processor and memory etc. Figure 8-31 System Properties The memory of the PT-9X30 is used for storage and programs. Basic memory capacity is 256MB.

  • Page 85: System Information

    8.3.21 System Information The System Information properties window displays system information such as Info, Memory and Clean boot. Info page contained in the window includes operating system data such as CPU, ROM, RAM, serial number (SN), hardware number (HW) and version details. Memory page display memory size such as RAM Program, ROM Storage, User application and Storage Card.
  • Page 86 Sounds To set the Sounds: Select go to Start → Settings → Control Panel. Open Volume & Sounds icon and select Sounds tab. Select an Event from the event list. Select a sound from the event sound list. To remove the sound from the selected event, choose (None). To save the changes in another scheme, select Save As in another name and name the sound scheme.

  • Page 87: Trouble Shooting

    If the PT-9X30 mobile computer needs repair, please ensure that the label with the serial number is present. If sending the mobile computer or cradle back to your local supplier or Argox, please use the original package to minimize the chances of damage during shipping. 9.2 Read Operation Problems...
  • Page 88 Mobile computer will not shut off  If the mobile computer is processing data, attach a charging cable to insure the battery isn’t depleted.  If the mobile computer is connected to AC power, disconnect.  Perform a warm boot – WARNING – Unsaved data will be lost. ...

  • Page 89: Appendix: Updating The Os Via Micro Sd Card

    10. Appendix: Updating the OS via Micro SD Card To upgrade or reinstall the PT-9X30 OS via Micro SD card, you need the P9XCE60R.bin, P9XUtility.cab and P9X2DUtility.cab file (available from Argox Technical Support): Note: Micro SD must be FAT32 format.
