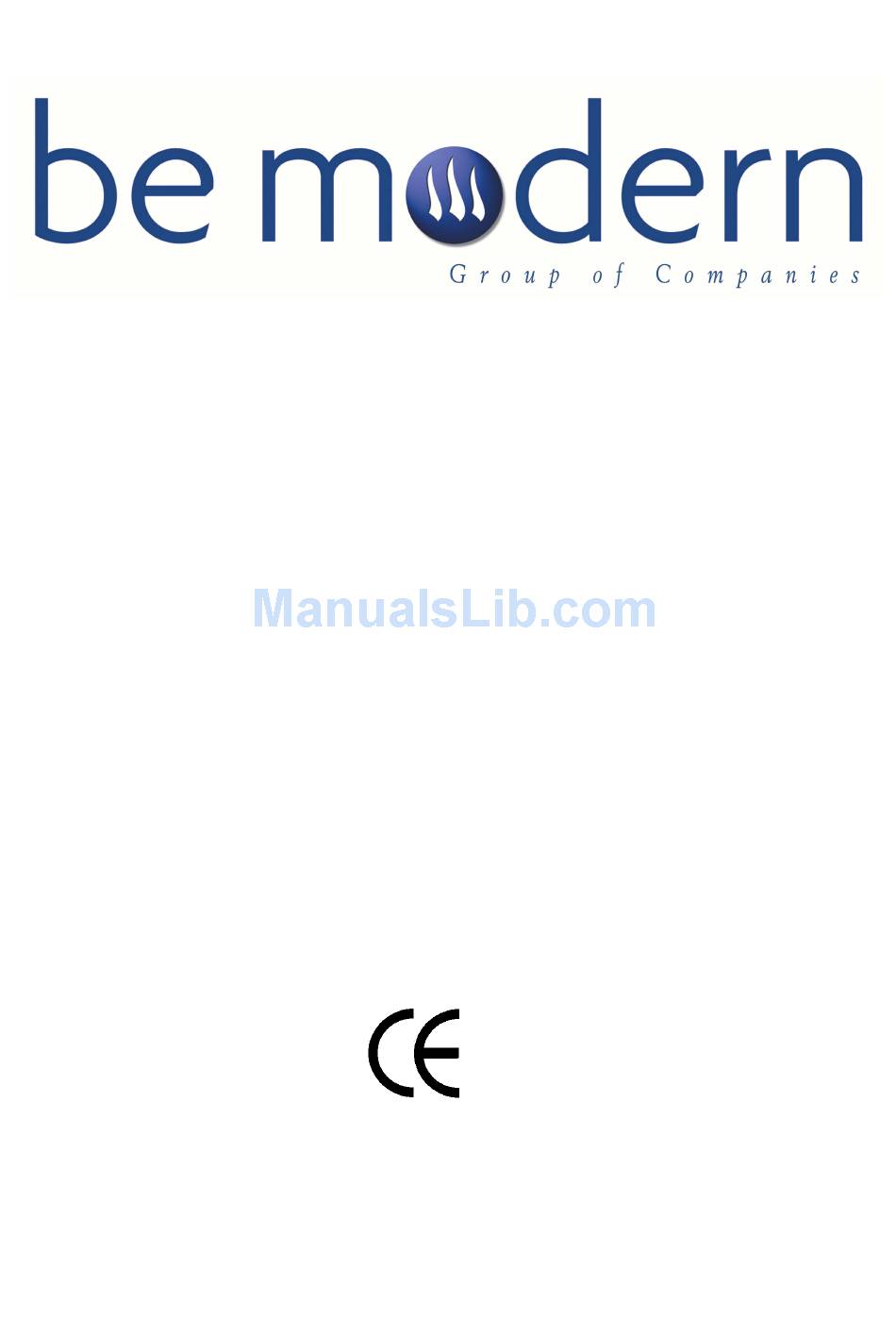

- Page 1 200646_01 THE CLASSIC, MAYFAIR, & AVANTE GARDE Radiant HE Power flue gas fire MODEL NUMBERS: EARDF16NG & EARDF16P INSTALLATION, SERVICING AND USER INSTRUCTIONS 0120 THIS APPLIANCE MEETS THE REQUIREMENTS OF THE EUROPEAN GAS DIRECTIVE THESE INSTRUCTIONS MUST REMAIN WITH THE USER...
-
Page 2: Table Of Contents
200646_01 Section Page No. Contents List of components Appliance Data ENERAL NSTALLATION EQUIREMENTS Fitting the firebox The Gas Supply Installing the fan box—Recessed Unit Fitting the Surface Mounting Adapter box Fitting the Semi-recessed Fan Spacer Additional Ducting and Bends Fitting the Burner Unit Electrical Connection to Mains Supply Gas Soundness Check Testing the Operation of the Fan... -
Page 3: List Of Components
The fan unit is packed in a separate box, which is inside the adapter box carton. Any extra ducting, elbows and fitting components will be packed in a separate carton. APPLIANCE DATA EARDF16NG EARDF16P GAS TYPE NATURAL GAS... - Page 4 200646_01 the current edition of I.S.813 ‘Domestic Gas Installations’ and the current Building Regulations. In addition to the Standards detailed above the installation must comply with the current IEE wiring regulations. THE HEARTH. The appliance must be fitted with a non-combustible hearth having a minimum thickness of 12mm (½").
-
Page 5: Fitting The Firebox
200646_01 Not shown on From an opening in a building directly opposite. 2000mm diagram The products of combustion should not discharge across a boundary. FITTING THE FIREBOX Measure the height of the hearth and make a mark on the wall at the same height. Above the hearth level line, draw a rectangle 405mm (16") wide and 585mm (23") high. -
Page 6: The Gas Supply
200646_01 Push the firebox in to place and seal into the fireplace opening using the double-sided tape supplied or alternatively a water based mastic sealant. NOTE: If installing without the fireplace in position when determining the length of flue spigot required allowance must be made for the depth of infill panel being used. -
Page 7: Fitting The Surface Mounting Adapter Box
200646_01 HOLE. THESE CONNECTORS ARE FACTORY FITTED AND CANNOT BE RE- ATTACHED ON SITE. GREAT CARE SHOULD BE TAKEN TO KEEP THE MULTI- CORE FAN CABLE CLEAR OF ANY COMPONENTS LIKELY TO BECOME HOT IN USE. FIGURE 5 Fit the flue spigot to the fan box using the three self-tapping screws provided. -
Page 8: Fitting The Semi-Recessed Fan Spacer
200646_01 NOTE: ON BOTH RECESSED AND SURFACE MOUNTED FAN UNITS THE FAN COVER ALSO ACTS AS THE TERMINAL GUARD AND IT IS NOT NECESSARY TO FIT ANY ADDITIONAL GUARD. Cut a slit in the grommet at the rear of the box and feed through the power cable, ensuring that the connecting plugs are protected against damage. -
Page 9: Fitting The Burner Unit
200646_01 FIGURE 8 FITTING THE BURNER UNIT Check that the ignition system functions correctly. Push in the control valve and operate the piezo ignition mechanism and check that a spark is generated at the pilot burner. If no spark is evident, check the connections and the soundness of the leads. Check tightness of nuts at the control-valve end of the thermocouple. -
Page 10: Gas Soundness Check
200646_01 The electrical connection to the mains supply may be made via either a fused spur or an unswitched three-pin socket and plug. The supply must be fitted with a 3A fuse. The appliance is supplied with 2.5 metres of three-core mains cable pre- wired. This should be routed to the power point as inconspicuously as possible - i.e. -
Page 11: Adjustment Of Coals / Pebbles
200646_01 With reference to Figure 11, lay the coals in position as follows:- ROW A Place the five large coals across the centre ceramic keeping them between the ridges. The coals should be positioned so they are equally spaced. ROW B Place five medium coals directly on top of the five large coals and resting on the upper rear ceramic. -
Page 12: Decorative Trims
200646_01 Close all doors and windows in the room or space containing the appliance. Light the appliance and burn at maximum for 5 minutes. Light a smoke match and pass completely along the top front edge of the opening (25mm down and 25mm inside). -
Page 13: Servicing & Maintenance
200646_01 SERVICE AND MAINTENANCE WARNING. This product uses fuel effect pieces containing Refractory Ceramic Fibre (RCF), which are man-made vitreous silicate fibres along with fibrous glass and mineral wool. Excessive exposure to these materials may cause temporary irritation to eyes, skin and respiratory tract, consequently, it makes sense to take care when handling these articles to ensure that the release of dust is kept to a minimum. -
Page 14: Fault Symptoms
200646_01 FAULT SYMPTOMS Your Power Flue Fire is designed and manufactured to give many years of trouble free operation. In the unlikely event of any component failure or installation problem the appliance will restore to a "fail-safe" condition. However, faults can be caused by situations other than component failure and we strongly recommend that you consider the following points when using your fire. -
Page 15: Users Guide
200646_01 SERS UIDE USEFUL TIPS & RECOMMENDATIONS The installation of this appliance must be carried out by a competent person, and in accordance with the requirements of the GAS SAFETY (INSTALLATION AND USE) REGULATIONS. As with any fire, certain components will become hot in use e.g. the decorative front fret. Care should be exercised when using the controls of the appliance when it is hot. -
Page 16: Lighting The Appliance
200646_01 LIGHTING THE APPLIANCE (See Figures 13 and 14) Turn the gas at the isolating elbow and switch on the electrical mains supply. Turn the ON/OFF switch on the control panel at the bottom of the fire to the ON position. Press the START switch, the fan will start and after a short period of time a “click”... -
Page 17: Assembling The Fire And Laying Ceramic Coals / Pebbles
200646_01 If it is necessary to remove all coals / pebbles for cleaning then any soot or debris should be removed from the ceramic elements and from the burners. A vacuum cleaner must not be used on the ceramic pieces. If large pieces of debris are found in the fire - sufficient to alter the appearance or operation of the appliance - the fan unit should be checked and inspected and the appliance serviced before further use. - Page 18 200646_01 INSTALLATION RECORD Appliance Supplied by: …………………………..Installation Date: ……………Serial No.: ….……... Installed By: …………..…...CORGI No.: …..…… Signed by Installer: ……………………………..… RECORD OF 1 SERVICE RECORD OF 2 SERVICE Serviced by: ………… CORGI No.:…………..Serviced by: ………… CORGI No.:…………..Service Date: …………… Signed: ….…….…... Service Date: ……………...
-
Page 19: Installation & Service Record
200646_01 Be Modern Limited WESTERN APPROACH SOUTH SHIELDS TYNE & WEAR NE33 5QZ TEL: 0191 4553571 FAX: 0191 4565556 Web site: www.bemodern.com Email: sales@bemodern.com THIS BOOKLET CONTAINS 20 PAGES. HEPF/BM / 0606 / ALL IN ONE...
