Be Modern BM-121 2 Series User Instructions

Gas log fire
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

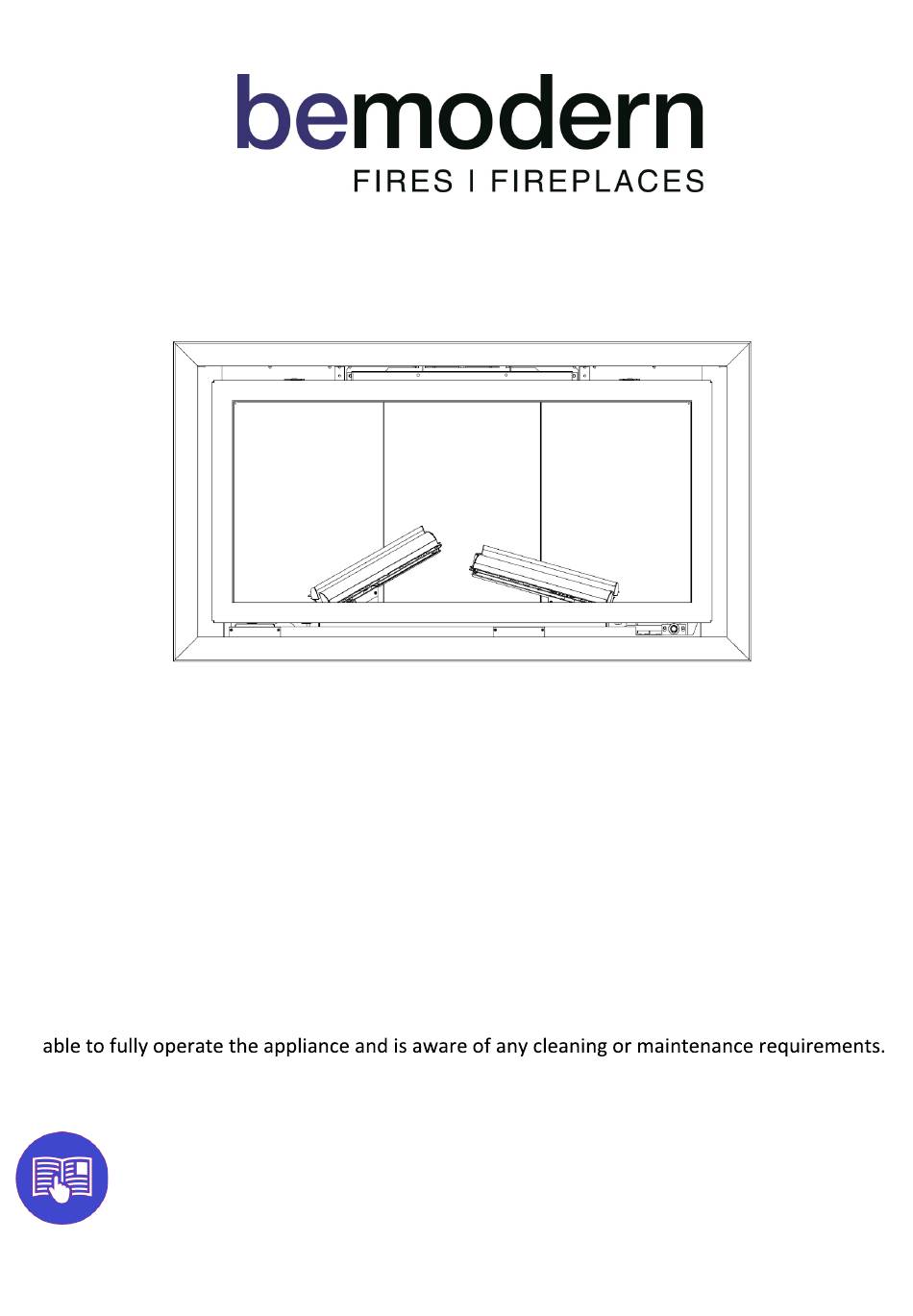

P-XX1587 ISSUE 1
800CF GAS LOG FIRE
USER INSTRUCTIONS
INSTALLATION INSTRUCTIONS
SERVICE INSTRUCTIONS
Do not use this appliance if the front glass panel is broken, removed or fitted incorrectly.
It is a regulation that these instructions be handed to the customer after installation is
complete. It is also the responsibility of the installation engineer to ensure that the customer is
Model number: BM-121XX2 SLIDE For use on Natural Gas (G20) at a supply pressure of 20 mbar in GB
THIS INSTRUCTION MANUAL MUST BE LEFT
WITH THE CUSTOMER AFTER INSTALLATION
This product is not suitable for primary heating purposes.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BM-121 2 Series and is the answer not in the manual?

Questions and answers

Related Manuals for Be Modern BM-121 2 Series

Summary of Contents for Be Modern BM-121 2 Series

  • Page 1 P-XX1587 ISSUE 1 800CF GAS LOG FIRE USER INSTRUCTIONS INSTALLATION INSTRUCTIONS SERVICE INSTRUCTIONS Do not use this appliance if the front glass panel is broken, removed or fitted incorrectly. It is a regulation that these instructions be handed to the customer after installation is complete.

  • Page 2: Table Of Contents

    Contents Appliance Commissioning Check List ………………………………...……..…..……………......User Instructions—Important information & Warnings ……………………………..………………..User Instructions—Controls & Operation …………………………………………..…………………………….. 5 User Instructions—General Maintenance & Cleaning ….……………………………...………………….… 6 Log Layout Instructions …………………………………………………………………………………………………..9 Running in and Troubleshooting …………………………...……………………………………………………………... 14 Unpacking the appliance ...……………………………………………………………………………………………………. 15 Regulatory Information …………………………………………………………..………………………………………..

  • Page 3: Appliance Commissioning Checklist

    Safety Check APPLIANCE COMMISSIONING CHECKLIST It is the installers responsibility to complete the following checklist when commissioning this appliance. The information recorded on this page may be requested at the time of any warranty call made. If the information is not made available it may affect the warranty support for the customers appliance. CHECK LISTS PASS FAIL...

  • Page 4: User Instructions-Important Information & Warnings

    USER INSTRUCTIONS WELCOME 2.0 Congratulations on the purchase of your new Be Modern 800CF gas fire. Ensure you keep these instructions in a safe place as they will be required for installation, service and general upkeep of your appliance. These instructions should be followed precisely to ensure that you receive many years of trouble free service from your appliance.

  • Page 5: User Instructions-Controls & Operation

    USER INSTRUCTIONS CONTROLS 2.1 This appliance has a concealed slide control knob. It is discreetly concealed in the space between the decorative trim and the glass door frame on the lower right hand side. Simply press the knob and it will protrude from its current position to enable operation.

  • Page 6: User Instructions-General Maintenance & Cleaning

    USER INSTRUCTIONS BATTERY 2.2 This gas appliance uses a single AAA type battery which supplies the power for the spark generator used during the ignition process. The battery box which houses this battery is located between the decorative frame and the glass door panel in the lower left hand corner.
  • Page 7 USER INSTRUCTIONS Cleaning is recommended for some parts of this appliance. The glass can be cleaned with a non CLEANING abrasive glass cleaner and lint free cloth. Metal parts can be cleaned with a lint fee damp cloth. HEALTH AND SAFETY NOTICE FUELBED This appliance uses fuel effect pieces manufactured from Refractory Ceramic Fibres (RCF).
  • Page 8 USER INSTRUCTIONS PILOT It may be necessary to clean areas around the pilot assembly. If the appliance is running and then turns itself off automatically for no apparent reason, it may be that the O.D.S (oxygen monitoring device) has become partially blocked and may need to be cleaned. The pilot can be found behind the cover shown in this diagram.

  • Page 9: Log Layout Instructions

    USER INSTRUCTIONS 2.3 The following instructions detail how the ceramic fuel bed and loose components are to be LOG SETUP installed onto the appliance. Great care should be taken when handling these ceramic parts as they are fragile and can easily be broken. Do not force any component into position, if it does not fit easily then you are not fitting the part correctly.
  • Page 10 USER INSTRUCTIONS Place the volcanic rock on top of the centre burner as shown. Ensure a 4-5 mm gap is left FUELBED between each piece. Then using half of the glowing ember wire supplied, ruffle between fingers to make it loose, about 20mm wide and as long enough to cover the volcanic rock then align over the rock as shown.
  • Page 11 USER INSTRUCTIONS Place Log C onto the right raised burner as shown ensuring it fits securely. Place Log D in the orientation shown ensuring the branch sits just in front of the air hole in the main log as shown. Place Log E in the orientation shown.
  • Page 12 USER INSTRUCTIONS Place Log F onto the burner bed in front of the centre burner as shown. Place the bark around the fuel bed as shown. Ensure that no bark can interfere with the pilot BARK operation,. Place Log G as shown in the picture.
  • Page 13 USER INSTRUCTIONS Place Log H onto the burner bed as shown. Place Log I onto the burner bed as shown.

  • Page 14: Running In And Troubleshooting

    WARRANTY The Be Modern 5 year limited guarantee is managed directly by Be Modern Ltd. With our experienced Gas Safe engineers and through our extensive network of service centres throughout the UK we will ensure your appliance receives the right care should anything fail prematurely.

  • Page 15: Unpacking The Appliance

    INSTALLATION INSTRUCTIONS 3.0 TAKE GREAT CARE WHEN UNPACKING THE APPLIANCE—SOME PARTS CAN UNPACKING THE APPLIANCE BE EASILY DAMAGED. Once the carton has been opened, carefully remove the polystyrene packing components to reveal the appliance. The appliance has two handles, one on each side, as shown in the diagram below.

  • Page 16: Regulatory Information

    INSTALLATION INSTRUCTIONS 3.1 NOTE THE FOLLOWING PRIOR TO THE INSTALLATION OF THIS APPLIANCE. REGULATORY INFORMATION This gas appliance MUST be installed by a GAS SAFE registered installer by law. It must be installed in accordance to these installation instructions and the GAS SAFETY (Installation &...

  • Page 17: Siting The Appliance

    INSTALLATION INSTRUCTIONS 3.4.0 This appliance can be installed into a suitable fireplace or as a ‘Hole in the SITE Wall’ (HIW) type installation. For both types of installation the chimney or flue must REQUIREMENTS be either Class 1 (brick chimney or 7” diameter flue) or Class 2 (5” diameter flue) The minimum effective height of the flue must be 3 metres, (10’).

  • Page 18: Clearance From Combustibles

    INSTALLATION INSTRUCTIONS 3.4.4 The following diagram shows the area which must be clear of all combustible COMBUSTIBLES materials. 3.4.5 If the appliance is being fitted with the flange against slips or a back panel, it BACK PANELS must be of a suitable material. The back-panel must be able to withstand 150 continuously or be ‘O’...

  • Page 19: Installation Into Studding

    INSTALLATION INSTRUCTIONS 3.7 It is also possible to install this appliance into a studded cavity providing it STUDDING complies to the following requirements: • The installation must have an insulated flue with a minimum diameter of 125mm (5”) diameter and a minimum effective overall height of 3 metres and comply with BS EN 1856-2 (metal flue pipes for appliances).

  • Page 20: Flue Liner Installation (Optional)

    INSTALLATION INSTRUCTIONS This appliance can be installed directly onto a flue liner if installed within a FLUE LINER masonry fireplace. Under no circumstances should a liner be used in any other (OPTIONAL) type of installation. The following diagrams show the step by step process of converting the appliance to top vent and securing the liner to the firebox.
  • Page 21 INSTALLATION INSTRUCTIONS FLUE LINER Now remove the four screws and take off the top cover-plate (OPTIONAL) Next, fit the flue closure plate with the 3 screws provided. NOTE THIS PART CAN ALSO BE FITTED FROM THE INSIDE OF THE APPLIANCE.THEN THE LOWER HOLE WILL BE USED.
  • Page 22 INSTALLATION INSTRUCTIONS The flue spigot should first be fitted to the base of the 5” flexible liner, then from FLUE LINER inside the appliance, using the grab handle within the spigot, pull the liner (OPTIONAL) downwards and locate the studs into the correct position. Note that by rotating the spigot through 180 the centre line can be moved fore and aft by 30mm.

  • Page 23: Installation Methods

    INSTALLATION INSTRUCTIONS METHODS OF 3.9 This appliance has 4 different installation methods: INSTALLATION When the appliance is installed in front of the heatproof board (or slips) on the wall or in front of the fireplace back panel then the 800CF Slim Trim supplied with the appliance should be removed and discarded.

  • Page 24: Slim Trim Installation

    INSTALLATION INSTRUCTIONS 3.9.1 The 800CF Slim Trim is supplied with the appliance. Remove this trim and place SLIM TRIM somewhere that damage cannot occur whilst preparing the installation. INSTALLATION The appliance is already prepared for installation of this trim, with the exception of the two vertical side wings.

  • Page 25: Slim Trim Back Panel Requirements

    INSTALLATION INSTRUCTIONS 3.9.2 When the 800CF Slim Trim option is selected the following diagram shows the back SLIM TRIM panel/slip set dimensions which should be used. INSTALLATION Critical Mantel Dimensions...

  • Page 26: Wide Trim Installation

    INSTALLATION INSTRUCTIONS 3.9.3 The 800CF Wide Trim is purchased separately. The Wide trim is supplied with the WIDE TRIM necessary components to complete the installation. INSTALLATION Remove the Slim trim brackets from the top panel of the firebox. Cover these holes with aluminium tape (supplied) on the outside of the firebox.

  • Page 27: Wide Trim Back Panel Requirements

    INSTALLATION INSTRUCTIONS 3.9.4 When the 800CF Wide Trim option is selected the following diagram shows the WIDE TRIM back panel/slip set dimensions which should be used. INSTALLATION Critical Mantel Dimensions...

  • Page 28: Fixing The Appliance-Cable Fixing

    INSTALLATION INSTRUCTIONS 4.0 Fixing the Appliance - Cable Fixing System. FIXING THE The appliance can be installed using the wire fixing kit. This type of fixing is shown in the APPLIANCE following picture. The fitting system comprises four (4) eyebolts, two (2) fixing cables, two (2) screwed nipples and two (2) adjuster fittings.

  • Page 29: 4.1 Fixing The Appliance - Screw Fixing

    INSTALLATION INSTRUCTIONS 4.1 Fixing the Appliance - Screw Fixing FIXING THE APPLIANCE The appliance can be installed using the screw fixings supplied. See the diagrams below. The foam seal which is supplied with the appliance should be affixed to the rear face of the flange.

  • Page 30: Connecting The Gas Supply

    INSTALLATION INSTRUCTIONS 4.2 Connecting the Appliance to the Gas Supply CONNECTING TO GAS SUPPLY The gas supply should be connected to the appliance by a concealed fitting from the rear. In all installation conditions the gas connection should be provided using 8mm (O/D) copper tubing.
  • Page 31 INSTALLATION INSTRUCTIONS CONNECTING TO GAS SUPPLY Remove the ceramic pad using the finger slot provided. Remove the heat shield plate.
  • Page 32 INSTALLATION INSTRUCTIONS CONNECTING Disconnect the HT Lead from the igniter unit. TO GAS SUPPLY Ignition wire Disconnect the switch harness plug/socket. Fit isolation valve to the inlet pipe as shown below.

  • Page 33: Log Layout Instructions

    INSTALLATION INSTRUCTIONS 4.3 The following instructions detail how the ceramic fuel bed and loose components are to be LOG SETUP installed onto the appliance. Great care should be taken when handling these ceramic parts as they are fragile and can easily be broken. Do not force any component into position, if it does not fit easily then you are not fitting the part correctly.
  • Page 34 INSTALLATION INSTRUCTIONS Place the volcanic rock on top of the centre burner as shown. Ensure a 4-5 mm gap is left FUELBED between each piece. Then using half of the glowing ember wire supplied (Tools & Fittings Pack), ruffle between fingers to make it loose and about 20mm wide then align over the volcanic rock as shown.
  • Page 35 INSTALLATION INSTRUCTIONS Place Log C onto the right raised burner as shown ensuring it fits securely. Place Log D in the orientation shown ensuring the branch sits just in front of the air hole in the main log as shown. Place Log E in the orientation shown.
  • Page 36 INSTALLATION INSTRUCTIONS Place Log F onto the burner bed in front of the centre burner as shown. Place the bark around the fuel bed as shown. Ensure that no bark can interfere with the pilot BARK operation,. Place Log G as shown in the picture.
  • Page 37 INSTALLATION INSTRUCTIONS Place Log H onto the burner bed as shown. Place Log I onto the burner bed as shown.

  • Page 38: Lighting The Fire

    INSTALLATION INSTRUCTIONS 4.4 Operating Instructions LIGHTING This appliance has a concealed slide control knob. It is discreetly THE FIRE concealed in the space between the decorative trim and the glass door frame on the lower right hand side. Simply press the knob and it will protrude from its current position to enable operation.

  • Page 39: Check For Spillage

    INSTALLATION INSTRUCTIONS 4.5 Spillage monitoring System (ODS Pilot) CHECK FOR This appliance is fitted with an atmospheric sensing system in the form of an oxygen sensing SPILLAGE pilot burner. This is designed to shut the fire off in the event of products being spilled into the room where the fire is being operated.

  • Page 40: Combustible Shelf

    INSTALLATION INSTRUCTIONS COMBUSTIBLE 4.6 Combustible Shelf SHELF This appliance may be fitted below a surround with a combustible shelf providing the following dimensional criteria is met: There must be a minimum distance of 400mm from the top of the appliance to the underside of the shelf.

  • Page 41: Complete The Installation

    INSTALLATION INSTRUCTIONS COMPLETE THE 4.7 INFORM THE CUSTOMER OF THE FOLLOWING TO COMPLETE THE INSTALLATION INSTALLATION Demonstrate the lighting of the appliance and the controls to control the heat settings. Demonstrate how to turn the fire off. Demonstrate the removal of the trim and how to reinstall correctly. Discuss the removal and reinstallation of the glass door and the ceramics.

  • Page 42: 5.0 Servicing The Appliance

    SERVICING INSTRUCTIONS 5.0 Servicing the Appliance. SERVICING The following procedures can and should only be performed by a Gas Safe registered installer. This appliance should be serviced annually by a Gas Safe registered installer. 5.1 Removal of the burner tray. The removal and replacement of all the gas carrying components will require the removal of the burner tray.
  • Page 43 SERVICING INSTRUCTIONS Remove the ceramic pad using the finger slot provided. Remove the heat shield plate. Fit isolation valve to the inlet pipe as shown below.
  • Page 44 SERVICING INSTRUCTIONS Disconnect the HT Lead from the igniter unit. Disconnect the switch harness plug/socket. Carefully remove the burner tray from the firebox.

  • Page 45: Removal Of The Gas Valve

    SERVICING INSTRUCTIONS 5.2 Remove of Slide Gas Valve. Remove 1 screw to remove the heat shield. Remove the pilot tube.
  • Page 46 SERVICING INSTRUCTIONS 5.2 Remove of Slide Gas Valve—continued Remove the 3 screws shown, then remove the thermocouple nut, the gas inlet tube nut and the main burner gas outlet nut. The valve can now be removed, serviced or replaced. When reassembling the valve ensure that the washer sits in the gap as shown in the diagram...

  • Page 47: Removal Of Pilot

    SERVICING INSTRUCTIONS 5.3 Remove of pilot assembly. Remove the pilot gas supply nut, the thermocouple nut from the valve and the 2 screws as shown in the diagram below. 5.4 Remove of spark generator. Remove the screw. Detach the black and white connector.

  • Page 48: Removal Of The Tee Valve (High Setting)

    SERVICING INSTRUCTIONS 5.5 Removal of Tee valve (High Setting). Remove the 16 screws as shown in the diagram below to release all pipework from the underside of the burner tray. Take care not to mix up the screws. 4 x self-tap silver screws marked 4 x M5 silver screws marked 1 x M3 silver screw marked 7 x self tap black screws.

  • Page 49: Removal Of The Injectors

    SERVICING INSTRUCTIONS Removal of Tee valve (High Setting) - Continued Remove the gas inlet and gas outlet nuts then remove the two nuts securing the tee valve to the underside of the burner tray. 5.6 Removal of Injectors Remove the 8 screws (4 each side) as shown in the diagram The two raised burners can now be removed...
  • Page 50 SERVICING INSTRUCTIONS Removal of Injector. Continued The 4 injectors can be accessed using the socket driver. Finally remove the screw as shown below, The tee connector can be pulled out and the middle burner injector can be removed. This injector is marked 110.

  • Page 51: Debris Removal

    SERVICING INSTRUCTIONS 5.7 Removal of the Debris Access Cover. Remove the 5 screws and the 3 nuts as shown in the diagram below to remove the access cover. This will reveal the access for debris removal.

  • Page 52: 6.0 Record Of Annual Services

    SERVICING INSTRUCTIONS 6.0 Record of annual services The extended warranty of the specified components within this appliance is conditional on the annual service of the appliance by a Gas Safe registered engineer. Failure to maintain the product or to use the product in away which is not intended will void the manufacturer's warranty.

  • Page 53: Product Fiche

    This is not to be confused with the net efficiency, or useful efficiency of the appliance (shown in the tables above). This product MUST be installed by a Gas Safe Registered Installer. Full details are provided in this manual. Be Modern Ltd. Bede Industrial Estate, Jarrow, Tyne & Wear, NE32 3BE.
  • Page 54 This page is intentionally left blank...
  • Page 55 This page is intentionally left blank...

  • Page 56: Manufacturers Instructions And User Replaceable Spares

    Ceramic Bark Pack P-XX1234 Ember Wire Pack It is important to note that the above spares are user serviceable components that can be changed by the customer. . Be Modern Ltd Bede Industrial Estate, Jarrow, Tyne & Wear, NE32 3BE www.bemodern.com Tel: 0191 489 8006 Fax: 0191 580 0085 Email: sales@bemodern.com...
