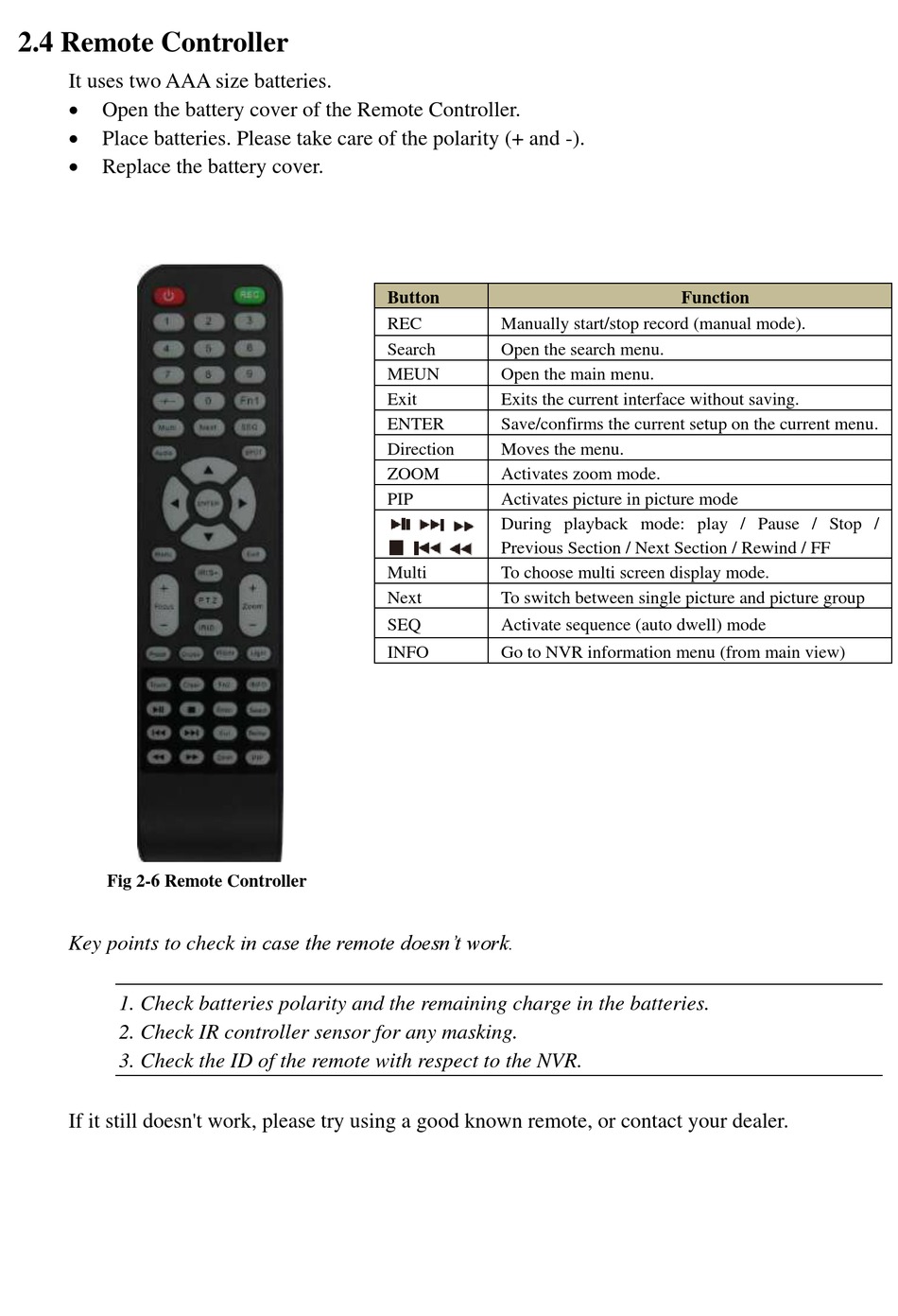

2.4 Remote Controller

It uses two AAA size batteries.

Open the battery cover of the Remote Controller.

Place batteries. Please take care of the polarity (+ and -).

Replace the battery cover.
Fig 2-6 Remote Controller
Key points to check in case the remote doesn't work.
1. Check batteries polarity and the remaining charge in the batteries.
2. Check IR controller sensor for any masking.
3. Check the ID of the remote with respect to the NVR.
If it still doesn't work, please try using a good known remote, or contact your dealer.
Button
REC Manually start/stop record (manual mode).
Search Open the search menu.
MEUN Open the main menu.
Exit Exits the current interface without saving.
ENTER Save/confirms the current setup on the current menu.
Direction Moves the menu.
ZOOM Activates zoom mode.
PIP Activates picture in picture mode
During playback mode: play / Pause / Stop /
Previous Section / Next Section / Rewind / FF
Multi To choose multi screen display mode.
Next To switch between single picture and picture group
SEQ Activate sequence (auto dwell) mode
INFO Go to NVR information menu (from main view)
Function
