iMarc

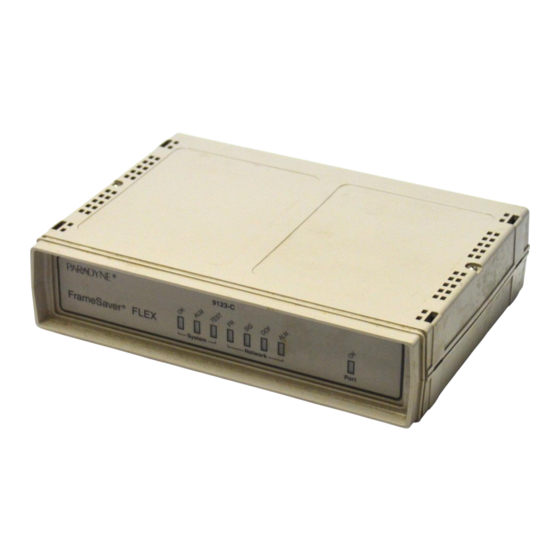

FLEX 9123
Installation Instructions
Document Number 9123-A2-GN10-50
May 2003
Contents
Product Documentation Online ..................................................................... 2
Upgrading a Unit to the Advanced SLM Feature Set .................................... 2
Package Checklist ........................................................................................ 2
Preparation ................................................................................................... 3
Cables You May Need to Order .................................................................... 3
Safety Instructions ........................................................................................ 4
Installing the Power Supply and Cord ........................................................... 4
Connecting to an Asynchronous Terminal or PC .......................................... 5
Verifying that Self-Test Passed ..................................................................... 5
Menu Hierarchy ............................................................................................ 6
A Quick Guide to Configuration .................................................................... 9
Full Installation and Setup ............................................................................ 10
About the Installation Procedures ................................................................. 10
Minimal Installation for Service Providers (Leased Line Mode) .................... 12
Setting Up Local Management at the Central Site ........................................ 14
Automatic Configuration ............................................................................... 14
Connecting to the Network ........................................................................... 15
Configuring SNMP Trap Managers and Traps .............................................. 16
Verifying the End-to-End Path ...................................................................... 16
Connecting to the Ethernet ........................................................................... 17
Connecting to the DTE (Router or FRAD) .................................................... 18
Verifying That Data is Being Received ......................................................... 19
Checking PVC Connections ......................................................................... 19
Important Safety Instructions ....................................................................... 20
EMI Notices .................................................................................................. 21
Government Requirements ........................................................................... 21
Warranty, Sales, Service, and Training Information ...................................... 24
Document Feedback ..................................................................................... 24
Trademarks ................................................................................................... 24
Patent Notification ......................................................................................... 24
1
NOTE: The FrameSaver
product line has been
renamed to iMarc.
®
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Paradyne iMarc FLEX 9123
Summary of Contents for Paradyne iMarc FLEX 9123
-
Page 1: Table Of Contents
™ iMarc FLEX 9123 ® NOTE: The FrameSaver product line has been Installation Instructions renamed to iMarc. Document Number 9123-A2-GN10-50 May 2003 Contents Product Documentation Online ..............2 Upgrading a Unit to the Advanced SLM Feature Set ........2 Package Checklist ..................2 Preparation .................... -
Page 2: Product Documentation Online
SLV Configuration Reference (9000-A2-GB31) iMarc SLV SNMP Reference (9000-A2-GB32) iMarc SLV Operations Guide (9000-A2-GB33) To order a paper copy of a Paradyne document, or to speak with a sales representative, please call 1-727-530-2000. Upgrading a Unit to the Advanced SLM Feature Set Full Service Level Management (SLM) capability can be activated in units that have the basic diagnostic feature set at any time. -
Page 3: Preparation
Preparation Make sure you have: ❑ A dedicated, grounded power outlet that is protected by a circuit breaker within 6 feet of the iMarc unit ❑ A clean, well-lit, and ventilated site that is free from environmental extremes ❑ One-to-two feet of clearance for cable connections ❑... -
Page 4: Safety Instructions
Safety Instructions Please refer to the Important Safety Instructions on page 20. Installing the Power Supply and Cord Procedure 1. Insert the power cord’s plug into the POWER jack. Grounded Power Outlet ETHERNET POWER 9123-C FrameSaver FrameSaver FLEX ® System System Network Port... -
Page 5: Connecting To An Asynchronous Terminal Or Pc
Connecting to an Asynchronous Terminal or PC A VT100-compatible asynchronous terminal or a PC providing VT100 terminal emulation must be used to set up access to and management of the unit. Procedure 1. Configure the terminal or PC so it is compatible with the iMarc unit: —... -
Page 6: Menu Hierarchy
Menu Hierarchy The Menu Hierarchy shows the organization of the iMarc unit’s screens. Status System and Test Self-Test Results Status Last System Reset Health and Status Test Status LMI Reported DLCI DLCIs Status CIR (bps) IP Path Device Name Connection Status IP Address Status Discovery Source... -
Page 7: Configuration System
Test Network PVC Tests PVC Loopback Send Pattern Monitor Pattern Connectivity Data Port PVC PVC Loopback Tests Send Pattern Monitor Pattern Network Physical Local Line Loopback Tests Local Payload Loopback Remote Line Loopback Send Pattern Monitor Pattern Data Port Physical DTE Loopback Tests IP Ping... - Page 8 Control System Device Name Information System Name, Location, Contact Date Time Administer Logins Login ID Password Access Level Change Operating Back-to-Back Mode Mode Standard Mode Select Software Current Release Release Alternate Release Switch & Reset LMI Packet Capture Interface Capture Utility Packet Capture Start/Stop Status Packets in Buffer...
-
Page 9: A Quick Guide To Configuration
A Quick Guide to Configuration The iMarc unit should operate using the default (factory-set) configuration options, with exception to the changes specified in these installation instructions. Refer to the following table for help in navigating through the menus. Press the . . . To . -
Page 10: Full Installation And Setup
Full Installation and Setup An Easy Install screen is provided to simplify installation and setup. The Easy Install feature can be used when one person installs and sets up the iMarc unit from beginning to end. Procedure 1. Select the Easy Install feature. Main Menu →... - Page 11 4. Configure the T1 network interface options to match the service provider’s settings. 5. If the unit will be enforcing CIR (Committed Information Rate) and EIR (Excess Information Rate) on network frame relay links, enable Traffic Policing. Main Menu → Configuration → Network → Frame Relay You can change other Frame Relay and LMI default settings, if necessary.
-
Page 12: Minimal Installation For Service Providers (Leased Line Mode)
Minimal Installation for Service Providers (Leased Line Mode) In this set of procedures, once the unit is installed and minimal configuration is completed using the Easy Install feature, the NOC can complete and verify the setup. Physically Installing the Unit and Setting Up for Remote Access Procedure 1. - Page 13 Completing Setup of the Unit From the NOC Procedure 1. Access the remote iMarc unit. — For non-managed networks: Ping the iMarc unit five times within five seconds. The unit automatically provisions the TS Access DLCI as a non-multiplexed management DLCI. —...
-
Page 14: Setting Up Local Management At The Central Site
Setting Up Local Management at the Central Site Procedure 1. Create a DLCI for the data port. Configuration → Data Ports → DLCI Records 2. Save the configuration. 3. Create a Management PVC using the data port DLCI just created. Configuration →... -
Page 15: Connecting To The Network
See Assigning Time Slots/Cross Connections in the iMarc SLV Configuration Reference (9000-A2-GB31) for additional information about this feature. Connecting to the Network Now that the iMarc unit is set up, the unit can be connected to the network. Procedure 1. Insert the 8-pin connector of the RJ48C network cable into the network interface. 2. -
Page 16: Configuring Snmp Trap Managers And Traps
Configuring SNMP Trap Managers and Traps Once the iMarc unit is connected to the network, SNMP trap managers and SNMP traps can be configured. Procedure To enter SNMP managers and configure traps: 1. Select SNMP Traps. Main Menu → Configuration → Management and Communication → SNMP Traps 2. -
Page 17: Connecting To The Ethernet
Connecting to the Ethernet Procedure 1. Insert one 8-pin connector of the Ethernet cable into the Ethernet port. 2. Insert the other end of the cable into the Ethernet interface of the LAN where the NMS resides. ETHERNET POWER 00-16687 3. -
Page 18: Connecting To The Dte (Router Or Frad)
Connecting to the DTE (Router or FRAD) Procedure 1. Connect one end of the DTE’s cable to the user data port. 2. Plug the other end of the cable into the DTE. 3. Tighten the screws on each side of the connector to secure the cable. ETHERNET POWER 00-16689... -
Page 19: Verifying That Data Is Being Received
Verifying That Data is Being Received Procedure 1. Return to the Main Menu. 2. Select Performance Statistics, and select an interface’s frame relay statistics. Main Menu → Status → Performance Statistics → Frame Relay → Net1-FR1 3. Verify that the Frames Received and Characters Received counts under the Frame Relay Link statistics are incrementing, and there are no errors under the Frame Relay LMI statistics. -
Page 20: Important Safety Instructions
Important Safety Instructions 1. Read and follow all warning notices and instructions marked on the product or included in the manual. 2. Slots and openings in the cabinet are provided for ventilation. To ensure reliable operation of the product and to protect it from overheating, these slots and openings must not be blocked or covered. -
Page 21: Emi Notices
The authority to operate this equipment is conditioned by the requirements that no modifications will be made to the equipment unless the changes or modifications are expressly approved by Paradyne. CANADA – EMI NOTICE: This Class A digital apparatus meets all requirements of the Canadian interference-causing equipment regulations. - Page 22 United States Notice to Users of the Telephone Network This equipment complies with Part 68 of the FCC rules. On the bottom of the housing is a label that contains, among other information, the FCC registration number for this equipment. If requested, please provide this information to your telephone company. If your unit causes harm to the telephone network, the telephone company may discontinue your service temporarily.
- Page 23 Canada Notice to Users of the Canadian Telephone Network The Industry Canada label identifies certified equipment. This certification means that the equipment meets telecommunications network protective, operational and safety requirements as prescribed in the appropriate Terminal Equipment Technical Requirements document(s). The Department does not guarantee the equipment will operate to the user’s satisfaction.
-
Page 24: Warranty, Sales, Service, And Training Information
Document Feedback We welcome your comments and suggestions about this document. Please mail them to Technical Publications, Paradyne Corporation, 8545 126th Ave. N., Largo, FL 33773, or send e-mail to userdoc@paradyne.com. Include the number and title of this document in your correspondence. Please include your name and phone number if you are willing to provide additional clarification.
