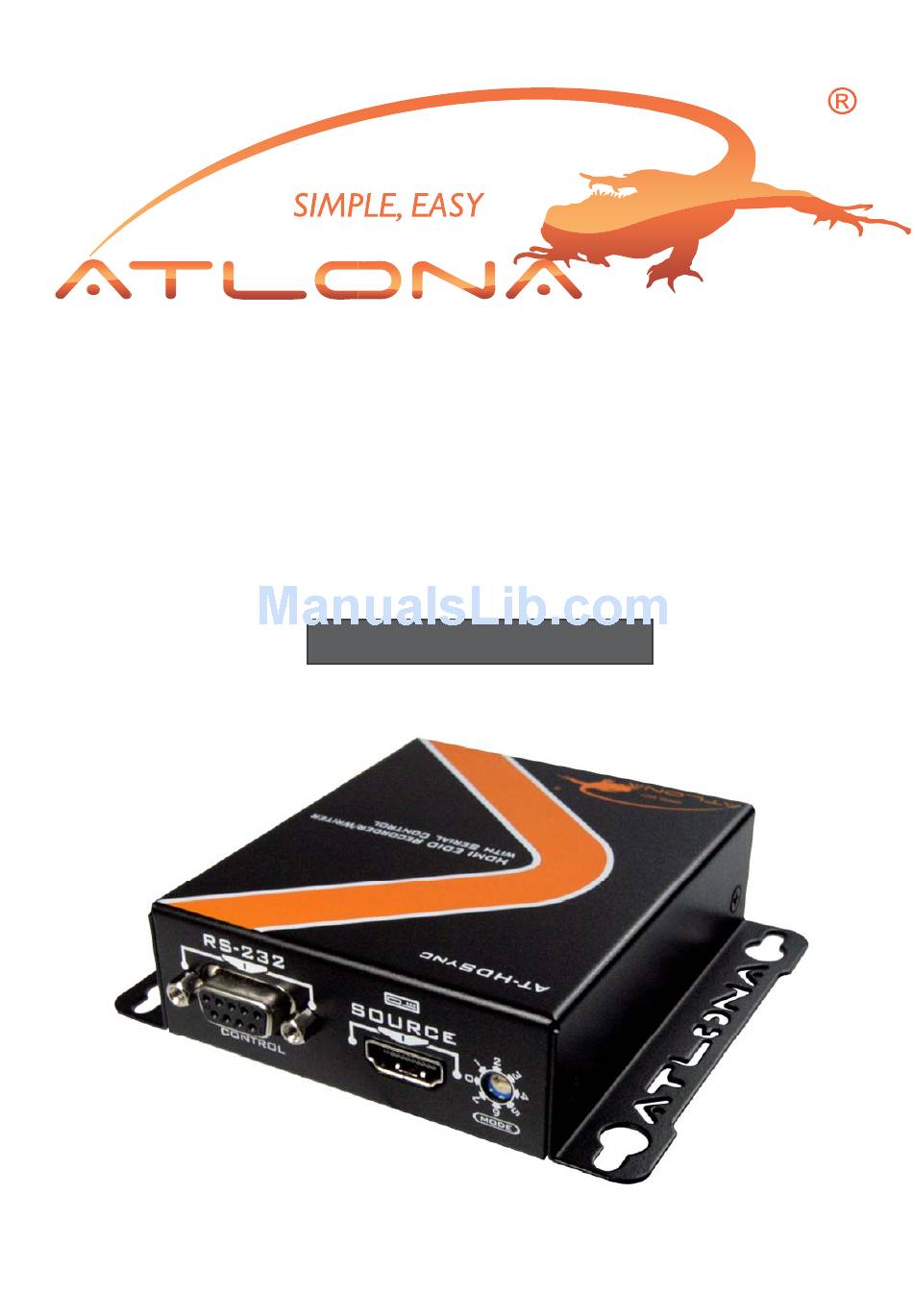

- Page 1 ™ HDMI EDID Recorder-Writer with Serial Control Model: AT-HDSync User’s Manual Rev.1006...
-
Page 2: Table Of Contents
1. Introduction ................. 1 2. Features ................ 3. Package Contents ................ 4. Specifications ................ 5. Panel Description ................ 6. Installation ................ 4 7. Software Operation ............... 8. Safety Information ................ 8 9. Warranty ................ 9 10. Atlona Product Registration ............... 10... -
Page 3: Introduction
HDMI 1.3c, DVI 1.0 and HDCP 1.1 compliant Built-in default EDID Able to read and store the EDID of monitors/projectors Prevent computers from deactivating inactive HDMI ports Able to write EDID into the AT-HDSync or the DVI monitors/projectors ™ Maintain HDMI... -
Page 4: Specifications
SPECIFICATIONS Model Name AT-HDSync Technical ™ ™ HDMI compliance HDMI 1.3c DVI compliance DVI 1.0 HDCP compliance Video bandwidth Single-link 225MHz (6.75Gbps) Video support Up to 1080p60 & WUXGA (1920x1200@60Hz) ™ Input 1x HDMI + 1x RS-232 ™ Output 1x HDMI ™... -
Page 5: Panel Description
PANEL DESCRIPTION Display Side 1. Connect to a 5V DC power supply unit. 2. Red light indicates the power on/off status. Green light indicates if the AT-HDSync is in the process of reading or writing EDID or sync detection. ™... -
Page 6: Installation
AT-HDSync via the DISPLAY port. 3. Plug in the 5V DC power supply unit. 4. Connect the AT-HDSync to the serial port of PC and run the control software. ™ 5. Click on “HDMI Monitor Reader” button to read the EDID information from the HDMI display. -
Page 7: Software Operation
SOFTWARE OPERATION Before running the software, please make sure the rotary switch is set to MODE 7. 1) Getting started 1. Firstly, make sure of the correct setup, and click on If the installation is done successfully, the following pop-up message window will show up to indicate the RS-232 serial port is automatically detected and successfully connected. - Page 8 2) Read EDID from AT-HDSync 1. If users would like to read EDID info from the AT-HDSync, simply click ”Read Machine EDID.” You can see the following message to inform you the correct reading of the EDID has been done.
- Page 9 2. Click “HDMI Monitor Writer” Click “HDMI Monitor Writer” and wait for the following message window showing up. 3. The AT-HDSync may not work on the monitors with EDID write-protection. At this time , you can see the following error message window showing up .
-
Page 10: Safety Information
To reduce the risk of electric shock, do not and swimming pools. expose this product to rain or moisture. Use only accessories recommended by ATLONA If the wall plug does not fit into your local to avoid fire, shock or other hazards. -
Page 11: Warranty
Atlona Technologies and its suppliers’ entire liability and Customer’s exclusive remedy shall be, at Atlona Technologies’ option, either return of the price paid for the Product, or repair or replacement of the Product that does not meet this Limited Warranty and which is returned to Atlona Technologies with a copy of Customer’s receipt. -
Page 12: Atlona Product Registration
At Atlona, we respect and protect your privacy and assure you that your registration information is completely secure. Of course, Atlona product registration is totally voluntary and failure to register will not diminish your limited warranty rights.
