Page 1: User Manual

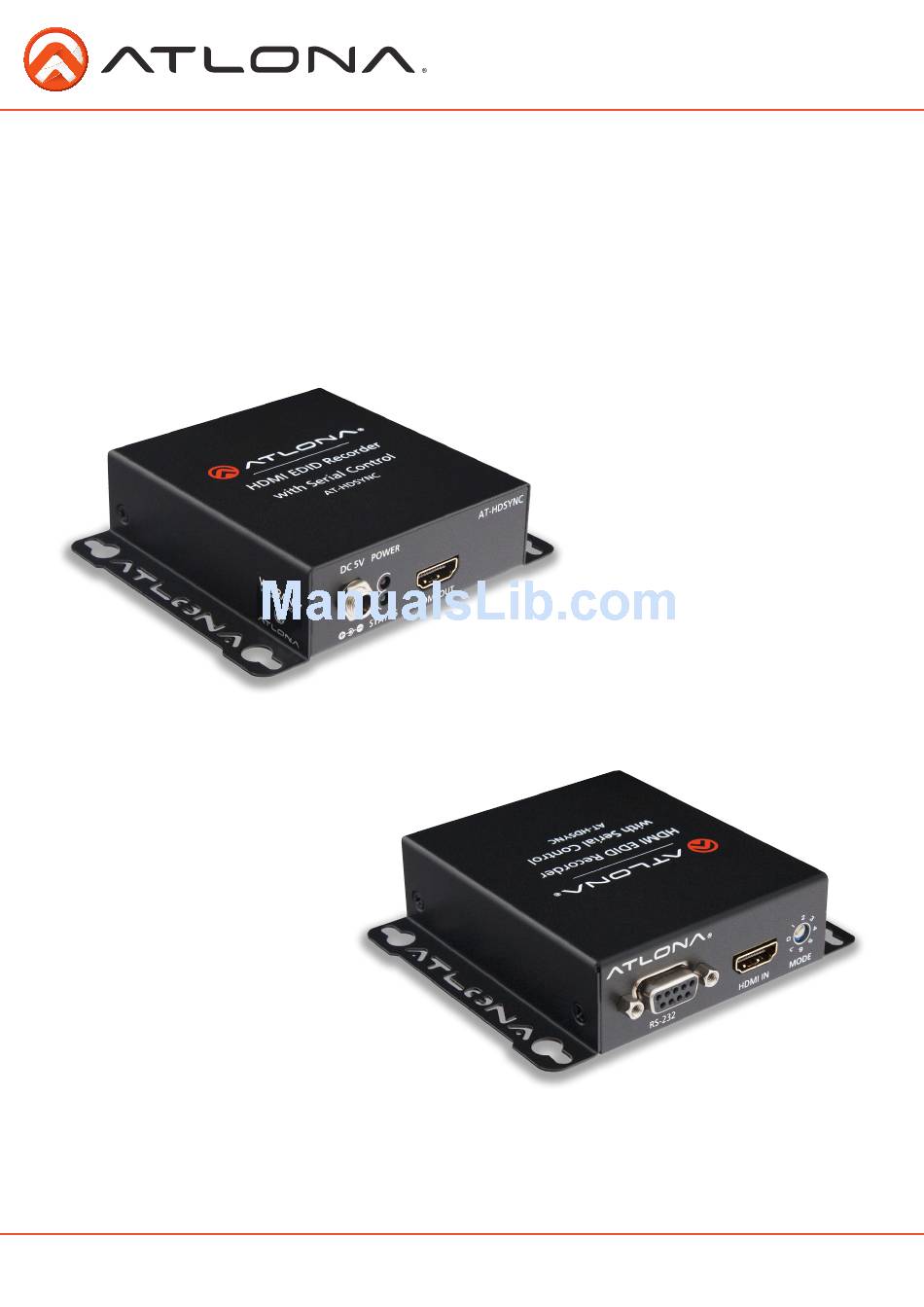

Atlona HDMI Recorder and Hot Plug Emulator AT-HDSync User Manual Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515... -
Page 2: Table Of Contents
................... 6 d. View/Analyze EDID ................... 6-7 e. Load/Edit/Write ................... 7 6. Firmware Update ................... 7 7. Specifications ................... 8 8. Safety Information ................... 9 9. Warranty ................... 10-11 10. Atlona Product Registration ................... 11 Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515... -
Page 3: Introduction
Introduction Read, copy and replicate almost any EDID with the AT-HDSync. With built in EDID memory the HDSync is perfect for large installations where EDID issues usually occur. Simply learn the display’s EDID, place the HDSync in the line next to the source and watch HDCP and EDID problems disappear. -
Page 4: Panel Description
Mode 2: 1080p - 2Ch audio - 3D Mode 3: 1080p - Multichannel audio - 3D Mode 4: 1080p - Dolby Digital audio - 3D Mode 5: 1080i or 720p - 2Ch audio Mode 6: EDID learning Mode 7: Software mode Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515... -
Page 5: Software
2. Turn on your PC and the HDSync. 3. Insert the included software into your computer’s disc drive. 4. Open the software file “HDMI EDID Recorder” (see picture A on top of page 6) Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515... -
Page 6: Read Edid
Once you’ve received a pass on the EDID reading, press the “Save File” button to save the current EDID to your computer. This option is for EDID compatibility issues. Example: Send the file to an Atlona Tech Support Rep when compatibility issues come up with an Atlona product and your display. -
Page 7: Load/Edit/Write
After the Com port has been selected successfully, you can select the “Firmware Update” (see page 6) at any time. This update is for the AT-HDSync only, not attached devices. Once the Firmware Update window has come up, you will press the “Load BIN”... -
Page 8: Specifications
Supply 5V -- 2A Dimension H x W x D 27 x 80 x 91 (mm) 1.1 x 3.1 x 3.6 (inch) Weight Device 0.53 kg 0.02 lbs Certification Power Supply CE, FCC, cULus Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515... -
Page 9: Safety Information
It may also cause damage to your product. Opening the product will void the warranty. Do not attempt to service the unit. Disconnect the product and contact your authorized Atlona reseller or contact Atlona directly. -
Page 10: Warranty
Atlona requires that products returned are properly packed, preferably in the original carton, for shipping. Cartons not bearing a return authorization or case number will be refused. Atlona, at its sole discretion, reserves the right to reject any products received without advanced authorization. Authorizations can be requested by calling 1-877-536-3976 (US toll free) or 1-408- 962-0515 (US/international) or via Atlona’s website at www.atlona.com. -
Page 11: Atlona Product Registration
Atlona’s products may be used in conjunction with. Atlona, at its sole discretion, reserves the right not to extend its warranty offering in instances arising outside its normal course of business including, but not limited to, damage inflicted to its products from acts of god.
