Setup Manual
AV Connectivity, Distribution And Beyond...

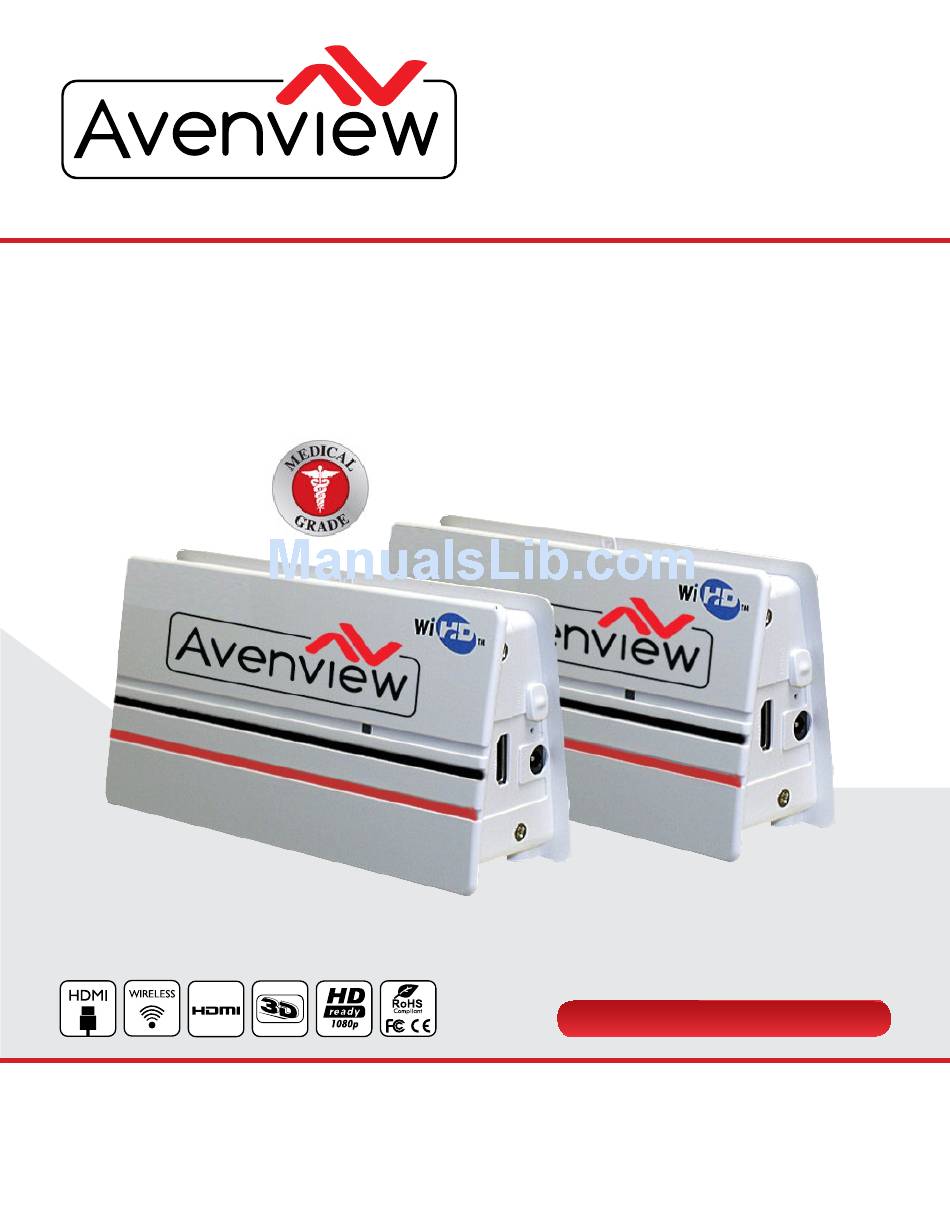

Wireless 60GHz HDMI Extender Set with
3D and Full HD Video Support
© 2013 Avenview Inc. All rights reserved.
The contents of this document are provided in connection with Avenview Inc. ("Avenview") products. Avenview makes no representations or
warranties with respect to the accuracy or completeness of the contents of this publication and reserves the right to make changes to specifications
and product descriptions at any time without notice. No license, whether express, implied, or otherwise, to any intellectual property rights is granted
by this publication. Except as set forth in Avenview Standard Terms and Conditions of Sale, Avenview assumes no liability whatsoever, and disclaims
any express or implied warranty, relating to its products of Avenview Inc. is strictly prohibited.
VIDEO WALLS
VIDEO PROCESSORS
VIDEO MATRIX SWITCHES
EXTENDERS
SPLITTERS
CABLES & ACCESSORIES
Model #: W-HDM3D-100-SET
WIRELESS
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Avenview W-HDM3D-100-SET
Summary of Contents for Avenview W-HDM3D-100-SET
- Page 1 No license, whether express, implied, or otherwise, to any intellectual property rights is granted by this publication. Except as set forth in Avenview Standard Terms and Conditions of Sale, Avenview assumes no liability whatsoever, and disclaims...
- Page 2 Product Application & Market Sectors Coroprate House Of Worship Military Residential Education Industrial Medical Aviation www.avenview.com...
-
Page 3: Table Of Contents
5. 1 0 SETup GuIDE ..........................18 5.11.1 DVI-VIDEOWAll-12X front panel ..................19 MAINTENANCE Of QuAlITy Of SERVICE ................21 6.1 Design Characteristics: Interference from other W-HDM3D-100 Devices .......21 6.2 Design Characteristics: Accommodation of Diminished Video Signal Quality ....... 21 REGulATORy ..........................22 www.avenview.com Page 3... -
Page 4: Getting Started
Tested to comply with fCC Class B standard. This symbol indicates that the waste of electronic equipment must not be disposed as unsorted municipal waste and must be collected separately. please contact the manufacturer or other authorized disposal company to Decommission your equipment. www.avenview.com Page 1... -
Page 5: Getting Started
• Removal, installation, and set-up service charges. SAfETy INSTRuCTIONS The Avenview W-HDM3D-100-SET, HDMI Extender over WIfI has been tested for conformity to safety regulations and requirements, and has been certified for international use. However, like all electronic equipment’s, the W-HDM3D-100-SET should be used with care. -
Page 6: Regulatory Notices Federal Communications Commission (Fcc)
DO NOT TAMpER WITH THE uNIT. DOING SO WIll VOID THE WARRANTy AND CONTINuED uSE Of THE pRODuCT. THE VIDEO BOARDS ARE VERy SENSITIVE TO STATIC. plEASE ENSuRE If RACk MOuNTED OR INSTAllED ON A SuRfACE, IT SHOulD BE IN A GROuNDED ENVIROMENT. www.avenview.com Page 3... -
Page 7: Introduction
INTRODuCTION Avenview W-HDM3D-100, our 60 GHz wireless HD transmitter/receiver, provides an easy and flexible solution to wireless communications. This system supports HD video, 1080p/60Hz, plus new 3D video formats generated by HDMI 1.4a. Both CEC and non-CEC enabled devices are compatible with our W-HDM3D-100 wireless system.60 Ghz reliability pACkAGE CONTENTS 1. - Page 8 Medical grade power code & adaptor (5V/2A) HDMI to DVI-D cables Bracket (Standard type for installing) and screw Bracket (Medical type for installing) and screw Do not use any other cable or accessory that are not provided www.avenview.com Page 5...
-
Page 9: Before Installation
• Do not attempt to disassemble or modify your product; • Only authorized personnel should perform service; • Never insert anything metallic into the product vents; • Do not touch signal input, signal output or other connectors, and the patient simultaneously. www.avenview.com Page 6... -
Page 10: Installation
HDMI port) and the Receiver should be connected the HDMI port of the digital display device (Monitor). 1. Avenview W-HDM3D-100 Transmitter / Receiver are designed to be no more than 33 feet (10 meters) apart. 2. Be on the same level (one should not be higher than the other). -
Page 11: General Troubleshooting
• Either the receiver or transmitter is not powered on. Be sure the AC adapter is securely connected and each unit is powered on correctly. • power cycle both the transmitter and receiver by unplugging then plugging them back in. www.avenview.com Page 8... - Page 12 Do not view directly laser module of transmitter or the end of the other side of optical cable connected to transmitter with optical instrument. Do not twist or pull by force either ends of the optical cable. It can cause malfunction. Minimum bending diameter is 45mm Thank you. www.avenview.com Page 9...
-
Page 13: Specifications
DIMENSIONS (L x W x H) 6.5”x 3.4”x 2” WEIGHT 0.5 lbs Environmental OPERATING TEMPERATURE 0 ~ 40 ˚C (32 ~ 104˚ F) ambient temperature STORAGE TEMPERATURE -4˚ ~ 158˚F (-20˚ ~ 70˚C) RELATIVE HUMIDITY 10~90% RH (no condensation) www.avenview.com Page 10... -
Page 14: Dvi Converter Scaler
It allows the user to upscale a lower resolution to HD. Some medical device manufacturers prefer not to use the normal standardized timings for HD resolutions. If this is the case with your intended source, then the W-HDM3D-100-SET will be unable to successfully transmit video from your source to the desired display. -
Page 15: Signal Pin Assignment
16 T.M.D.S. Data1- DDC SDA pin 7 pin 17 T.M.D.S. Data0 + DDC Ground pin 8 pin 18 T.M.D.S. Data0 Shield +5V power pin 9 T.M.D.S. Data0 - pin 19 Hot plug Detect pin 10 T.M.D.S. Clock+ www.avenview.com Page 12... -
Page 16: Input Timing
Multiples of fs DTS & Dolby Digital lpCM 2-channel 2/6 channels 32 kHz 44.1 kHz 48 kHz 88.2 kHz 96 kHz 176.4 kHz 192 kHz 4.096 5.645 6.144 11.29 12.288 22.579 24.576 8.192 11.29 12.288 22.579 24.576 45.158 49.152 www.avenview.com Page 13... -
Page 17: Wireless Video Area Network (Wvan)
The next time the TX is powered on, it will search for the preferred WVAN ID of the RX. Switching between TX and RX is done by pushing and holding down the “Switch” button for 3 seconds or until the lED flashes. The TX will connect to the next available Rx in the network. www.avenview.com Page 14... -
Page 18: Configuration -Multiple And Single
6 Rx on its WVAN. -Switching between TX and RX is done by pushing and holding down the “Switch “button for 3 seconds or until the LED flashes. The TX will connect to the next available Rx in the network www.avenview.com Page 15... -
Page 19: Quick Startup
Connect and the DVI end to the medical equipment and/or monitor DC-IN Connects to the power adapter or DC splitter 5volt output pOWER Switch used to turn on/off the Tx/Rx. SWITCH RE-SyNC please press to sync with receiver www.avenview.com Page 16... -
Page 20: Installation Guide
2. Insert the two screws into the wall. 3. Slide the Rx or Tx onto the bracket and lock in place with a screw from the underside. 4. Align the bracket holes with the wall screws push and slide down into position. www.avenview.com Page 17... -
Page 21: Setup Guide
1. Connect the transmitter (TX) to the output source such as a Endoscope system. 2. Connect power adapter for the TX to an AC outlet. 3. Turn the power ON for both the 60GHz Rx and TX 4. The 60GHz W-HDM3D-100 Transceivers will sync and begin transmitting media. www.avenview.com Page 18... -
Page 22: Dvi-Videowall-12X Front Panel
Connect the power cord into an available electrical outlet and plug in the power cord into the power adaptor. Connect the power adaptor to the CW-HDMDVI-100 power input. Con¬nect the CW-HDMDVI-100 power cable between the CW- HDMDVI-100 power output and the W-HDM3D-100 Tx power input. www.avenview.com Page 19... - Page 23 The Tx and Rx are facing each other. The Tx and Rx are no more than 10 meters apart. The Tx and Rx are between 6-10 ft above the floor. The Tx and Rx are not in a confined location www.avenview.com Page 20...
-
Page 24: Maintenance Of Quality Of Service
> 1 cm > 1 cm 2.4GHz Wireless > 6 inches > 6 inches 5.8 GHz Wireless > 6 inches > 6 inches Cell phone > 1 cm > 1 cm Bluetooth > 1 cm > 1 cm www.avenview.com Page 21... -
Page 25: Regulatory
Hereby declares that this device is in compliance with the essential requirements and other relevant provisions of the R&TTE Directive 1999/5/EC. lVD, EMC, EMf, Radio as attested by conformity with the following harmonized standards: EN 60950-1:2001+A11:2004 EN 60065:2002+A1:2006 EN 301 489-1 V1.8.1 (2008-04) EN 62311:2008 EN 302 567 V1.1.1 www.avenview.com Page 22... - Page 26 PARTS: During the Warranty Period of of THREE (3) YEARS, Avenview will supply new or rebuilt replacements in exchange for defective parts of the product(s) at no cost if the product(s) is determined to have abide by Avenview’s published guidelines. Cost of Parts applicable to product(s) after Warranty Period. For part(s) costs, please contact support@avenview.com.
- Page 27 Notes...
-
Page 28: Technical Support
Disclaimer While every precaution has been taken in the preparation of this document, Avenview Inc. assumes no liability with respect to the operation or use of Avenview hardware, software or other products and documentation described herein, for any act or omission of Avenview concerning such products or this documentation, for any interruption of service, loss or interruption of business, loss of anticipatory profits, or for punitive, incidental or consequential damages in connection with the furnishing, performance, or use of the Avenview hardware, software, or other products and documentation provided herein.
