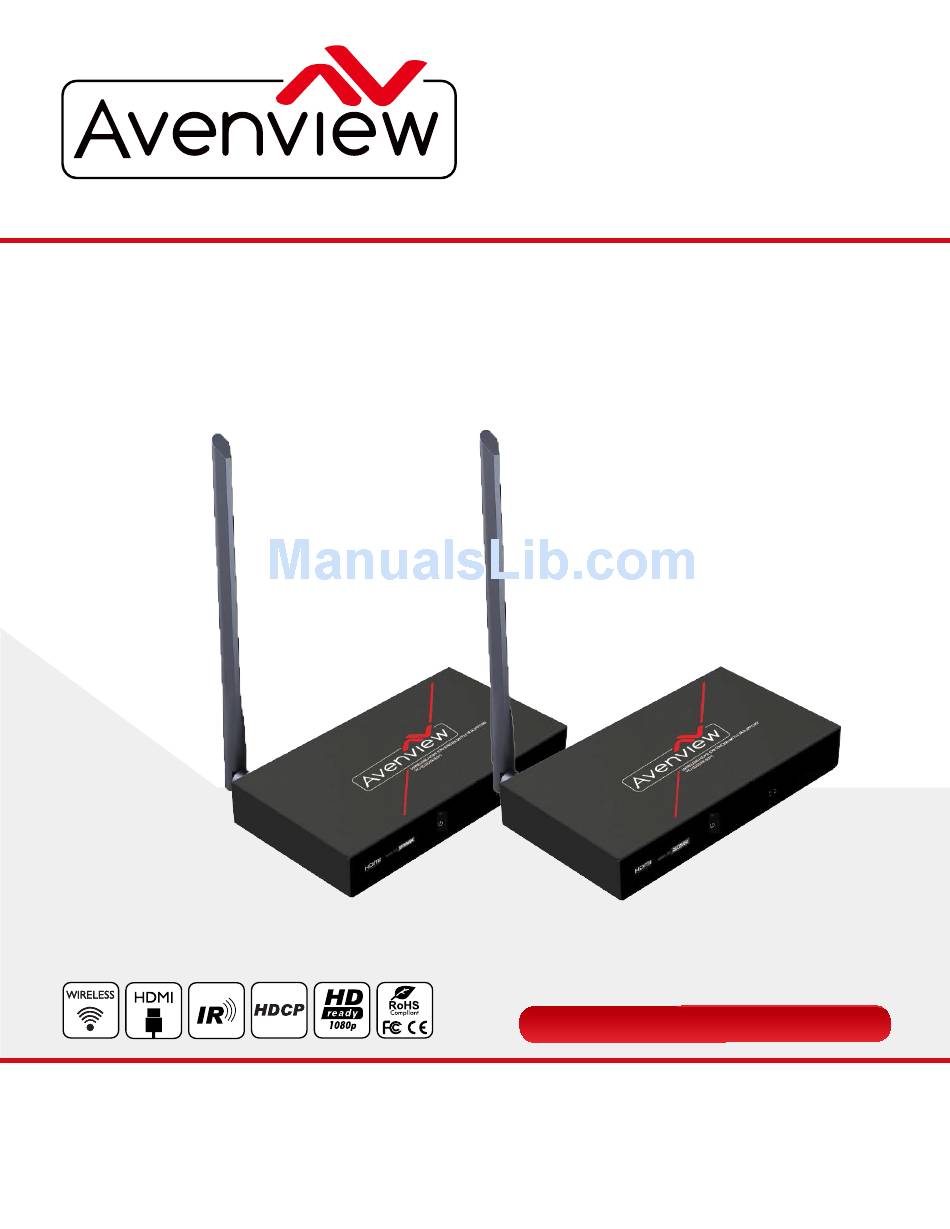

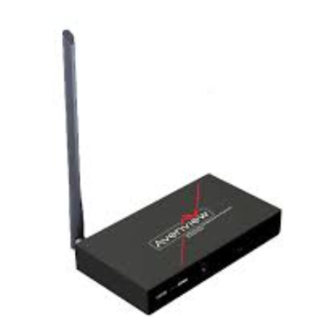

Wireless 5G HDMI Extender with IR
© 2016 Avenview Inc. All rights reserved.
The contents of this document are provided in connection with Avenview Inc. ("Avenview") products. Avenview makes no representations or
warranties with respect to the accuracy or completeness of the contents of this publication and reserves the right to make changes to specifications
and product descriptions at any time without notice. No license, whether express, implied, or otherwise, to any intellectual property rights is granted
by this publication. Except as set forth in Avenview Standard Terms and Conditions of Sale, Avenview assumes no liability whatsoever, and disclaims
any express or implied warranty, relating to its products of Avenview Inc. is strictly prohibited.
Control Your Video
Support up to 50 Meters
VIDEO WALLS
VIDEO PROCESSORS
VIDEO MATRIX SWITCHES
EXTENDERS
SPLITTERS
CABLES & ACCESSORIES
Model #: W-HD3DIR-50M
WIRELESS
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Avenview W-HD3DIR-50M
Summary of Contents for Avenview W-HD3DIR-50M
- Page 1 No license, whether express, implied, or otherwise, to any intellectual property rights is granted by this publication. Except as set forth in Avenview Standard Terms and Conditions of Sale, Avenview assumes no liability whatsoever, and disclaims...
-
Page 2: Table Of Contents
1.3 REGulAToRy NoTICES fEDERAl CommuNICATIoNS CommISSIoN (fCC) ......2 INTRoDuCTIoN ..........................3 2.1 pACKAGE CoNTENTS ........................4 2.2 BEfoRE INSTAllATIoN ........................4 2.3 ApplICATIoN DIAGRAm ........................5 pANEl DESCRIpTIoN ........................6 INpuT pANEl (Transmitter, W-HD3DIR-50m-S) ................6 INpuT pANEl (Receiver, W-HD3DIR-50m-R) ................6 INSTAllATIoN (W-HD3DIR-50m) ....................7 GENERAl TRouBlESHooTING ....................8 SpECIfICATIoNS ..........................9 www.avenview.com... -
Page 3: Getting Started
The Avenview W-HD3DIR-50m, Wireless Extender has been tested for conformity to safety regulations and requirements, and has been certified for international use. However, like all electronic equipment’s, the W-HD3DIR-50m should be used with care. Read the following safety instructions to protect yourself from possible injury and to minimize the risk of damage to the unit. -
Page 4: Regulatory Notices Federal Communications Commission (Fcc)
Do NoT TAmpER WITH THE uNIT. DoING So WIll VoID THE WARRANTy AND CoNTINuED uSE of THE pRoDuCT. THE VIDEo BoARDS ARE VERy SENSITIVE To STATIC. plEASE ENSuRE If RACK mouNTED oR INSTAllED oN A SuRfACE, IT SHoulD BE IN A GRouNDED ENVIRomENT. www.avenview.com Page 2... -
Page 5: Introduction
INTRoDuCTIoN W-HD3DIR-50m, wireless extender set runs at 5GHz operation frequency to deliver HD video/audio 50 meters. This device kit make wireless connection by using WHDI Technology from HD media Source Devices such as HD Disc or content player, pC, Game Console or Set-Top-Box to any display Device for example lCD, plasma or lED TV or projector. -
Page 6: Package Contents
CoNTENTS Before you start the installation of W-HD3DIR-50m, please check package contents. WIRElESS TRANSmITTER WIRElESS RECEIVER poWER ADApTER (5VDC/2A) IR BLASTER EXTNSION IR RECEIVER EXTENSION uSER’S mANuAl BEfoRE INSTAllATIoN • put the product in an even and stable location. If the product falls down or drops, it may cause an injury or malfunction. -
Page 7: Application Diagram
The W-HD3DIR-50M is capable of wireless signal broadcasting for up to 3 receivers on the same sender over WHDI signal, this feature will allow signal broadcasting wirelessly to three different displays from the same sender source. -
Page 8: Panel Description
DESCRIpTIoN INPUT PANEL (Transmitter, W-HD3DIR-50M-S) POWER DC IN: Connect to power adapter provided in package RESET: Press RESET to refresh the link/connection between a sender and a receiver HDMI INPUT: Connect to source equipment such Blu-ray/Set Top Box players with HDMI cable... -
Page 9: Installation (W-Hd3Dir-50M)
INSTAllATIoN (W-HD3DIR-50m) To setup Avenview W-HD3DIR-50m please follow these steps for connecting to a device: 1. place the Transmitter unit in close proximity to the HDmI source device. 2. Connect the HDmI source device to HDmI IN port of the Transmitter by using a standard HDmI cable. -
Page 10: General Troubleshooting
• If no picture after Step 1, press RESET button on EITHER the TX or RX • If no picture after Step 1 and step 2, power off units for 2 minutes, reconnect power and press RESET on BOTH TX and RX. www.avenview.com Page 8... -
Page 11: Specifications
SpECIfICATIoNS ITEM DESCRIPTION UNITS W-HD3DIR-50m-S (Transmitter) W-HD3DIR-50m-S (Receiver) UNIT DESCRIPTION WIRElESS Transmitter WIRElESS Receiver OPERATING FREQUENCY 5.1GHz to 5.9 GHz 5.1GHz to 5.9 GHz BANDWIDTH 20mhz/40mhz Downlink Channel: ofDm 16-QAm; MODULATION MODE uplink Channel: ofDm-ooK AUDIO FORMAT I2S; pCm; SpDIf; AC-3; DTS; Dolby 5.1/7... - Page 12 PARTS: During the Warranty Period of of THREE (3) YEARS, Avenview will supply new or rebuilt replacements in exchange for defective parts of the product(s) at no cost if the product(s) is determined to have abide by Avenview’s published guidelines. Cost of Parts applicable to product(s) after Warranty Period. For part(s) costs, please contact support@avenview.com.
-
Page 13: Technical Support
Disclaimer While every precaution has been taken in the preparation of this document, Avenview Inc. assumes no liability with respect to the operation or use of Avenview hardware, software or other products and documentation described herein, for any act or omission of Avenview concerning such products or this documentation, for any interruption of service, loss or interruption of business, loss of anticipatory profits, or for punitive, incidental or consequential damages in connection with the furnishing, performance, or use of the Avenview hardware, software, or other products and documentation provided herein.
