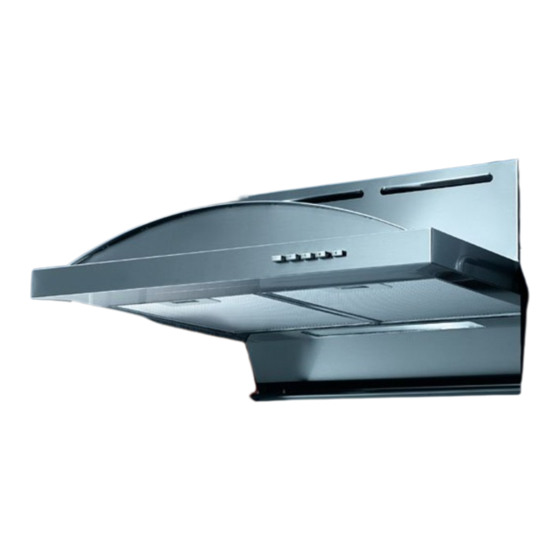

- Page 1 BT16SS Cooker Hood...
- Page 2 User Manual for your Baumatic BT16SS Cooker Hood 60cm Cooker Hood in Stainless Steel You will be mine NOTE : This User Instructio Manual contains important information, including safety & installation points, which will enable you to get the most out of your appliance. Please keep it in a safe place so that it is easily available for future reference;...
-
Page 3: Table Of Contents
IMPORTANT SAFETY INFORMATION 5 – 7 Specifications of you r cooker hood Usin g your Baumatic cooker hood Cleaning your Baumatic cooker hood The grease filter aintenance Removing and cleaning the grease filter hanging a light bulb itting the carbon filters... -
Page 4: Environmental Note
ENVIRONMENTAL NOTE Note: Before discarding an old appliance, switch off and disconnect it from the power supply. Cut off and render any plug useless. Cut the cable off directly behind the appliance to prevent misuse. This should be underta by a com person. -
Page 5: Important Safety Information
IMPORTANT SAFETY INFORMATION Your safety is of the utmost importance to Baumatic. Please make sure that you read this instruction booklet before attempting to install or use the appliance. If you are unsure of any of the information contained in this booklet, please contact the Baumatic Technical Department. - Page 6 o The edges of the cooker hood are sharp – be mindful of this as you handle your appliance, especially during installation and cleaning. D O NOT CLEAN IN BEHIND THE GREASE F ILTERS! o If the room where the cooker hood is to be used contains a fuel burning appliance such as a central heating boiler then its flue must be of the sealed or balanced flue type.
- Page 7 Remember that when in extraction mode, your cooker hood is removing air from your room. Ensure that proper ventilation measur es are being observed. Note that it removes odours from your room, not steam. Warning - Always ensure that the cooker hood has been disconnected from the power supply before carrying out any wor on the hood, including replacing light b...
-
Page 8: Specifications Of Your Cooker Hood
Specifications of your cooker hood Congratulations on purchasing a Baumatic Cooker Ho d ENSIONS: idth 600 mm 500 mm He h ig t 160 mm Your stainless steel Cooker Hood is fitted with: o Push button control o 3 Speeds... -
Page 9: Using Your Baumatic Cooker Hood
Using your Baumatic cooker hood To use your cooker hood o Make sure that it has been installed by a suitably qualified person, as per the information contained in Baumatic’s installation instructions. o Find the control panel, which is located at the front right of the canopy. -
Page 10: Cleaning Your Baumatic Cooker Hood
Baumatic cooker hood IMPORTANT: BEFORE CLEANING, ALWAYS ENSURE THAT YOU HAVE SWITCHED YOUR COOKER H OOD OFF AT THE OMNI-POLAR SWITCH, SET AT THE WALL FROM THE CABLE. lean o Clean the external parts of your cooker hood with mild liquid detergen t and a new damp cloth. -
Page 11: Maintenance
Maintenance Removing and cleaning the grease filter o First remove the grease filter b pulling down on it. o Undo the side catches. o Soak the grease filter in hot water and washing up liquid fo about an hour. Rinse them off thoroughly with hot water. o Repeat the process if required. -
Page 12: C Hanging A Light Bulb
hanging a light bulb IMPORTANT: BEFORE ATTEMPTING TO CHANGE A LIGHT BULB, YOU MUST ENSURE THAT YOU HAVE DISCONNECTED THE COOKER HOOD FROM YOUR MAINS SUPPLY. o Remove the grease filters (as described on page 11). Prior to touching the light bulbs ensure they are cooled down. o Find the bulb that requires repla cement, you will find it located in the light fixture which is inside the exposed section of the... -
Page 13: F Itting The Carbon Filters
itting the carbon filter the appliance is being used to be used in recirculation mode then it necessary to fit carbon filters. This will help to absorb unpleasant dours caused by cooking. IMPORTANT: BEFORE ATTEMPTING TO FIT OR REMOVE THE CARBON FILTERS, YOU MUST ENSURE THAT YOU HAVE DISCONNECTED THE COOKER HOOD FROM YOUR MAINS SUPPLY. -
Page 14: Installation
Installation IMPORTA NT: Before installation and usage, read all the instructions and make sure that the voltage (V) and the frequency (Hz) indicated on the rating plate are exactly the same as the voltage and frequency in your home. The rating plate can be found behind the grease filters. -
Page 15: B Efore Beginning Installation
You will only find two wires in the main’s lead (blue and brown), neither must be connected to the earth terminal. o As the colours of the wires in the appliance’s mains lead may not correspond wit h the coloured markings identifying the termina in your spur bo x, please proceed as follows: o The bl... -
Page 16: In Stalling Your Cooker Hood
o In addition check whether there is an electrical socket available, which will be accessible afte r the hood is mounted. If you are going to use the appliance in extractor mode, you should also ensure that there is space to connect a fumes discharge device to the outside. -
Page 17: Connecting To External Ducting (Part 1)
onnecting to external ducting (part 1) MPORTANT: If you are going to duct your product externally, then you must fo llow these steps before following the rest of the installati instructions. o Place the hood against the wall that you are going to install it on and mark the position of the exhaust hole. -
Page 18: Installing Your Cooker Hood (Part 2)
Installing your cooker hood (part 2) 1) Pla ce the hood against the wall and mark the positions for the suppo rting bracket bolt holes. The hood can either be secured to the underneath of a cupboard or secured to the wall behind the hood. o You should mark the holes that are relevant to the installation that you are going to complete. -
Page 19: Connecting To External Ducting (Part 2)
3) Hang the cooker hood on the upper support screws and then insert the bottom support screws. IMPORTANT: For external ducting, please refer to the section below, before fully tightening the support screws. o Fully tighten the top and bottom support screws. Connecting to external ducting (part 2) Your hood will be set up so that the ducting hose collar and ducting hose can be connected to the hole in the top of the hood. - Page 20 o Connect a 125 mm ducting hose to the ducting hose collar (please note that the ducting hose is not supplied with the appliance). o The other end of the ducting hose should be connected to your discharge outlet that is suitable for cooking vapours. It should have a cross section of at least 150 cm².
-
Page 21: Extraction Mode Or Recirculation Mode
Extraction mode or recirculation mode? hat is the d ifference between extraction and recirculation modes? To get optimum performance from your cooker, the air will be taken out of the room via external ducting. Unfortunately if you live in a flat or the hood is too far from an outside wall, this may not be possible. -
Page 22: Troubleshooting
IMPORTANT: If your cooker hood appears not to be operating properly, before contacting the Baumatic Service Department, lease refer to the checklist below. My cooker hood will not start. Check that the hood is connected to the electricity supply o Check that the fan speed control is set correctly. -
Page 23: Baumatic Ltd. Conditions Of Guarantee
5 year parts warranty. Baumatic Ltd will provide free of charge the parts required to repair the appliance, only if they are fitted by a Baumatic engineer, for any defect that arises due to faulty materials or workmanship within a period of 5 years from the original purchase date. -
Page 24: Contact Details
Baumatic Ltd You will be mine Headquarters Baumatic Ltd. Baumatic Buildings, 6 Bennet Road, Reading, Berkshire RG2 0QX, United Kingdom Sales Telephone +44 118 933 6900 Sales Fax +44 118 931 0035 Service Telephone +44 118 933 6911 Service Fax...
