Buttons on TV

If you cannot locate your remote, you can use the TV panel buttons on
your TV to operate many TV features.
CH+/-
Selects channels stored in the channel list or acts as the
up/down arrow (▲/▼) through the menu items.
VOL+/-
Increases/decreases the volume or acts as the right/left
arrow(◄/►) through the menu items
(MENU button) Brings up the TV's main menu.
(INPUT button) Selects the signal source.
(POWER button) Turns the TV on or to standby mode.

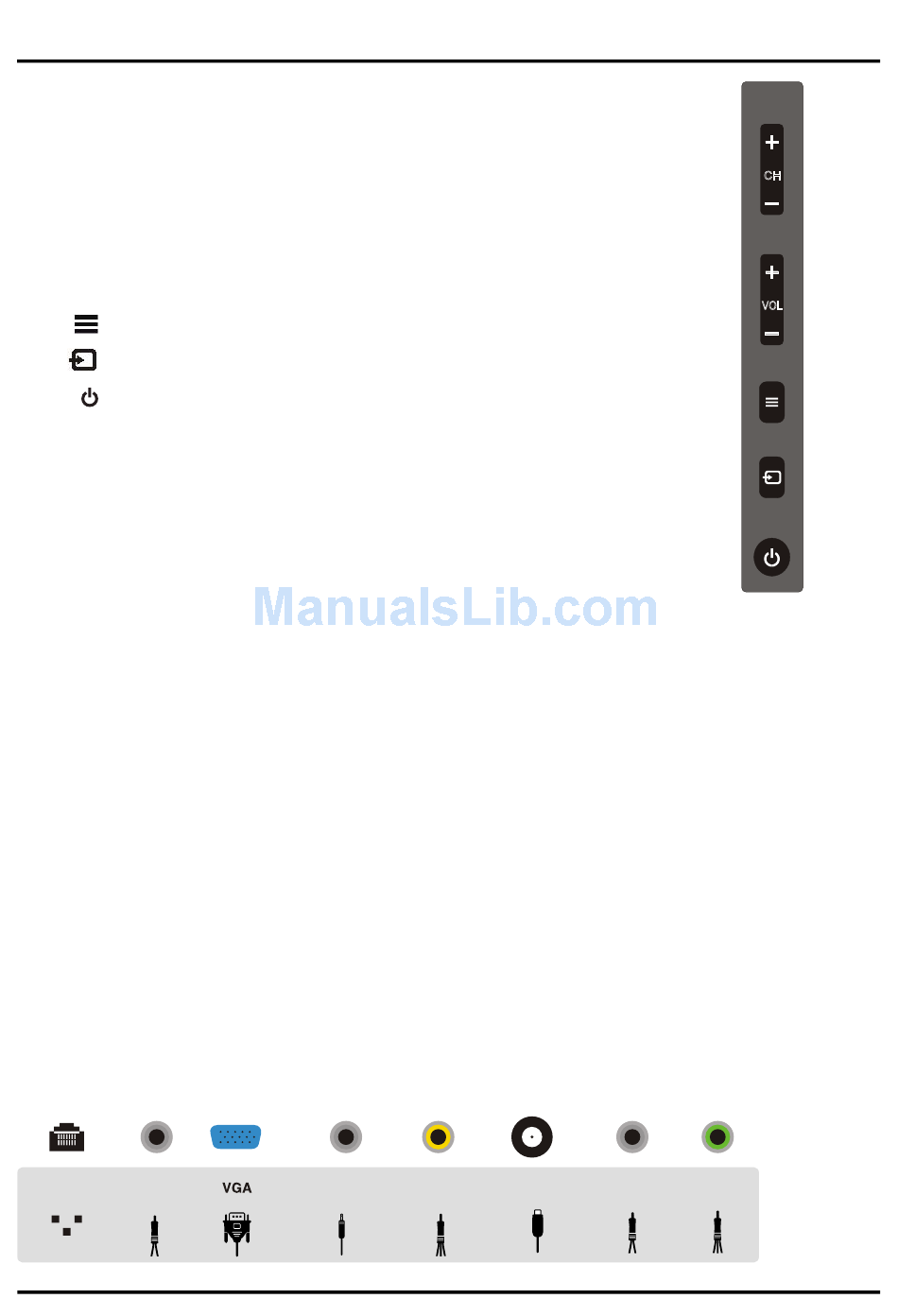

Explanation of Jacks on TV
This section describes the jacks on the side/back panel of your TV. There are
several ways to connect components.
Ethernet
Lets you connect an Ethernet cable to access the Internet.
AUDIO OUT Adapter
white jacks for R AUDIO and L AUDIO connection) Use an RCA audio cable to connect your TV to a compatible audio
receiver.
VGA (PC IN)
Connect your computer or other component with a VGA output to this jack using a 15-pin,D-sub cable.
DVI/PC AUDIO IN
(used for DVI/PC only) Provides audio connection when using HDMI/DVI INPUT 1 jack for DVI
or when using VGA (PC IN).
AV 2 IN adapter
Lets you connect a component that has composite video jacks, such as a VCR or DVD player. (Note
that you must connect an Audio/Video adpter cable with three color jacks to this adapter jack first, Yellow jack for VIDEO
connection, red and white jacks for R AUDIO and L AUDIO connection. For mono audio sources, be sure to use the L
AUDIO INPUT.)
ANTENNA/CABLE/SAT IN
cable box, satellite receiver.
CMPT AUDIO IN adapter
you must connect an Audio adpter cable with two color jacks to this adapter jack first, red and white jacks for R AUDIO
and L AUDIO connection. For mono audio sources, be sure to use the L AUDIO INPUT.)
CMPT IN (Y Pb Pr) adapter
player. (Note that you must connect a Component Video adpter cable with three color jacks to this adapter jack first:
Green jack for Y, Blue jack for Pb and Red jack for Pr )
• Y Pb Pr (Component Video) Provides good picture quality because the video is separated into three signals. Use
three video-grade or component video cables for the connection.
Ethernet AUDIO OUT
adapter
(you must connect an audio adpter cable with two color jacks to this adpater jack first, red and
Lets you connect a coaxial cable to receive the signal from your antenna, cable, or
Provides left and right audio connection when using the CMPT VIDEO input. (Note that
Lets you connect a component that has component video jacks, such as a DVD
DVI/PC
AUDIO IN
PC IN
Connections and Setup
.
ANTENNA
AV 2 IN
adapter /CABLE/SAT IN
6
CMPT AUDIO CMPT IN
IN adapter adapter
CH
VOL
