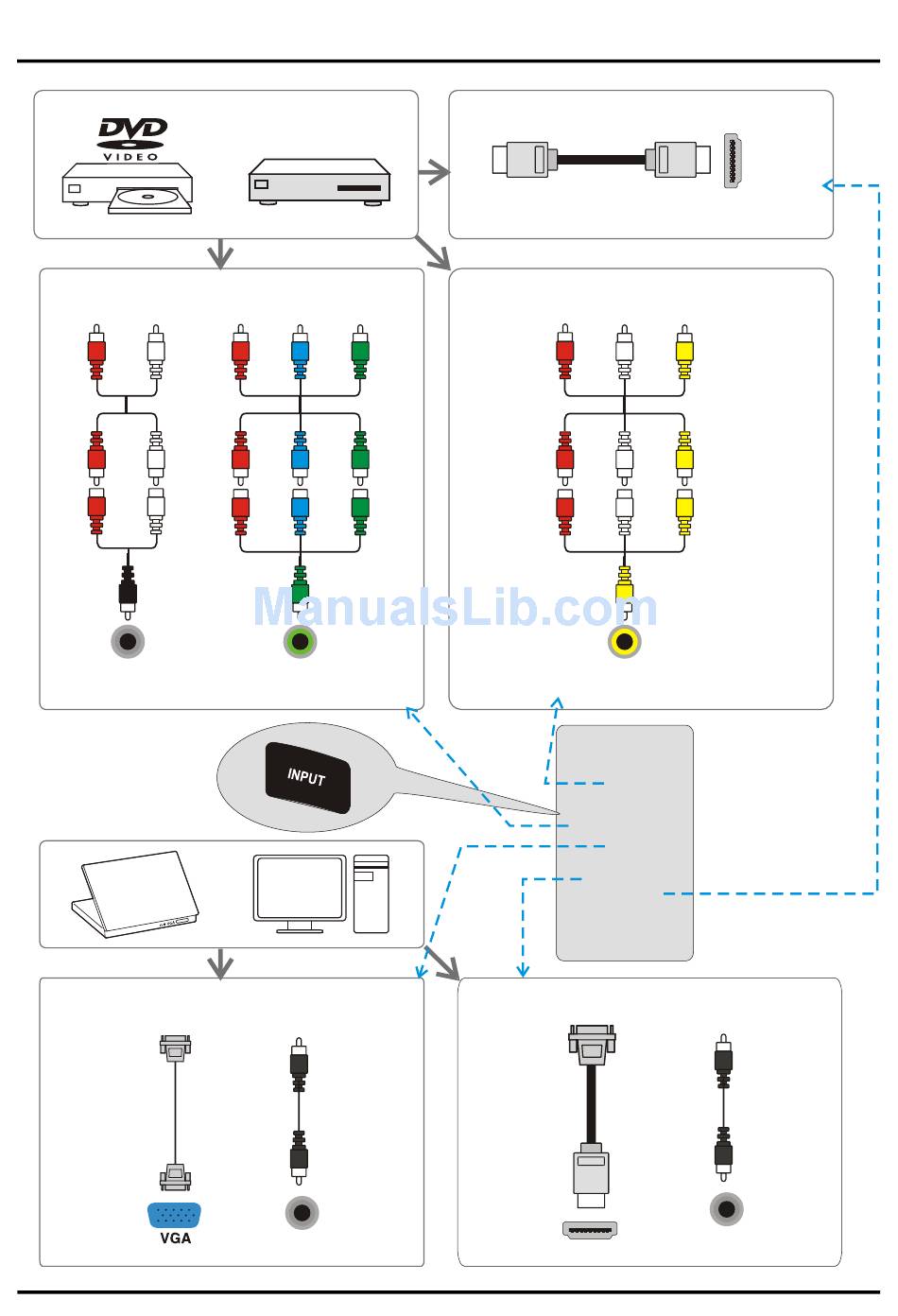

Connections Layout - TCL LE32HDE5200 User Manual

or
Component Video Connection (Better)
R L Pr
AUDIO
AUDIO
R L Pr
R L Pr
CMPT Audio
adapter cable
CMPT AUDIO
IN adapter
or
PC Connection
VGA
cable
Set-top box
Pb Y
Pb Y
Pb Y
CMPT Video
adapter cable
CMPT IN
adapter
Audio
cable
DVI/PC
AUDIO IN
Connections and Setup
HDMI Connection (Best)
HDMI cable
(Same connnection to HDMI 1 IN, HDMI 3 IN and HDMI 4 IN)
Composite Video Connection (Good)
R L
AUDIO
AUDIO
R L
R L
AV 1 IN
or
adapter
Main
TV
AV 1
AV 2
Component
PC
HDMI 1
HDMI 2
HDMI 3
HDMI 4
HDMI/DVI Connection
HDMI-DVI
conversion
cable
HDMI 1/DVI IN
8
HDMI 2 IN
VIDEO
VIDEO
Audio/video
adapter cable
AV 2 IN
adapter
Audio
cable
DVI/PC
AUDIO IN
