Summary of Contents for Achieve F000018

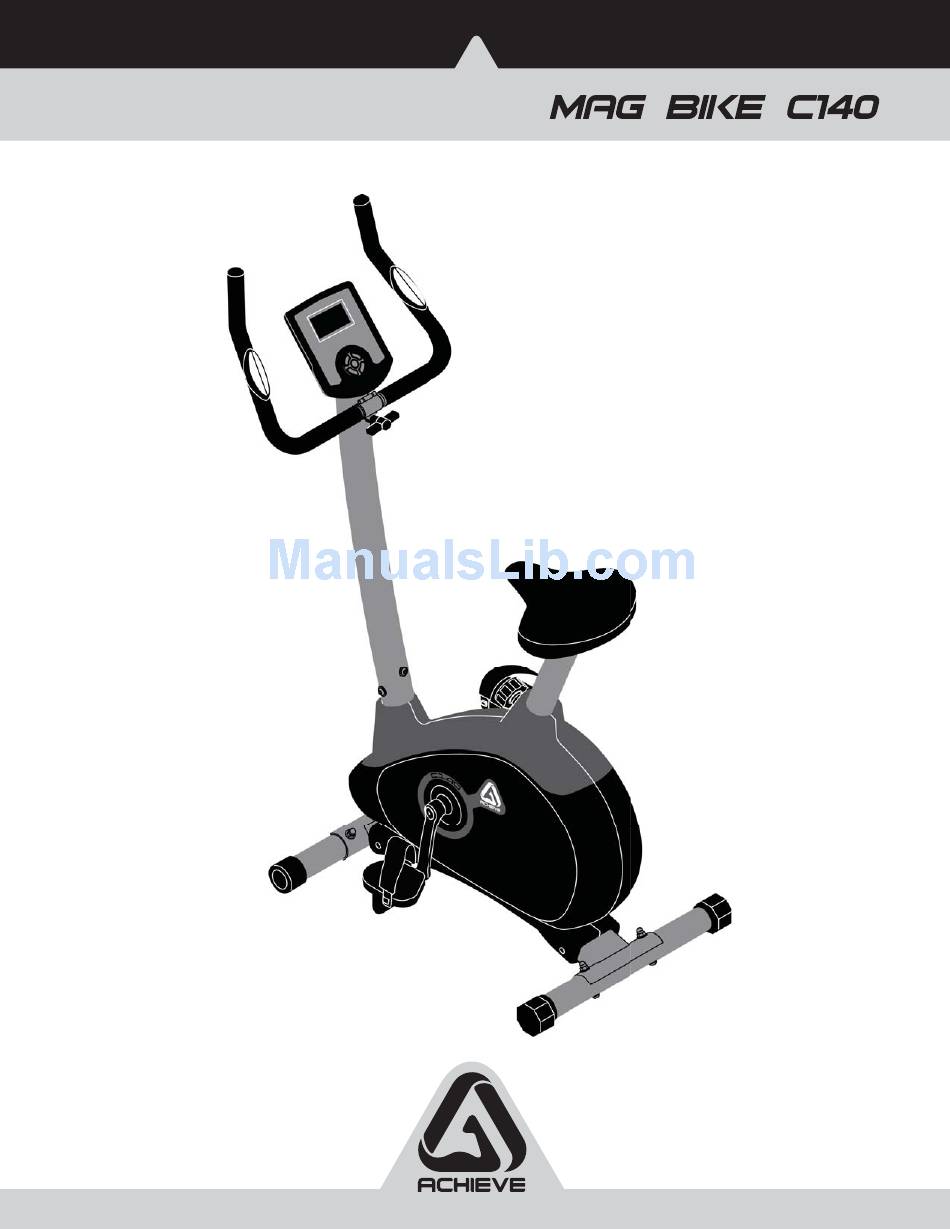

- Page 1 OWNER’S MANUAL MODEL: F000018 Freecall for service 1-800-465-070 www.actionsports.com.au...
-
Page 2: Exploded View
Exploded View Freecall for service 1-800-465-070 www.actionsports.com.au... - Page 3 Part List ITEM Q’TY ITEM Q’TY PART NAME PART NAME Frame Adjustment Channel Console Tube 3/8"x26mm Cap Nut Seat Post Sensor Wire With Sensor Front Foot Tube TP M3x8mm Screw Rear Foot Tube Extension Wire Locking Knob (31mmL) DC Power Cord Pulley Tension Cable (Drive Cable) Mag Brake...
-
Page 4: Table Of Contents
Table of Contents Page Exploded View _____________________ Parts List __________________________ Important Safety Information _____________ Before You Start _____________________ Assembly Instruction _________________ __ Console ___________________________ Monitoring Your Heart Rate ____________ Warranty / Service ___________________ Freecall for service 1-800-465-070 www.actionsports.com.au... -
Page 5: Important Safety Information
Important Safety Information WARNING! Before using this unit or starting any exercise program, consult your physician. This is espe- cially important for persons over the age of 35 and/or persons with pre-existing health prob- lems. The manufacturer or distributor assumes no responsibility for prsonal injury or property damage sustained by or through the use of this product. -
Page 6: Before You Start
Before You Start Thank you for purchasing this new Achieve Mag Bike! This quality product you have chosen was designed to meet your needs for cardiovascular exercise. Before you start, please read th Owner's Manual and become familiar with the operation of your new unit. -
Page 7: Assembly Instruction
Assembly Instruction REMOVE ALL SECURITY TAPE AND WRAPPING BEFORE BEGINNING 1. Attach Foot Tubes (4 & 4A) to Main Frame (1) using : Qty 4 –(16) Carriage Bolt Qty 4 –(27) Washer Qty 4 –(60) Nut Cap Make sure that the Foot Tube (4 &4A) with Transport Wheels (13) and Foot End Caps(15) are assembled to the front and rear of the Main Frame (1). - Page 8 Assembly Instruction 3. Turn Locking Knob (5) counterclockwise to loosen and pull back to hold on, at the same time slide the Seat Post (3) into Main Frame (1), then release the Locking Knob(5) to spring into the hole of Seat Post for proper seat height. * IMPORTANT Locking Knob (5) must be to locked clockwise tightly into hole in Seat Post (3) before you sit on the seat.
- Page 9 Assembly Instruction 5. Connect the pins of Extension Wire(38) from the console tube to the Sensor Wire (36), Gear Box Wire (8) and DC Power Cord (39) in the main frame. Then slide the Console Tube (2) onto the Main Frame Assembly and secure the Console Tube (2) to the main frame.
- Page 10 Assembly Instruction 7. To change KM or ML , please push the switch to select scale (KM or ML) 8. Connect the Pulse Wires (42) and Extension Wire (38) to the wires out from Monitor (14). Secure Monitor (14) to Console Tube using Screws (43). Note: The Screws(43) will already be installed into the back of Monitor (14) when you remove it from the box.
-
Page 11: Console
Console The console with large back-lit LCD which can display RPM, SPEED, TIME, DISTANCE, CALORIES, WATTS, and HEART RATE. ___________ Power On Press any button to turn on the console. A long beep will sound and the entire LCD display will light up for 2 seconds. Sleep This occurs if the unit senses no pedal movement or if the console buttons have not been pressed for 3 minutes... -
Page 12: Monitoring Your Heart Rate
Monitoring Your Heart Rate To obtain the greatest cardiovascular benefits from your exercise workout, it is important to work within your target heart rate zone. The American Heart Association (AHA) defines this target as 60%-75% percent of your maximum heart rate. Your maximum heart rate may be roughly calculated by subtracting your age from 220. - Page 13 Monitoring Your Heart Rate Freecall for service 1-800-465-070 www.actionsports.com.au...
-
Page 14: Warranty / Service
This warranty does not extend to any damage to a product caused by abuse, improper or abnormal usage, or repairs not provided by ACHIEVE. Nor does this warranty extend to products used for commer- cial or rental purposes. This warranty does not cover ordinary wear, tear and weathering, failure to follow directions, improper installation, improper maintenance or acts of God (such as damage caused by storms, lightning and by snow or ice).
