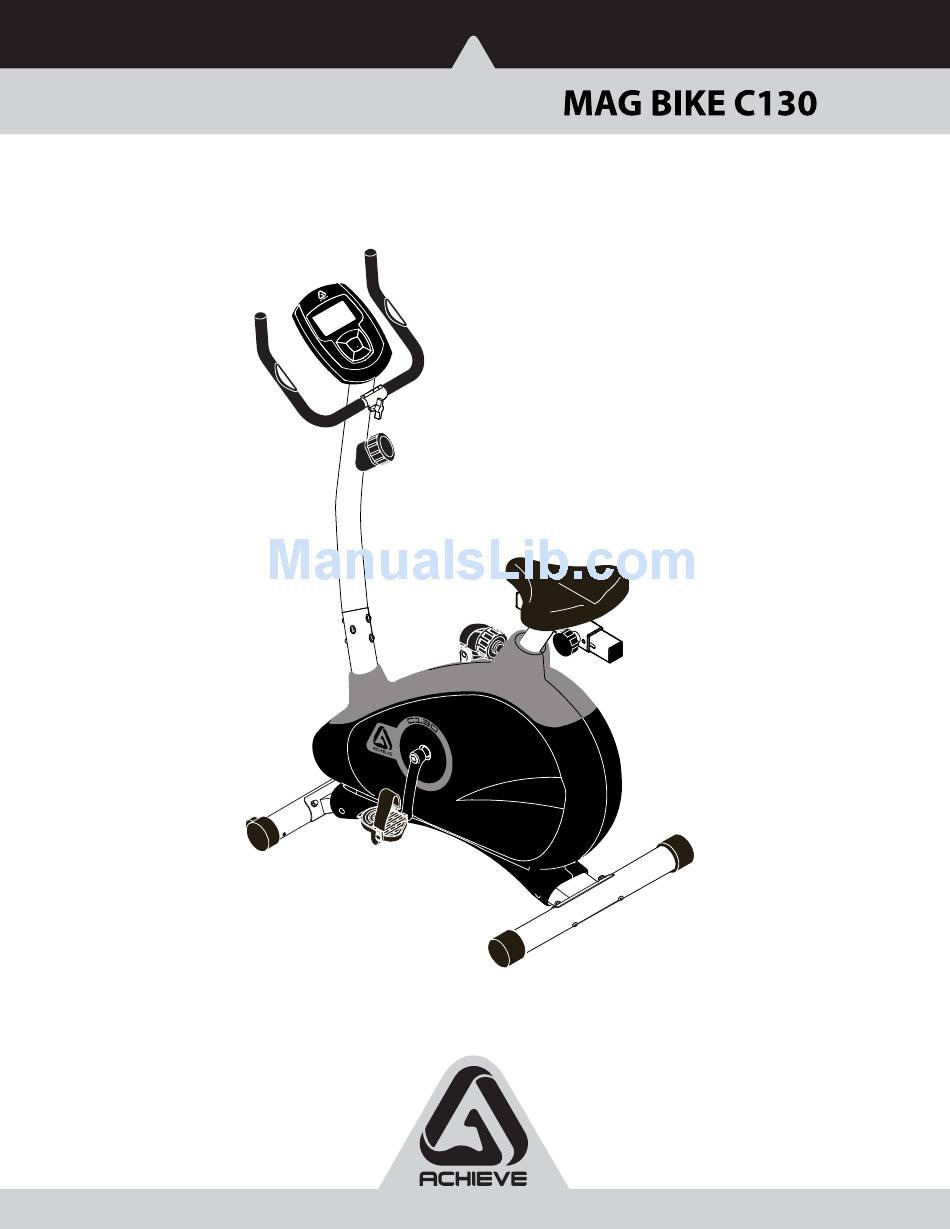

- Page 1 OWNER’S MANUAL MODEL: ACH0009 Freecall for service 07 3272 7010 www.bfe.net.au...
-
Page 2: Table Of Contents
Table of Contents Page Exploded View ______________________ Part List ___________________________ Important Safety Information _____________ Before You Start _____________________ Assembly Instruction _________________ __ Console ___________________________ Monitor Heartrate ___________________ Warranty / Service ___________________ 15 Freecall for service 07 3272 7010 www.bfe.net.au... -
Page 3: Exploded View
Exploded View Freecall for service 07 3272 7010 www.bfe.net.au... -
Page 4: Part List
Part List ITEM Q’TY PART NAME ITEM Q’TY PART NAME Main Frame Assembly Sensor Wire With Sensor Console Tube TP 3x8mm Screw Seat Post Extension Wire Front Foot Tube Tension Cable Bracket Rear Foot Tube M5x50mm Screw Locking Knob (31mmL) Handlebar Sleeve Pulley Hand Pulse Sensor w/ Wire... -
Page 5: Important Safety Information
Important Safety Information WARNING! Before using this unit or starting any exercise program, consult your physician. This is especially important for persons over the age of 35 and/or persons with pre-existing health problems. The manufacturer or distributor assumes no responsibility for personal injury or property damage sustained by or through the use of this product. -
Page 6: Before You Start
Before You Start Thank you for purchasing this new Achieve Mag Bike! This quality product you have chosen was designed to meet your needs for cardiovascular exercise. Before you start, please read the Owner's Manual and become familiar with the operation of your new unit. -
Page 7: Assembly Instruction
Assembly Instruction REMOVE ALL SECURITY TAPE AND WRAPPING BEFORE BEGINNING 1. Attach Foot Tubes (4 & 4A) to Main Frame (1) using : 16 M8x60mm Carriage Bolt x 4 27 M8x19mm Curve Washer x 4 42 M8 Nut Cap x 4 Turn Locking Knob (5) counterlockwise to loosen, pull back to unlock as you slide the Seat Post (3) in. - Page 8 Assembly Instruction 45 M8x19mm Washer x 3 46 M8 Lock Nut x 3 Turn Locking Knob (67) counterclockwise to loosen, pull the knob as you insert Seat Post Slider (68) IMPORTANT: Turn Locking Knob clockwise to secure seat before use. Freecall for service 07 3272 7010 www.bfe.net.au...
- Page 9 Assembly Instruction Note: Right Pedal (31) is marked with a “R”. Left Pedal (30 ) is marked with a “L”. Connect the wires 48 M8X15mm Hex Head Screw x4 49 M8x18mm Curved Washer x4 Freecall for service 07 3272 7010 .bfe.net.au...
- Page 10 Assembly Instruction 7. Insert two wires from Handlebar (10) into Console Tube (2). Pull the wires out from Console Tube (2). 8. Insert the batteries provided into the back of the Monitor Freecall for service Freecall for service www.actionsports.com.au www.bfe.net.au...
- Page 11 Assembly Instruction 9. Connect the Pulse Wires (42) and Extension Wire (38) to the wires from Monitor (14). Secure Monitor to Console Tube using four Screw (43) from under the Monitor. Freecall for service Freecall for service www.actionsports.com.au www.bfe.net.au...
- Page 12 Console Batteries Installation Please install 2 pieces of AA 1.5V batteries in the battery case on the back of monitor. (Whenever Batteries are removed, all the functions values will be reset to zero.) Auto On/Off While the user starts to do exercise, the Display will show out the workout value automatically.
- Page 13 Monitoring Your Heartrate To obtain the greatest cardiovascular benefits from your exercise workout, it is important to work within your target heart rate zone. The American Heart Association (AHA) defines this target as 60%-75% percent of your maximum heart rate. Your maximum heart rate may be roughly calculated by subtracting your age from 220.
- Page 14 Monitoring Your Heartrate Freecall for service Freecall for service www.actionsports.com.au www.bfe.net.au...
