Saunatec 1106-105 Installation And Operating Instructions Manual page 4

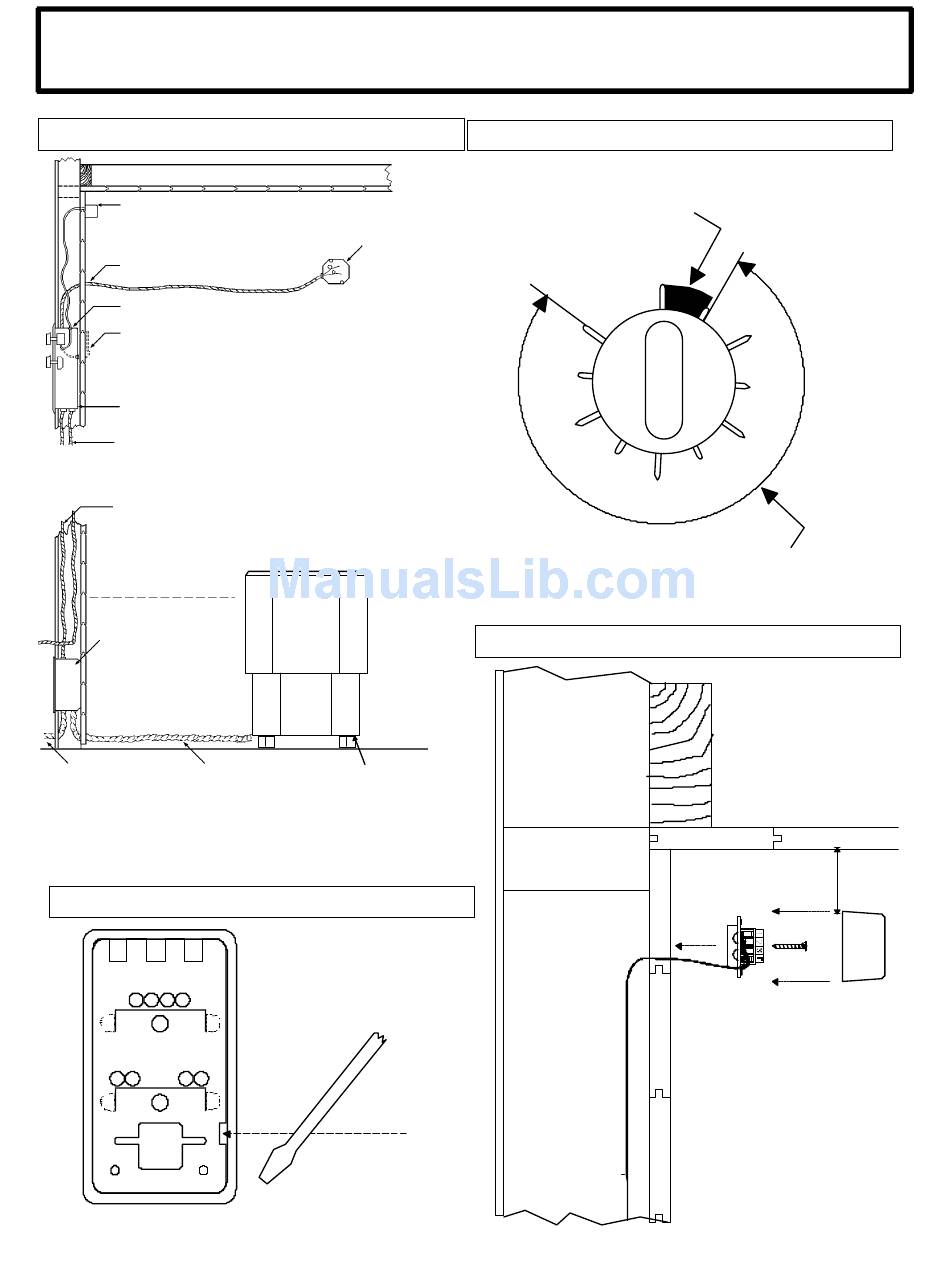

DIAGRAM 3
Sensor protective cover. Locate
top of sensor 1½" from ceiling
directly above center of heater.
(2) #14 AWG 90°C wires and
ground to control.
Screw control box to 2x4
blocking stud.
Note: if sensor wire is exposed on
surface of the sauna wall cover with
wooden molding.
Temperature control box. Face out from
sauna room five feet up from floor.
Optional separate light circuit, if control light
switch used.
Control circuit wire.
1201-7-1 or
1201-7-3 with 19-8
Contactor
(See Note 1
below.)
Power input Power from contactor flex
to contactor. conduit. Provide three feet
into room during rough-in.
Note 1: The contactor box may be mounted anywhere outside the sauna room. A
location should be selected so the front cover is accessible for service and the noise
of the contactor pulling in will not be a nuisance.
DIAGRAM 5
05-4211-710 05/11/01
INSTALLATION AND OPERATING INSTRUCTIONS
(19-8...+1201-...)
Room light outlet box 70
inches up from floor. Do not
locate directly over heater.
High Limit
reset.
Back of
sensor
Insert screwdriver tip
here to unsnap sensor
cover from sensor.
DIAGRAM 4
ONE HOUR OPERATING ZONE FOR 9 HOUR DELAY TIMER
This area from "OFF" to "ON" is the operating zone. This is
the only time the heater is on.
OFF
9
8
7
6
5
DELAY ZONE
This area from "9" to "ON" is the delay zone, meaning the
heater can be programmed to come on up to nine hours
later. The heater will not operate in this area.
DIAGRAM 5, continued
Page 4
(19-8-1517)
ON
1
2
3
4
1½" from ceiling
to top of sensor
314 SKLF 17 A
