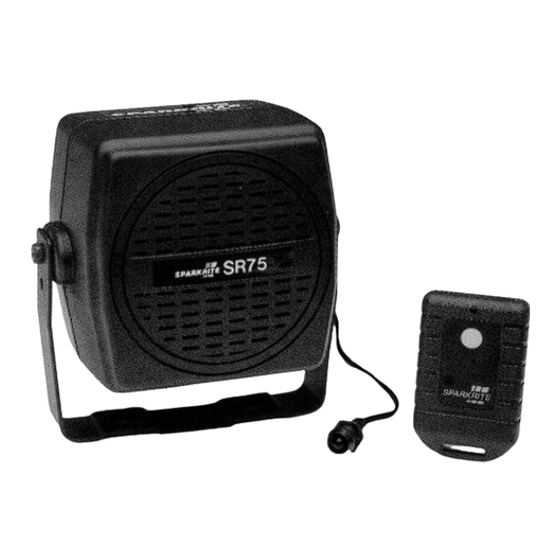

Remote control car alarm system

Advertisement

REMOTE CONTROL
CAR ALARM
SR75H
SYSTEM
Technical Help Line - 01429 862616
Email : technicalsupport@stadium.co.uk

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SR75H and is the answer not in the manual?

Questions and answers

Summary of Contents for Sparkrite SR75H

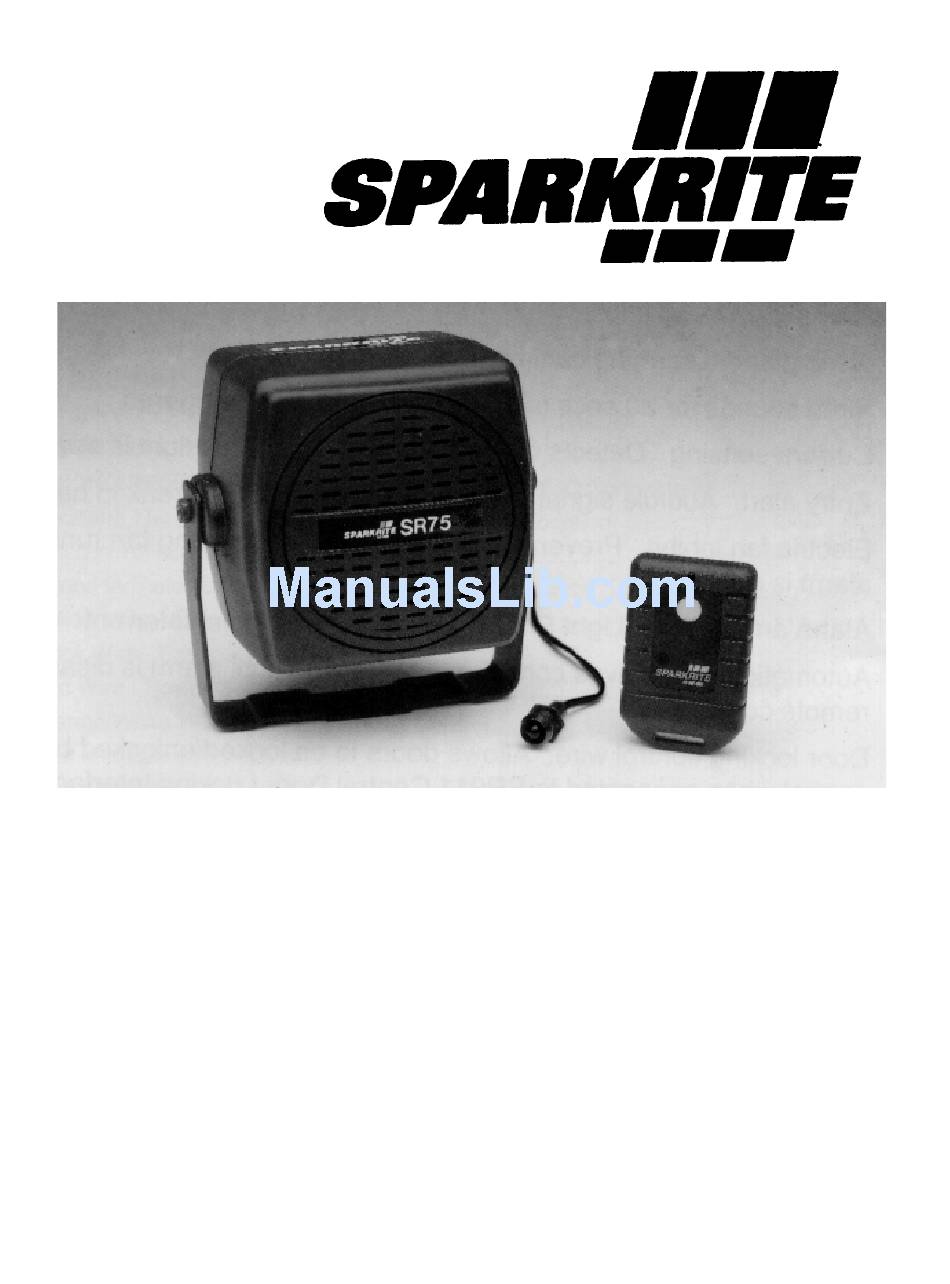

  • Page 1 REMOTE CONTROL CAR ALARM SR75H SYSTEM Technical Help Line - 01429 862616 Email : technicalsupport@stadium.co.uk...
  • Page 2 • Door locking control wire. Allows doors to be locked/unlocked by remote control when connected to SR911 Central Door Locking Interface. • Sensor connection. Quick fit plug allows connection of optional ultrasonic detector units. SR75H REMOTE CONTROL CAR ALARM SYSTEM...
  • Page 3: Table Of Contents

    SPARKRITE SR75H REMOTE CONTROL CAR ALARM SYSTEM The Sparkrite SR75H compact remote control car alarm system incorporates the latest “state of the art” microprocessor technology offering the ultimate in product reliability and performance. The unique easy-fit design offers easy installation and ensures many years of trouble free operation.
  • Page 4: Operating Your Sr75H Alarm System

    The radio remote control transmitter conforms to DTI legislation with each unit allocated a unique security code. Additional remote controls are available on special order from your nearest stockist or direct from Sparkrite using the enclosed order form, quoting your serial number located on the back of the remote control.
  • Page 5: Fitting Instructions

    FITTING INSTRUCTIONS IMPORTANT: • Your SR75H is suitable for 12V negative earth vehicles only. • Refer to Car Owners manual for the procedure for disconnection of your battery before commencing the installation of this alarm. • The vehicle battery must be disconnected during the installation procedure except where it is necessary to carry out circuit testing specified.
  • Page 6: Mounting The Main Alarm Module And Harness Location

    Secure the alarm to the bracket using the small bolts supplied making sure that front face of the alarm is kept vertical (facing the front of the vehicle) to ensure effective operation of the shock sensor. SR75H REMOTE CONTROL CAR ALARM SYSTEM...
  • Page 7: Sr75H Wiring Connections

    You can now make connections to the car wiring as shown ALL the wires must be connected in the order outlined in these instructions. SR75H WIRING CONNECTIONS SR75H REMOTE CONTROL CAR ALARM SYSTEM...
  • Page 8: Armed Indicator Led And Green Wire-Alarm Antenna

    Extend the GREEN wire and secure to the outside of the wiring harness to achieve optimum performance. Ensure the wire cannot come into contact with a hot surface, bare metal or immersed in water. SR75H REMOTE CONTROL CAR ALARM SYSTEM...
  • Page 9: Yellow Wire-Electric Fan Inhibit

    If the electric cooling fan still operates when the ignition is turned OFF then a connection from the SR75H must be made to prevent the current sensing function from false triggering the alarm. The cooling fan wiring will be configured as shown in Fig. 4 or 5.
  • Page 10: Red Wire-Power Supply Current Sensing

    RED WIRE-POWER SUPPLY AND CURRENT SENSING The SR75H is triggered by the operation of the interior light or any electrical circuit on the vehicle. This is detected by the RED power supply wire. The trigger sensitivity will vary from vehicle to vehicle depending on size and age of the car battery and the rating of the interior light bulb.
  • Page 11: Boot And Bonnet Switch

    BOOT AND BONNET SWITCHES If your vehicle is not fitted with Boot/Bonnet switches which operate the interior light these switches are available from Sparkrite as an accessory kit. The Switch Kit (Part No. SR910) should be installed and connected as shown in Fig. 6. Ensure the fixing screw for the...
  • Page 12: Testing The Alarm Installation

    Complete the installation by neatly securing the alarm wiring harness using tie wraps and/or insulation tape. WARNING: Failure to carry out these instructions will result in water ingress, false alarms and will invalidate any warranty claim. SR75H REMOTE CONTROL CAR ALARM SYSTEM...
  • Page 13: Trouble Shooting Guide

    To replace the battery remove the screw from the near of the casing and carefully separate the transmitter moulding. Replace with 12 volt Sparkrite battery Part No. SR904 observing correct polarity. ARMING AND DISARMING Pressing button on remote control lights the transmitter indicator LED but alarm does not arm/disarm.
  • Page 14: Sensor Connection (Optional)

    SENSOR CONNECTION (OPTIONAL) The SR75H has an additional sensor connection plug located at the rear of the main alarm unit. This enables easy plug in connection of an additional Sparkrite interior detector for maximum security. If not used the socket must be Insulated against water ingress.
  • Page 15: Technical Help And Product Approvals

    If you have any problems with the installation of this alarm and the problem cannot be solved by consulting the troubleshooting section of this manual, either consult your dealer or contact the Sparkrite Technical and After Sales Service (T.A.S.S) on 01429 862616.
