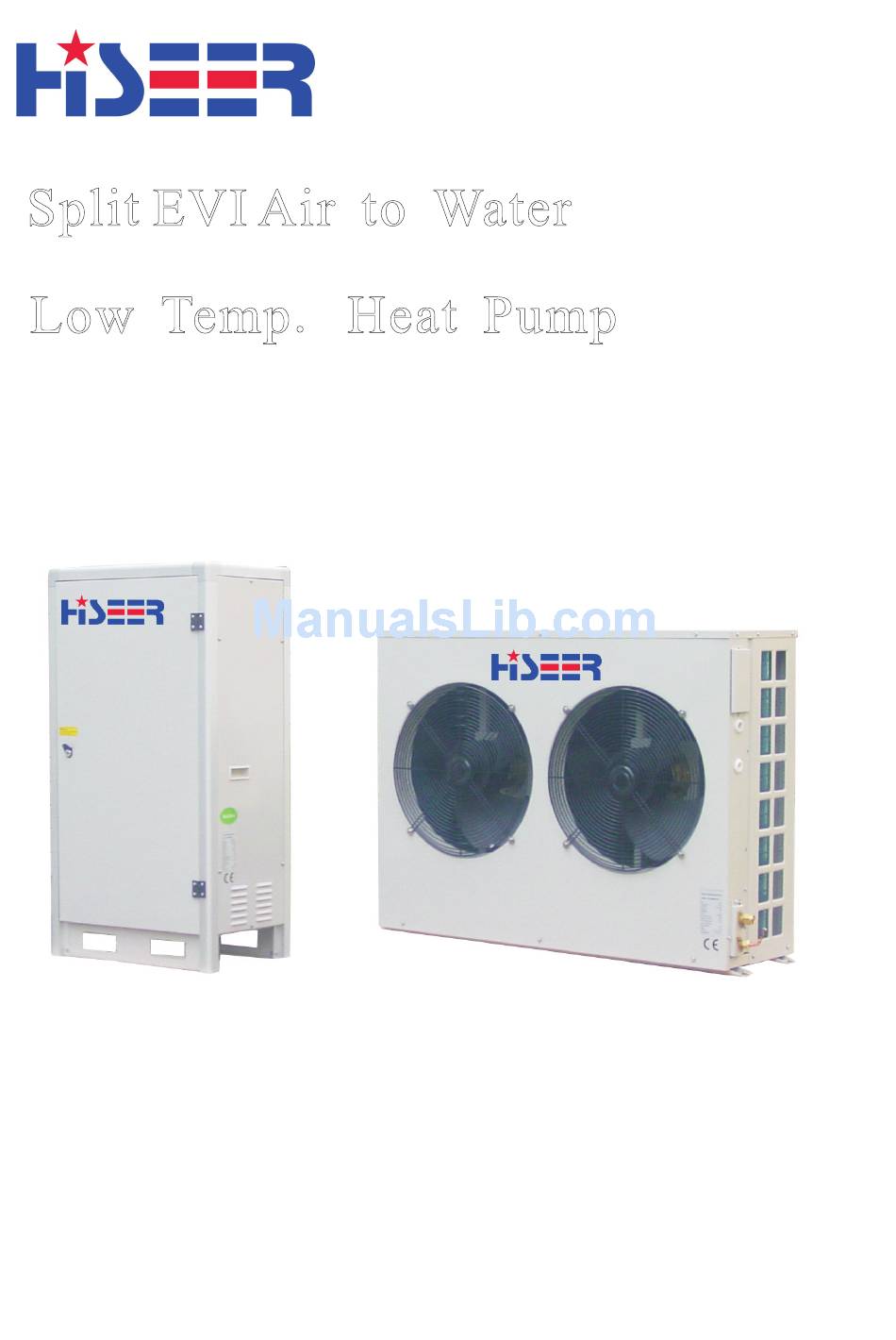

- Page 1 Split EVI Air to Water Low Temp Heat Pump www.chinaheatpump.com Guangzhou Hiseer Air Conditioning Co...

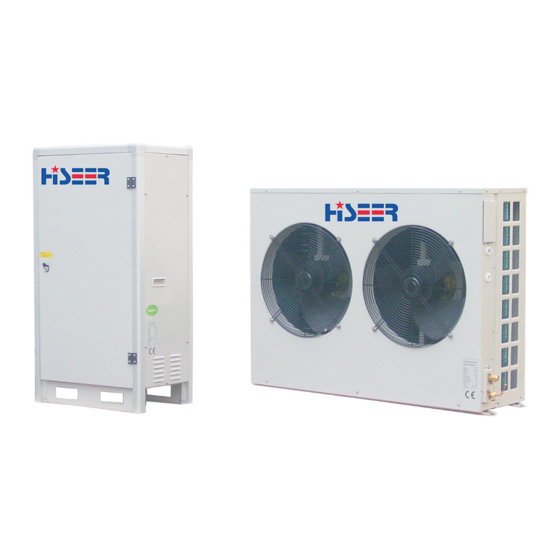

- Page 2 Hiseer Split EVI air to water heat pump AW13/F Triple functions: Heating ,cooling and produce domestic hot water Outdoor unit: Contains two fans (blades and motors) and aluminum finned copper coil heat exchanger Outdoor unit has not pre-filled refrigerant Indoor unit:...
- Page 3 Working principle The compressor contains two injection inlets on the compression room. the compression process is divided into two section. The compressor becomes two stage compression. As diagram below, compressor injection – compressing process could be divided into three states. compressor evaporator condenser...
-
Page 4: Technical Data
Technical data AIR TO WATER HEAT PUMP AW13/F 14.0/3.6 Heat output/Power consumption at 7/35 Heat output/Power consumption at 7/45 15.1/4.5 14.8/5.8 Heat output/Power consumption at 7/55 12.0/3.5 Heat output/Power consumption at 2/35 Heat output/Power consumption at 2/45 13.5/4.6 10.6/3.9 Heat output/Power consumption at -7/35 Heat output/Power consumption at -7/45 10.5/4.7... -
Page 5: Performance Curve
Performance curve Heating performance curve 1=Flow temperature 35 Full load 2=Flow temperature 45 Full load Ambient temp. Ambient temp. Ambient temp. -
Page 6: Outdoor Unit
Dimension Outdoor unit Indoor unit... -
Page 7: Water Pressure Drop
Water pressure drop AW13/F m3/h Optional internal water pump curve Maximum speed Medium speed Mini speed Flow (m3/H) - Page 8 Piping Outdoor unit Indoor unit Name Description Included Name Description Included Circulation pump Internal (Option) Inlet water temperature sensor Internal Electric heater Internal (Option) Out water temperature sensor Internal 3 way Valve Internal (Option) Outdoor temperature sensor Internal Hot water tank External Hot water temperature sensor Internal...
